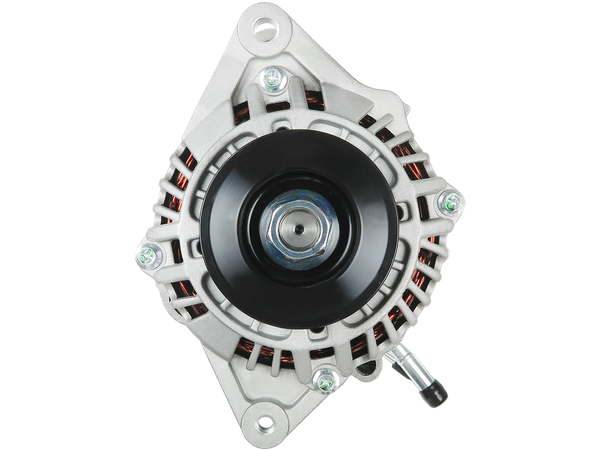

A5417S
Generatorer
STANDARD LINE
1590 kr
Köp nu
| EAN | 5902129144229 |
| Tillverkare | AS-PL |
| Ersätter | MITSUBISHI |
| OE-nummer | A2TN1199ZT |
| Datablad | Ladda ner PDF med skiss och mått |
Specifikationer
| Spänning [ V ] | 12 |
| Ström [ A ] | 75 |
| A-storlek [ mm ] | 42.00 |
| B-storlek [ mm ] | 13.00 |
| C-storlek [ mm ] | 54.50 |
| G [ qty. ] | 2 |
| O.D.1 [ mm ] | 55.00 |
| O.D.2 [ mm ] | 77.50 |
| W.1 [ mm ] | 9.50 |
| Remskiva | AP |
| D.1 [ mm ] | M8x1.25 |
| D.2 [ mm ] | 10.00 |
| D.3 [ mm ] | 10.00 |
| L.1 [ mm ] | 225.00 |
| Plug | PL_2004 |
| Vacuum pump | Yes |
Passar i 5 fordon
| Märke | Modell | Typ | Motor | Hk | Bränsle | År |
|---|---|---|---|---|---|---|
| MITSUBISHI | 2.5 TD (K64T) | L200 (K7_T, K6_T, K5_T) | 4D56-T | 90 | Diesel | 2001–2005 |
| MITSUBISHI | 2.5 TD (K94W) | PAJERO SPORT I (K7_, K9_) | 4D56-T | 99 | Diesel | 1998– |
| MITSUBISHI | 2.5 TD 4WD (K74T) | L200 (K7_T, K6_T, K5_T) | 4D56-T | 133 | Diesel | 2001–2007 |
| MITSUBISHI | 2.5 TD 4WD (K74T) | L200 (K7_T, K6_T, K5_T) | 4D56-TD | 99 | Diesel | 1996–2007 |
| MITSUBISHI | 2.5 TD 4WD (K74T) | L200 (K7_T, K6_T, K5_T) | 4D56-T | 115 | Diesel | 2001–2007 |
