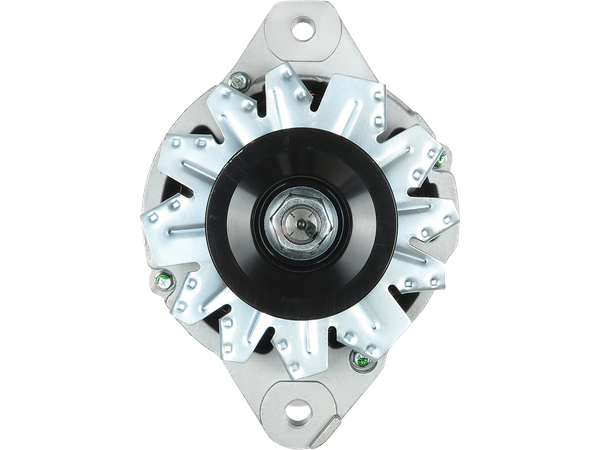

A5421S
Generatorer
STANDARD LINE
2024 kr
Köp nu
| EAN | 5902129146650 |
| Tillverkare | AS-PL |
| Ersätter | MITSUBISHI |
| OE-nummer | A4TU3586 |
| Datablad | Ladda ner PDF med skiss och mått |
Specifikationer
| Spänning [ V ] | 24 |
| Ström [ A ] | 50 |
| A-storlek [ mm ] | 46.00 |
| B-storlek [ mm ] | 14.00 |
| C-storlek [ mm ] | 80.50 |
| G [ qty. ] | 2 |
| O.D.1 [ mm ] | 50.00 |
| O.D.2 [ mm ] | 82.00 |
| W.1 [ mm ] | 16.00 |
| Remskiva | AP |
| D.1 [ mm ] | M12x1.75 |
| D.2 [ mm ] | 12.00 |
| D.3 [ mm ] | 12.00 |
| L.1 [ mm ] | 207.00 |
| Plug | PL_2003 |
Passar i 87 fordon
| Märke | Modell | Typ | Motor | Hk | Bränsle | År |
|---|---|---|---|---|---|---|
| CATERPILLAR | 311 4.25 | 3064 | 0 | 1992–1996 | ||
| CATERPILLAR | 311B 4.25 | 3064 | 0 | 1997–2001 | ||
| CATERPILLAR | 311C 4.25 | 3064 | 0 | 2001–2007 | ||
| CATERPILLAR | 311D | C4.2 | 0 | 2009–2013 | ||
| CATERPILLAR | 312 4.25 | 3064 | 0 | 1980–2003 | ||
| CATERPILLAR | 312B 4.25 | 3064 | 0 | 1995–2001 | ||
| CATERPILLAR | 312BL 4.25 | 3064 | 0 | 1988–2002 | ||
| CATERPILLAR | 312C 4.25 | 3064 | 0 | 1997–2008 | ||
| CATERPILLAR | 312CL 4.25 | 3064 | 0 | 2001–2005 | ||
| CATERPILLAR | 312D | C4.2 | 0 | 2009–2012 | ||
| CATERPILLAR | 312DL | C4.2 | 0 | 2009–2012 | ||
| CATERPILLAR | 313C SR | C4.2 | 0 | 2002–2010 | ||
| CATERPILLAR | 313D | C4.2 | 0 | 2009–2013 | ||
| CATERPILLAR | 313D CR | C4.2 | 0 | 2009–2013 | ||
| CATERPILLAR | 314C CR 4.25 | 3064 | 0 | 2003–2008 | ||
| CATERPILLAR | 314C LCR 4.25 | 3064 | 0 | 2003–2008 | ||
| CATERPILLAR | 314D | C4.2 | 0 | 2009–2013 | ||
| CATERPILLAR | 315D L | C4.2 | 0 | 2008–2014 | ||
| CATERPILLAR | 318C 6.37 | 3066T | 0 | 2002–2008 | ||
| CATERPILLAR | 318CL 6.37 | 3066 | 0 | 2003–2009 | ||
| CATERPILLAR | 318CLN 6.37 | 3066 | 0 | 2004–2007 | ||
| CATERPILLAR | 318DL | C4.2 | 0 | 2009–2013 | ||
| CATERPILLAR | 319CLN 6.37 | 3066 | 0 | 2004–2007 | ||
| CATERPILLAR | 319D | C4.2 | 0 | 2009–2013 | ||
| CATERPILLAR | 319DL | C4.2 | 0 | 2009–2013 | ||
| CATERPILLAR | 319DLN | C4.2 | 0 | 2009–2013 | ||
| CATERPILLAR | 320 6.37 | 3066 | 0 | 1991–2000 | ||
| CATERPILLAR | 320B 6.37 | 3066 | 0 | 1990–2001 | ||
| CATERPILLAR | 320BFMLL 6.37 | 3066 | 0 | 1990–2001 | ||
| CATERPILLAR | 320BL 6.37 | 3066 | 0 | 1990–2001 | ||
| CATERPILLAR | 320BLL 6.37 | 3066 | 0 | 1990–2007 | ||
| CATERPILLAR | 320BLU 6.37 | 3066 | 0 | 1990–2001 | ||
| CATERPILLAR | 320BN 6.37 | 3066 | 0 | 1996–2000 | ||
| CATERPILLAR | 320BRB 6.37 | 3066 | 0 | 1996–2007 | ||
| CATERPILLAR | 320BU 6.37 | 3066 | 0 | 1996–2000 | ||
| CATERPILLAR | 320C 6.37 | 3066 | 0 | 1996–2007 | ||
| CATERPILLAR | 320CFM 6.37 | 3066 | 0 | 2000–2002 | ||
| CATERPILLAR | 320CL 6.37 | 3066 | 0 | 2000–2002 | ||
| CATERPILLAR | 320CLL 6.37 | 3066 | 0 | 1996–2007 | ||
| CATERPILLAR | 320CLN 6.37 | 3066 | 0 | 2002–2004 | ||
| CATERPILLAR | 320CLU 6.37 | 3066 | 0 | 2000–2006 | ||
| CATERPILLAR | 320CS 6.37 | 3066 | 0 | 2000–2003 | ||
| CATERPILLAR | 320CU 6.37 | 3066 | 0 | 2001–2002 | ||
| CATERPILLAR | 320D | C6.4 | 0 | 2006–2013 | ||
| CATERPILLAR | 320D 6.37 | 3066 | 0 | 2006–2013 | ||
| CATERPILLAR | 320DFMRR 6.37 | 3066 | 0 | 2006–2013 | ||
| CATERPILLAR | 320DGC | C6.4 | 0 | 2006–2013 | ||
| CATERPILLAR | 320DL | C6.4 | 0 | 2006–2013 | ||
| CATERPILLAR | 320DL 6.37 | 3066 | 0 | 2006–2013 | ||
| CATERPILLAR | 320DLN | C6.4 | 0 | 2006–2013 | ||
| CATERPILLAR | 320DLRR | C6.4 | 0 | 2006–2013 | ||
| CATERPILLAR | 320DLRR 6.37 | 3066 | 0 | 2006–2013 | ||
| CATERPILLAR | 320DRR | C6.4 | 0 | 2006–2013 | ||
| CATERPILLAR | 320DRR 6.37 | 3066 | 0 | 2006–2013 | ||
| CATERPILLAR | 320DRRFM 6.37 | 3066 | 0 | 2006–2013 | ||
| CATERPILLAR | 320L 6.37 | 3066 | 0 | 1991–2000 | ||
| CATERPILLAR | 320N 6.37 | 3066 | 0 | 1992–1996 | ||
| CATERPILLAR | 320S 6.37 | 3066 | 0 | 1994–1997 | ||
| CATERPILLAR | 321BLCR 6.37 | 3066 | 0 | 1998–2002 | ||
| CATERPILLAR | 321C 6.37 | 3066 | 0 | 2003–2007 | ||
| CATERPILLAR | 321CLCR 6.37 | 3066 | 0 | 2003–2007 | ||
| CATERPILLAR | 321DLCR | C6.4 | 0 | 2007–2016 | ||
| CATERPILLAR | 323D | C6.4 | 0 | 2008–2016 | ||
| CATERPILLAR | 323DL | C6.4 | 0 | 2008–2016 | ||
| CATERPILLAR | 323DL 6.37 | 3066 | 0 | 2008–2016 | ||
| CATERPILLAR | 323DLN | C6.4 | 0 | 2008–2016 | ||
| CATERPILLAR | 323DLN 6.37 | 3066 | 0 | 2008–2016 | ||
| CATERPILLAR | 323DS | C6.4 | 0 | 2008–2016 | ||
| CATERPILLAR | 323DS 6.37 | 3066 | 0 | 2008–2016 | ||
| CATERPILLAR | 323DSA | C6.4 | 0 | 2008–2016 | ||
| CATERPILLAR | 5.0 | 315 | 3046 | 0 | 1994–2003 | |
| CATERPILLAR | 5.0 | 315B | 3046 | 0 | 1997–2001 | |
| CATERPILLAR | 5.0 | 315B FML | 3046 | 0 | 1994–2003 | |
| CATERPILLAR | 5.0 | 315B L | 3046 | 0 | 1994–2003 | |
| CATERPILLAR | 5.0 | 315C | 3046 | 0 | 2001–2007 | |
| CATERPILLAR | 5.0 | 315C L | 3046 | 0 | 2001–2007 | |
| CATERPILLAR | 5.0 | 315L | 3046 | 0 | 1994–2002 | |
| CATERPILLAR | 5.0 | 317BL | 3046 | 0 | 1998–2003 | |
| CATERPILLAR | 5.0 | 317BLN | 3046 | 0 | 1998–2003 | |
| CATERPILLAR | 5.0 | 318B | 3046 | 0 | 1999–2003 | |
| CATERPILLAR | 5.0 | 318BL | 3046 | 0 | 1999–2002 | |
| CATERPILLAR | 5.0 | 318BLN | 3046 | 0 | 1999–2000 | |
| CATERPILLAR | 5.0 | 318BN | 3046 | 0 | 1999–2000 | |
| CATERPILLAR | 6.6 | 323DL | C6.6 | 0 | 2008–2016 | |
| CATERPILLAR | 7.2 | 324D | C7 | 0 | 1996–2007 | |
| KOBELCO | 140SR-3 | D04FR | 0 | 2009–2013 | ||
| KOBELCO | SK140SRLC-3 | D04FR | 0 | 2008–2016 |
