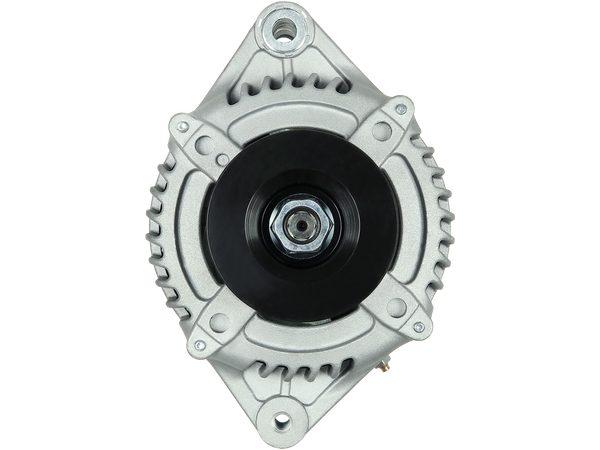

A6493S
Generatorer
STANDARD LINE
2083 kr
Köp nu
| EAN | 5902129082675 |
| Tillverkare | AS-PL |
| Ersätter | DENSO |
| OE-nummer | 104210-3800 |
| Datablad | Ladda ner PDF med skiss och mått |
Specifikationer
| Spänning [ V ] | 24 |
| Ström [ A ] | 80 |
| A-storlek [ mm ] | 96.00 |
| B-storlek [ mm ] | 59.00 |
| G [ qty. ] | 2 |
| O.D.1 [ mm ] | 47.50 |
| O.D.2 [ mm ] | 74.00 |
| W.1 [ mm ] | 11.50 |
| Remskiva | AP |
| D.1 [ mm ] | 10.00 |
| D.2 [ mm ] | M8x1.25 |
| L.1 [ mm ] | 165.00 |
| Plug | PL_3314 |
Passar i 4 fordon
| Märke | Modell | Typ | Motor | Hk | Bränsle | År |
|---|---|---|---|---|---|---|
| HINO | 414 | 300 Series | N04C-TJ | 136 | 2010–2011 | |
| HINO | 614 | 300 Series | N04C-TJ | 136 | 2007– | |
| TOYOTA | 4.0 | Dyna | N04C-TJ | 0 | 2011– | |
| TOYOTA | 4.0 | TOYOACE Platform/Chassis (_Y2_, _U_) | N04C-TJ | 0 | 2011– |
