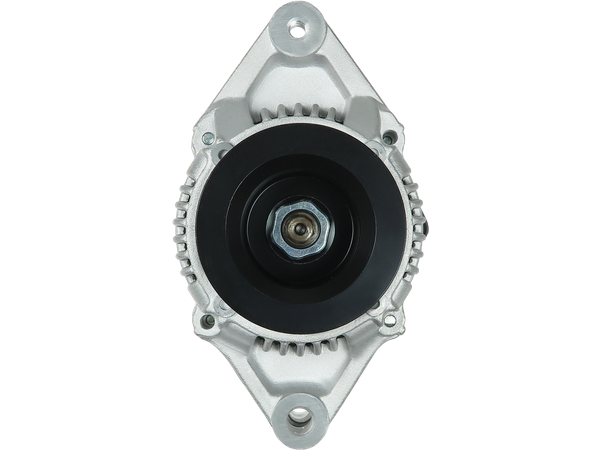

A6629S
Generatorer
STANDARD LINE
1426 kr
Köp nu
| EAN | 5902129122760 |
| Tillverkare | AS-PL |
| Ersätter | DENSO |
| OE-nummer | 101211-2310 |
| Datablad | Ladda ner PDF med skiss och mått |
Specifikationer
| Spänning [ V ] | 12 |
| Ström [ A ] | 55 |
| A-storlek [ mm ] | 95.00 |
| B-storlek [ mm ] | 58.00 |
| G [ qty. ] | 2 |
| O.D.1 [ mm ] | 54.00 |
| O.D.2 [ mm ] | 76.00 |
| W.1 [ mm ] | 10.00 |
| Remskiva | AP |
| D.1 [ mm ] | M8x1.25 |
| D.2 [ mm ] | 10.50 |
| L.1 [ mm ] | 159.00 |
| Plug | PL_3303 |
Passar i 50 fordon
| Märke | Modell | Typ | Motor | Hk | Bränsle | År |
|---|---|---|---|---|---|---|
| CATERPILLAR | 3.0 | 908 | 3034 | 0 | 1998–2008 | |
| CATERPILLAR | 4.4 | 416B | 3054 | 0 | 1991–1996 | |
| CATERPILLAR | 4.4 | 416C | 3054D | 0 | 1996–2002 | |
| CATERPILLAR | 4.4 | 416D | 3054B | 0 | 2001–2008 | |
| CATERPILLAR | 4.4 | 420D | 3054T | 0 | 2001–2005 | |
| CATERPILLAR | 4.4 | 424D | 3054B | 0 | 2000–2004 | |
| CATERPILLAR | 4.4 | 424DC | 3054B | 0 | 2000–2004 | |
| CATERPILLAR | 4.4 | 426D | 3054 | 0 | 1998–2001 | |
| CATERPILLAR | 4.4 | 428B | 3054 | 0 | 1992–1995 | |
| CATERPILLAR | 4.4 | 428C | 3054 | 0 | 1996–2001 | |
| CATERPILLAR | 4.4 | 428D | 3054T | 0 | 2001–2005 | |
| CATERPILLAR | 4.4 | 430D | 3054T | 0 | 2001–2005 | |
| CATERPILLAR | 4.4 | 432D | 3054T | 0 | 2001–2005 | |
| CATERPILLAR | 4.4 | 436C | 3054 | 0 | 1996–2001 | |
| CATERPILLAR | 4.4 | 436C | 3054T | 0 | 1996–2001 | |
| CATERPILLAR | 4.4 | 438C | 3054 | 0 | 1995–2000 | |
| CATERPILLAR | 4.4 | 438C | 3054T | 0 | 1995–2000 | |
| CATERPILLAR | 4.4 | 438D | 3054T | 0 | 2001–2005 | |
| CATERPILLAR | 4.4 | 442 D | 3054T | 0 | 2001–2005 | |
| CATERPILLAR | 4.4 | TH62 | 3054 | 0 | 1995–2003 | |
| CATERPILLAR | 4.4 | TH63 | 3054 | 0 | 1995–2003 | |
| CATERPILLAR | 4.4 | TH82 | 3054 | 0 | 1995–2003 | |
| CATERPILLAR | 4.4 | TH83 | 3054 | 0 | 1995–2003 | |
| CATERPILLAR | 5.0 | 933 | 3046 | 0 | 1996–2002 | |
| CATERPILLAR | 5.0 | 933C | 3046 | 0 | 1994–2002 | |
| CATERPILLAR | 5.0 | 939 | 3046 | 0 | 1993–2000 | |
| CATERPILLAR | 5.0 | 939C | 3046T | 0 | 1997–2008 | |
| CATERPILLAR | 5.0 | 939C | 3046 | 0 | 1997–2003 | |
| CATERPILLAR | 5.0 | D3C | 3046 | 0 | 1991–2001 | |
| CATERPILLAR | 5.0 | D3G | 3046T | 0 | 2002–2008 | |
| CATERPILLAR | 5.0 | D4C | 3046 | 0 | 1994–2002 | |
| CATERPILLAR | 5.0 | D4G | 3046 | 0 | 2002–2008 | |
| CATERPILLAR | 5.0 | D4G XL | 3046 | 0 | 2002–2007 | |
| CATERPILLAR | 5.0 | D5C | 3046 | 0 | 1994–2000 | |
| CATERPILLAR | 5.0 | D5C XL | 3046 | 0 | 1997–2006 | |
| CATERPILLAR | 5.0 | D5G | 3046T | 0 | 2001–2008 | |
| CATERPILLAR | 5.0 | D5G XL | 3046T | 0 | 2001–2005 | |
| CATERPILLAR | 5.0 Hystat | 933C | 3046 | 0 | 2000–2003 | |
| CATERPILLAR | 5.0 Hystat | 939C | 3046T | 0 | 1999–2010 | |
| CATERPILLAR | 5.0 Hystat | D5C | 3046 | 0 | 1994–2000 | |
| CATERPILLAR | 5.0 LGP | 933 | 3046 | 0 | 1994–1997 | |
| CATERPILLAR | 5.0 LGP | 933C | 3046 | 0 | 1997–2003 | |
| CATERPILLAR | 5.0 LGP | D3C | 3046 | 0 | 1994–2003 | |
| CATERPILLAR | 5.0 LGP | D4C | 3046 | 0 | 1990–2001 | |
| CATERPILLAR | 5.0 LGP | D4G | 3046 | 0 | 2002–2007 | |
| CATERPILLAR | 5.0 LGP | D5C | 3046 | 0 | 1993–2001 | |
| CATERPILLAR | 5.0 LGP | D5G | 3046T | 0 | 2001–2008 | |
| CATERPILLAR | 5.0 LGP Hystat | 933C | 3046 | 0 | 2000–2003 | |
| CATERPILLAR | 5.2 | D3C | 3204 | 0 | 1984–2001 | |
| CATERPILLAR | 5.2 LGP | D3C | 3204 | 0 | 1987–2003 |
