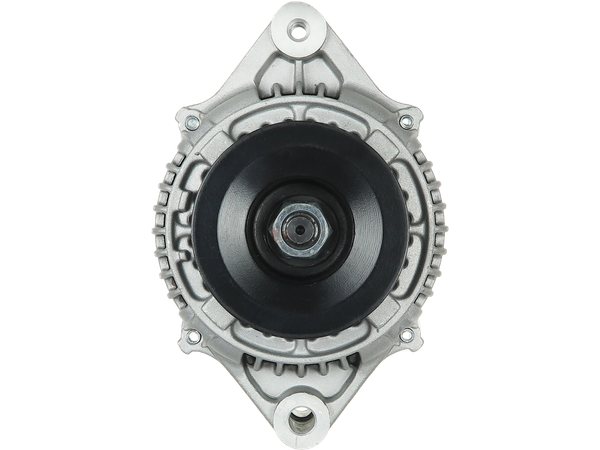

A6695S
Generatorer
STANDARD LINE
1649 kr
Köp nu
| EAN | 5902129147909 |
| Tillverkare | AS-PL |
| Ersätter | DENSO |
| OE-nummer | 101211-9020 |
| Datablad | Ladda ner PDF med skiss och mått |
Specifikationer
| Spänning [ V ] | 12 |
| Ström [ A ] | 90 |
| A-storlek [ mm ] | 96.00 |
| B-storlek [ mm ] | 58.00 |
| G [ qty. ] | 2 |
| O.D.1 [ mm ] | 49.00 |
| O.D.2 [ mm ] | 79.00 |
| W.1 [ mm ] | 12.50 |
| Remskiva | AP |
| D.1 [ mm ] | M8x1.25 |
| D.2 [ mm ] | 10.50 |
| L.1 [ mm ] | 174.00 |
| Plug | PL_3303 |
Passar i 95 fordon
| Märke | Modell | Typ | Motor | Hk | Bränsle | År |
|---|---|---|---|---|---|---|
| CATERPILLAR | 252B3 | C3.4 | 0 | 2010–2014 | ||
| CATERPILLAR | 257B3 | C3.4 | 0 | 2010–2013 | ||
| CATERPILLAR | 259B3 | C3.4 | 0 | 2010–2014 | ||
| CATERPILLAR | 262C2 | C3.4 | 0 | 2012–2014 | ||
| CATERPILLAR | 277C2 | C3.4 | 0 | 2012–2014 | ||
| CATERPILLAR | 279C | C3.4 | 0 | 2008–2012 | ||
| CATERPILLAR | 279C2 | C3.4 | 0 | 2012–2014 | ||
| CATERPILLAR | 287C2 | C3.4 | 0 | 2012–2014 | ||
| CATERPILLAR | 289C | C3.4 | 0 | 2008–2013 | ||
| CATERPILLAR | 289C2 | C3.4 | 0 | 2011–2014 | ||
| CATERPILLAR | 299C | C3.4 | 0 | 2011–2014 | ||
| CATERPILLAR | CB54 | C4.4 | 0 | 2009–2017 | ||
| CATERPILLAR | CB64 | C4.4 | 0 | 2009–2014 | ||
| CATERPILLAR | 3.0 | 908 | 3034 | 0 | 1998–2008 | |
| CATERPILLAR | 3.3 | 225B | 3044C | 0 | 1987–1990 | |
| CATERPILLAR | 3.3 | 236B | 3044C | 0 | 2003–2008 | |
| CATERPILLAR | 3.3 | 236B2 | 3044C | 0 | 2007–2011 | |
| CATERPILLAR | 3.3 | 246B | 3044C | 0 | 2003–2007 | |
| CATERPILLAR | 3.3 | 246C | 3044C | 0 | 2007–2014 | |
| CATERPILLAR | 3.3 | 248B | 3044C | 0 | 2003–2007 | |
| CATERPILLAR | 3.3 | 252B | 3044C | 0 | 2003–2008 | |
| CATERPILLAR | 3.3 | 252B2 | 3044C | 0 | 2007–2011 | |
| CATERPILLAR | 3.3 | 256C | 3044C | 0 | 2006–2012 | |
| CATERPILLAR | 3.3 | 262B | 3044C | 0 | 2003–2007 | |
| CATERPILLAR | 3.3 | 262C | 3044C | 0 | 2007–2012 | |
| CATERPILLAR | 3.3 | 267B | 3044C | 0 | 2004–2007 | |
| CATERPILLAR | 3.3 | 268B | 3044C | 0 | 2003–2007 | |
| CATERPILLAR | 3.3 | 272C | 3044C | 0 | 2006–2013 | |
| CATERPILLAR | 3.3 | 277B | 3044C | 0 | 2003–2007 | |
| CATERPILLAR | 3.3 | 277C | 3044C | 0 | 2007–2012 | |
| CATERPILLAR | 3.3 | 287B | 3044C | 0 | 2004–2007 | |
| CATERPILLAR | 3.3 | 287C | 3044C | 0 | 2007–2012 | |
| CATERPILLAR | 3.3 | 297C | 3044C | 0 | 2007–2012 | |
| CATERPILLAR | 4.4 | 416C | 3054D | 0 | 1996–2002 | |
| CATERPILLAR | 4.4 | 416D | 3054B | 0 | 2001–2008 | |
| CATERPILLAR | 4.4 | 420D | 3054T | 0 | 2001–2005 | |
| CATERPILLAR | 4.4 | 424D | 3054B | 0 | 2000–2004 | |
| CATERPILLAR | 4.4 | 424DC | 3054B | 0 | 2000–2004 | |
| CATERPILLAR | 4.4 | 426C | 3054 | 0 | 1998–2001 | |
| CATERPILLAR | 4.4 | 428B | 3054 | 0 | 1992–1995 | |
| CATERPILLAR | 4.4 | 428C | 3054 | 0 | 1996–2001 | |
| CATERPILLAR | 4.4 | 428D | 3054T | 0 | 2001–2005 | |
| CATERPILLAR | 4.4 | 430D | 3054T | 0 | 2001–2005 | |
| CATERPILLAR | 4.4 | 432D | 3054T | 0 | 2001–2005 | |
| CATERPILLAR | 4.4 | 436B | 3054T | 0 | 1990–1999 | |
| CATERPILLAR | 4.4 | 436C | 3054T | 0 | 1996–2001 | |
| CATERPILLAR | 4.4 | 436C | 3054 | 0 | 1996–2001 | |
| CATERPILLAR | 4.4 | 438C | 3054T | 0 | 1995–2000 | |
| CATERPILLAR | 4.4 | 438C | 3054 | 0 | 1995–2000 | |
| CATERPILLAR | 4.4 | 438D | 3054T | 0 | 2001–2005 | |
| CATERPILLAR | 4.4 | 442 D | 3054T | 0 | 2001–2005 | |
| CATERPILLAR | 4.4 | CB434D | 3054C | 0 | 2004–2014 | |
| CATERPILLAR | 4.4 | CB534D | 3054C | 0 | 2003–2012 | |
| CATERPILLAR | 4.4 | CB564D | 3054C | 0 | 2006–2012 | |
| CATERPILLAR | 4.4 | TH62 | 3054 | 0 | 1995–2003 | |
| CATERPILLAR | 4.4 | TH63 | 3054 | 0 | 1995–2003 | |
| CATERPILLAR | 4.4 | TH82 | 3054 | 0 | 1995–2003 | |
| CATERPILLAR | 4.4 | TH83 | 3054 | 0 | 1995–2003 | |
| CATERPILLAR | 4.4 XW | CB434D | 3054C | 0 | 2007–2014 | |
| CATERPILLAR | 5.0 | 933 | 3046 | 0 | 1996–2002 | |
| CATERPILLAR | 5.0 | 933C | 3046 | 0 | 1994–2002 | |
| CATERPILLAR | 5.0 | 939 | 3046 | 0 | 1993–2000 | |
| CATERPILLAR | 5.0 | 939C | 3046T | 0 | 1997–2008 | |
| CATERPILLAR | 5.0 | 939C | 3046 | 0 | 1997–2003 | |
| CATERPILLAR | 5.0 | D3C | 3046 | 0 | 1991–2001 | |
| CATERPILLAR | 5.0 | D3G | 3046T | 0 | 2002–2008 | |
| CATERPILLAR | 5.0 | D4C | 3046 | 0 | 1994–2002 | |
| CATERPILLAR | 5.0 | D4G | 3046 | 0 | 2002–2008 | |
| CATERPILLAR | 5.0 | D5C | 3046 | 0 | 1994–2000 | |
| CATERPILLAR | 5.0 | D5G | 3046T | 0 | 2001–2008 | |
| CATERPILLAR | 5.0 Hystat | 933C | 3046 | 0 | 2000–2003 | |
| CATERPILLAR | 5.0 Hystat | 939C | 3046T | 0 | 1999–2010 | |
| CATERPILLAR | 5.0 Hystat | D5C | 3046 | 0 | 1994–2000 | |
| CATERPILLAR | 5.0 LGP | 933 | 3046 | 0 | 1994–1997 | |
| CATERPILLAR | 5.0 LGP | 933C | 3046 | 0 | 1997–2003 | |
| CATERPILLAR | 5.0 LGP | D3C | 3046 | 0 | 1994–2003 | |
| CATERPILLAR | 5.0 LGP | D4C | 3046 | 0 | 1990–2001 | |
| CATERPILLAR | 5.0 LGP | D4G | 3046 | 0 | 2002–2007 | |
| CATERPILLAR | 5.0 LGP | D5C | 3046 | 0 | 1993–2001 | |
| CATERPILLAR | 5.0 LGP | D5G | 3046T | 0 | 2001–2008 | |
| CATERPILLAR | 5.0 LGP Hystat | 933C | 3046 | 0 | 2000–2003 | |
| CATERPILLAR | 5.0 XL | D4G | 3046 | 0 | 2002–2007 | |
| CATERPILLAR | 5.0 XL | D5C | 3046 | 0 | 1997–2006 | |
| CATERPILLAR | 5.0 XL | D5G | 3046T | 0 | 2001–2005 | |
| CATERPILLAR | 5.2 | D3C | 3204 | 0 | 1984–2001 | |
| CATERPILLAR | 5.2 | D4C | 3204 | 0 | 1987–1993 | |
| CATERPILLAR | 5.2 LGP | D3C | 3204 | 0 | 1987–2003 | |
| CATERPILLAR | 5.2 LGP | D4C | 3204 | 0 | 1987–2000 | |
| CATERPILLAR | 6.6 | CB634D | 3116 | 0 | 1995–2008 | |
| KOMATSU | WA100M-6 | SAA4D95LE-6 | 0 | 2008–2016 | ||
| KOMATSU | WA65-6 | 4D95LWE-5 | 0 | 2008–2014 | ||
| KOMATSU | WA70-6 | 4D95LWE-5 | 0 | 2008–2014 | ||
| KOMATSU | WA70-7 | 4D95LWE-5 | 0 | 2014–2019 | ||
| KOMATSU | WA80-6 | 4D95LWE-5 | 0 | 2010–2014 | ||
| KOMATSU | WA90-6 | 4D95LWE-5 | 0 | 2010–2014 |
