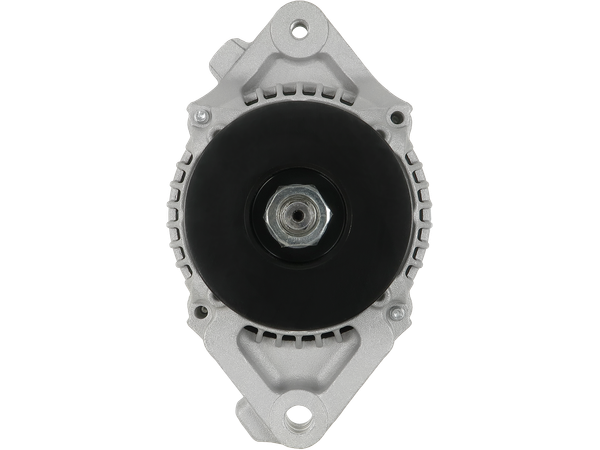

A6838S
Generatorer
STANDARD LINE
1096 kr
Köp nu
| EAN | 5902129234128 |
| Tillverkare | AS-PL |
| Ersätter | DENSO |
| OE-nummer | 101211-2470 |
| Datablad | Ladda ner PDF med skiss och mått |
Specifikationer
| Spänning [ V ] | 12 |
| Ström [ A ] | 60 |
| A-storlek [ mm ] | 45.00 |
| B-storlek [ mm ] | 24.00 |
| G [ qty. ] | 1 |
| O.D.1 [ mm ] | 47.00 |
| O.D.2 [ mm ] | 81.70 |
| W.1 [ mm ] | 16.00 |
| Remskiva | AP |
| D.1 [ mm ] | 10.50 |
| D.2 [ mm ] | M8x1.25 |
| L.1 [ mm ] | 146.00 |
| Plug | PL_2500 |
Passar i 9 fordon
| Märke | Modell | Typ | Motor | Hk | Bränsle | År |
|---|---|---|---|---|---|---|
| JOHN DEERE | 5100GF, 5100GN, 5100GV | Series 5 | 4045HAT82 | 99-101 | 2009– | |
| JOHN DEERE | 5100M | Series 5 | 4045HAT82 | 99-101 | 2011– | |
| JOHN DEERE | 5100M | Series 5 | 4045HL286 | 99-101 | 2011– | |
| JOHN DEERE | 5100R | Series 5 | 4045HAT82 | 99-101 | 2011– | |
| JOHN DEERE | 5100RN | Series 5 | 4045HL284 | 99-101 | 2009– | |
| JOHN DEERE | 5100RN | Series 5 | 4045HAT82 | 99-101 | 2009– | |
| JOHN DEERE | 5300 | Series 5000 | 3029DF150 | 56 | 1996–2000 | |
| JOHN DEERE | 5410 | Series 5010 | 4045DLV50 | 65 | 1998–2001 | |
| JOHN DEERE | 5410 | Series 5010 | 4045DLV51 | 65 | 1998–2001 |
