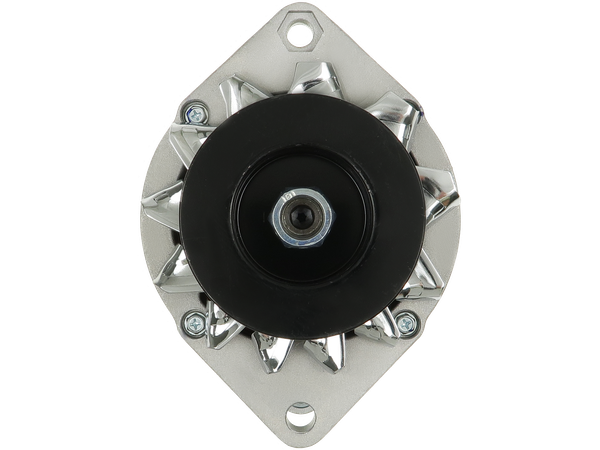

A9083S
Generatorer
STANDARD LINE
1233 kr
Köp nu
| EAN | 5902129229667 |
| Tillverkare | AS-PL |
| Ersätter | ISKRA / LETRIKA |
| OE-nummer | 11.201.329 |
| Datablad | Ladda ner PDF med skiss och mått |
Specifikationer
| Spänning [ V ] | 12 |
| Ström [ A ] | 65 |
| A-storlek [ mm ] | 59.00 |
| B-storlek [ mm ] | 17.00 |
| C-storlek [ mm ] | 72.50 |
| G [ qty. ] | 2 |
| O.D.1 [ mm ] | 68.00 |
| O.D.2 [ mm ] | 93.00 |
| W.1 [ mm ] | 9.50 |
| Remskiva | AP |
| D.1 [ mm ] | 10.50 |
| D.2 [ mm ] | 12.50 |
| D.3 [ mm ] | 12.50 |
| L.1 [ mm ] | 190.00 |
| Plug | PL_9104 |
Passar i 95 fordon
| Märke | Modell | Typ | Motor | Hk | Bränsle | År |
|---|---|---|---|---|---|---|
| AGRIFULL | 4.9 | 90 | 8055.05.200 | 0 | 1987– | |
| AGRIFULL | 4.9 | 90 DT | 8055.05.200 | 0 | 1987– | |
| AGRIFULL | 5.4 | 100 | 8065.06.200 | 0 | 1987– | |
| AGRIFULL | 5.4 | 100 | 8065.06.300 | 0 | 1987– | |
| AGRIFULL | 5.4 | 100 DT | 8065.06.300 | 0 | 1987– | |
| AGRIFULL | 5.4 | 100 DT | 8065.06.200 | 0 | 1987– | |
| AGRIFULL | 5.9 | 110 | 8065.05.220 | 0 | 1987– | |
| AGRIFULL | 5.9 | 110 DT | 8065.05.220 | 0 | 1987– | |
| AGRIFULL | 5.9 | 140 | 8065.25.000 | 0 | 1987– | |
| AGRIFULL | 5.9 | 140 DT | 8065.25.000 | 0 | 1987– | |
| AGRIFULL | 5.9 | F100 | 8065.06A.330 | 0 | 1993– | |
| AGRIFULL | 5.9 | F120 | 8065.05B.330 | 0 | 1993– | |
| ALFA ROMEO | 1.6 (162.B2B, 162.B2C) | 75 (162_) | AR06100 | 110 | Petrol | 1985–1989 |
| ALFA ROMEO | 1.6 Cat (162.B2B, 162.B2C) | 75 (162_) | AR61101 | 110 | Petrol | 1989–1992 |
| ALFA ROMEO | 2.0 TD (162.BD, 162.BG) | 75 (162_) | VM80A | 95 | Diesel | 1985–1992 |
| ALFA ROMEO | 2.4 TD (162B5) | 75 (162_) | VM81A | 112 | Diesel | 1989–1992 |
| FIAT | 1.9 D | DUCATO Panorama (280_) | 149B1.000 | 71 | Diesel | 1987–1990 |
| FIAT | 1.9 TD | DUCATO Panorama (280_) | 280A1.000 | 82 | Diesel | 1989–1990 |
| FIAT | 1.9 TD | DUCATO Panorama (290_) | 280A1.000 | 82 | Diesel | 1990–1994 |
| FIAT | 1.9 TD | DUCATO Platform/Chassis (290_) | 280A1.000 | 82 | Diesel | 1989–1994 |
| FIAT | 1.9 TD | DUCATO Van (290_) | 280A1.000 | 82 | Diesel | 1989–1994 |
| FIAT | 1000S | 1000 | 8065.04.200 | 110 | 1976–1979 | |
| FIAT | 110-90 | 90 | 8065.05.220 | 110 | 1986–1988 | |
| FIAT | 115-90 | 90 | 8065.05.000 | 116 | 1984–1990 | |
| FIAT | 1180 | 1000 | 8065.04.200 | 114-116 | 1979–1984 | |
| FIAT | 1280 | 1000 | 8065.24.300 | 122-124 | 1979–1984 | |
| FIAT | 130-90 | 90 | 8065.25.010 | 130 | 1984–1990 | |
| FIAT | 1300S | 1000 | CP3-100 | 150 | 1976–1979 | |
| FIAT | 140-90 | 90 | 8065.25.080 | 140-150 | 1984–1993 | |
| FIAT | 2500 D | CROMA (154_) | 8144.67 | 75 | Diesel | 1985–1989 |
| FIAT | 2500 TD (154.AE) | CROMA (154_) | 8144.91.2000 | 101 | Diesel | 1985–1989 |
| FIAT | 2500 TD (154.LL, 154.PL) | CROMA (154_) | 8144.97.2400 | 115 | Diesel | 1989–1996 |
| FIAT | 2500 TD (154.LL, 154.PL) | CROMA (154_) | 8144.97Y | 115 | Diesel | 1989–1996 |
| FIAT | 2500 TD (154.LL, 154.PL) | CROMA (154_) | 8144.97 | 115 | Diesel | 1989–1996 |
| FIAT | 2500 TDE | CROMA (154_) | 8144.97S | 105 | Diesel | 1991–1996 |
| FIAT | 60-90 | 90 | 8035.05.215 | 60 | 1984–1992 | |
| FIAT | 60-90 | 90 | 8035.05.214 | 60 | 1984–1992 | |
| FIAT | 65-90 | 90 | 8045.06.213 | 65 | 1987–1992 | |
| FIAT | 666 | 600 Serie | 8045.02 | 68 | 1982–1986 | |
| FIAT | 680 | 600 Serie | 8045.02 | 68 | 1978–1984 | |
| FIAT | 780 | 700 | 8045.04.270 | 78 | 1978–1984 | |
| FIAT | 85-90 | 90 | 8045.25.210 | 84-86 | 1987–1992 | |
| FIAT | 85-90 | 90 | 8045.25.310 | 84-86 | 1987–1992 | |
| FIAT | 880 | 800 | C03-130 | 88 | 1978–1980 | |
| FIAT | 880/5 | 800 | 8055.04.200 | 88 | 1980–1984 | |
| FIAT | F 100 | F | 8065.05.210 | 99-101 | 1993–1996 | |
| FIAT | F 110 | F | 8065.05.300 | 110 | 1990–1993 | |
| FIAT | F 110 | F | 8065.05.220 | 110 | 1990–1993 | |
| FIAT | F 115 | F | 8065.05.000 | 114-116 | 1993–1996 | |
| FIAT | F 120 | F | 8065.05.000 | 114-116 | 1990–1993 | |
| FIAT | F 130 | F | 8065.25.010 | 128-131 | 1990–1996 | |
| FIAT | F 140 | F | 8065.25.080 | 141-143 | 1990–1996 | |
| FISSORE | 2.4 TD | Rayton 4x4 | HR492HIM | 0 | 1988– | |
| HURLIMANN | H 6165 Master DT | 1000.6WTI | 0 | 1991– | ||
| HURLIMANN | 3.0 | H 476 XF DT REV | 1000.3WT | 0 | 1991– | |
| HURLIMANN | 6.0 | H 6190 Master DT | 1000.6WTIR | 0 | 1992–2001 | |
| LAMBORGHINI | 3.0 | 660 AGILE | 1000.3A | 0 | 1986–1997 | |
| LAMBORGHINI | 3.0 | 775 F Plus | 1000.3WT | 0 | 1991– | |
| LAMBORGHINI | 6.0 | 115 Formula | 1000.6W | 0 | 1989– | |
| LAMBORGHINI | 6.0 | 135 Formula | 1000.6WT | 0 | 1989– | |
| LAMBORGHINI | 6.0 | 165 Racing | 1000.6WTI | 0 | 1991– | |
| LAMBORGHINI | 6.0 | 190 Racing | 1000.6WTIR | 0 | 1992– | |
| LANCIA | 2500 Turbo D (834D) | THEMA (834_) | 8144.91 | 101 | Diesel | 1984–1988 |
| LANCIA | 2500 Turbo DS (834AE) | THEMA (834_) | 8144.97 | 115 | Diesel | 1988–1992 |
| LANCIA | 2500 Turbo DS (834AE) | THEMA SW (834_) | 8144.97 | 115 | Diesel | 1988–1992 |
| LANCIA | 2500 Turbo DS (834AM) | THEMA (834_) | 8144.97S | 105 | Diesel | 1988–1992 |
| LANCIA | 2500 Turbo DS (834AM) | THEMA SW (834_) | 8144.97S | 105 | Diesel | 1988–1992 |
| LANCIA | 2500 Turbo DS (834D) | THEMA SW (834_) | 8144.91 | 101 | Diesel | 1987–1990 |
| LANCIA | 2500 Turbo DS (834FE, 834LE) | THEMA (834_) | 8144.97Y | 116 | Diesel | 1992–1994 |
| LANCIA | 2500 Turbo DS (834FE, 834LE) | THEMA SW (834_) | 8144.97Y | 116 | Diesel | 1992–1994 |
| LAVERDA | 8.1 | 3790 | 8361SI10.00 | 0 | 1985– | |
| LAVERDA | 8.1 | 3850 | 8361S10 | 0 | 1991– | |
| LAVERDA | 8.1 | L 521 H | 8361SI10 | 0 | 1992– | |
| LAVERDA | 8.1 | L 521 I | 8361SI10 | 0 | 1992– | |
| LAVERDA | 8.1 | L 624 | 8361.25SR10 | 0 | 1992– | |
| LAVERDA | 8.1 | L 624 H | 8361.25SR10 | 0 | 1992– | |
| MUZZI | MDS 110 | 1056PTI | 0 | 1986– | ||
| MUZZI | MDS 54 | 1000.4AT | 0 | 1989– | ||
| MUZZI | MDS 72 | 1056P | 0 | 1989– | ||
| MUZZI | MDS 90 | 1056PS | 0 | 1989– | ||
| MUZZI | 4.0 | MDS 44 | 1000.4A | 0 | 1989– | |
| MUZZI | 6.2 | MD 65 | 1056PT | 0 | 1983–1988 | |
| NEW HOLLAND | 100-90 | Series 90 | 100 | 1993– | ||
| NEW HOLLAND | 110-90 | Series 90 | 8061.05 | 112 | 1993– | |
| NEW HOLLAND | 110-90 | Series 90 | 8065.E | 112 | 1993– | |
| NEW HOLLAND | 140-90 | Series 90 | 140 | 1993– | ||
| NEW HOLLAND | 160-90 | Series 90 | 160 | 1993– | ||
| NEW HOLLAND | 180-90 | Series 90 | 8365.25.500 | 180 | 1993– | |
| SAME | 3.0 | Frutteto 60 DR | 1000.3A | 0 | 1991– | |
| SAME | 3.0 | Frutteto 75 2RM | 1000.3AT | 0 | 1991– | |
| SAME | 6.0 | Antares 100 | 1000.6A | 0 | 1989–2004 | |
| SAME | 6.0 | Antares 100 | 1000.6AT | 0 | 1989–2004 | |
| SAME | 6.0 | Antares 130 | 1000.6AT | 0 | 1989–2004 | |
| SAME | 6.0 | Antares 130 | 1000.6A | 0 | 1989–2004 | |
| VM | 1.8 | HR | 329SHTR | 0 | 1986– |
