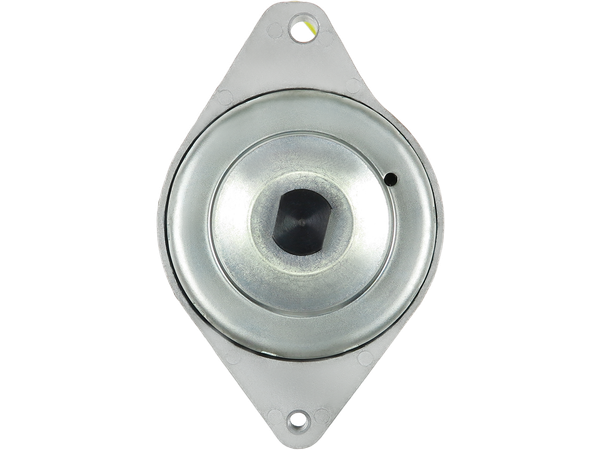

A9281S
Generatorer
STANDARD LINE
802 kr
Köp nu
| EAN | 5902129102168 |
| Tillverkare | AS-PL |
| Ersätter | YANMAR |
| Datablad | Ladda ner PDF med skiss och mått |
Specifikationer
| Spänning [ V ] | 12 |
| Ström [ A ] | 20 |
| A-storlek [ mm ] | 45.00 |
| B-storlek [ mm ] | 14.00 |
| G [ qty. ] | 1 |
| O.D.1 [ mm ] | 36.50 |
| O.D.2 [ mm ] | 65.00 |
| W.1 [ mm ] | 12.50 |
| Remskiva | AP |
| D.1 [ mm ] | 10.50 |
| D.2 [ mm ] | M8x1.25 |
| L.1 [ mm ] | 77.00 |
| Plug | PL_N/A |
Passar i 57 fordon
| Märke | Modell | Typ | Motor | Hk | Bränsle | År |
|---|---|---|---|---|---|---|
| CASE IH | CS16B | 3TNE74N | 0 | 2003–2011 | ||
| CASE IH | CX14 | 3TNE68 | 0 | 2003–2006 | ||
| JOHN DEERE | 1070 | 4TN84 | 0 | 1989–1996 | ||
| JOHN DEERE | 2243 | 3TNE68 | 0 | 1995–2005 | ||
| JOHN DEERE | 2305 | 3TNV76 | 0 | 2006–2011 | ||
| JOHN DEERE | 2320 | 3TNV76 | 0 | 2006–2013 | ||
| JOHN DEERE | 2500 | 3TN68C | 0 | 1999–2004 | ||
| JOHN DEERE | 2500A | 3TNE68V | 0 | 2005–2008 | ||
| JOHN DEERE | 2500B | FD620D | 0 | 2009–2014 | ||
| JOHN DEERE | 2500E | 3TNE68V | 0 | 2005–2014 | ||
| JOHN DEERE | 2520 | 0 | 2006–2010 | |||
| JOHN DEERE | 2653A | 3TNE68 | 0 | 2003–2008 | ||
| JOHN DEERE | 2653B | 0 | 2016–2016 | |||
| JOHN DEERE | 3375 | 0 | 1994–1999 | |||
| JOHN DEERE | 375 | 0 | 1988–1993 | |||
| JOHN DEERE | 4010 | 0 | 2003–2005 | |||
| JOHN DEERE | 4100 | 0 | 1998–2001 | |||
| JOHN DEERE | 4110 | 0 | 2002–2010 | |||
| JOHN DEERE | 4115 | 0 | 2002–2010 | |||
| JOHN DEERE | 415 | 0 | 1995–1997 | |||
| JOHN DEERE | 425 | 0 | 1993–1997 | |||
| JOHN DEERE | 445 | 0 | 1993–1997 | |||
| JOHN DEERE | 455 | 3TNA72 | 0 | 1993–1997 | ||
| JOHN DEERE | 670 | 0 | 1989–1996 | |||
| JOHN DEERE | 770 | 0 | 1989–1996 | |||
| JOHN DEERE | 790 | 0 | 1999–2007 | |||
| JOHN DEERE | 870 | 0 | 1989–1996 | |||
| JOHN DEERE | 970 | 0 | 1989–1996 | |||
| JOHN DEERE | 990 | 0 | 2000–2008 | |||
| JOHN DEERE | X495 | 0 | 2002–2005 | |||
| JOHN DEERE | X575 4WD | 0 | 2002–2006 | |||
| JOHN DEERE | X585 4WD | 0 | 2002–2006 | |||
| JOHN DEERE | X595 4WD | 0 | 2002–2006 | |||
| JOHN DEERE | X700 | 0 | 2002–2012 | |||
| JOHN DEERE | X710 Signature | 0 | 2016–2017 | |||
| JOHN DEERE | X720SE | 0 | 2006–2012 | |||
| JOHN DEERE | X728SE | 0 | 2006–2012 | |||
| JOHN DEERE | X730 Signature | FD750D | 0 | 2016–2017 | ||
| JOHN DEERE | X734 Signature | FD750D | 0 | 2016–2017 | ||
| JOHN DEERE | X738 Signature | FD750D | 0 | 2016–2017 | ||
| JOHN DEERE | X739 Signature | FD750D | 0 | 2016–2017 | ||
| JOHN DEERE | X748 | 3TNV76 | 0 | 2006–2012 | ||
| JOHN DEERE | X748SE | 3TNV76 | 0 | 2006–2012 | ||
| JOHN DEERE | 0.7 | X475 | FD671D | 23 | 2002–2005 | |
| JOHN DEERE | 0.7 | X485 | FD711D | 25 | 2002–2005 | |
| JOHN DEERE | 0.7 | X575 | FD671D | 23 | 2002–2006 | |
| JOHN DEERE | 0.7 | X585 | FD711D | 25 | 2002–2006 | |
| JOHN DEERE | 0.7 | X720 | FD750D | 27 | 2006–2012 | |
| JOHN DEERE | 0.7 | X724 | FD750D | 27 | 2006–2012 | |
| JOHN DEERE | 0.7 | X728 | FD750D | 27 | 2006–2012 | |
| JOHN DEERE | 0.7 | X729 | FD750D | 27 | 2008–2012 | |
| KOBELCO | SK014 | 3TNA72L | 0 | – | ||
| KOBELCO | SK015 | 3TNA72L | 0 | – | ||
| KOBELCO | SK13SR | 3TNA72L | 0 | – | ||
| KOBELCO | SK15SR | 3TNA72L | 0 | – | ||
| KOBELCO | SK25SR-2 | 3TNE74-NYB | 0 | – | ||
| MULTIQUIP | Nighthawk LT12P | 103.10 | 0 | – |
