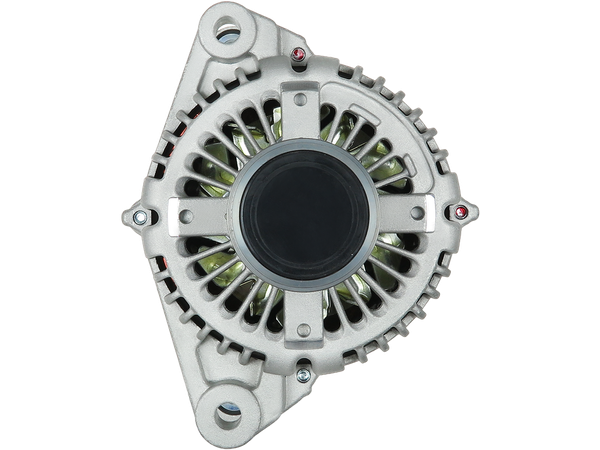

A9309S
Generatorer
STANDARD LINE
2012 kr
Köp nu
| EAN | 5902129122005 |
| Tillverkare | AS-PL |
| Ersätter | HYUNDAI / KIA |
| OE-nummer | 37300-3C160 |
| Datablad | Ladda ner PDF med skiss och mått |
Specifikationer
| Spänning [ V ] | 12 |
| Ström [ A ] | 130 |
| A-storlek [ mm ] | 42.00 |
| B-storlek [ mm ] | 20.00 |
| C-storlek [ mm ] | 43.00 |
| G [ qty. ] | 6 |
| O.D.1 [ mm ] | 53.00 |
| Remskiva | AFP |
| D.1 [ mm ] | 11.00 |
| D.2 [ mm ] | 11.00 |
| D.3 [ mm ] | M10x1.25 |
| D.4 [ mm ] | M10x1.25 |
| L.1 [ mm ] | 198.00 |
| Plug | PL_3304 |
Passar i 10 fordon
| Märke | Modell | Typ | Motor | Hk | Bränsle | År |
|---|---|---|---|---|---|---|
| HYUNDAI | 3.3 | GRANDEUR (TG) | G6DB | 235 | Petrol | 2005–2010 |
| HYUNDAI | 3.3 | GRANDEUR (TG) | G6DB | 260 | Petrol | 2010–2011 |
| HYUNDAI | 3.3 | SONATA V (NF) | G6DB | 233 | Petrol | 2005–2010 |
| HYUNDAI | 3.3 | SONATA V (NF) | G6DB | 250 | Petrol | 2008–2010 |
| HYUNDAI | 3.3 | SONATA V (NF) | G6DB | 253 | Petrol | 2007–2008 |
| HYUNDAI | 3.3 | SONATA V (NF) | G6DB | 235 | Petrol | 2005–2010 |
| HYUNDAI | 3.8 V6 | GENESIS Coupe | G6DJ | 347 | Petrol | 2011–2014 |
| HYUNDAI | 3.8 V6 | GENESIS Coupe | G6DA | 303 | Petrol | 2008–2014 |
| KIA | 3.3 V6 4WD | SORENTO I (JC) | G6DB | 248 | Petrol | 2007–2011 |
| KIA | 3.8 V6 | OPIRUS (GH) | G6DA | 267 | Petrol | 2006–2012 |
