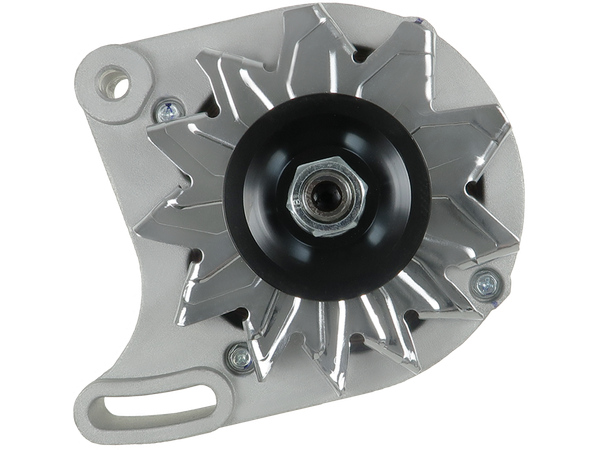

A9501S
Generatorer
STANDARD LINE
1195 kr
Köp nu
| EAN | 5902129234807 |
| Tillverkare | AS-PL |
| Ersätter | ISKRA / LETRIKA |
| OE-nummer | AAK3570 |
| Datablad | Ladda ner PDF med skiss och mått |
Specifikationer
| Spänning [ V ] | 24 |
| Ström [ A ] | 35 |
| A-storlek [ mm ] | 50.00 |
| B-storlek [ mm ] | 32.00 |
| G [ qty. ] | 1 |
| O.D.1 [ mm ] | 44.00 |
| O.D.2 [ mm ] | 68.00 |
| W.1 [ mm ] | 9.50 |
| Remskiva | AP |
| D.1 [ mm ] | 10.00 |
| D.2 [ mm ] | 11.00 |
| L.1 [ mm ] | 168.00 |
| Plug | PL_9105 |
Passar i 19 fordon
| Märke | Modell | Typ | Motor | Hk | Bränsle | År |
|---|---|---|---|---|---|---|
| BELARUS | 1.6 | 310 | LDW1603/B3 | 0 | 2013– | |
| BELARUS | 1.6 | 320.4 | LDW1603/B3 | 0 | 2013– | |
| BELARUS | 1.6 | 320.5 | LDW1603/B3 | 0 | 2013– | |
| BELARUS | 2.1 | 422 | LDW2204 | 0 | 2013– | |
| BELARUS | 2.1 | 622 | LDW2204T | 0 | 2013– | |
| LOMBARDINI | CHD 1400 | 0 | 1988– | |||
| LOMBARDINI | CHD 1503 | 0 | – | |||
| LOMBARDINI | LDW 1503 | 0 | – | |||
| LOMBARDINI | LDW 2004 | 0 | – | |||
| LOMBARDINI | LDW 502 | 0 | – | |||
| LOMBARDINI | LDW 602 | 0 | – | |||
| LOMBARDINI | 0.5 | LGW 527 | 0 | – | ||
| LOMBARDINI | 0.9 | LDW 903 | 0 | – | ||
| LOMBARDINI | 1.2 | LDW 1204 | 0 | – | ||
| LOMBARDINI | 1.2 | LDW 1404 | 0 | – | ||
| LOMBARDINI | 1.7 | LDW 1603 | 0 | – | ||
| LOMBARDINI | 2.2 | LDW 2204M | 0 | – | ||
| LOMBARDINI | 2.2 | LDW 2204MT | 0 | – | ||
| LOMBARDINI | 2.2 | LDW 2204TSD | 0 | – |
