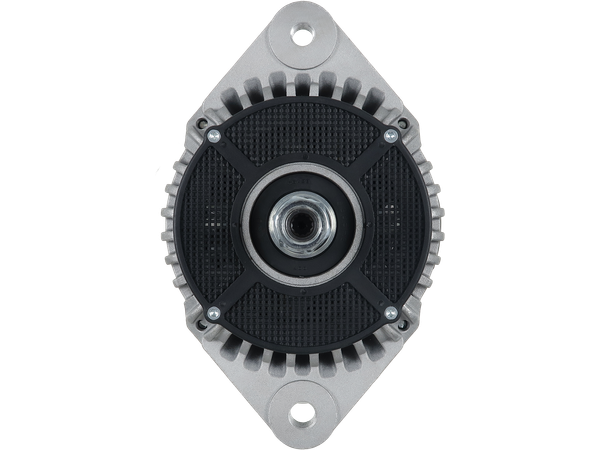

A9520S
Generatorer
STANDARD LINE
2306 kr
Köp nu
| EAN | 5902129239369 |
| Tillverkare | AS-PL |
| Ersätter | ISKRA / LETRIKA |
| OE-nummer | 11.203.363 |
| Datablad | Ladda ner PDF med skiss och mått |
Specifikationer
| Spänning [ V ] | 12 |
| Ström [ A ] | 150 |
| B-storlek [ mm ] | 14.00 |
| C-storlek [ mm ] | 103.50 |
| Remskiva | n/a |
| D.1 [ mm ] | 13.00 |
| D.2 [ mm ] | 1/2" 13UNC |
| D.3 [ mm ] | 13.00 |
| L.1 [ mm ] | 234.00 |
| Plug | PL_9105 |
Passar i 67 fordon
| Märke | Modell | Typ | Motor | Hk | Bränsle | År |
|---|---|---|---|---|---|---|
| CASE IH | 2144 | 0 | 1994–1996 | |||
| CASE IH | 2155 | 0 | 1997– | |||
| CASE IH | 2166 | 0 | 1994–1996 | |||
| CASE IH | 2188 | 0 | 1994–1996 | |||
| CASE IH | 2555 | 0 | 1997– | |||
| CASE IH | MX200 | 0 | 1997– | |||
| CASE IH | MX220 | 0 | 1997– | |||
| CASE IH | MX240 | 0 | 1997– | |||
| CASE IH | MX270 | 0 | 1997– | |||
| CASE IH | SPX4260 | 0 | 1998– | |||
| CASE IH | SPX4410 | 0 | 2004– | |||
| CASE IH | STX325 Accu Steer | 0 | 2000– | |||
| CASE IH | STX325 Wheeled | 0 | 2000– | |||
| CASE IH | STX375 | 0 | 2000– | |||
| CASE IH | STX375 Quadtrac | 0 | 2000– | |||
| CASE IH | STX375 Scraper | 0 | 2000– | |||
| CASE IH | STX375 Steiger | 0 | 2000– | |||
| CASE IH | STX425 | 0 | 2000– | |||
| CASE IH | STX425 Quadtrac | 0 | 2000– | |||
| CASE IH | STX425 Scraper | 0 | 2000– | |||
| CASE IH | STX440 | 0 | 2000– | |||
| CASE IH | STX450 | 0 | 2000– | |||
| CASE IH | STX450 Quadtrac | 0 | 2000– | |||
| CASE IH | STX450 Scraper | 0 | 2000– | |||
| CASE IH | STX5000 | 0 | 2000– | |||
| CASE IH | 5.9 | 2344 | 0 | – | ||
| CASE IH | 8.3 | 2388 | 0 | – | ||
| JOHN DEERE | 2155 | 0 | 1997– | |||
| JOHN DEERE | 2156 | 0 | 1997– | |||
| JOHN DEERE | 2188 | 0 | 1997– | |||
| JOHN DEERE | 540E | 0 | 1993–2003 | |||
| JOHN DEERE | 540G | 0 | 1993–2003 | |||
| JOHN DEERE | 544G | 0 | 1994–2003 | |||
| JOHN DEERE | 548 E | 0 | 1993–2003 | |||
| JOHN DEERE | 548G | 0 | 1993–2003 | |||
| JOHN DEERE | 624G | 0 | 1993–2000 | |||
| JOHN DEERE | 640E | 0 | 1993–2003 | |||
| JOHN DEERE | 640G | 0 | 1993–2003 | |||
| JOHN DEERE | 644G | 0 | 1993– | |||
| JOHN DEERE | 648E | 0 | 1993–2003 | |||
| JOHN DEERE | 648G | 0 | 1993–2003 | |||
| JOHN DEERE | 653 | 0 | 1993–2003 | |||
| JOHN DEERE | 653E | 0 | 1993– | |||
| JOHN DEERE | 740E | 0 | 1993–2003 | |||
| JOHN DEERE | 740G | 0 | 1993–2003 | |||
| JOHN DEERE | 748E | 0 | 1993–2003 | |||
| JOHN DEERE | 748G | 0 | 1993–2003 | |||
| JOHN DEERE | LX100-2 | 0 | 1993– | |||
| JOHN DEERE | 8.1 | 660D | 0 | – | ||
| JOHN DEERE | 8.1 | 848G | 0 | – | ||
| NEW HOLLAND | 14.9 | 0 | – | |||
| NEW HOLLAND | TG210 | 0 | 2002– | |||
| NEW HOLLAND | TG230 | 0 | 2002– | |||
| NEW HOLLAND | TG255 | 0 | 2002– | |||
| NEW HOLLAND | TG285 | 0 | 2002– | |||
| NEW HOLLAND | TJ275 | 0 | 2002– | |||
| NEW HOLLAND | TJ325 | 0 | 2002– | |||
| NEW HOLLAND | TJ375 | 0 | 2002– | |||
| NEW HOLLAND | TJ375HD | 0 | 2002– | |||
| NEW HOLLAND | TJ425 | 0 | 2002– | |||
| NEW HOLLAND | TJ450 | 0 | 2002– | |||
| NEW HOLLAND | TJ500 | 0 | 2002– | |||
| NEW HOLLAND | 8.3 | TG285 | 0 | – | ||
| TIGERCAT | 720D | 0 | 1996– | |||
| TIGERCAT | 724D | 0 | 2001– | |||
| TIGERCAT | 853 | 0 | 1996– | |||
| TIGERCAT | 853E | 0 | 1996– |
