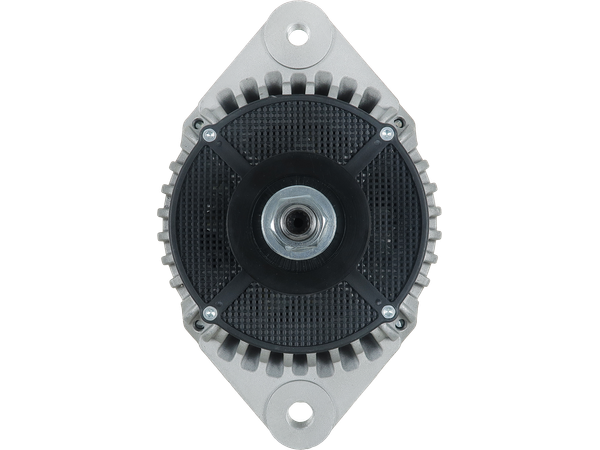

A9536S
Generatorer
STANDARD LINE
2349 kr
Köp nu
| EAN | 5902129242987 |
| Tillverkare | AS-PL |
| Ersätter | ISKRA / LETRIKA |
| OE-nummer | 11.203.742 |
| Datablad | Ladda ner PDF med skiss och mått |
Specifikationer
| Spänning [ V ] | 12 |
| Ström [ A ] | 175 |
| A-storlek [ mm ] | 31.00 |
| B-storlek [ mm ] | 14.00 |
| C-storlek [ mm ] | 103.00 |
| G [ qty. ] | 8 |
| O.D.1 [ mm ] | 62.00 |
| Remskiva | AP |
| D.1 [ mm ] | 13.00 |
| D.2 [ mm ] | UNC 1/2"-13G |
| D.3 [ mm ] | 13.00 |
| L.1 [ mm ] | 235.00 |
| Plug | PL_9105 |
Passar i 55 fordon
| Märke | Modell | Typ | Motor | Hk | Bränsle | År |
|---|---|---|---|---|---|---|
| CASE IH | Steiger 330 | 6-540 | 0 | 2006–2007 | ||
| CASE IH | STX280 | 6-505 | 0 | 2006–2007 | ||
| CASE IH | STX280 | 6505 | 0 | 2006– | ||
| CASE IH | STX330 | 6-540 | 0 | 2006–2007 | ||
| CASE IH | STX380 | 6-786 | 0 | 2006–2007 | ||
| CASE IH | STX430 | 6-786 | 0 | 2006–2007 | ||
| CASE IH | STX480 | QSX15 | 0 | 2006–2007 | ||
| CASE IH | STX480 | 6-912 | 0 | 2006–2007 | ||
| CASE IH | STX530 | QSX15 | 0 | 2006–2007 | ||
| CASE IH | STX530 | 6-912 | 0 | 2006–2007 | ||
| CASE IH | 12.9 | Steiger 380 | 6-787 | 0 | 2006–2007 | |
| CASE IH | 12.9 | Steiger 385 | 6-787 | 0 | 2008–2012 | |
| CASE IH | 12.9 | Steiger 430 | 6-787 | 0 | 2006–2007 | |
| CASE IH | 12.9 | Steiger 435 | 6-787 | 0 | 2008–2012 | |
| CASE IH | 12.9 | Steiger 485 | 6-787 | 0 | 2008–2012 | |
| CASE IH | 14.9 | Steiger 480 | 6-912 | 0 | 2007–2008 | |
| CASE IH | 14.9 | Steiger 480 | QSX15 | 0 | 2007–2008 | |
| CASE IH | 14.9 | Steiger 530 | 6-912 | 0 | 2007–2008 | |
| CASE IH | 14.9 | Steiger 530 | QSX15 | 0 | 2007–2008 | |
| CASE IH | 15.0 | Steiger 535 | QSX15 | 0 | 2008–2012 | |
| CASE IH | 15.0 | Steiger 535 | 6-915 | 0 | 2008–2012 | |
| CASE IH | 4.5 | WD1203 | 4-274 | 0 | 2007–2013 | |
| CASE IH | 6.7 | WD1903 | 6-411 | 0 | 2007–2013 | |
| CASE IH | 6.7 | WD2303 | 6-411 | 0 | 2007–2013 | |
| CASE IH | 9.0 | Steiger 335 | 6-543 | 0 | 2008–2012 | |
| CATERPILLAR | CP78B | 0 | – | |||
| MASSEY FERGUSON | 1.5 | MF 480 STX | 0 | 2006– | ||
| NEW HOLLAND | H8040 | 0 | – | |||
| NEW HOLLAND | H8060 | 0 | – | |||
| NEW HOLLAND | H8080 | 0 | – | |||
| NEW HOLLAND | T9010 | 0 | 2007– | |||
| NEW HOLLAND | T9030 | 0 | 2007– | |||
| NEW HOLLAND | T9040 | 0 | 2007– | |||
| NEW HOLLAND | T9050 | 0 | 2007– | |||
| NEW HOLLAND | T9060 | 0 | 2007– | |||
| NEW HOLLAND | TJ280 | 0 | 2006– | |||
| NEW HOLLAND | TJ330 | 0 | 2006– | |||
| NEW HOLLAND | TJ480 | 0 | 2006– | |||
| NEW HOLLAND | TJ530 | 0 | 2006– | |||
| NEW HOLLAND | 12.9 | T9030 | 0 | 2006–2012 | ||
| NEW HOLLAND | 12.9 | T9040 | 0 | 2006–2012 | ||
| NEW HOLLAND | 12.9 | T9050 | 0 | 2006–2012 | ||
| NEW HOLLAND | 12.9 | TJ430 | 0 | 2006–2007 | ||
| NEW HOLLAND | 15.0 | T9060 | QSX | 0 | 2006–2012 | |
| NEW HOLLAND | 15.0 | TJ480 | QSX | 0 | 2006–2007 | |
| NEW HOLLAND | 15.0 | TJ530 | QSX | 0 | 2006–2007 | |
| NEW HOLLAND | 4.5 | H8040 | 4-274 | 0 | 2007–2013 | |
| NEW HOLLAND | 6.7 | H8060 | 6-411 | 0 | 2007–2013 | |
| NEW HOLLAND | 6.7 | H8080 | 6-411 | 0 | 2007–2013 | |
| NEW HOLLAND | 8.3 | T9010 | 0 | 2007–2011 | ||
| NEW HOLLAND | 8.3 | TJ280 | 0 | 2006–2007 | ||
| NEW HOLLAND | 9.0 | T9020 | CDC | 0 | 2007– | |
| NEW HOLLAND | 9.0 | T9020 | 0 | 2007–2011 | ||
| NEW HOLLAND | 9.0 | TJ330 | 0 | 2006–2007 | ||
| NEW HOLLAND | 9.0 | TJ380 | 0 | 2006–2007 |
