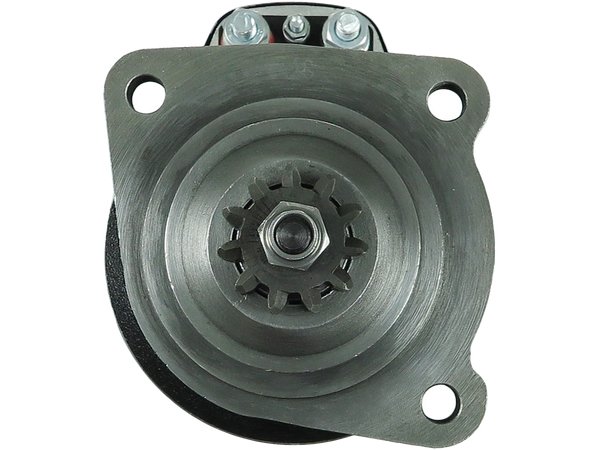

S0009
Startmotorer
STANDARD LINE
2345 kr
Köp nu
| EAN | 5901259418460 |
| Tillverkare | AS-PL |
| Ersätter | BOSCH |
| OE-nummer | 0001417023 |
| Datablad | Ladda ner PDF med skiss och mått |
Specifikationer
| Spänning [ V ] | 24 |
| Effekt [ kW ] | 6.60 |
| Startmotors rotation | CW |
| A-storlek [ mm ] | 89.00 |
| B-storlek [ mm ] | 47.00 |
| Antal kuggar [ qty. ] | 11 |
| Antal kuggar (passar in) [ qty. ] | 11 |
| Antal hål i huvudet [ qty. ] | 3 |
| Antal gängade hål [ qty. ] | 0 |
| L.1 [ mm ] | 405.00 |
| O.1 [ mm ] | 90.00 |
| O.2 [ mm ] | 90.00 |
| O.3 [ mm ] | 127.50 |
| C.1 [ mm ] | 11.00 |
| C.2 [ mm ] | 11.00 |
| C.3 [ mm ] | 11.00 |
| Oil sealed | Yes |
| Insulated return | Yes |
Passar i 85 fordon
| Märke | Modell | Typ | Motor | Hk | Bränsle | År |
|---|---|---|---|---|---|---|
| FIAT | 65N | Series 65 | CO3/41 | 90 | 1972–1976 | |
| FIAT | 70FNM | Series 70 | CO3/41 | 90 | 1973– | |
| FIAT | 70N | Series 70 | CO3/41 | 90 | 1972–1976 | |
| FIAT | 75N | Series 75 | CO3/41 | 90 | 1972–1976 | |
| VOLVO | F 10/260 | F10 | TD100GA | 261-272 | 1982–1985 | |
| VOLVO | F 10/260 | F10 | TD101G | 261-272 | 1982–1985 | |
| VOLVO | F 10/260 | F10 | TD101G | 261-272 | 1983–1985 | |
| VOLVO | F 10/260 | F10 | TD100G | 261-272 | 1982–1985 | |
| VOLVO | F 10/260 | F10 | TD100GA | 261-272 | 1983–1985 | |
| VOLVO | F 10/260 | F10 | TD100G | 261-272 | 1983–1985 | |
| VOLVO | F 10/270 | F10 | TD101GA | 272 | 1984–1986 | |
| VOLVO | F 10/270 | F10 | TD100GA | 272 | 1976–1983 | |
| VOLVO | F 10/280 | F10 | TD100B | 280-282 | 1977–1982 | |
| VOLVO | F 10/300 | F10 | TD101FA | 292-299 | 1987–1987 | |
| VOLVO | F 10/300 | F10 | TD101FA | 299 | 1984–1986 | |
| VOLVO | F 10/300 | F10 | TD101F | 292-299 | 1987–1987 | |
| VOLVO | F 10/300 | F10 | TD101FA | 292-299 | 1984–1986 | |
| VOLVO | F 10/300 | F10 | TD101F | 292-299 | 1983–1986 | |
| VOLVO | F 10/300 | F10 | TD101F | 292-299 | 1984–1986 | |
| VOLVO | F 10/300 | F10 | TD101FA | 292-299 | 1983–1986 | |
| VOLVO | F 10/310 | F10 | TD102F | 313 | 1987–1995 | |
| VOLVO | F 10/310 | F10 | TD102FM | 313 | 1987–1995 | |
| VOLVO | F 10/320 | F10 | TD103ES | 310-320 | 1990–1994 | |
| VOLVO | F 10/320 | F10 | TD102FF | 320 | 1987–1995 | |
| VOLVO | F 10/320 | F10 | TD102F | 310-320 | 1987–1990 | |
| VOLVO | F 10/320 | F10 | TD102FM | 310-320 | 1990–1994 | |
| VOLVO | F 10/320 | F10 | TD102FM | 310-320 | 1987–1990 | |
| VOLVO | F 10/320 | F10 | TD102F | 310-320 | 1990–1994 | |
| VOLVO | F 10/320 | F10 | TD102FBQ | 310-320 | 1990–1994 | |
| VOLVO | F 10/320 | F10 | TD102FL | 310-320 | 1987–1990 | |
| VOLVO | F 10/320 | F10 | TD102FF | 310-320 | 1990–1994 | |
| VOLVO | F 10/320 | F10 | TD102FF | 310-320 | 1987–1990 | |
| VOLVO | F 10/320 | F10 | TD103E | 310-320 | 1990–1994 | |
| VOLVO | F 10/320 | F10 | TD102FBQ | 310-320 | 1987–1990 | |
| VOLVO | F 10/320 | F10 | TD103ES | 310-320 | 1987–1990 | |
| VOLVO | F 10/320 | F10 | TD102FDQ | 310-320 | 1990–1994 | |
| VOLVO | F 10/320 | F10 | TD102FL | 320 | 1987–1995 | |
| VOLVO | F 10/320 | F10 | TD103ES | 320 | 1987–1995 | |
| VOLVO | F 10/320 | F10 | TD102FDQ | 310-320 | 1987–1990 | |
| VOLVO | F 10/320 | F10 | TD103E | 310-320 | 1987–1990 | |
| VOLVO | F 10/320 | F10 | TD102FL | 310-320 | 1990–1994 | |
| VOLVO | F 10/320 | F10 | TD102FD | 320 | 1987–1995 | |
| VOLVO | F 12/320 | F12 | TD121G | 320 | 1987–1987 | |
| VOLVO | F 12/320,F 12/330 | F12 | TD121G | 320-330 | 1977–1986 | |
| VOLVO | F 12/320,F 12/330 | F12 | TD121GD | 320-330 | 1977–1986 | |
| VOLVO | F 12/320,F 12/330 | F12 | TD120G | 320-330 | 1977–1986 | |
| VOLVO | F 12/360 | F12 | TD122FH | 356 | 1990–1994 | |
| VOLVO | F 12/360 | F12 | TD122F | 356 | 1990–1994 | |
| VOLVO | F 12/360 | F12 | TD122FH | 356 | 1988–1990 | |
| VOLVO | F 12/360 | F12 | TD122F | 356 | 1988–1990 | |
| VOLVO | F 12/360 | F12 | TD122FH | 356 | 1991–1994 | |
| VOLVO | F 12/360 | F12 | TD122F | 356 | 1991–1994 | |
| VOLVO | F 12/370 | F12 | TD121F | 370 | 1987–1987 | |
| VOLVO | F 12/370 | F12 | TD121F | 370 | 1977–1986 | |
| VOLVO | F 12/400 | F12 | TD122FL | 396 | 1988–1990 | |
| VOLVO | F 12/400 | F12 | TD122FL | 396 | 1990–1994 | |
| VOLVO | F 12/400 | F12 | TD122FS | 396 | 1990–1994 | |
| VOLVO | F 12/400 | F12 | TD122FS | 396 | 1988–1990 | |
| VOLVO | F 12/400,F 12/410 | F12 | TD122FS | 396-405 | 1988–1994 | |
| VOLVO | F 12/400,F 12/410 | F12 | TD122FS | 396-405 | 1990–1994 | |
| VOLVO | F 12/400,F 12/410 | F12 | TD122FL | 396-405 | 1990–1994 | |
| VOLVO | F 12/400,F 12/410 | F12 | TD122FL | 396-405 | 1988–1994 | |
| VOLVO | F 12/400,F 12/410 | F12 | TD123ES | 396-405 | 1990–1994 | |
| VOLVO | F 12/400,F 12/410 | F12 | TD123ES | 396-405 | 1988–1994 | |
| VOLVO | F 609 | F6 | D60A | 120 | 1975–1980 | |
| VOLVO | F 610 | F6 | TD60C | 147-154 | 1980–1986 | |
| VOLVO | F 611 | F6 | TD60C | 154 | 1980–1986 | |
| VOLVO | F 611 | F6 | D60A | 120 | 1975–1980 | |
| VOLVO | F 613,F 614 | F6 | TD60B | 174-180 | 1975–1986 | |
| VOLVO | F 613,F 614 | F6 | TD60A | 174-180 | 1975–1986 | |
| VOLVO | F 615 S | F6 | TD60B | 180 | 1978–1981 | |
| VOLVO | F 617 S | F6 | TD60B | 180 | 1978–1986 | |
| VOLVO | FL 10/280 | FL10 | TD101G | 275-284 | 1985–1990 | |
| VOLVO | FL 10/320 | FL10 | D10A320 | 320 | 1995–1998 | |
| VOLVO | FL 10/360 | FL10 | D10A360 | 360 | 1995–1998 | |
| VOLVO | FL 10H/320 | FL10 | D10A320 | 320 | 1995–1998 | |
| VOLVO | FL 10H/360 | FL10 | D10A360 | 360 | 1995–1998 | |
| VOLVO | FM 10/320 | FM10 | D10B320 | 320 | 1999–2001 | |
| VOLVO | FM 10/320 | FM10 | D10A320 | 320 | 1999–2001 | |
| VOLVO | FM 10/360 | FM10 | D10B360 | 360 | 1999–2001 | |
| VOLVO | N7 | N7 | TD70ES | 211 | 1973–1980 | |
| VOLVO PENTA | MD120A | 0 | 1970–1980 | |||
| VOLVO PENTA | TAMD120A | 0 | 1972–1980 | |||
| VOLVO PENTA | TMD100 | 0 | 1965–1985 | |||
| VOLVO PENTA | TMD120A | 0 | 1970–1982 |
