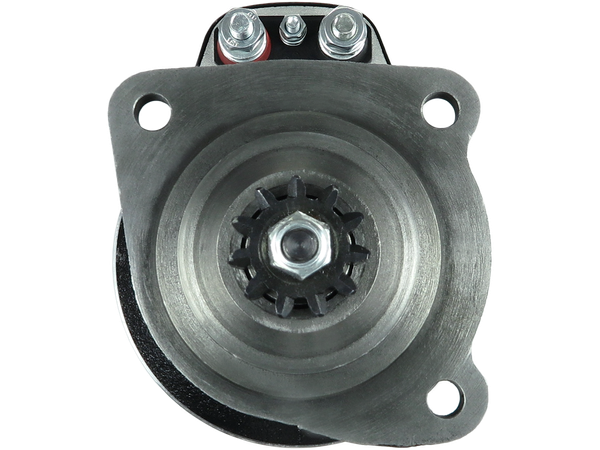

S0063
Startmotorer
STANDARD LINE
2116 kr
Köp nu
| EAN | 5901259419191 |
| Tillverkare | AS-PL |
| Ersätter | BOSCH |
| OE-nummer | 0001416005 |
| Datablad | Ladda ner PDF med skiss och mått |
Specifikationer
| Spänning [ V ] | 24 |
| Effekt [ kW ] | 5.50 |
| Startmotors rotation | CW |
| A-storlek [ mm ] | 89.00 |
| B-storlek [ mm ] | 47.00 |
| Antal kuggar [ qty. ] | 11 |
| Antal kuggar (passar in) [ qty. ] | 11 |
| Antal hål i huvudet [ qty. ] | 3 |
| Antal gängade hål [ qty. ] | 0 |
| L.1 [ mm ] | 387.00 |
| O.1 [ mm ] | 91.00 |
| O.2 [ mm ] | 91.00 |
| O.3 [ mm ] | 128.00 |
| C.1 [ mm ] | 11.00 |
| C.2 [ mm ] | 11.00 |
| C.3 [ mm ] | 11.00 |
| Oil sealed | Yes |
Passar i 137 fordon
| Märke | Modell | Typ | Motor | Hk | Bränsle | År |
|---|---|---|---|---|---|---|
| VOLVO | B12 | B12 | TD123EC | 305 | 1991–2006 | |
| VOLVO | B12 | B12 | TD122FH | 356 | 1992– | |
| VOLVO | B12 | B12 | D12A420 | 420 | 1992– | |
| VOLVO | B12 | B12 | TD123ES | 405 | 1991–2006 | |
| VOLVO | B12 | B12 | TD122FH | 356 | 1991–2006 | |
| VOLVO | B12 | B12 | TD123ES | 396-405 | 1992– | |
| VOLVO | B12 | B12 | 415 | 1991–2006 | ||
| VOLVO | B12 | B12 | TD122FL | 396 | 1991–2006 | |
| VOLVO | B12 | B12 | TD122FL | 396-405 | 1992– | |
| VOLVO | B12 | B12 | TD123E | 356 | 1991–2006 | |
| VOLVO | F 10/260 | F10 | TD100G | 261-272 | 1982–1985 | |
| VOLVO | F 10/260 | F10 | TD100G | 261-272 | 1983–1985 | |
| VOLVO | F 10/260 | F10 | TD100GA | 261-272 | 1982–1985 | |
| VOLVO | F 10/260 | F10 | TD101G | 261-272 | 1982–1985 | |
| VOLVO | F 10/260 | F10 | TD101G | 260 | 1984–1986 | |
| VOLVO | F 10/260 | F10 | TD101G | 261-272 | 1983–1985 | |
| VOLVO | F 10/260 | F10 | TD100GA | 261-272 | 1983–1985 | |
| VOLVO | F 10/270 | F10 | TD101GA | 272 | 1984–1986 | |
| VOLVO | F 10/270 | F10 | TD100GA | 272 | 1976–1983 | |
| VOLVO | F 10/280 | F10 | TD100B | 280-282 | 1977–1982 | |
| VOLVO | F 10/290 | F10 | TD101F | 292 | 1984–1986 | |
| VOLVO | F 10/300 | F10 | TD101FA | 292-299 | 1987–1987 | |
| VOLVO | F 10/300 | F10 | TD101F | 292-299 | 1984–1986 | |
| VOLVO | F 10/300 | F10 | TD101FA | 299 | 1984–1986 | |
| VOLVO | F 10/300 | F10 | TD101FA | 292-299 | 1983–1986 | |
| VOLVO | F 10/300 | F10 | TD101F | 292-299 | 1987–1987 | |
| VOLVO | F 10/300 | F10 | TD101FA | 292-299 | 1984–1986 | |
| VOLVO | F 10/300 | F10 | TD101F | 292-299 | 1983–1986 | |
| VOLVO | F 10/310 | F10 | TD102FM | 313 | 1987–1995 | |
| VOLVO | F 10/310 | F10 | TD102F | 313 | 1987–1995 | |
| VOLVO | F 10/320 | F10 | TD103ES | 310-320 | 1987–1990 | |
| VOLVO | F 10/320 | F10 | TD102FBQ | 310-320 | 1987–1990 | |
| VOLVO | F 10/320 | F10 | TD102FL | 310-320 | 1987–1990 | |
| VOLVO | F 10/320 | F10 | TD102FBQ | 310-320 | 1990–1994 | |
| VOLVO | F 10/320 | F10 | TD102FDQ | 310-320 | 1987–1990 | |
| VOLVO | F 10/320 | F10 | TD102FL | 310-320 | 1990–1994 | |
| VOLVO | F 10/320 | F10 | TD102FM | 310-320 | 1987–1990 | |
| VOLVO | F 10/320 | F10 | TD102FM | 310-320 | 1990–1994 | |
| VOLVO | F 10/320 | F10 | TD103ES | 310-320 | 1990–1994 | |
| VOLVO | F 10/320 | F10 | TD102FDQ | 310-320 | 1990–1994 | |
| VOLVO | F 10/320 | F10 | TD102F | 310-320 | 1990–1994 | |
| VOLVO | F 10/320 | F10 | TD102F | 310-320 | 1987–1990 | |
| VOLVO | F 10/320 | F10 | TD102FF | 310-320 | 1990–1994 | |
| VOLVO | F 10/320 | F10 | TD102FF | 320 | 1987–1995 | |
| VOLVO | F 10/320 | F10 | TD102FD | 320 | 1987–1995 | |
| VOLVO | F 10/320 | F10 | TD102FF | 310-320 | 1987–1990 | |
| VOLVO | F 10/320 | F10 | TD103E | 310-320 | 1990–1994 | |
| VOLVO | F 10/320 | F10 | TD103E | 310-320 | 1987–1990 | |
| VOLVO | F 10/320 | F10 | TD102FL | 320 | 1987–1995 | |
| VOLVO | F 10/320 | F10 | TD103ES | 320 | 1987–1995 | |
| VOLVO | F 12/320 | F12 | TD121G | 320 | 1987–1987 | |
| VOLVO | F 12/320,F 12/330 | F12 | TD121G | 320-330 | 1977–1986 | |
| VOLVO | F 12/320,F 12/330 | F12 | TD121GD | 320-330 | 1977–1986 | |
| VOLVO | F 12/320,F 12/330 | F12 | TD120G | 320-330 | 1977–1986 | |
| VOLVO | F 12/330 | F12 | TD121GD | 330 | 1984–1986 | |
| VOLVO | F 12/360 | F12 | TD122F | 356 | 1991–1994 | |
| VOLVO | F 12/360 | F12 | TD122FH | 356 | 1990–1994 | |
| VOLVO | F 12/360 | F12 | TD122F | 356 | 1990–1994 | |
| VOLVO | F 12/360 | F12 | TD122FH | 356 | 1988–1990 | |
| VOLVO | F 12/360 | F12 | TD122F | 356 | 1988–1990 | |
| VOLVO | F 12/360 | F12 | TD122FH | 356 | 1991–1994 | |
| VOLVO | F 12/370 | F12 | TD121F | 370 | 1987–1987 | |
| VOLVO | F 12/370 | F12 | TD121F | 370 | 1977–1986 | |
| VOLVO | F 12/370 | F12 | TD121F | 370 | 1984–1986 | |
| VOLVO | F 12/380 | F12 | TD121FD | 385 | 1984–1986 | |
| VOLVO | F 12/380 | F12 | TD122FK | 386 | 1987–1995 | |
| VOLVO | F 12/390 | F12 | TD122FA | 390 | 1987–1995 | |
| VOLVO | F 12/400 | F12 | TD122FL | 396 | 1987–1995 | |
| VOLVO | F 12/400 | F12 | TD122FL | 396 | 1990–1994 | |
| VOLVO | F 12/400 | F12 | TD122FS | 396 | 1987–1995 | |
| VOLVO | F 12/400 | F12 | TD122FS | 396 | 1988–1990 | |
| VOLVO | F 12/400 | F12 | TD122FL | 396 | 1988–1990 | |
| VOLVO | F 12/400 | F12 | TD122FS | 396 | 1990–1994 | |
| VOLVO | F 12/400,F 12/410 | F12 | TD122FL | 396-405 | 1990–1994 | |
| VOLVO | F 12/400,F 12/410 | F12 | TD123ES | 396-405 | 1990–1994 | |
| VOLVO | F 12/400,F 12/410 | F12 | TD122FL | 396-405 | 1988–1994 | |
| VOLVO | F 12/400,F 12/410 | F12 | TD123ES | 396-405 | 1988–1994 | |
| VOLVO | F 12/400,F 12/410 | F12 | TD122FS | 396-405 | 1990–1994 | |
| VOLVO | F 12/400,F 12/410 | F12 | TD122FS | 396-405 | 1988–1994 | |
| VOLVO | F 12/410 | F12 | TD123ES | 405 | 1987–1995 | |
| VOLVO | F 88/260 | F80 | TD100A | 258 | 1965–1977 | |
| VOLVO | FL 10/280 | FL10 | TD101G | 275-284 | 1985–1990 | |
| VOLVO | FL 10/285 | FL10 | TD102FH | 284 | 1985–1996 | |
| VOLVO | FL 10/285 | FL10 | TD101G | 275 | 1985–1996 | |
| VOLVO | FL 10/285 | FL10 | TD103E | 284 | 1985–1996 | |
| VOLVO | FL 10/310 | FL10 | TD102FF | 311 | 1985–1996 | |
| VOLVO | FL 10/310 | FL10 | TD103EA | 310 | 1985–1998 | |
| VOLVO | FL 10/310 | FL10 | TD101FD | 310 | 1985–1998 | |
| VOLVO | FL 10/310 | FL10 | TD102FM | 311 | 1985–1996 | |
| VOLVO | FL 10/310 | FL10 | TD101FC | 310 | 1985–1998 | |
| VOLVO | FL 10/310 | FL10 | D10A310 | 310 | 1985–1998 | |
| VOLVO | FL 10/310 | FL10 | TD101F | 310 | 1985–1998 | |
| VOLVO | FL 10/320 | FL10 | TD102FQ | 318 | 1985–1998 | |
| VOLVO | FL 10/320 | FL10 | TD103ES | 320 | 1992–1996 | |
| VOLVO | FL 10/320 | FL10 | TD102F | 318 | 1985–1998 | |
| VOLVO | FL 10/320 | FL10 | TD102FDQ | 318 | 1985–1998 | |
| VOLVO | FL 10/320 | FL10 | D10A320 | 318 | 1985–1998 | |
| VOLVO | FL 10/320 | FL10 | D10A320 | 320 | 1995–1998 | |
| VOLVO | FL 10/320 | FL10 | TD102FL | 318 | 1985–1998 | |
| VOLVO | FL 10/350 | FL10 | 349 | 1995–1998 | ||
| VOLVO | FL 10/360 | FL10 | D10A360 | 360 | 1995–1998 | |
| VOLVO | FL 10H/320 | FL10 | D10A320 | 320 | 1995–1998 | |
| VOLVO | FL 10H/360 | FL10 | D10A360 | 360 | 1995–1998 | |
| VOLVO | FL 7/230 | FL7 | TD71FQ | 230-235 | 1985–1998 | |
| VOLVO | FL 7/230 | FL7 | TD71F | 230-235 | 1985–1998 | |
| VOLVO | FL 7/230 | FL7 | TD73E | 230-235 | 1985–1998 | |
| VOLVO | FL 7/230 | FL7 | D7B230 | 230-235 | 1985–1998 | |
| VOLVO | FL 7/260 | FL7 | TD73ES | 260 | 1991–1998 | |
| VOLVO | FL 7/260 | FL7 | D7B260 | 260 | 1991–1998 | |
| VOLVO | FL 7/290 | FL7 | D7A285 | 286 | 1993–1998 | |
| VOLVO | FM 10/320 | FM10 | D10B320 | 320 | 1999–2001 | |
| VOLVO | FM 10/320 | FM10 | D10A320 | 320 | 1999–2001 | |
| VOLVO | FM 10/360 | FM10 | D10B360 | 360 | 1999–2001 | |
| VOLVO | FM 7/250 | FM7 | D7C250 | 250 | 1998–2001 | |
| VOLVO | FM 7/290 | FM7 | D7C290 | 290 | 1998–2001 | |
| VOLVO | FS 718/230 | FS7 | D7B230 | 230 | 1994–1996 | |
| VOLVO | FS 718/260 | FS7 | D7B260 | 260 | 1994–1996 | |
| VOLVO | N 10/250 | N10 | TD101GB | 252 | 1980–1989 | |
| VOLVO | N 10/250 | N10 | TD100C | 252 | 1980–1989 | |
| VOLVO | N 10/260 | N10 | TD101G | 260 | 1980–1989 | |
| VOLVO | N 10/270 | N10 | TD100G | 270 | 1973–1989 | |
| VOLVO | N 10/270 | N10 | TD101G | 270 | 1973–1989 | |
| VOLVO | N 10/290 | N10 | TD101F | 292 | 1980–1989 | |
| VOLVO | N 10/300 | N10 | TD101F | 299 | 1973–1989 | |
| VOLVO | N 10/300 | N10 | TD100B | 299 | 1973–1989 | |
| VOLVO | N 10/300 | N10 | TD101F | 299 | 1980–1989 | |
| VOLVO | N 12/330 | N12 | TD121G | 330 | 1981–1989 | |
| VOLVO | N 12/330 | N12 | TD120GA | 330 | 1981–1989 | |
| VOLVO | N 12/385 | N12 | TD121F | 385 | 1981–1989 | |
| VOLVO | NL 10/260 | NL | TD101G | 261 | 1989–1992 | |
| VOLVO | NL 10/310 | NL | TD102F | 313 | 1989–1995 | |
| VOLVO | NL 10/320 | NL | TD102FL | 318 | 1992–1995 | |
| VOLVO | NL 10/320 | NL | TD103ES | 320 | 1989–1995 | |
| VOLVO | NL 12/290 | NL | TD121G | 292 | 1989–1992 | |
| VOLVO | NL 12/360 | NL | TD122FR | 356 | 1992–1995 | |
| VOLVO | NL 12/360 | NL | TD122F | 356 | 1992–1995 | |
| VOLVO | NL 12/400 | NL | TD122FS | 396 | 1989–1995 |
