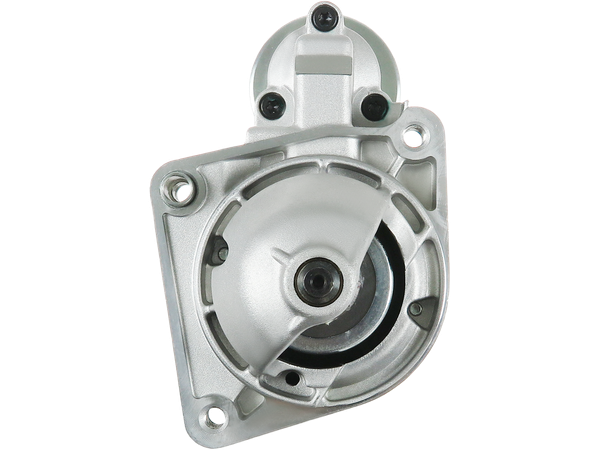

S0105
Startmotorer
STANDARD LINE
696 kr
Köp nu
| EAN | 5901259419832 |
| Tillverkare | AS-PL |
| Ersätter | BOSCH |
| OE-nummer | 0001109018 |
| Datablad | Ladda ner PDF med skiss och mått |
Specifikationer
| Spänning [ V ] | 12 |
| Effekt [ kW ] | 1.70 |
| Startmotors rotation | CW |
| A-storlek [ mm ] | 82.00 |
| B-storlek [ mm ] | 23.00 |
| Antal kuggar [ qty. ] | 9 |
| Antal kuggar (passar in) [ qty. ] | 9. 10. 11 |
| Antal hål i huvudet [ qty. ] | 3 |
| Antal gängade hål [ qty. ] | 3 |
| L.1 [ mm ] | 240.00 |
| O.1 [ mm ] | 114.00 |
| O.2 [ mm ] | 75.50 |
| O.3 [ mm ] | 79.00 |
| C.1 [ mm ] | M8x1.25 |
| C.2 [ mm ] | M8x1.25 |
| C.3 [ mm ] | M8x1.25 |
Passar i 36 fordon
| Märke | Modell | Typ | Motor | Hk | Bränsle | År |
|---|---|---|---|---|---|---|
| FIAT | 1.7 (146CI) | FIORINO MPV (146_) | 146B2.000 | 60 | Diesel | 1988–1992 |
| FIAT | 1.7 D | ELBA (146_) | 146B2.000 | 58 | Diesel | 1989–1996 |
| FIAT | 1.7 D | FIORINO Pick up (146_) | 149B3.000 | 60 | Diesel | 1988–1999 |
| FIAT | 1.7 D | FIORINO Pick up (146_) | 146B2.000 | 57 | Diesel | 1993–1999 |
| FIAT | 1.7 D | PUNTO (176_) | 176B3.000 | 57 | Diesel | 1994–1997 |
| FIAT | 1.7 D | PUNTO Van (176_) | 176B3.000 | 57 | Diesel | 1996–2000 |
| FIAT | 1.7 D | UNO (146_, 158_) | 146B2.000 | 58 | Diesel | 1994–2000 |
| FIAT | 1.7 D (160.AG) | TIPO (160_) | 149B4.000 | 61 | Diesel | 1988–1995 |
| FIAT | 1.7 D (160.AG) | TIPO (160_) | 149B4.000 | 58 | Diesel | 1988–1994 |
| FIAT | 1.7 Diesel | RITMO (138_) | 138C.000 | 60 | Diesel | 1985–1987 |
| FIAT | 1.7 Diesel | RITMO (138_) | 138A5.000 | 55 | Diesel | 1979–1982 |
| FIAT | 1.7 Diesel | RITMO (138_) | 149B3.000 | 60 | Diesel | 1985–1987 |
| FIAT | 1.7 TD | FIORINO Box Body/MPV (146_) | 146D7.000 | 63 | Diesel | 1996–2000 |
| FIAT | 1.7 TD | FIORINO Pick up (146_) | 146D7.000 | 63 | Diesel | 1997–2001 |
| FIAT | 1.7 TD | PALIO Weekend (178_, 173_, 373_, 374_, 171_) | 176A3.000 | 70 | Diesel | 1996–2001 |
| FIAT | 1.7 TD | PUNTO (176_) | 176A3.000 | 69 | Diesel | 1994–1999 |
| FIAT | 1.7 TD | PUNTO (176_) | 176A5.000 | 71 | Diesel | 1994–1999 |
| FIAT | 1.7 TD | PUNTO Van (176_) | 176A5.000 | 71 | Diesel | 1996–2000 |
| FIAT | 1.7 TD | PUNTO Van (176_) | 176B7.000 | 63 | Diesel | 1996–1999 |
| FIAT | 1.7 TD | STRADA Pickup (178_, 278_) | 176A3.000 | 69 | Diesel | 1999–2006 |
| FIAT | 1.7 TD (176AT) | PUNTO (176_) | 176B7.000 | 63 | Diesel | 1996–1999 |
| FIAT | 60 1.7 D | FIORINO Box Body/MPV (146_) | 149B3.000 | 60 | Diesel | 1988–2000 |
| FIAT | 60 1.7 D | FIORINO Box Body/MPV (146_) | 146B2.000 | 60 | Diesel | 1988–2000 |
| FIAT | 60 1.7 D | FIORINO Box Body/MPV (146_) | 146B2.000 | 57 | Diesel | 1988–1996 |
| FIAT | 60 Diesel 1.7 (146E) | UNO (146_, 158_) | 146B2.000 | 57 | Diesel | 1989–1993 |
| FIAT | 65 1.7 TD | FIORINO Box Body/MPV (146_) | 146D7.000 | 63 | Diesel | 1997–2001 |
| FIAT | 70 TD 1.4 | UNO (146_, 158_) | 146B3.000 | 71 | Diesel | 1986–1990 |
| FIAT | 70 TD 1.4 | UNO (146_, 158_) | 146B.000 | 71 | Diesel | 1986–1990 |
| INNOCENTI | 1.7 D (146DI, 146EI) | ELBA | 146B2.000 | 57 | Diesel | 1991–1996 |
| SEAT | 1.7 | IBIZA I (21A) | 021A.3000 | 98 | Petrol | 1991–1993 |
| SEAT | 1.7 D | IBIZA I (21A) | 022A.5000 | 54 | Diesel | 1984–1993 |
| SEAT | 1.7 D | IBIZA I (21A) | 022A.5000 | 57 | Diesel | 1990–1993 |
| SEAT | 1.7 D | MALAGA (23A) | 022A.5000 | 54 | Diesel | 1985–1993 |
| SEAT | 1.7 D | MALAGA (23A) | 022A.5000 | 57 | Diesel | 1990–1993 |
| SEAT | 1.7 Diesel | RONDA (22A) | 022A.5000 | 54 | Diesel | 1982–1986 |
| SEAT | 1.7 Diesel | RONDA (22A) | 022A.5000 | 56 | Diesel | 1982–1986 |
