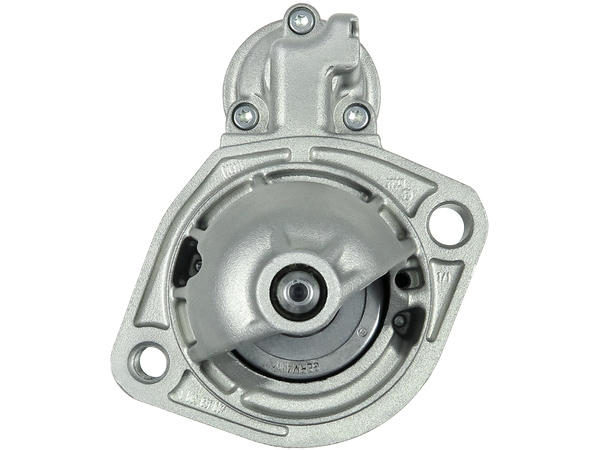

S0154PR
Startmotorer
PREMIUM LINE
640 kr
Köp nu
| EAN | 5902129083771 |
| Tillverkare | AS-PL |
| Ersätter | BOSCH |
| OE-nummer |
3EFFE: STRF031, STRS257 AUTOELECTRO: AES2251 BOSCH: 0001109041, 0001218173, 0986018030 CARGO: 112434, F032112434 CASCO: CST10299, CST10299AS, CST10299ES, CST10299GS, CST10299OS, CST10299RS DELCO: DRS8030, DS9140 EAI: 11936 ELECTROLOG: STR10258, STR1512 ELSTOCK: 25-3149 ERA: 220991 HC PARTS: CS1196 HELLA: 8EA011611-371, 8EA737850-001 KRAUF: STB1196 KUHNER: 101051, 101196 LUCAS: LRT00251, LRT251 MAGNETI MARELLI: 063521090410, 943253143010, 944280180300, MRS18030, MSN2138, MSR5343 PSH: 810.510.092, 810.510.092.460, S135.220, S148.805 SANDO: 6010299 SIDAT: S12BH0496A2 SIOM: MAV122990, MAV123170 STARDAX: STX200118, STX200118R, STX200171, STX200171R, STX200322, STX200322R VALEO: 458555 VOLVO: 36050276, 8602360, 9162928, 91629287, 9162929, 9169468, 9459468 WAI / TRANSPO: 32358R WOODAUTO: STR50366 |
| Datablad | Ladda ner PDF med skiss och mått |
Specifikationer
| Spänning [ V ] | 12 |
| Effekt [ kW ] | 2.00 |
| Startmotors rotation | CW |
| A-storlek [ mm ] | 82.50 |
| B-storlek [ mm ] | 21.00 |
| Antal kuggar [ qty. ] | 9 |
| Antal kuggar (passar in) [ qty. ] | 9 |
| Antal hål i huvudet [ qty. ] | 2 |
| Antal gängade hål [ qty. ] | 1 |
| L.1 [ mm ] | 240.00 |
| O.1 [ mm ] | 105.00 |
| C.1 [ mm ] | 12.50 |
| C.2 [ mm ] | M12x1.75 |
Passar i 31 fordon
| Märke | Modell | Typ | Motor | Hk | Bränsle | År |
|---|---|---|---|---|---|---|
| VOLVO | 2.4 CDI | S60 I (384) | D5244T3 | 116 | Diesel | 2003–2005 |
| VOLVO | 2.4 CDI | V70 II (285) | D5244T6 | 122 | Diesel | 2005–2008 |
| VOLVO | 2.4 D | S60 I (384) | D5244T6 | 122 | Diesel | 2005–2006 |
| VOLVO | 2.4 D | S60 I (384) | D5244T7 | 126 | Diesel | 2005–2010 |
| VOLVO | 2.4 D | S60 I (384) | D5244T2 | 130 | Diesel | 2001–2010 |
| VOLVO | 2.4 D | S80 I (184) | D5244T2 | 131 | Diesel | 2001–2006 |
| VOLVO | 2.4 D | V70 II (285) | D5244T2 | 131 | Diesel | 2001–2007 |
| VOLVO | 2.4 D | V70 II (285) | D5244T7 | 126 | Diesel | 2005–2008 |
| VOLVO | 2.4 Tdi | V50 (545) | D5244T9 | 163 | Diesel | 2007–2010 |
| VOLVO | 2.5 TDI | 850 (854) | D5252T | 140 | Diesel | 1995–1996 |
| VOLVO | 2.5 TDI | 850 Estate (855) | D5252T | 140 | Diesel | 1995–1996 |
| VOLVO | 2.5 TDI | S70 (874) | D5252T | 140 | Diesel | 1997–2000 |
| VOLVO | 2.5 TDI | S80 I (184) | D5252T | 140 | Diesel | 1999–2006 |
| VOLVO | 2.5 TDI | V70 I (875, 876) | D5252T | 140 | Diesel | 1995–2000 |
| VOLVO | 2.5 TDI | V70 II (285) | D5252T | 140 | Diesel | 1999–2007 |
| VOLVO | 2.5 TDi AWD | S70 (874) | D5252T | 140 | Diesel | 1999–2000 |
| VOLVO | 2.5 TDi AWD | V70 I (875, 876) | D5252T | 140 | Diesel | 1996–2000 |
| VOLVO | D5 | S60 I (384) | D5244T | 163 | Diesel | 2001–2010 |
| VOLVO | D5 | S60 I (384) | D5244T4 | 185 | Diesel | 2005–2010 |
| VOLVO | D5 | S60 I (384) | D5244T5 | 163 | Diesel | 2001–2010 |
| VOLVO | D5 | S80 I (184) | D5244T | 163 | Diesel | 2001–2006 |
| VOLVO | D5 | V70 II (285) | D5244T2 | 163 | Diesel | 2001–2008 |
| VOLVO | D5 | V70 II (285) | D5244T | 163 | Diesel | 2001–2008 |
| VOLVO | D5 | V70 II (285) | D5244T4 | 185 | Diesel | 2005–2008 |
| VOLVO | D5 | V70 II (285) | D5244T5 | 163 | Diesel | 2001–2008 |
| VOLVO | D5 AWD | V70 II (285) | D5244T5 | 163 | Diesel | 2002–2007 |
| VOLVO | D5 AWD | V70 II (285) | D5244T4 | 185 | Diesel | 2005–2007 |
| VOLVO | D5 AWD | V70 II (285) | D5244T2 | 163 | Diesel | 2002–2007 |
| VOLVO | D5 AWD | V70 II (285) | D5244T | 163 | Diesel | 2002–2007 |
| VOLVO | D5 AWD | XC70 I Cross Country (295) | D5244T4 | 185 | Diesel | 2005–2007 |
| VOLVO | D5 XC AWD | XC70 I Cross Country (295) | D5244T | 163 | Diesel | 2002–2007 |
