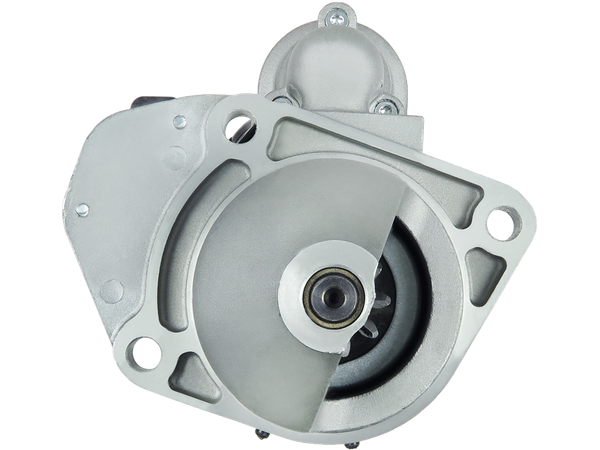

S0181
Startmotorer
STANDARD LINE
1462 kr
Köp nu
| EAN | 5901259420708 |
| Tillverkare | AS-PL |
| Ersätter | BOSCH |
| OE-nummer | 0001231035 |
| Datablad | Ladda ner PDF med skiss och mått |
Specifikationer
| Spänning [ V ] | 24 |
| Effekt [ kW ] | 4.00 |
| Startmotors rotation | CW |
| A-storlek [ mm ] | 89.00 |
| B-storlek [ mm ] | 28.00 |
| Antal kuggar [ qty. ] | 10 |
| Antal kuggar (passar in) [ qty. ] | 10 |
| Antal hål i huvudet [ qty. ] | 3 |
| Antal gängade hål [ qty. ] | 0 |
| L.1 [ mm ] | 315.00 |
| O.1 [ mm ] | 93.00 |
| O.2 [ mm ] | 127.00 |
| O.3 [ mm ] | 81.00 |
| C.1 [ mm ] | 11.00 |
| C.2 [ mm ] | 11.00 |
| C.3 [ mm ] | 11.00 |
Passar i 288 fordon
| Märke | Modell | Typ | Motor | Hk | Bränsle | År |
|---|---|---|---|---|---|---|
| MAN | 10.150 | TGL II | D0834LFL66 | 150 | 2020– | |
| MAN | 10.150 | TGL II | D0834LFLAA | 150 | 2020– | |
| MAN | 10.180 | TGL I | D0834LFL41 | 180 | 2005–2022 | |
| MAN | 10.180 | TGL I | D0834LFL75 | 179 | 2012–2022 | |
| MAN | 10.180 | TGL I | D0834LFL54 | 180 | 2005–2022 | |
| MAN | 10.180 | TGL I | D0834LFL67 | 180 | 2005–2022 | |
| MAN | 10.180 | TGL I | D0834LFL51 | 180 | 2005–2022 | |
| MAN | 10.180 | TGL I | D0834LFL64 | 180 | 2005–2022 | |
| MAN | 10.180 | TGL I | D0834LFLAB | 180 | 2005–2022 | |
| MAN | 10.180 | TGL II | D0834LFL67 | 179 | 2020– | |
| MAN | 10.180 | TGL II | D0834LFLAD | 179 | 2020– | |
| MAN | 10.180 | TGL II | D0834LFLAB | 179 | 2020– | |
| MAN | 10.190 | TGL I | D0834LFL84 | 190 | 2017–2022 | |
| MAN | 10.190 | TGL I | D0834LFLAG | 190 | 2017–2022 | |
| MAN | 10.190 | TGL I | D0834LFL78 | 190 | 2017–2022 | |
| MAN | 10.190 | TGL I | D0834LFL90 | 190 | 2017–2022 | |
| MAN | 10.210 | TGL I | D0834LFL55 | 206 | 2005–2022 | |
| MAN | 10.210 | TGL I | D0834LFL52 | 206 | 2005–2022 | |
| MAN | 10.210 | TGL I | D0834LFL42 | 206 | 2005–2022 | |
| MAN | 10.220 | TGL I | D0834LFL76 | 220 | 2012–2022 | |
| MAN | 10.220 | TGL I | D0834LFL65 | 220 | 2005–2022 | |
| MAN | 10.220 | TGL I | D0834LFL68 | 220 | 2005–2022 | |
| MAN | 10.220 | TGL II | D0834LFLAE | 220 | 2020– | |
| MAN | 10.220 | TGL II | D0834LFLAC | 220 | 2020– | |
| MAN | 10.220 | TGL II | D0834LFL68 | 220 | 2020– | |
| MAN | 10.240 | TGL I | D0836LFL50 | 240 | 2005–2022 | |
| MAN | 10.240 | TGL I | D0836LFL40 | 240 | 2005–2022 | |
| MAN | 10.240 | TGL I | D0836LFL53 | 240 | 2005–2022 | |
| MAN | 10.250 | TGL I | D0836LFL66 | 250 | 2005–2022 | |
| MAN | 10.250 | TGL I | D0836LFL63 | 250 | 2005–2022 | |
| MAN | 10.250 | TGL I | D0836LFL75 | 250 | 2008–2022 | |
| MAN | 10.250 | TGL I | D0836LFL69 | 250 | 2008–2022 | |
| MAN | 12.150 | TGL II | D0834LFLAA | 150 | 2020– | |
| MAN | 12.150 | TGL II | D0834LFL66 | 150 | 2020– | |
| MAN | 12.180 | TGL I | D0834LFL51 | 180 | 2005–2022 | |
| MAN | 12.180 | TGL I | D0834LFLAB | 180 | 2005–2022 | |
| MAN | 12.180 | TGL I | D0834LFL41 | 180 | 2005–2022 | |
| MAN | 12.180 | TGL I | D0834LFL64 | 180 | 2005–2022 | |
| MAN | 12.180 | TGL I | D0834LFL54 | 180 | 2005–2022 | |
| MAN | 12.180 | TGL I | D0834LFL75 | 179 | 2012–2022 | |
| MAN | 12.180 | TGL I | D0834LFL67 | 180 | 2005–2022 | |
| MAN | 12.180 | TGL II | D0834LFLAD | 179 | 2020– | |
| MAN | 12.180 | TGL II | D0834LFL67 | 179 | 2020– | |
| MAN | 12.180 | TGL II | D0834LFLAB | 179 | 2020– | |
| MAN | 12.190 | TGL I | D0834LFL90 | 190 | 2017–2022 | |
| MAN | 12.190 | TGL I | D0834LFL84 | 190 | 2017–2022 | |
| MAN | 12.190 | TGL I | D0834LFLAG | 190 | 2017–2022 | |
| MAN | 12.190 | TGL I | D0834LFL78 | 190 | 2017–2022 | |
| MAN | 12.210 | TGL I | D0834LFL52 | 206 | 2005–2022 | |
| MAN | 12.210 | TGL I | D0834LFL55 | 206 | 2005–2022 | |
| MAN | 12.210 | TGL I | D0834LFL42 | 206 | 2005–2022 | |
| MAN | 12.220 | TGL I | D0834LFL76 | 220 | 2005–2022 | |
| MAN | 12.220 | TGL I | D0834LFLAC | 220 | 2005–2022 | |
| MAN | 12.220 | TGL I | D0834LFL68 | 220 | 2005–2022 | |
| MAN | 12.220 | TGL I | D0834LFL62 | 220 | 2005–2022 | |
| MAN | 12.220 | TGL I | D0834LFL79 | 220 | 2005–2022 | |
| MAN | 12.220 | TGL I | D0834LFL91 | 220 | 2005–2022 | |
| MAN | 12.220 | TGL I | D0834LFL65 | 220 | 2005–2022 | |
| MAN | 12.220 | TGL I | D0834LFLAH | 220 | 2005–2022 | |
| MAN | 12.220 | TGL I | D0834LFL85 | 220 | 2005–2022 | |
| MAN | 12.220 | TGL I | D0834LFL76 | 220 | 2012–2022 | |
| MAN | 12.220 | TGL II | D0834LFLAC | 220 | 2020– | |
| MAN | 12.220 | TGL II | D0834LFL68 | 220 | 2020– | |
| MAN | 12.220 | TGL II | D0834LFLAE | 220 | 2020– | |
| MAN | 12.240 | TGL I | D0836LFL40 | 240 | 2005–2022 | |
| MAN | 12.240 | TGL I | D0836LFL50 | 240 | 2005–2022 | |
| MAN | 12.240 | TGL I | D0836LFL53 | 240 | 2005–2022 | |
| MAN | 12.240 | TGM I | D0836LFL50 | 240 | 2005–2022 | |
| MAN | 12.240 | TGM I | D0836LFL53 | 240 | 2005–2022 | |
| MAN | 12.250 | TGL I | D0836LFL63 | 250 | 2005–2022 | |
| MAN | 12.250 | TGL I | D0836LFL69 | 250 | 2008–2022 | |
| MAN | 12.250 | TGL I | D0836LFL75 | 250 | 2005–2022 | |
| MAN | 12.250 | TGL I | D0836LFL66 | 250 | 2005–2022 | |
| MAN | 12.250 | TGL I | D0836LFL60 | 250 | 2005–2022 | |
| MAN | 12.250 | TGL I | D0836LFL75 | 250 | 2008–2022 | |
| MAN | 12.250 | TGM I | D0836LFL63 | 250 | 2005–2022 | |
| MAN | 12.250 | TGM I | D0836LFL69 | 250 | 2008–2022 | |
| MAN | 12.250 | TGM I | D0836LFL66 | 250 | 2005–2022 | |
| MAN | 12.250 | TGM I | D0836LFL75 | 250 | 2008–2022 | |
| MAN | 12.280 | TGM I | D0836LFL51 | 280 | 2005–2022 | |
| MAN | 12.280 | TGM I | D0836LFL54 | 280 | 2005–2022 | |
| MAN | 12.290 | TGM I | D0836LFL67 | 290 | 2005–2022 | |
| MAN | 12.290 | TGM I | D0836LFL76 | 290 | 2008–2022 | |
| MAN | 12.290 | TGM I | D0836LFL64 | 290 | 2005–2022 | |
| MAN | 12.290 | TGM I | D0836LFL70 | 290 | 2008–2022 | |
| MAN | 13.240 | TGM I | D0836LFL40 | 240 | 2006–2022 | |
| MAN | 13.240 | TGM I | D0836LFL50 | 240 | 2006–2022 | |
| MAN | 13.240 | TGM I | D0836LFL53 | 240 | 2005–2022 | |
| MAN | 13.240 | TGM I | D0836LFL53 | 240 | 2006–2022 | |
| MAN | 13.250 | TGM I | D0836LFL66 | 250 | 2005–2022 | |
| MAN | 13.250 | TGM I | D0836LFL63 | 250 | 2005–2022 | |
| MAN | 13.280 | TGM I | D0836LFL54 | 280 | 2005–2022 | |
| MAN | 13.280 | TGM I | D0836LFL54 | 280 | 2006–2022 | |
| MAN | 13.280 | TGM I | D0836LFL41 | 280 | 2006–2022 | |
| MAN | 13.280 | TGM I | D0836LFL51 | 280 | 2006–2022 | |
| MAN | 13.290 | TGM I | D0836LFL64 | 290 | 2005–2022 | |
| MAN | 13.290 | TGM I | D0836LFL67 | 290 | 2005–2022 | |
| MAN | 15.240 | TGM I | D0836LFL53 | 240 | 2005–2022 | |
| MAN | 15.240 | TGM I | D0836LFL50 | 240 | 2005–2022 | |
| MAN | 15.240 | TGM I | D0836LFL40 | 240 | 2005–2022 | |
| MAN | 15.250 | TGM I | D0836LFL75 | 250 | 2008–2022 | |
| MAN | 15.250 | TGM I | D0836LFL66 | 250 | 2005–2022 | |
| MAN | 15.250 | TGM I | D0836LFL69 | 250 | 2008–2022 | |
| MAN | 15.250 | TGM I | D0836LFL63 | 250 | 2005–2022 | |
| MAN | 15.280 | TGM I | D0836LFL41 | 280 | 2005–2022 | |
| MAN | 15.280 | TGM I | D0836LFL51 | 280 | 2005–2022 | |
| MAN | 15.280 | TGM I | D0836LFL54 | 280 | 2005–2022 | |
| MAN | 15.290 | TGM I | D0836LFL67 | 290 | 2005–2022 | |
| MAN | 15.290 | TGM I | D0836LFL64 | 290 | 2005–2022 | |
| MAN | 15.290 | TGM I | D0836LFL76 | 290 | 2008–2022 | |
| MAN | 15.290 | TGM I | D0836LFL70 | 290 | 2008–2022 | |
| MAN | 15.330 | TGM I | D0836LFL55 | 326 | 2005–2022 | |
| MAN | 15.330 | TGM I | D0836LFL44 | 326 | 2005–2022 | |
| MAN | 15.340 | TGM I | D0836LFL71 | 340 | 2008–2022 | |
| MAN | 15.340 | TGM I | D0836LFL65 | 340 | 2005–2022 | |
| MAN | 15.340 | TGM I | D0836LFL68 | 340 | 2005–2022 | |
| MAN | 15.340 | TGM I | D0836LFL77 | 341 | 2012–2022 | |
| MAN | 16.240 | TGM I | D0836LFL40 | 239 | 2005–2022 | |
| MAN | 16.240 | TGM I | D0836LFL53 | 239 | 2005–2022 | |
| MAN | 16.240 | TGM I | D0836LFL50 | 239 | 2005–2022 | |
| MAN | 16.250 | TGM I | D0836LFL75 | 250 | 2008–2022 | |
| MAN | 16.250 | TGM I | D0836LFL66 | 250 | 2008–2022 | |
| MAN | 16.250 | TGM I | D0836LFL69 | 250 | 2008–2022 | |
| MAN | 16.250 | TGM I | D0836LFLAA | 250 | 2008–2022 | |
| MAN | 16.250 | TGM I | D0836LFL63 | 250 | 2008–2022 | |
| MAN | 16.250 | TGM I | D0836LFL86 | 250 | 2008–2022 | |
| MAN | 16.250 | TGM I | D0836LFLAN | 250 | 2008–2022 | |
| MAN | 16.250 | TGM I | D0836LFL60 | 250 | 2008–2022 | |
| MAN | 16.280 | TGM I | D0836LFL51 | 280 | 2005–2022 | |
| MAN | 16.280 | TGM I | D0836LFL41 | 280 | 2005–2022 | |
| MAN | 16.280 | TGM I | D0836LFL54 | 280 | 2005–2022 | |
| MAN | 16.290 | TGM I | D0836LFL87 | 290 | 2008–2023 | |
| MAN | 16.290 | TGM I | D0836LFL70 | 290 | 2008–2022 | |
| MAN | 16.290 | TGM I | D0836LFLAI | 290 | 2008–2023 | |
| MAN | 16.290 | TGM I | D0836LFL61 | 290 | 2008–2023 | |
| MAN | 16.290 | TGM I | D0836LFL67 | 290 | 2008–2023 | |
| MAN | 16.290 | TGM I | D0836LFLAB | 290 | 2008–2023 | |
| MAN | 16.290 | TGM I | D0836LFL76 | 290 | 2008–2022 | |
| MAN | 16.290 | TGM I | D0836LFLAO | 290 | 2008–2023 | |
| MAN | 16.290 | TGM I | D0836LFL64 | 290 | 2008–2023 | |
| MAN | 18.240 | TGM I | D0836LFL40 | 240 | 2005–2022 | |
| MAN | 18.240 | TGM I | D0836LFL53 | 240 | 2006–2022 | |
| MAN | 18.240 | TGM I | D0836LFL53 | 240 | 2005–2022 | |
| MAN | 18.240 | TGM I | D0836LFL40 | 240 | 2006–2022 | |
| MAN | 18.250 | TGM I | D0836LFL63 | 250 | 2005–2022 | |
| MAN | 18.250 | TGM I | D0836LFLAA | 250 | 2005–2022 | |
| MAN | 18.250 | TGM I | D0836LFL75 | 250 | 2008–2022 | |
| MAN | 18.250 | TGM I | D0836LFLAN | 250 | 2005–2022 | |
| MAN | 18.250 | TGM I | D0836LFL79 | 250 | 2005–2022 | |
| MAN | 18.250 | TGM I | D0836LFL66 | 250 | 2005–2022 | |
| MAN | 18.250 | TGM I | D0836LFL92 | 250 | 2005–2022 | |
| MAN | 18.250 | TGM I | D0836LFL60 | 250 | 2005–2022 | |
| MAN | 18.250 | TGM I | D0836LFL69 | 250 | 2008–2022 | |
| MAN | 18.250 | TGM I | D0836LFLAH | 250 | 2005–2022 | |
| MAN | 18.250 | TGM I | D0836LFL86 | 250 | 2005–2022 | |
| MAN | 18.280 | TGM I | D0836LFL51 | 280 | 2005–2022 | |
| MAN | 18.280 | TGM I | D0836LFL54 | 280 | 2005–2022 | |
| MAN | 18.280 | TGM I | D0836LFL41 | 280 | 2005–2022 | |
| MAN | 18.290 | TGM I | D0836LFL67 | 290 | 2005–2022 | |
| MAN | 18.290 | TGM I | D0836LFL64 | 290 | 2005–2022 | |
| MAN | 18.290 | TGM I | D0836LFL76 | 290 | 2008–2022 | |
| MAN | 18.290 | TGM I | D0836LFL70 | 290 | 2008–2022 | |
| MAN | 18.330 | TGM I | D0836LFL44 | 326 | 2005–2022 | |
| MAN | 18.330 | TGM I | D0836LFL55 | 326 | 2005–2022 | |
| MAN | 18.330 | TGM I | D0836LFL52 | 326 | 2005–2022 | |
| MAN | 18.340 | TGM I | D0836LFL71 | 340 | 2008–2022 | |
| MAN | 18.340 | TGM I | D0836LFL65 | 340 | 2005–2022 | |
| MAN | 18.340 | TGM I | D0836LFL68 | 340 | 2005–2022 | |
| MAN | 18.340 | TGM I | D0836LFL77 | 341 | 2012–2022 | |
| MAN | 22.240 | TGM I | D0836LFL53 | 240 | 2005–2022 | |
| MAN | 22.250 | TGM I | D0836LFL75 | 250 | 2008–2022 | |
| MAN | 22.250 | TGM I | D0836LFL66 | 250 | 2005–2022 | |
| MAN | 22.250 | TGM I | D0836LFL69 | 250 | 2008–2022 | |
| MAN | 22.250 | TGM I | D0836LFL63 | 250 | 2005–2022 | |
| MAN | 22.280 | TGM I | D0836LFL54 | 280 | 2005–2022 | |
| MAN | 22.290 | TGM I | D0836LFL70 | 290 | 2008–2022 | |
| MAN | 22.290 | TGM I | D0836LFL64 | 290 | 2005–2022 | |
| MAN | 22.290 | TGM I | D0836LFL76 | 290 | 2008–2022 | |
| MAN | 26.280 | TGM I | D0836LFL54 | 280 | 2006–2022 | |
| MAN | 26.280 | TGM I | D0836LFL54 | 280 | 2005–2022 | |
| MAN | 26.280 | TGM I | D0836LFL51 | 280 | 2006–2022 | |
| MAN | 26.290 | TGM I | D0836LFL67 | 290 | 2005–2022 | |
| MAN | 26.290 | TGM I | D0836LFL64 | 290 | 2005–2022 | |
| MAN | 26.290 | TGM I | D0836LFL76 | 290 | 2008–2022 | |
| MAN | 26.290 | TGM I | D0836LFL76 | 290 | 2009–2022 | |
| MAN | 26.290 | TGM I | D0836LFL67 | 290 | 2008–2022 | |
| MAN | 26.290 | TGM I | D0836LFL70 | 290 | 2008–2022 | |
| MAN | 26.290 | TGM I | D0836LFL70 | 290 | 2009–2022 | |
| MAN | 26.290 | TGM I | D0836LFL64 | 290 | 2008–2022 | |
| MAN | 26.330 | TGM I | D0836LFL52 | 326 | 2006–2022 | |
| MAN | 26.330 | TGM I | D0836LFL55 | 326 | 2005–2022 | |
| MAN | 26.330 | TGM I | D0836LFL55 | 326 | 2006–2022 | |
| MAN | 26.340 | TGM I | D0836LFLAJ | 341 | 2012–2022 | |
| MAN | 26.340 | TGM I | D0836LFL65 | 340 | 2008–2022 | |
| MAN | 26.340 | TGM I | D0836LFL68 | 340 | 2005–2022 | |
| MAN | 26.340 | TGM I | D0836LFL65 | 340 | 2005–2022 | |
| MAN | 26.340 | TGM I | D0836LFL71 | 340 | 2009–2022 | |
| MAN | 26.340 | TGM I | D0836LFL68 | 341 | 2012–2022 | |
| MAN | 26.340 | TGM I | D0836LFL71 | 340 | 2008–2022 | |
| MAN | 26.340 | TGM I | D0836LFL77 | 341 | 2012–2022 |
Visar 200 av 288 fordon
