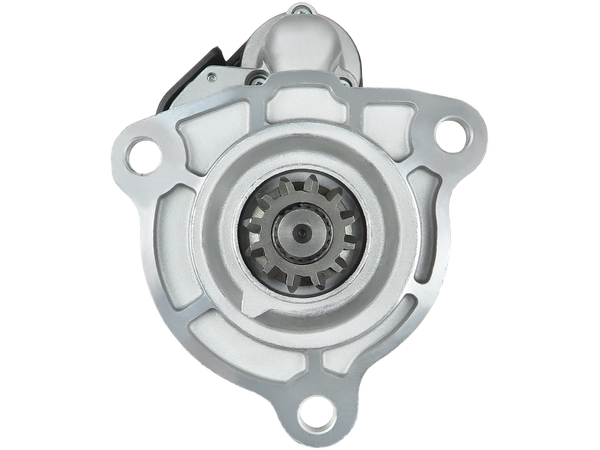

S0683S
Startmotorer
STANDARD LINE
2009 kr
Köp nu
| EAN | 5902129089223 |
| Tillverkare | AS-PL |
| Ersätter | BOSCH |
| OE-nummer | 0001261002 |
| Datablad | Ladda ner PDF med skiss och mått |
Specifikationer
| Spänning [ V ] | 24 |
| Effekt [ kW ] | 5.50 |
| Startmotors rotation | CW |
| A-storlek [ mm ] | 92.00 |
| B-storlek [ mm ] | 48.00 |
| Antal kuggar [ qty. ] | 12 |
| Antal hål i huvudet [ qty. ] | 3 |
| Antal gängade hål [ qty. ] | 0 |
| L.1 [ mm ] | 324.00 |
| O.1 [ mm ] | 127.00 |
| O.2 [ mm ] | 127.00 |
| O.3 [ mm ] | 127.00 |
| C.1 [ mm ] | 13.50 |
| C.2 [ mm ] | 13.50 |
| C.3 [ mm ] | 13.50 |
Passar i 1570 fordon
| Märke | Modell | Typ | Motor | Hk | Bränsle | År |
|---|---|---|---|---|---|---|
| BOVA | MHD 122 | Magiq | MX300 | 408 | 2006– | |
| BOVA | MHD 131 Magnum, MHD 139 Magnum, MHD 148 Magnum | Magiq | MX340 | 462 | 2007– | |
| BOVA | SDD 130, SDD 141 | Synergy | MX340 | 462 | 2007– | |
| BOVA | SDD 130, SSD 141 | Synergy | MX375 | 510 | 2007– | |
| DAF | FAC 95 XF 530 | 95 XF | VF390M | 530 | 1997–2002 | |
| DAF | FAD 95 XF 530 | 95 XF | VF390M | 530 | 1997–2002 | |
| DAF | FT 95.500 | 95 | VF373M | 507 | 1994–1998 | |
| MAN | 18.430 | TGS I | D2676LF80 | 430 | 2019–2021 | |
| MAN | 18.430 | TGX I | D2676LF80 | 430 | 2019–2021 | |
| MAN | 18.470 | TGS I | D2676LF79 | 470 | 2019–2021 | |
| MAN | 18.470 | TGX I | D2676LF79 | 470 | 2019–2021 | |
| MAN | 18.510 | TGA | D2876LF05 | 510 | 1999–2009 | |
| MAN | 18.510 | TGS I | D2676LF78 | 510 | 2019–2021 | |
| MAN | 18.510 | TGX I | D2676LF78 | 510 | 2019–2021 | |
| MAN | 18.530 | TGA | D2876LF13 | 530 | 2002–2009 | |
| MAN | 23.510 | TGS I | D2676LF78 | 510 | 2019–2021 | |
| MAN | 24.430 | TGX I | D2676LF80 | 430 | 2019–2021 | |
| MAN | 24.470 | TGS I | D2676LF79 | 470 | 2019–2021 | |
| MAN | 24.470 | TGX I | D2676LF79 | 470 | 2019–2021 | |
| MAN | 24.510 | TGS I | D2676LF78 | 510 | 2019–2021 | |
| MAN | 24.510 | TGX I | D2676LF78 | 510 | 2019–2021 | |
| MAN | 26.225 | M 2000 L | D0826LFL03 | 220 | 1999–2007 | |
| MAN | 26.225 | M 2000 L | D0826LFL08 | 220 | 1999–2007 | |
| MAN | 26.225 | M 2000 L | D0836LFL02 | 220 | 1999–2007 | |
| MAN | 26.225 | M 2000 L | D0826LFL06 | 220 | 1999–2007 | |
| MAN | 26.225 | M 2000 L | D0826LFL10 | 220 | 1999–2007 | |
| MAN | 26.255 | M 2000 L | D0836LFL05 | 245 | 1999–2007 | |
| MAN | 26.274 | M 2000 L | 266 | 2004–2007 | ||
| MAN | 26.275 | M 2000 L | 266 | 2004–2007 | ||
| MAN | 26.284 | M 2000 L | D0836LFL03 | 280 | 1999–2007 | |
| MAN | 26.284 | M 2000 L | D0836LFL01 | 280 | 1999–2007 | |
| MAN | 26.430 | TGS I | D2676LF80 | 430 | 2019–2021 | |
| MAN | 26.430 | TGX I | D2676LF80 | 430 | 2019–2021 | |
| MAN | 26.470 | TGS I | D2676LF79 | 470 | 2019–2021 | |
| MAN | 26.470 | TGX I | D2676LF79 | 470 | 2019–2021 | |
| MAN | 26.510 | TGS I | D2676LF78 | 510 | 2019–2021 | |
| MAN | 26.510 | TGX I | D2676LF78 | 510 | 2019–2021 | |
| MAN | 28.430 | TGS I | D2676LF80 | 430 | 2019–2021 | |
| MAN | 28.430 | TGX I | D2676LF80 | 430 | 2019–2021 | |
| MAN | 28.470 | TGS I | D2676LF79 | 470 | 2019–2021 | |
| MAN | 28.470 | TGX I | D2676LF79 | 470 | 2019–2021 | |
| MAN | 28.510 | TGS I | D2676LF78 | 510 | 2019–2021 | |
| MAN | 28.510 | TGX I | D2676LF78 | 510 | 2019–2021 | |
| MAN | 32.430 | TGS I | D2676LF80 | 430 | 2019–2021 | |
| MAN | 33.430 | TGS I | D2676LF80 | 430 | 2019–2021 | |
| MAN | 33.470 | TGS I | D2676LF79 | 470 | 2019–2021 | |
| MAN | 33.470 | TGX I | D2676LF79 | 470 | 2019–2021 | |
| MAN | 33.510 | TGS I | D2676LF78 | 510 | 2019–2021 | |
| MAN | 35.430 | TGS I | D2676LF80 | 430 | 2019–2021 | |
| MAN | 37.430 | TGS I | D2676LF80 | 430 | 2019–2021 | |
| MAN | 37.510 | TGS I | D2676LF78 | 510 | 2019–2021 | |
| MAN | 40.440 | TGA | D2066LF36 | 441 | 2008–2012 | |
| MAN | 40.440 | TGA | D2066LF31 | 441 | 2008–2012 | |
| MAN | 40.440 | TGA | D2066LF62 | 441 | 2008–2012 | |
| MAN | 40.440 | TGA | D2066LF17 | 441 | 2008–2012 | |
| MAN | 41.430 | TGS I | D2676LF80 | 430 | 2019–2021 | |
| MAN | 41.470 | TGS I | D2676LF79 | 470 | 2019–2021 | |
| MAN | 6.113 | L2000 | D0824LFL04 | 110 | 1993–2006 | |
| MAN | 6.113 | L2000 | D0824LFL08 | 113 | 1997–2006 | |
| MAN | 6.145 | L2000 | D0824LFL07 | 141 | 2000–2001 | |
| MAN | 6.153 | L2000 | D0824LFL06 | 155 | 1993–2006 | |
| MAN | 6.153 | L2000 | D0824LFL05 | 155 | 1993–2006 | |
| MAN | 6.153 | L2000 | D0824LFL09 | 155 | 1993–2006 | |
| MAN | 6.153 | L2000 | D0824LFL01 | 155 | 1993–2006 | |
| MAN | 6.163 | L2000 | D0824LFL02 | 160 | 1993–2006 | |
| MAN | 7.113 | L2000 | D0824LFL04 | 110 | 1993–2006 | |
| MAN | 7.113 | L2000 | D0824LFL08 | 113 | 1997–2006 | |
| MAN | 7.145 | L2000 | D0824LFL07 | 141 | 2000–2001 | |
| MAN | 7.153 | L2000 | D0824LFL01 | 155 | 1993–2006 | |
| MAN | 7.153 | L2000 | D0824LFL09 | 155 | 1993–2006 | |
| MAN | 7.153 | L2000 | D0824LFL05 | 155 | 2000–2001 | |
| MAN | 7.153 | L2000 | D0824LFL06 | 155 | 1993–2006 | |
| MAN | 7.153 | L2000 | D0824LFL09 | 155 | 2000–2001 | |
| MAN | 7.153 | L2000 | D0824LFL01 | 155 | 2000–2001 | |
| MAN | 7.153 | L2000 | D0824LFL05 | 155 | 1993–2006 | |
| MAN | 7.153 | L2000 | D0824LFL06 | 155 | 2000–2001 | |
| MAN | 7.163 | L2000 | D0824LFL02 | 160 | 1993–2006 | |
| MAN | 7.163 | L2000 | D0824LFL02 | 160 | 2000–2001 | |
| MAN | 8.113 | L2000 | D0824LFL08 | 113 | 1997–2006 | |
| MAN | 8.145 | L2000 | D0824LFL07 | 141 | 1993–2006 | |
| MAN | 9.145 | L2000 | D0824LFL07 | 141 | 1993–2006 | |
| MERCEDES-BENZ | 1114 AK | LK/LN2 | OM366.931 | 129-136 | 1987–1998 | |
| MERCEDES-BENZ | 1114 AK | LK/LN2 | OM366.918 | 129-136 | 1987–1998 | |
| MERCEDES-BENZ | 1114 AK | LK/LN2 | OM356.903 | 129-136 | 1987–1998 | |
| MERCEDES-BENZ | 1114 K | LK/LN2 | OM356.904 | 129-136 | 1984–1998 | |
| MERCEDES-BENZ | 1114 K | LK/LN2 | OM366.914 | 129-136 | 1984–1998 | |
| MERCEDES-BENZ | 1114 K | LK/LN2 | OM366.907 | 129-136 | 1984–1998 | |
| MERCEDES-BENZ | 1114 S | LK/LN2 | OM356.904 | 129-136 | 1984–1998 | |
| MERCEDES-BENZ | 1114 S | LK/LN2 | OM366.914 | 129-136 | 1984–1998 | |
| MERCEDES-BENZ | 1114 S | LK/LN2 | OM366.907 | 129-136 | 1984–1998 | |
| MERCEDES-BENZ | 1114,1114 L | LK/LN2 | OM366.914 | 129-136 | 1984–1998 | |
| MERCEDES-BENZ | 1114,1114 L | LK/LN2 | OM366.907 | 129-136 | 1984–1998 | |
| MERCEDES-BENZ | 1114,1114 L | LK/LN2 | OM366.930 | 129-136 | 1984–1998 | |
| MERCEDES-BENZ | 1114,1114 L | LK/LN2 | OM356.904 | 129-136 | 1984–1998 | |
| MERCEDES-BENZ | 1117 AK | LK/LN2 | OM357.902 | 170 | 1984–1998 | |
| MERCEDES-BENZ | 1117 AK | LK/LN2 | OM357.907 | 170 | 1984–1998 | |
| MERCEDES-BENZ | 1117 AK | LK/LN2 | OM357.906 | 170 | 1984–1998 | |
| MERCEDES-BENZ | 1117 K | LK/LN2 | OM904.907 | 170 | 1996–1998 | |
| MERCEDES-BENZ | 1117 LO | LK/LN2 | OM904.907 | 170 | 1996–1998 | |
| MERCEDES-BENZ | 1117 O,1117 LO | LK/LN2 | OM357.919 | 158-170 | 1984–1998 | |
| MERCEDES-BENZ | 1117 O,1117 LO | LK/LN2 | OM356.949 | 158-170 | 1984–1998 | |
| MERCEDES-BENZ | 1117 O,1117 LO | LK/LN2 | OM366.971 | 158-170 | 1984–1998 | |
| MERCEDES-BENZ | 1117 S | LK/LN2 | OM904.907 | 170 | 1996–1998 | |
| MERCEDES-BENZ | 1117,1117 L | LK/LN2 | OM904.907 | 170 | 1996–1998 | |
| MERCEDES-BENZ | 1118 AF | ATEGO 2 | OM900.913 | 177 | 2011– | |
| MERCEDES-BENZ | 1120 AF | LK/LN2 | OM356.995 | 204-211 | 1987–1998 | |
| MERCEDES-BENZ | 1120 AF | LK/LN2 | OM366.994 | 204-211 | 1987–1998 | |
| MERCEDES-BENZ | 1120 AF | LK/LN2 | OM356.994 | 204-211 | 1987–1998 | |
| MERCEDES-BENZ | 1120 AF | LK/LN2 | OM366.992 | 204-211 | 1987–1998 | |
| MERCEDES-BENZ | 1120 F | LK/LN2 | OM356.996 | 204-211 | 1990–1998 | |
| MERCEDES-BENZ | 1120 F | LK/LN2 | OM366.992 | 204-211 | 1990–1998 | |
| MERCEDES-BENZ | 1120 S,1120 LS | LK/LN2 | OM366.988 | 201-211 | 1984–1998 | |
| MERCEDES-BENZ | 1120 S,1120 LS | LK/LN2 | OM357.920 | 201-211 | 1984–1998 | |
| MERCEDES-BENZ | 1120 S,1120 LS | LK/LN2 | OM357.932 | 201-211 | 1984–1998 | |
| MERCEDES-BENZ | 1120 S,1120 LS | LK/LN2 | OM356.986 | 201-211 | 1984–1998 | |
| MERCEDES-BENZ | 1120 S,1120 LS | LK/LN2 | OM357.927 | 201-211 | 1984–1998 | |
| MERCEDES-BENZ | 1120,1120 L | LK/LN2 | OM366.988 | 201-211 | 1984–1998 | |
| MERCEDES-BENZ | 1120,1120 L | LK/LN2 | OM357.920 | 201-211 | 1984–1998 | |
| MERCEDES-BENZ | 1120,1120 L | LK/LN2 | OM357.932 | 201-211 | 1984–1998 | |
| MERCEDES-BENZ | 1120,1120 L | LK/LN2 | OM356.992 | 201-211 | 1984–1998 | |
| MERCEDES-BENZ | 1120,1120 L | LK/LN2 | OM357.927 | 201-211 | 1984–1998 | |
| MERCEDES-BENZ | 1120,1120 L | LK/LN2 | OM356.986 | 201-211 | 1984–1998 | |
| MERCEDES-BENZ | 1124 AF | LK/LN2 | OM357.943 | 241 | 1992–1998 | |
| MERCEDES-BENZ | 1124 AF | LK/LN2 | OM356.983 | 241 | 1992–1998 | |
| MERCEDES-BENZ | 1124 AF | LK/LN2 | OM356.991 | 241 | 1992–1998 | |
| MERCEDES-BENZ | 1124 AF | LK/LN2 | OM357.944 | 241 | 1992–1998 | |
| MERCEDES-BENZ | 1124 AF | LK/LN2 | OM356.989 | 241 | 1992–1998 | |
| MERCEDES-BENZ | 1124 F | LK/LN2 | OM357.942 | 211-241 | 1992–1998 | |
| MERCEDES-BENZ | 1124 F | LK/LN2 | OM356.979 | 211-241 | 1992–1998 | |
| MERCEDES-BENZ | 1124 F | LK/LN2 | OM357.933 | 211-241 | 1992–1998 | |
| MERCEDES-BENZ | 1124 F | LK/LN2 | OM356.983 | 211-241 | 1992–1998 | |
| MERCEDES-BENZ | 1224 F | MK | OM356.999 | 240 | 1989–1994 | |
| MERCEDES-BENZ | 130 kW | CITO (O 520) | OM904.942 | 177 | 1999– | |
| MERCEDES-BENZ | 1314 | LK/LN2 | OM366.907 | 129-136 | 1984–1998 | |
| MERCEDES-BENZ | 1314 | LK/LN2 | OM356.910 | 129-136 | 1984–1998 | |
| MERCEDES-BENZ | 1314 | LK/LN2 | OM366.914 | 129-136 | 1984–1998 | |
| MERCEDES-BENZ | 1314 AK | LK/LN2 | OM356.909 | 129-136 | 1987–1998 | |
| MERCEDES-BENZ | 1314 AK | LK/LN2 | OM366.937 | 129-136 | 1987–1998 | |
| MERCEDES-BENZ | 1314 AK | LK/LN2 | OM366.918 | 129-136 | 1987–1998 | |
| MERCEDES-BENZ | 1314 K | LK/LN2 | OM366.907 | 129-136 | 1984–1998 | |
| MERCEDES-BENZ | 1314 K | LK/LN2 | OM356.909 | 129-136 | 1984–1998 | |
| MERCEDES-BENZ | 1314 K | LK/LN2 | OM366.914 | 129-136 | 1984–1998 | |
| MERCEDES-BENZ | 1317 K | LK/LN2 | OM357.902 | 170 | 1984–1998 | |
| MERCEDES-BENZ | 1317 K | LK/LN2 | OM366.962 | 170 | 1984–1998 | |
| MERCEDES-BENZ | 1317 K | LK/LN2 | OM904.907 | 170 | 1996–1998 | |
| MERCEDES-BENZ | 1317 K | LK/LN2 | OM357.961 | 170 | 1984–1998 | |
| MERCEDES-BENZ | 1317 KO | LK/LN2 | OM356.944 | 158-170 | 1994–1998 | |
| MERCEDES-BENZ | 1317 KO | LK/LN2 | OM357.962 | 158-170 | 1994–1998 | |
| MERCEDES-BENZ | 1317 KO | LK/LN2 | OM357.903 | 158-170 | 1994–1998 | |
| MERCEDES-BENZ | 1317 KO | LK/LN2 | OM904.907 | 170 | 1996–1998 | |
| MERCEDES-BENZ | 1317 LS | LK/LN2 | OM904.907 | 170 | 1996–1998 | |
| MERCEDES-BENZ | 1317,1317 L | LK/LN2 | OM904.907 | 170 | 1996–1998 | |
| MERCEDES-BENZ | 1320 S,1320 LS | LK/LN2 | OM366.980 | 201-211 | 1984–1998 | |
| MERCEDES-BENZ | 1320 S,1320 LS | LK/LN2 | OM366.992 | 201-211 | 1984–1998 | |
| MERCEDES-BENZ | 1320 S,1320 LS | LK/LN2 | OM356.992 | 201-211 | 1984–1998 | |
| MERCEDES-BENZ | 1320 S,1320 LS | LK/LN2 | OM357.932 | 201-211 | 1984–1998 | |
| MERCEDES-BENZ | 1320 S,1320 LS | LK/LN2 | OM366.988 | 201-211 | 1984–1998 | |
| MERCEDES-BENZ | 1320 S,1320 LS | LK/LN2 | OM366.997 | 201-211 | 1984–1998 | |
| MERCEDES-BENZ | 1320 S,1320 LS | LK/LN2 | OM357.921 | 201-211 | 1984–1998 | |
| MERCEDES-BENZ | 1320,1320 L | LK/LN2 | OM366.980 | 201-211 | 1984–1998 | |
| MERCEDES-BENZ | 1320,1320 L | LK/LN2 | OM356.992 | 201-211 | 1984–1998 | |
| MERCEDES-BENZ | 1320,1320 L | LK/LN2 | OM366.992 | 201-211 | 1984–1998 | |
| MERCEDES-BENZ | 1320,1320 L | LK/LN2 | OM357.932 | 201-211 | 1984–1998 | |
| MERCEDES-BENZ | 1320,1320 L | LK/LN2 | OM366.988 | 201-211 | 1984–1998 | |
| MERCEDES-BENZ | 1320,1320 L | LK/LN2 | OM366.997 | 201-211 | 1984–1998 | |
| MERCEDES-BENZ | 1320,1320 L | LK/LN2 | OM357.921 | 201-211 | 1984–1998 | |
| MERCEDES-BENZ | 1324,1324 L | LK/LN2 | OM357.940 | 231-241 | 1984–1998 | |
| MERCEDES-BENZ | 1324,1324 L | LK/LN2 | OM366.999 | 231-241 | 1984–1998 | |
| MERCEDES-BENZ | 1324,1324 L | LK/LN2 | OM356.983 | 231-241 | 1984–1998 | |
| MERCEDES-BENZ | 1324,1324 L | LK/LN2 | OM357.948 | 231-241 | 1984–1998 | |
| MERCEDES-BENZ | 1414 | NG | OM366.906 | 136 | 1984–1991 | |
| MERCEDES-BENZ | 1414 | NG | OM366.909 | 136 | 1984–1991 | |
| MERCEDES-BENZ | 1414 K | NG | OM366.909 | 136 | 1984–1991 | |
| MERCEDES-BENZ | 1414 K | NG | OM366.906 | 136 | 1984–1991 | |
| MERCEDES-BENZ | 1417 A | MK | OM356.943 | 165-175 | 1989–1996 | |
| MERCEDES-BENZ | 1417 A | MK | OM366.952 | 165-175 | 1989–1996 | |
| MERCEDES-BENZ | 1417 A | MK | OM356.940 | 165-175 | 1989–1996 | |
| MERCEDES-BENZ | 1417 A | MK | OM357.915 | 165-175 | 1989–1996 | |
| MERCEDES-BENZ | 1417 AK | MK | OM357.915 | 165-175 | 1989–1996 | |
| MERCEDES-BENZ | 1417 AK | MK | OM356.943 | 165-175 | 1989–1996 | |
| MERCEDES-BENZ | 1417 AK | MK | OM366.952 | 165-175 | 1989–1996 | |
| MERCEDES-BENZ | 1417 AK | MK | OM356.940 | 165-175 | 1989–1996 | |
| MERCEDES-BENZ | 1417 C | NG | OM366.952 | 170 | 1984–1991 | |
| MERCEDES-BENZ | 1417 C | NG | OM366.951 | 170 | 1984–1991 | |
| MERCEDES-BENZ | 1417 CK | NG | OM366.952 | 170 | 1984–1991 | |
| MERCEDES-BENZ | 1417 CK | NG | OM366.951 | 170 | 1984–1991 | |
| MERCEDES-BENZ | 1420 AK | MK | OM356.987 | 211 | 1989–1996 | |
| MERCEDES-BENZ | 1420 LS | MK | OM356.987 | 211 | 1990–1996 | |
| MERCEDES-BENZ | 1420 LS | MK | OM356.984 | 211 | 1990–1996 | |
| MERCEDES-BENZ | 1420,1420 L | MK | OM356.984 | 211 | 1987–1996 | |
| MERCEDES-BENZ | 1420,1420 L | MK | OM356.987 | 211 | 1987–1996 | |
| MERCEDES-BENZ | 1420,1420 L | NG | OM366.983 | 204 | 1973–1996 | |
| MERCEDES-BENZ | 1424 | MK | OM357.946 | 240 | 1989–1996 | |
| MERCEDES-BENZ | 1514 K | LK/LN2 | OM356.908 | 129-136 | 1989–1998 | |
| MERCEDES-BENZ | 1514 K | LK/LN2 | OM366.936 | 129-136 | 1989–1998 | |
| MERCEDES-BENZ | 1514,1514 L | LK/LN2 | OM366.936 | 129-136 | 1984–1998 | |
| MERCEDES-BENZ | 1514,1514 L | LK/LN2 | OM356.908 | 129-136 | 1984–1998 | |
| MERCEDES-BENZ | 1517 K | LK/LN2 | OM357.963 | 158-170 | 1989–1998 | |
| MERCEDES-BENZ | 1517 K | LK/LN2 | OM366.979 | 158-170 | 1989–1998 | |
| MERCEDES-BENZ | 1517 K | LK/LN2 | OM356.946 | 158-170 | 1989–1998 |
Visar 200 av 1570 fordon
