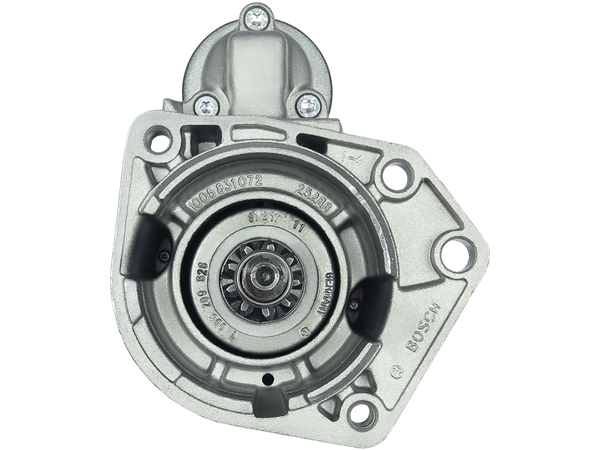

S0687PR
Startmotorer
PREMIUM LINE
640 kr
Köp nu
| EAN | 5902129091516 |
| Tillverkare | AS-PL |
| Ersätter | BOSCH |
| OE-nummer |
3EFFE: STRL076 AUTOELECTRO: AES8191 BOSCH: 0001112027, 0001112028, 0001112044, 0001112045, 0001113013, 0001113014, 0986016790, 0986016800, 0986019311 CARGO: 113750, F032113750 CEVAM: 3811 DELCO: DRS6790, DS7900 EAI: 11777 ELECTROLOG: STR10044 ELSTOCK: 25-2101 ERA: 220128, 220161 GHIBAUDI: SG0079 GPARTS: GS112044-A HC PARTS: CS788 HELLA: 8EA011611-041, 8EA731778-001 HERTH+BUSS: 42016800 KRAUF: STB0788 KUHNER: 10788, 10880, 256694 LUCAS: LRS00891, LRS891 MAGNETI MARELLI: 063293039010, 063521120440, 63293039, 943207881010, 943293039010, 944280167900, MRS16790, MSN639, MSR639, MSRC788 POWERMAX: 88213165 PRESTOLITE: 20500892, 20513068 SIOM: MAV171840, MAV6680 STARDAX: STX200065, STX200065R, STX200100, STX200100R, STX200982, STX200982R VALEO: 455981, 726023 VW: 036911023Q, 036911023QX, 036911023S, 036911023SX, 036911025B, 085911023B, 085911023BX, 085911023E, 085911023EX, 085911023J, 085911023JX, 36911023Q, 36911023QX, 85911023E, 85911023EX, 85911023J, 85911023JX WAI / TRANSPO: 30892N WOODAUTO: STR50036 |
| Datablad | Ladda ner PDF med skiss och mått |
Specifikationer
| Spänning [ V ] | 12 |
| Effekt [ kW ] | 0.9 |
| Startmotors rotation | CW |
| A-storlek [ mm ] | 82.50 |
| B-storlek [ mm ] | 2.50 |
| Antal kuggar [ qty. ] | 9 |
| Antal hål i huvudet [ qty. ] | 4 |
| Antal gängade hål [ qty. ] | 2 |
| L.1 [ mm ] | 228.00 |
| O.1 [ mm ] | 74.00 |
| O.2 [ mm ] | 30.00 |
| O.3 [ mm ] | 57.00 |
| O.4 [ mm ] | 105.00 |
| C.1 [ mm ] | M8x1.25 |
| C.2 [ mm ] | 8.50 |
| C.3 [ mm ] | 10.00 |
| C.4 [ mm ] | M8x1.25 |
Passar i 189 fordon
| Märke | Modell | Typ | Motor | Hk | Bränsle | År |
|---|---|---|---|---|---|---|
| SEAT | 1.0 | AROSA (6H1) | ALD | 50 | Petrol | 1997–2004 |
| SEAT | 1.0 | AROSA (6H1) | ANV | 50 | Petrol | 1997–2004 |
| SEAT | 1.0 | AROSA (6H1) | AER | 50 | Petrol | 1997–2004 |
| SEAT | 1.0 | AROSA (6H1) | ALL | 50 | Petrol | 1997–2004 |
| SEAT | 1.0 | AROSA (6H1) | AHT | 50 | Petrol | 1998–2001 |
| SEAT | 1.0 | AROSA (6H1) | AUC | 50 | Petrol | 1997–2004 |
| SEAT | 1.0 | CORDOBA (6K1, 6K2) | AVZ | 69 | Petrol | 2001–2002 |
| SEAT | 1.0 | CORDOBA (6K1, 6K2) | AST | 69 | Petrol | 2001–2002 |
| SEAT | 1.0 | IBIZA II (6K1) | AAU | 45 | Petrol | 1993–1996 |
| SEAT | 1.0 16V | IBIZA II (6K1) | AVZ | 69 | Petrol | 1999–2002 |
| SEAT | 1.0 16V | IBIZA II (6K1) | AST | 69 | Petrol | 1999–2002 |
| SEAT | 1.0 i | CORDOBA (6K1, 6K2) | AER | 50 | Petrol | 1996–2002 |
| SEAT | 1.0 i | CORDOBA (6K1, 6K2) | ANV | 50 | Petrol | 1996–2002 |
| SEAT | 1.0 i | CORDOBA (6K1, 6K2) | ALD | 50 | Petrol | 1996–2002 |
| SEAT | 1.0 i | CORDOBA (6K1, 6K2) | AUC | 50 | Petrol | 1996–2002 |
| SEAT | 1.0 i | IBIZA II (6K1) | ANV | 50 | Petrol | 1996–2002 |
| SEAT | 1.0 i | IBIZA II (6K1) | ALD | 50 | Petrol | 1996–2002 |
| SEAT | 1.0 i | IBIZA II (6K1) | AUC | 50 | Petrol | 1996–2002 |
| SEAT | 1.0 i | IBIZA II (6K1) | AER | 50 | Petrol | 1996–2002 |
| SEAT | 1.4 | AROSA (6H1) | AKK | 60 | Petrol | 1997–2004 |
| SEAT | 1.4 | AROSA (6H1) | ANW | 60 | Petrol | 1997–2004 |
| SEAT | 1.4 | AROSA (6H1) | AUD | 60 | Petrol | 1997–2004 |
| SEAT | 1.4 | AROSA (6H1) | AEX | 60 | Petrol | 1997–2004 |
| SEAT | 1.4 | AROSA (6H1) | AKV | 60 | Petrol | 1997–2004 |
| SEAT | 1.4 | AROSA (6H1) | APQ | 60 | Petrol | 1997–2004 |
| SEAT | 1.4 | CORDOBA (6K1, 6K2) | ANX | 54 | Petrol | 1997–1999 |
| SEAT | 1.4 | CORDOBA Vario (6K5) | AQQ | 101 | Petrol | 2000–2000 |
| SEAT | 1.4 | IBIZA II (6K1) | ANX | 54 | Petrol | 1997–1999 |
| SEAT | 1.4 16V | AROSA (6H1) | AFK | 100 | Petrol | 2000–2004 |
| SEAT | 1.4 16V | AROSA (6H1) | AUB | 100 | Petrol | 2000–2004 |
| SEAT | 1.4 16V | AROSA (6H1) | AQQ | 100 | Petrol | 2000–2004 |
| SEAT | 1.4 16V | CORDOBA (6K1, 6K2) | AUA | 75 | Petrol | 2000–2002 |
| SEAT | 1.4 16V | CORDOBA (6K1, 6K2) | APE | 75 | Petrol | 2000–2002 |
| SEAT | 1.4 16V | CORDOBA Vario (6K5) | APE | 75 | Petrol | 1999–2002 |
| SEAT | 1.4 16V | CORDOBA Vario (6K5) | AUA | 75 | Petrol | 1999–2002 |
| SEAT | 1.4 16V | IBIZA II (6K1) | AUA | 75 | Petrol | 2000–2002 |
| SEAT | 1.4 16V | IBIZA II (6K1) | APE | 75 | Petrol | 2000–2002 |
| SEAT | 1.4 16V | INCA (6K9) | AUA | 75 | Petrol | 2000–2003 |
| SEAT | 1.4 i | CORDOBA (6K1, 6K2) | AKV | 60 | Petrol | 1994–2002 |
| SEAT | 1.4 i | CORDOBA (6K1, 6K2) | APQ | 60 | Petrol | 1994–2002 |
| SEAT | 1.4 i | CORDOBA (6K1, 6K2) | ABD | 60 | Petrol | 1994–2002 |
| SEAT | 1.4 i | CORDOBA (6K1, 6K2) | AKK | 60 | Petrol | 1994–2002 |
| SEAT | 1.4 i | CORDOBA (6K1, 6K2) | ANW | 60 | Petrol | 1994–2002 |
| SEAT | 1.4 i | CORDOBA (6K1, 6K2) | AUD | 60 | Petrol | 1994–2002 |
| SEAT | 1.4 i | CORDOBA (6K1, 6K2) | AEX | 60 | Petrol | 1994–2002 |
| SEAT | 1.4 i | CORDOBA Vario (6K5) | AKV | 60 | Petrol | 1996–2002 |
| SEAT | 1.4 i | CORDOBA Vario (6K5) | APQ | 60 | Petrol | 1996–2002 |
| SEAT | 1.4 i | CORDOBA Vario (6K5) | AKK | 60 | Petrol | 1996–2002 |
| SEAT | 1.4 i | CORDOBA Vario (6K5) | ANW | 60 | Petrol | 1996–2002 |
| SEAT | 1.4 i | CORDOBA Vario (6K5) | AUD | 60 | Petrol | 1996–2002 |
| SEAT | 1.4 i | CORDOBA Vario (6K5) | AEX | 60 | Petrol | 1996–2002 |
| SEAT | 1.4 i | IBIZA II (6K1) | AKV | 60 | Petrol | 1993–2002 |
| SEAT | 1.4 i | IBIZA II (6K1) | APQ | 60 | Petrol | 1993–2002 |
| SEAT | 1.4 i | IBIZA II (6K1) | ABD | 60 | Petrol | 1993–2002 |
| SEAT | 1.4 i | IBIZA II (6K1) | AKK | 60 | Petrol | 1993–2002 |
| SEAT | 1.4 i | IBIZA II (6K1) | ANW | 60 | Petrol | 1993–2002 |
| SEAT | 1.4 i | IBIZA II (6K1) | AUD | 60 | Petrol | 1993–2002 |
| SEAT | 1.4 i | IBIZA II (6K1) | AEX | 60 | Petrol | 1993–2002 |
| SEAT | 1.4 i | INCA (6K9) | AKV | 60 | Petrol | 1995–2003 |
| SEAT | 1.4 i | INCA (6K9) | AUD | 60 | Petrol | 1995–2003 |
| SEAT | 1.4 i | INCA (6K9) | AEX | 60 | Petrol | 1995–2003 |
| SEAT | 1.4 i | INCA (6K9) | APQ | 60 | Petrol | 1995–2003 |
| SEAT | 1.4 i 16V | CORDOBA (6K1, 6K2) | AUB | 101 | Petrol | 1996–2002 |
| SEAT | 1.4 i 16V | CORDOBA (6K1, 6K2) | AQQ | 101 | Petrol | 1996–2002 |
| SEAT | 1.4 i 16V | CORDOBA (6K1, 6K2) | AFH | 101 | Petrol | 1996–2002 |
| SEAT | 1.4 i 16V | IBIZA II (6K1) | AFH | 101 | Petrol | 1997–2002 |
| SEAT | 1.4 i 16V | IBIZA II (6K1) | AUB | 101 | Petrol | 1997–2002 |
| SEAT | 1.4 i 16V | IBIZA II (6K1) | AQQ | 101 | Petrol | 1997–2002 |
| SEAT | 1.6 i | CORDOBA (6K1, 6K2) | AEE | 75 | Petrol | 1993–2002 |
| SEAT | 1.6 i | CORDOBA (6K1, 6K2) | ABU | 75 | Petrol | 1993–2002 |
| SEAT | 1.6 i | CORDOBA (6K1, 6K2) | ALM | 75 | Petrol | 1993–2002 |
| SEAT | 1.6 i | CORDOBA (6K1, 6K2) | 1F | 75 | Petrol | 1994–1999 |
| SEAT | 1.6 i | CORDOBA Vario (6K5) | ABU | 75 | Petrol | 1996–2002 |
| SEAT | 1.6 i | CORDOBA Vario (6K5) | ALM | 75 | Petrol | 1996–2002 |
| SEAT | 1.6 i | CORDOBA Vario (6K5) | AEE | 75 | Petrol | 1996–2002 |
| SEAT | 1.6 i | IBIZA II (6K1) | AEE | 75 | Petrol | 1993–2002 |
| SEAT | 1.6 i | IBIZA II (6K1) | ABU | 75 | Petrol | 1993–2002 |
| SEAT | 1.6 i | IBIZA II (6K1) | ALM | 75 | Petrol | 1993–2002 |
| SEAT | 1.6 i | INCA (6K9) | ALM | 75 | Petrol | 1997–2000 |
| SEAT | 1.6 i | INCA (6K9) | AEE | 75 | Petrol | 1997–2000 |
| SEAT | 1.9 SDI | CORDOBA (6K1, 6K2) | AEY | 64 | Diesel | 1996–1999 |
| SEAT | 1.9 SDI | CORDOBA Vario (6K5) | AEY | 64 | Diesel | 1996–1999 |
| SEAT | 1.9 SDI | IBIZA II (6K1) | AEY | 64 | Diesel | 1996–1999 |
| VW | 1.0 | LUPO I (6X1, 6E1) | ALL | 50 | Petrol | 1998–2005 |
| VW | 1.0 | LUPO I (6X1, 6E1) | AUC | 50 | Petrol | 1998–2005 |
| VW | 1.0 | LUPO I (6X1, 6E1) | ALD | 50 | Petrol | 1998–2005 |
| VW | 1.0 | LUPO I (6X1, 6E1) | ANV | 50 | Petrol | 1998–2005 |
| VW | 1.0 | LUPO I (6X1, 6E1) | AER | 50 | Petrol | 1998–2005 |
| VW | 1.0 | POLO (6N2) | ALD | 50 | Petrol | 1999–2001 |
| VW | 1.0 | POLO (6N2) | AUC | 50 | Petrol | 1999–2001 |
| VW | 1.0 | POLO PLAYA | ALD | 50 | Petrol | 1999–2002 |
| VW | 1.0 | POLO Van Hatchback Van (6N1) | AEV | 45 | Petrol | 1994–1999 |
| VW | 1.4 | CADDY II Box Body/MPV (9K9A) | AUA | 75 | Petrol | 2000–2004 |
| VW | 1.4 | CADDY II MPV (9K9B) | AKV | 60 | Petrol | 1995–2003 |
| VW | 1.4 | CADDY II MPV (9K9B) | AUD | 60 | Petrol | 1995–2003 |
| VW | 1.4 | CADDY II MPV (9K9B) | AEX | 60 | Petrol | 1995–2003 |
| VW | 1.4 | CADDY II MPV (9K9B) | APQ | 60 | Petrol | 1995–2003 |
| VW | 1.4 | GOLF III (1H1) | ABD | 60 | Petrol | 1991–1997 |
| VW | 1.4 | GOLF III (1H1) | ABD | 55 | Petrol | 1991–1997 |
| VW | 1.4 | GOLF III (1H1) | AEX | 60 | Petrol | 1991–1997 |
| VW | 1.4 | GOLF III (1H1) | AEX | 55 | Petrol | 1991–1997 |
| VW | 1.4 | GOLF III Van (1H1) | ABD | 60 | Petrol | 1991–1996 |
| VW | 1.4 | GOLF III Van (1H1) | AEX | 60 | Petrol | 1991–1996 |
| VW | 1.4 | GOLF III Variant (1H5) | APQ | 60 | Petrol | 1993–1999 |
| VW | 1.4 | GOLF III Variant (1H5) | AEX | 55 | Petrol | 1993–1999 |
| VW | 1.4 | GOLF III Variant (1H5) | AEX | 60 | Petrol | 1993–1999 |
| VW | 1.4 | GOLF III Variant (1H5) | ABD | 55 | Petrol | 1993–1999 |
| VW | 1.4 | GOLF III Variant (1H5) | ABD | 60 | Petrol | 1993–1999 |
| VW | 1.4 | GOLF Van III Variant (1H5) | AEX | 60 | Petrol | 1993–1995 |
| VW | 1.4 | GOLF Van III Variant (1H5) | ABD | 60 | Petrol | 1993–1995 |
| VW | 1.4 | LUPO I (6X1, 6E1) | AUD | 60 | Petrol | 2000–2005 |
| VW | 1.4 | POLO (6N2) | ANX | 54 | Petrol | 1999–2001 |
| VW | 1.4 | POLO (6N2) | AKK | 60 | Petrol | 1999–2001 |
| VW | 1.4 | POLO (6N2) | AKP | 54 | Petrol | 1999–2001 |
| VW | 1.4 | POLO (6N2) | AUD | 60 | Petrol | 1999–2001 |
| VW | 1.4 | POLO Van Estate Van (6V5) | AUA | 75 | Petrol | 2000–2001 |
| VW | 1.4 | POLO Van Estate Van (6V5) | AEX | 60 | Petrol | 1997–1999 |
| VW | 1.4 | POLO Variant (6V5) | AKV | 60 | Petrol | 1997–2001 |
| VW | 1.4 | POLO Variant (6V5) | APQ | 60 | Petrol | 1997–2001 |
| VW | 1.4 | POLO Variant (6V5) | AKK | 60 | Petrol | 1997–2001 |
| VW | 1.4 | POLO Variant (6V5) | ANW | 60 | Petrol | 1997–2001 |
| VW | 1.4 | POLO Variant (6V5) | ANX | 54 | Petrol | 1998–1999 |
| VW | 1.4 | POLO Variant (6V5) | AUD | 60 | Petrol | 1997–2001 |
| VW | 1.4 | POLO Variant (6V5) | AEX | 60 | Petrol | 1997–2001 |
| VW | 1.4 | VENTO (1H2) | AEX | 55 | Petrol | 1991–1998 |
| VW | 1.4 | VENTO (1H2) | AEX | 60 | Petrol | 1991–1998 |
| VW | 1.4 | VENTO (1H2) | ABD | 55 | Petrol | 1991–1998 |
| VW | 1.4 | VENTO (1H2) | ABD | 60 | Petrol | 1991–1998 |
| VW | 1.4 16V | CADDY II MPV (9K9B) | AUA | 75 | Petrol | 2000–2004 |
| VW | 1.4 16V | LUPO I (6X1, 6E1) | APE | 75 | Petrol | 1998–2005 |
| VW | 1.4 16V | LUPO I (6X1, 6E1) | AUB | 100 | Petrol | 1999–2005 |
| VW | 1.4 16V | LUPO I (6X1, 6E1) | AFK | 100 | Petrol | 1999–2005 |
| VW | 1.4 16V | LUPO I (6X1, 6E1) | BBY | 75 | Petrol | 1998–2005 |
| VW | 1.4 16V | LUPO I (6X1, 6E1) | AQQ | 100 | Petrol | 1999–2005 |
| VW | 1.4 16V | LUPO I (6X1, 6E1) | AKQ | 75 | Petrol | 1998–2005 |
| VW | 1.4 16V | LUPO I (6X1, 6E1) | AUA | 75 | Petrol | 1998–2005 |
| VW | 1.4 16V | LUPO I (6X1, 6E1) | ANM | 100 | Petrol | 1999–2005 |
| VW | 1.4 16V | LUPO I (6X1, 6E1) | AHW | 75 | Petrol | 1998–2005 |
| VW | 1.4 16V | POLO (6N2) | AQQ | 101 | Petrol | 1999–2001 |
| VW | 1.4 16V | POLO (6N2) | AUA | 75 | Petrol | 1999–2001 |
| VW | 1.4 16V | POLO (6N2) | AFK | 101 | Petrol | 1999–2001 |
| VW | 1.4 16V | POLO (6N2) | APE | 75 | Petrol | 1999–2001 |
| VW | 1.4 16V | POLO (6N2) | AUB | 101 | Petrol | 1999–2001 |
| VW | 1.4 16V | POLO (6N2) | AHW | 75 | Petrol | 1999–2001 |
| VW | 1.4 16V | POLO Variant (6V5) | APE | 75 | Petrol | 1999–2001 |
| VW | 1.4 16V | POLO Variant (6V5) | AUA | 75 | Petrol | 1999–2001 |
| VW | 1.6 | CADDY II MPV (9K9B) | AEE | 75 | Petrol | 1997–2000 |
| VW | 1.6 | CADDY II Pickup (9U7) | AEE | 75 | Petrol | 1996–2000 |
| VW | 1.6 | GOLF III (1H1) | AEA | 75 | Petrol | 1992–1997 |
| VW | 1.6 | GOLF III (1H1) | ABU | 75 | Petrol | 1992–1997 |
| VW | 1.6 | GOLF III (1H1) | AEE | 75 | Petrol | 1992–1997 |
| VW | 1.6 | GOLF III Van (1H1) | 75 | Petrol | 1992–1997 | |
| VW | 1.6 | POLO Van Estate Van (6V5) | AEE | 75 | Petrol | 1997–1998 |
| VW | 1.6 | POLO Variant (6V5) | AEE | 75 | Petrol | 1997–2001 |
| VW | 1.6 | POLO Variant (6V5) | ALM | 75 | Petrol | 1997–2001 |
| VW | 1.6 | VENTO (1H2) | AEA | 75 | Petrol | 1992–1998 |
| VW | 1.6 | VENTO (1H2) | ABU | 75 | Petrol | 1992–1998 |
| VW | 1.6 | VENTO (1H2) | AEE | 75 | Petrol | 1992–1998 |
| VW | 1.6 16V GTI | POLO (6N2) | AVY | 125 | Petrol | 1999–2001 |
| VW | 1.6 16V GTI | POLO (6N2) | ARC | 125 | Petrol | 1999–2001 |
| VW | 100 1.4 16V | POLO III (6N1) | AFH | 100 | Petrol | 1996–1999 |
| VW | 120 1.6 16V GTI | POLO III (6N1) | AJV | 120 | Petrol | 1998–1999 |
| VW | 45 1.0 | POLO III (6N1) | AEV | 45 | Petrol | 1994–1996 |
| VW | 50 1.0 | POLO III (6N1) | ALL | 50 | Petrol | 1996–1999 |
| VW | 50 1.0 | POLO III (6N1) | AER | 50 | Petrol | 1996–1999 |
| VW | 54 1.4 | POLO III CLASSIC (6V2) | ANX | 54 | Petrol | 1998–1999 |
| VW | 55 1.3 | POLO III (6N1) | ADX | 55 | Petrol | 1994–1997 |
| VW | 55 1.4 | POLO III (6N1) | ANX | 55 | Petrol | 1995–1999 |
| VW | 55 1.4 | POLO III (6N1) | AEX | 55 | Petrol | 1995–1999 |
| VW | 60 1.4 | CADDY II Box Body/MPV (9K9A) | AEX | 60 | Petrol | 1995–2004 |
| VW | 60 1.4 | CADDY II Box Body/MPV (9K9A) | AUD | 60 | Petrol | 1995–2004 |
| VW | 60 1.4 | CADDY II Box Body/MPV (9K9A) | APQ | 60 | Petrol | 1995–2004 |
| VW | 60 1.4 | POLO III (6N1) | AEX | 60 | Petrol | 1995–1999 |
| VW | 60 1.4 | POLO III (6N1) | APQ | 60 | Petrol | 1995–1999 |
| VW | 60 1.4 | POLO III (6N1) | AKV | 60 | Petrol | 1995–1999 |
| VW | 60 1.4 | POLO III CLASSIC (6V2) | AKK | 60 | Petrol | 1995–2001 |
| VW | 60 1.4 | POLO III CLASSIC (6V2) | ANW | 60 | Petrol | 1995–2001 |
| VW | 60 1.4 | POLO III CLASSIC (6V2) | AUD | 60 | Petrol | 1995–2001 |
| VW | 60 1.4 | POLO III CLASSIC (6V2) | AEX | 60 | Petrol | 1995–2001 |
| VW | 60 1.4 | POLO III CLASSIC (6V2) | AKV | 60 | Petrol | 1995–2001 |
| VW | 60 1.4 | POLO III CLASSIC (6V2) | APQ | 60 | Petrol | 1995–2001 |
| VW | 75 1.4 16V | POLO III CLASSIC (6V2) | AUA | 75 | Petrol | 1999–2001 |
| VW | 75 1.4 16V | POLO III CLASSIC (6V2) | APE | 75 | Petrol | 1999–2001 |
| VW | 75 1.6 | CADDY II Box Body/MPV (9K9A) | AEE | 75 | Petrol | 1995–2000 |
| VW | 75 1.6 | POLO III (6N1) | AEA | 75 | Petrol | 1994–1999 |
| VW | 75 1.6 | POLO III (6N1) | AHS | 75 | Petrol | 1994–1999 |
| VW | 75 1.6 | POLO III (6N1) | AEE | 75 | Petrol | 1994–1999 |
| VW | 75 1.6 | POLO III CLASSIC (6V2) | AEE | 75 | Petrol | 1995–2001 |
| VW | 75 1.6 | POLO III CLASSIC (6V2) | ALM | 75 | Petrol | 1995–2001 |
