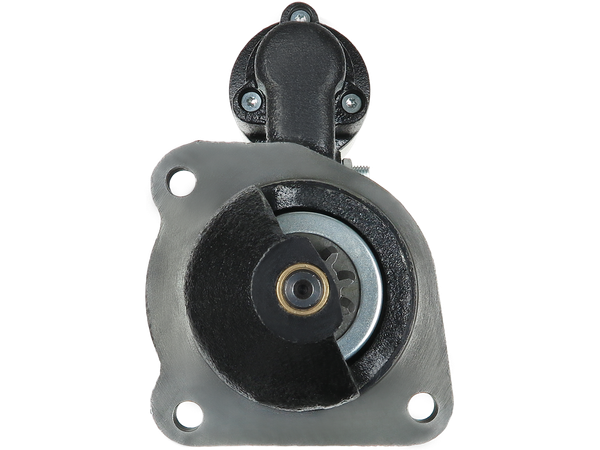

S0752S
Startmotorer
STANDARD LINE
1245 kr
Köp nu
| EAN | 5902129107798 |
| Tillverkare | AS-PL |
| Ersätter | BOSCH |
| OE-nummer | 0001362310 |
| Datablad | Ladda ner PDF med skiss och mått |
Specifikationer
| Spänning [ V ] | 12 |
| Effekt [ kW ] | 2.80 |
| Startmotors rotation | CW |
| A-storlek [ mm ] | 89.00 |
| B-storlek [ mm ] | 48.50 |
| Antal kuggar [ qty. ] | 10 |
| Antal hål i huvudet [ qty. ] | 3 |
| Antal gängade hål [ qty. ] | 0 |
| L.1 [ mm ] | 315.00 |
| O.1 [ mm ] | 90.00 |
| O.2 [ mm ] | 90.00 |
| O.3 [ mm ] | 127.00 |
| C.1 [ mm ] | 11.00 |
| C.2 [ mm ] | 11.00 |
| C.3 [ mm ] | 11.00 |
Passar i 114 fordon
| Märke | Modell | Typ | Motor | Hk | Bränsle | År |
|---|---|---|---|---|---|---|
| CASE IH | 3220 | 3-179 | 0 | 1994–1997 | ||
| CASE IH | 3230 | 4-206 | 0 | 1994–1997 | ||
| CASE IH | 380 B | 0 | 1981–1993 | |||
| CASE IH | 380CK | D-179 | 0 | 1973–1980 | ||
| CASE IH | 385 | 3-155 | 0 | 1984–1990 | ||
| CASE IH | 395 | 3-155 | 0 | 1985–1993 | ||
| CASE IH | 4210 | 4-239 | 0 | 1994–1997 | ||
| CASE IH | 4210 | D-239 | 0 | 1994–1996 | ||
| CASE IH | 4210 | IHD-239 | 0 | 1994–1996 | ||
| CASE IH | 4230 | 4-268 | 0 | 1994–1997 | ||
| CASE IH | 4230 | IHD-268 | 0 | 1994–1996 | ||
| CASE IH | 4230 | D-268 | 0 | 1994–1996 | ||
| CASE IH | 4240 | IHDT-268 | 0 | 1994–1996 | ||
| CASE IH | 4240 | DT-268 | 0 | 1994–1996 | ||
| CASE IH | 4240 | 4-268 | 0 | 1994–1997 | ||
| CASE IH | 454 | D-179 | 0 | 1971–1975 | ||
| CASE IH | 474 | IHD-206 | 0 | 1973–1975 | ||
| CASE IH | 474 | D-206 | 0 | 1973–1975 | ||
| CASE IH | 484 | D-179 | 0 | 1977–1982 | ||
| CASE IH | 485 | 3-179 | 0 | 1985–1990 | ||
| CASE IH | 485 4 | 0 | 1988– | |||
| CASE IH | 485XL | D-179 | 0 | 1982–1991 | ||
| CASE IH | 495 | 3-179 | 0 | 1991–1994 | ||
| CASE IH | 495 | D-179 | 0 | 1991–1994 | ||
| CASE IH | 574 | D-239 | 0 | 1971–1976 | ||
| CASE IH | 574 | IHD-239 | 0 | 1971–1976 | ||
| CASE IH | 584 | D-206 | 0 | 1977–1982 | ||
| CASE IH | 584 | IHD-206 | 0 | 1977–1982 | ||
| CASE IH | 585 XL | D-206 | 0 | 1982–1991 | ||
| CASE IH | 585 XL | IHD-206 | 0 | 1982–1991 | ||
| CASE IH | 595 | 4-206 | 0 | 1991–1994 | ||
| CASE IH | 595 | IHD-206 | 0 | 1991–1994 | ||
| CASE IH | 595 | D-206 | 0 | 1991–1994 | ||
| CASE IH | 674 | D-239 | 0 | 1973–1981 | ||
| CASE IH | 674 | IHD-239 | 0 | 1973–1981 | ||
| CASE IH | 684 | D-239 | 0 | 1977–1982 | ||
| CASE IH | 684 | IHD-239 | 0 | 1977–1982 | ||
| CASE IH | 685XL | IHD-239 | 0 | 1982–1991 | ||
| CASE IH | 685XL | D-239 | 0 | 1982–1991 | ||
| CASE IH | 695 | 4-239 | 0 | 1991–1994 | ||
| CASE IH | 695 | IHD-239 | 0 | 1991–1994 | ||
| CASE IH | 695 | D-239 | 0 | 1991–1994 | ||
| CASE IH | 784 | D-246 | 0 | 1977–1974 | ||
| CASE IH | 784 | IHD-246 | 0 | 1977–1981 | ||
| CASE IH | 784 | 0 | 1990–2008 | |||
| CASE IH | 785 | 0 | 1981–1986 | |||
| CASE IH | 785 | D-246 | 0 | 1981–1985 | ||
| CASE IH | 785 | IHD-246 | 0 | 1981–1985 | ||
| CASE IH | 785 XL | 0 | 1981–1986 | |||
| CASE IH | 795 | 0 | 1990–1994 | |||
| CASE IH | 885 | 4-268 | 0 | 1985–1994 | ||
| CASE IH | 885 XL | D-268 | 0 | 1983–1990 | ||
| CASE IH | 885 XL | IHD-268 | 0 | 1983–1990 | ||
| CASE IH | 895 | 4-268 | 0 | 1991–1994 | ||
| CASE IH | 995 | 4-268 | 0 | 1991–1994 | ||
| CASE IH | 2.9 | 3220 | 3-179 | 0 | 1994–1997 | |
| CASE IH | 2.9 | 485 | 3-179 | 0 | 1985–1990 | |
| CASE IH | 2.9 | 495 | 3-179 | 0 | 1985–1994 | |
| CASE IH | 2.9 | 495 XL | 3-179 | 0 | 1985–1994 | |
| CASE IH | 3.0 | 454 | IHD-179 | 0 | 1971–1975 | |
| CASE IH | 3.0 | 484 | IHD-179 | 0 | 1977–1982 | |
| CASE IH | 3.0 | 485XL | IHD-179 | 0 | 1982–1991 | |
| CASE IH | 3.0 | 495 | IHD-179 | 0 | 1991–1994 | |
| CASE IH | 3.4 | 3230 | 4-206 | 0 | 1994–1997 | |
| CASE IH | 3.4 | 4210 | 4-239 | 0 | 1991–1997 | |
| CASE IH | 3.4 | 585 | 4-206 | 0 | 1983–1990 | |
| CASE IH | 3.4 | 585 L | 4-206 | 0 | 1983–1994 | |
| CASE IH | 3.4 | 585 XL | 4-206 | 0 | 1983–1994 | |
| CASE IH | 3.4 | 595 | 4-206 | 0 | 1983–1994 | |
| CASE IH | 3.4 | 595 XL | 4-206 | 0 | 1983–1994 | |
| CASE IH | 3.9 | 685 | 4-239 | 0 | 1985–1994 | |
| CASE IH | 3.9 | 695 | 4-239 | 0 | 1985–1994 | |
| CASE IH | 4.4 | 4230 | 4-268 | 0 | 1994–1997 | |
| CASE IH | 4.4 | 4240 | 4-268 | 0 | 1994–1997 | |
| CASE IH | 4.4 | 885 | 4-268 | 0 | 1985–1990 | |
| CASE IH | 4.4 | 885 N | 4-268 | 0 | 1985–1994 | |
| CASE IH | 4.4 | 885 XL | 4-268 | 0 | 1985–1994 | |
| CASE IH | 4.4 | 895 | 4-268 | 0 | 1985–1994 | |
| CASE IH | 4.4 | 995 | 4-268 | 0 | 1991–1994 | |
| INTERNATIONAL | 240 | D-179 | 0 | 1976–1981 | ||
| INTERNATIONAL | 240 | D-239 | 0 | 1976–1981 | ||
| INTERNATIONAL | 250 | D-239 | 0 | 1976–1981 | ||
| INTERNATIONAL | 250 | D-179 | 0 | 1976–1981 | ||
| INTERNATIONAL | 260 | D-239 | 0 | 1976–1981 | ||
| INTERNATIONAL | 260 | D-179 | 0 | 1976–1981 | ||
| INTERNATIONAL | 270 | D-239 | 0 | 1976–1981 | ||
| INTERNATIONAL | 270 | D-179 | 0 | 1976–1981 | ||
| INTERNATIONAL | 3400 | 0 | 1975–2008 | |||
| INTERNATIONAL | 3500 | 0 | 1975–2008 | |||
| INTERNATIONAL | 474 | 0 | 1973–1976 | |||
| INTERNATIONAL | 484 | D-179 | 0 | 1978–1984 | ||
| INTERNATIONAL | 584 | D-206 | 0 | 1978–1984 | ||
| INTERNATIONAL | 684 | D-239 | 0 | 1978–1984 | ||
| INTERNATIONAL | 784 | D-246 | 0 | 1978–1984 | ||
| INTERNATIONAL | 884 | D-268 | 0 | 1979–1984 | ||
| INTERNATIONAL | I-4500 | 0 | 1975–1982 | |||
| INTERNATIONAL | I-454 | 0 | 1972–1976 | |||
| INTERNATIONAL | I-574 | C-200 | 0 | 1972–1976 | ||
| INTERNATIONAL | I-674 | C-200 | 0 | 1972–1976 | ||
| INTERNATIONAL | TD-240 | D-179 | 0 | 1976–1981 | ||
| INTERNATIONAL | TD-240 | D-239 | 0 | 1976–1981 | ||
| INTERNATIONAL | TD-250 | D-239 | 0 | 1976–1981 | ||
| INTERNATIONAL | TD-250 | D-179 | 0 | 1976–1981 | ||
| INTERNATIONAL | TD-260 | D-239 | 0 | 1976–1981 | ||
| INTERNATIONAL | TD-260 | D-179 | 0 | 1976–1981 | ||
| INTERNATIONAL | TD-270 | D-239 | 0 | 1976–1981 | ||
| INTERNATIONAL | TD-270 | D-179 | 0 | 1976–1981 | ||
| INTERNATIONAL | TD-3400 | 0 | 1975–2008 | |||
| INTERNATIONAL | TD-3500 | 0 | 1975–2008 | |||
| INTERNATIONAL HARV. | 383 | CM-Series | D-155 | 35 | 1972–1975 | |
| INTERNATIONAL HARV. | 533 V | A-Series | D-155 | 45 | 1973–1987 | |
| INTERNATIONAL HARV. | 553 | CM-Series | D-179 | 52 | 1972–1974 | |
| INTERNATIONAL HARV. | 553 A | CM-Series | D-179 | 52 | 1972–1974 | |
| MASSEY FERGUSON | MF-50 | 0 | 1970–1971 |
