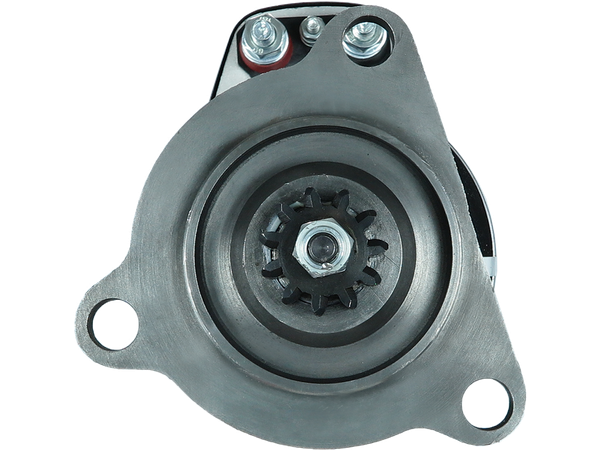

S0805S
Startmotorer
STANDARD LINE
2078 kr
Köp nu
| EAN | 5902129111610 |
| Tillverkare | AS-PL |
| Ersätter | BOSCH |
| OE-nummer | 0001410037 |
| Datablad | Ladda ner PDF med skiss och mått |
Specifikationer
| Spänning [ V ] | 24 |
| Effekt [ kW ] | 5.50 |
| Startmotors rotation | CW |
| A-storlek [ mm ] | 92.00 |
| B-storlek [ mm ] | 37.50 |
| Antal kuggar [ qty. ] | 11 |
| Antal hål i huvudet [ qty. ] | 3 |
| Antal gängade hål [ qty. ] | 0 |
| L.1 [ mm ] | 388.00 |
| O.1 [ mm ] | 127.00 |
| O.2 [ mm ] | 127.00 |
| O.3 [ mm ] | 127.00 |
| C.1 [ mm ] | 17.00 |
| C.2 [ mm ] | 17.00 |
| C.3 [ mm ] | 17.00 |
| Oil sealed | Yes |
| Insulated return | Yes |
Passar i 12 fordon
| Märke | Modell | Typ | Motor | Hk | Bränsle | År |
|---|---|---|---|---|---|---|
| SCANIA | 112 H/280 | 2 - series | DS11.14 | 280 | 1981–1986 | |
| SCANIA | 112 H/305 | 2 - series | DS11.15 | 305 | 1981–1986 | |
| SCANIA | 112 H/305 | 2 - series | DS11.15 | 305 | 1981–1991 | |
| SCANIA | 112 M/280 | 2 - series | DS11.14 | 280 | 1984–1987 | |
| SCANIA | 112 M/280 | 2 - series | DS11.14 | 280 | 1981–1987 | |
| SCANIA | 112 M/305 | 2 - series | DS11.15 | 305 | 1981–1987 | |
| SCANIA | 112 M/305 | 2 - series | DS11.15 | 305-316 | 1981–1986 | |
| SCANIA | 112 M/305 | 2 - series | DS11.15 | 305 | 1984–1984 | |
| SCANIA | 112 M/305 | 2 - series | DS11.15 | 305 | 1984–1987 | |
| SCANIA | 112 M/315 | 2 - series | DS11.17 | 315 | 1984–1987 | |
| SCANIA | 112 M/315 | 2 - series | DS11.15 | 315 | 1984–1987 | |
| SCANIA | 112 M/315 | 2 - series | DS11.17 | 315 | 1981–1987 |
