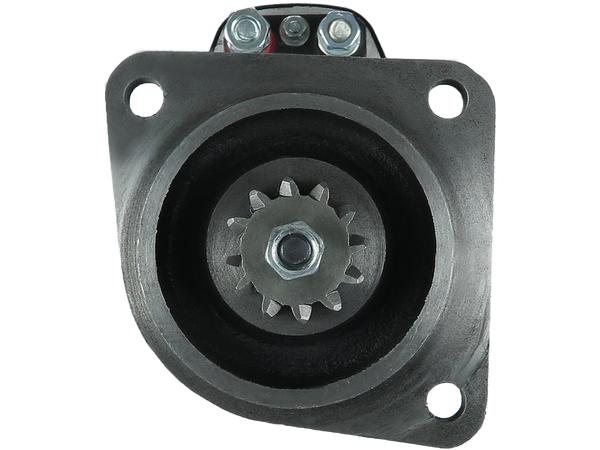

S0852S
Startmotorer
STANDARD LINE
2586 kr
Köp nu
| EAN | 5902129118800 |
| Tillverkare | AS-PL |
| Ersätter | BOSCH |
| OE-nummer |
3EFFE: STRJ374 AS-PL: UD16947S CASCO: CST10653AS, CST10653ES CEVAM: 8125 DELCO: 19024184 ELECTROLOG: STR10045 ERA: 220266 REAL: 20401356BN, 20401356EL RENAULT: 442100118, 5001014200, 5001822955, 5001825905, 5001825908, 5010217010 SANDO: 6010653.0, 6010653.3 SIOM: MAV126530 |
| Datablad | Ladda ner PDF med skiss och mått |
Specifikationer
| Spänning [ V ] | 24 |
| Effekt [ kW ] | 6.60 |
| Startmotors rotation | CW |
| A-storlek [ mm ] | 102.00 |
| B-storlek [ mm ] | 20.00 |
| Antal kuggar [ qty. ] | 12 |
| Antal hål i huvudet [ qty. ] | 3 |
| Antal gängade hål [ qty. ] | 0 |
| L.1 [ mm ] | 405.00 |
| O.1 [ mm ] | 99.00 |
| O.2 [ mm ] | 99.00 |
| O.3 [ mm ] | 140.00 |
| C.1 [ mm ] | 12.50 |
| C.2 [ mm ] | 12.50 |
| C.3 [ mm ] | 12.50 |
Passar i 51 fordon
| Märke | Modell | Typ | Motor | Hk | Bränsle | År |
|---|---|---|---|---|---|---|
| RENAULT TRUCKS | AE 385ti.18 | MAGNUM | MIDR06.35.40N/3 | 385 | 1992–1996 | |
| RENAULT TRUCKS | AE 385ti.18T | MAGNUM | MIDR06.35.40N/3 | 385 | 1992–1996 | |
| RENAULT TRUCKS | AE 385ti.26 | MAGNUM | MIDR06.35.40N/3 | 385 | 1992–1996 | |
| RENAULT TRUCKS | R 350.17 | MAJOR | MIDR06.35.40G | 352 | 1991–1992 | |
| RENAULT TRUCKS | R 350.17 | R | MIDR06.35.40G | 352 | 1990–1991 | |
| RENAULT TRUCKS | R 350.17/T | MAJOR | MIDR06.35.40G | 352 | 1991–1992 | |
| RENAULT TRUCKS | R 350.17/T | R | MIDR06.35.40G | 352 | 1990–1991 | |
| RENAULT TRUCKS | R 350.18 | MAJOR | MIDR06.35.40G | 352 | 1991–1992 | |
| RENAULT TRUCKS | R 350.18 | R | MIDR06.35.40G | 352 | 1990–1991 | |
| RENAULT TRUCKS | R 350.18/T | MAJOR | MIDR06.35.40G | 352 | 1991–1992 | |
| RENAULT TRUCKS | R 350.18/T | R | MIDR06.35.40G | 352 | 1990–1991 | |
| RENAULT TRUCKS | R 350.24 | R | MIDR06.35.40G | 352 | 1990–1991 | |
| RENAULT TRUCKS | R 350.26 | MAJOR | MIDR06.35.40G | 352 | 1991–1992 | |
| RENAULT TRUCKS | R 350.26 | R | MIDR06.35.40G | 352 | 1990–1991 | |
| RENAULT TRUCKS | R 380.18 | R | MIDR06.35.40H | 374 | 1990–1991 | |
| RENAULT TRUCKS | R 380.18/T | R | MIDR06.35.40H | 374 | 1990–1991 | |
| RENAULT TRUCKS | R 380.24 | R | MIDR06.35.40H | 374 | 1990–1991 | |
| RENAULT TRUCKS | R 380.25 | MAJOR | MIDR06.35.40H | 374 | 1991–1992 | |
| RENAULT TRUCKS | R 380.25 | R | MIDR06.35.40H | 374 | 1990–1991 | |
| RENAULT TRUCKS | R 380.25/T | R | MIDR06.35.40H | 374 | 1990–1991 | |
| RENAULT TRUCKS | R 380.26 | R | MIDR06.35.40H | 374 | 1990–1991 | |
| RENAULT TRUCKS | R 380.26/T | R | MIDR06.35.40H | 374 | 1990–1991 | |
| RENAULT TRUCKS | R 385ti.18,R 380.18 | MAJOR | MIDR06.35.40L1 | 374-385 | 1991–1996 | |
| RENAULT TRUCKS | R 385ti.18,R 380.18 | MAJOR | MIDR06.35.40N/3 | 374-385 | 1991–1996 | |
| RENAULT TRUCKS | R 385ti.18,R 380.18 | MAJOR | MIDR06.35.40H | 374-385 | 1991–1996 | |
| RENAULT TRUCKS | R 385ti.18/T,R 380.18/T | MAJOR | MIDR06.35.40L1 | 374-385 | 1991–1996 | |
| RENAULT TRUCKS | R 385ti.18/T,R 380.18/T | MAJOR | MIDR06.35.40H | 374-385 | 1991–1996 | |
| RENAULT TRUCKS | R 385ti.18/T,R 380.18/T | MAJOR | MIDR06.35.40N/3 | 374-385 | 1991–1996 | |
| RENAULT TRUCKS | R 385ti.24,R 380.24 | MAJOR | MIDR06.35.40H | 374-385 | 1991–1996 | |
| RENAULT TRUCKS | R 385ti.24,R 380.24 | MAJOR | MIDR06.35.40N/3 | 374-385 | 1991–1996 | |
| RENAULT TRUCKS | R 385ti.24,R 380.24 | MAJOR | MIDR06.35.40L1 | 374-385 | 1991–1996 | |
| RENAULT TRUCKS | R 385ti.25,R 380.25 | MAJOR | MIDR06.35.40H | 374-385 | 1991–1996 | |
| RENAULT TRUCKS | R 385ti.25,R 380.25 | MAJOR | MIDR06.35.40N/3 | 374-385 | 1991–1996 | |
| RENAULT TRUCKS | R 385ti.25,R 380.25 | MAJOR | MIDR06.35.40L1 | 374-385 | 1991–1996 | |
| RENAULT TRUCKS | R 385ti.25/T,R 380.25/T | MAJOR | MIDR06.35.40H | 374-385 | 1991–1996 | |
| RENAULT TRUCKS | R 385ti.25/T,R 380.25/T | MAJOR | MIDR06.35.40N/3 | 374-385 | 1991–1996 | |
| RENAULT TRUCKS | R 385ti.25/T,R 380.25/T | MAJOR | MIDR06.35.40L1 | 374-385 | 1991–1996 | |
| RENAULT TRUCKS | R 385ti.26 | MAJOR | MIDR06.35.40N/3 | 385 | 1991–1996 | |
| RENAULT TRUCKS | R 385ti.26 | MAJOR | MIDR06.35.40L1 | 385 | 1991–1996 | |
| RENAULT TRUCKS | R 385ti.26,R 380.26 | MAJOR | MIDR06.35.40L1 | 374-385 | 1991–1996 | |
| RENAULT TRUCKS | R 385ti.26,R 380.26 | MAJOR | MIDR06.35.40H | 374-385 | 1991–1996 | |
| RENAULT TRUCKS | R 385ti.26,R 380.26 | MAJOR | MIDR06.35.40N/3 | 374-385 | 1991–1996 | |
| RENAULT TRUCKS | R 385ti.26/T,R 380.26/T | MAJOR | MIDR06.35.40H | 374-385 | 1991–1996 | |
| RENAULT TRUCKS | R 385ti.26/T,R 380.26/T | MAJOR | MIDR06.35.40N/3 | 374-385 | 1991–1996 | |
| RENAULT TRUCKS | R 385ti.26/T,R 380.26/T | MAJOR | MIDR06.35.40L1 | 374-385 | 1991–1996 | |
| RENAULT TRUCKS | R 420ti.18/T | MAJOR | MIDR06.35.40J/3 | 415 | 1992–1996 | |
| RENAULT TRUCKS | R 420ti.24/TS | MAJOR | MIDR06.35.40J1 | 415-427 | 1992–1996 | |
| RENAULT TRUCKS | R 420ti.24/TS | MAJOR | MIDR06.35.40J/3 | 415-427 | 1992–1996 | |
| RENAULT TRUCKS | R 420ti.26/TS | MAJOR | MIDR06.35.40J1 | 415-427 | 1992–1996 | |
| RENAULT TRUCKS | R 420ti.26/TS | MAJOR | MIDR06.35.40J/3 | 415-427 | 1992–1996 | |
| RENAULT TRUCKS | R 420ti.35/TS | MAJOR | MIDR06.35.40J/3 | 415 | 1992–1996 |
