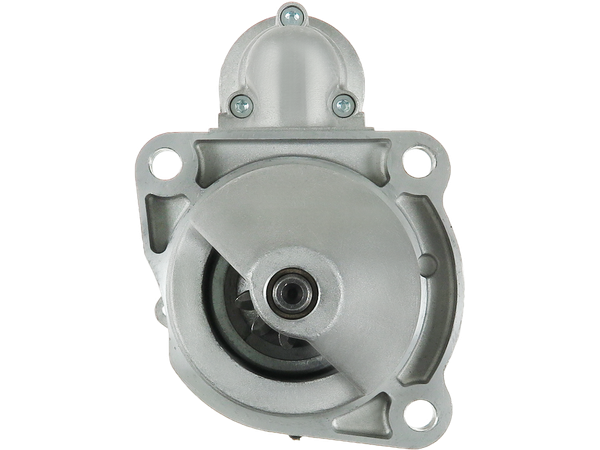

S0865S
Startmotorer
STANDARD LINE
1952 kr
Köp nu
| EAN | 5902129122418 |
| Tillverkare | AS-PL |
| Ersätter | BOSCH |
| OE-nummer | 0001251005 |
| Datablad | Ladda ner PDF med skiss och mått |
Specifikationer
| Spänning [ V ] | 24 |
| Effekt [ kW ] | 4.00 |
| Startmotors rotation | CW |
| A-storlek [ mm ] | 88.00 |
| B-storlek [ mm ] | 30.00 |
| Antal kuggar [ qty. ] | 10 |
| Antal kuggar (passar in) [ qty. ] | 10 |
| Antal hål i huvudet [ qty. ] | 3 |
| Antal gängade hål [ qty. ] | 0 |
| L.1 [ mm ] | 301.00 |
| O.1 [ mm ] | 90.00 |
| O.2 [ mm ] | 128.00 |
| O.3 [ mm ] | 90.00 |
| C.1 [ mm ] | 11.00 |
| C.2 [ mm ] | 11.00 |
| C.3 [ mm ] | 11.00 |
Passar i 5 fordon
| Märke | Modell | Typ | Motor | Hk | Bränsle | År |
|---|---|---|---|---|---|---|
| CASE IH | CX220B | F4GE0684B | 0 | 2010– | ||
| CASE IH | 4.5 D | 621D | F4GE0684F | 0 | 2002– | |
| IRISBUS | 18, 18 NEO | CREALIS | 290 | 2009– | ||
| IVECO | Engine | F4HE0685A | 0 | – | ||
| NEW HOLLAND | E175B | F4GE9484D | 0 | 2007– |
