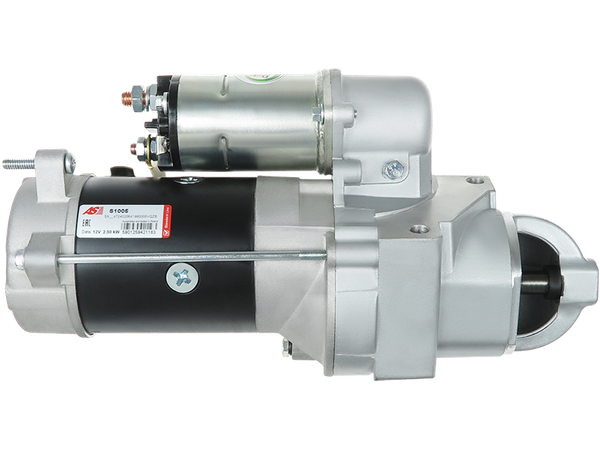

S1005
Startmotorer
STANDARD LINE
1274 kr
Köp nu
| EAN | 5901259421163 |
| Tillverkare | AS-PL |
| Ersätter | DELCO |
| OE-nummer |
3EFFE: STRS798, STRW293 AS-PL: S1005 CARGO: 112341, F032112341 CASCO: CST60111, CST60111AS, CST60111ES, CST60111GS, CST60111OS, CST60111RS DELCO: 10465013, 10465053, 10465054, 10465168, 1113266, 1113267, 1113269, 1113270, 1113295, 1113296, 19136221, DRZ5176 EAI: 33935 ELECTROLOG: STR2685, STR8843 ELSTOCK: 25-2288 HC PARTS: US970 KUHNER: 60970 LAUBER: 22.0970 LOGISTIK: 339120 LUCAS: LRS01401, LRS1401 POWERMAX: 88213353 REAL: 20409111BN, 20409111OE SANDO: 6060111 SIOM: MAV621110 WAI / TRANSPO: 6468N, 6469N WOODAUTO: STR80015 |
| Datablad | Ladda ner PDF med skiss och mått |
Specifikationer
| Spänning [ V ] | 12 |
| Effekt [ kW ] | 2.50 |
| Startmotors rotation | CW |
| A-storlek [ mm ] | 82.00 |
| B-storlek [ mm ] | 8.00 |
| Antal kuggar [ qty. ] | 10 |
| Antal kuggar (passar in) [ qty. ] | 10 |
| Antal hål i huvudet [ qty. ] | 2 |
| Antal gängade hål [ qty. ] | 0 |
| L.1 [ mm ] | 335.00 |
| O.1 [ mm ] | 85.00 |
| C.1 [ mm ] | 10.00 |
| C.2 [ mm ] | 10.00 |
Passar i 69 fordon
| Märke | Modell | Typ | Motor | Hk | Bränsle | År |
|---|---|---|---|---|---|---|
| CHEVROLET | 6.2 | C2500 | 0 | 1988–1995 | ||
| CHEVROLET | 6.2 | G30 | 0 | 1992–1992 | ||
| CHEVROLET | 6.2 | K2500 | 0 | 1989–1993 | ||
| CHEVROLET | 6.2 | R3500 | 0 | 1989–1991 | ||
| CHEVROLET | 6.2 | V3500 | 0 | 1989– | ||
| CHEVROLET | 6.5 | C1500 | 0 | 1994–1995 | ||
| CHEVROLET | 6.5 | C2500 | 0 | 1994–1995 | ||
| CHEVROLET | 6.5 | G20 | 0 | 1994–1995 | ||
| CHEVROLET | 6.5 | G30 | 0 | 1994– | ||
| CHEVROLET | 6.5 | K1500 | 0 | 1994– | ||
| CHEVROLET | 6.5 | K2500 | 0 | 1994– | ||
| CHEVROLET | 6.5 | P30 | 0 | 1994–1997 | ||
| CHEVROLET | 6.5 Sportvan | G20 | 0 | 1994–1995 | ||
| CHEVROLET | 6.5 Sportvan | G30 | 0 | 1994– | ||
| CHEVROLET | 6.5 Turbo | C1500 | 0 | 1994–1998 | ||
| CHEVROLET | 6.5 Turbo | C2500 | 0 | 1992–2000 | ||
| CHEVROLET | 6.5 Turbo | C3500 | 0 | 1992–2000 | ||
| CHEVROLET | 6.5 Turbo | G20 | 0 | 1996–1997 | ||
| CHEVROLET | 6.5 Turbo | G30 | 0 | 1996–1997 | ||
| CHEVROLET | 6.5 Turbo | K1500 | 0 | 1994–1998 | ||
| CHEVROLET | 6.5 Turbo | K2500 | 0 | 1992–2000 | ||
| CHEVROLET | 6.5 Turbo | K3500 | 0 | 1992–2000 | ||
| CHEVROLET | 6.5 Turbo | P30 | 0 | 1994–1997 | ||
| CHEVROLET | 6.5 Turbo | Tahoe | 0 | 1995–1998 | ||
| CHEVROLET | 6.5 Turbo Express | G20 | 0 | 1997– | ||
| CHEVROLET | 6.5 Turbo Express | G30 | 0 | 1996–1997 | ||
| GMC | 6.2 | G35/G3500 | 0 | 1991–1993 | ||
| GMC | 6.2 | Jimmy | 0 | 1991–1991 | ||
| GMC | 6.2 Rally | G25/G2500 | 0 | 1991–1993 | ||
| GMC | 6.2 Rally | G35/G3500 | 0 | 1991–1993 | ||
| GMC | 6.2 SieRa | C1500 | 0 | 1989–1993 | ||
| GMC | 6.2 SieRa | C2500 | 0 | 1989–1993 | ||
| GMC | 6.2 SieRa | C3500 | 0 | 1989–1993 | ||
| GMC | 6.2 SieRa | K1500 | 0 | 1989–1993 | ||
| GMC | 6.2 SieRa | K2500 | 0 | 1989–1993 | ||
| GMC | 6.2 SieRa XC | C1500 | 0 | 1989–1993 | ||
| GMC | 6.2 SieRa XC | C2500 | 0 | 1989–1993 | ||
| GMC | 6.2 SieRa XC | C3500 | 0 | 1989–1993 | ||
| GMC | 6.2 SieRa XC | K1500 | 0 | 1989–1993 | ||
| GMC | 6.2 SieRa XC | K2500 | 0 | 1989–1993 | ||
| GMC | 6.2 Vandura | G25/G2500 | 0 | 1991–1993 | ||
| GMC | 6.2 Vandura | G35/G3500 | 0 | 1991–1993 | ||
| GMC | 6.5 | G35/G3500 | 0 | 1994–1996 | ||
| GMC | 6.5 Rally | G25/G2500 | 0 | 1994–1995 | ||
| GMC | 6.5 Rally | G35/G3500 | 0 | 1994–1996 | ||
| GMC | 6.5 SieRa | C1500 | 0 | 1994–1995 | ||
| GMC | 6.5 SieRa | C2500 | 0 | 1994–1995 | ||
| GMC | 6.5 SieRa | K1500 | 0 | 1994–1995 | ||
| GMC | 6.5 SieRa | K2500 | 0 | 1994–1994 | ||
| GMC | 6.5 SieRa XC | C1500 | 0 | 1994–1995 | ||
| GMC | 6.5 SieRa XC | C2500 | 0 | 1994–1995 | ||
| GMC | 6.5 SieRa XC | K1500 | 0 | 1994–1995 | ||
| GMC | 6.5 Turbo | Special | 0 | 1996–1996 | ||
| GMC | 6.5 Turbo Cargo | G25/G2500 | 0 | 1997– | ||
| GMC | 6.5 Turbo Savana | G25/G2500 | 0 | 1996–1996 | ||
| GMC | 6.5 Turbo Savana | G35/G3500 | 0 | 1996–1997 | ||
| GMC | 6.5 Turbo SieRa | C1500 | 0 | 1994–1997 | ||
| GMC | 6.5 Turbo SieRa | C2500 | 0 | 1992–1998 | ||
| GMC | 6.5 Turbo SieRa | C3500 | 0 | 1992–1997 | ||
| GMC | 6.5 Turbo SieRa | K1500 | 0 | 1994–1998 | ||
| GMC | 6.5 Turbo SieRa | K2500 | 0 | 1992–1994 | ||
| GMC | 6.5 Turbo SieRa XC | C1500 | 0 | 1994–1996 | ||
| GMC | 6.5 Turbo SieRa XC | C2500 | 0 | 1993–1998 | ||
| GMC | 6.5 Turbo SieRa XC | C3500 | 0 | 1992–1997 | ||
| GMC | 6.5 Turbo SieRa XC | K1500 | 0 | 1994–1998 | ||
| GMC | 6.5 Turbo SieRa XC | K2500 | 0 | 1992–1994 | ||
| GMC | 6.5 Turbo XT | G25/G2500 | 0 | 1997– | ||
| GMC | 6.5 Vandura | G25/G2500 | 0 | 1994–1995 | ||
| GMC | 6.5 Vandura | G35/G3500 | 0 | 1994–1996 |
