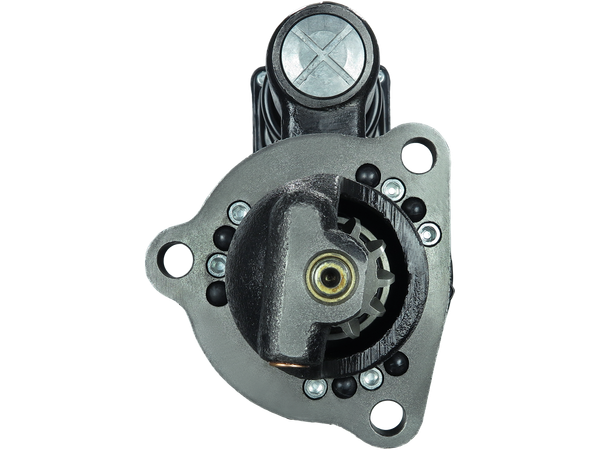

S1009
Startmotorer
STANDARD LINE
3687 kr
Köp nu
| EAN | 5901259421224 |
| Tillverkare | AS-PL |
| Ersätter | DELCO |
| OE-nummer |
3EFFE: STRJ646, STRS209 AINDE: CGB-1061 AS-PL: S1009 AUTO MAGNETO: AM-2411, AM-2411W CARGO: 110347, F032110347 CASCO: CST60605, CST60605AS, CST60605ES, CST60605GS, CST60605OS, CST60605RS CASE: 20-1297T91, 462588C91, 489717C91, 739911C9, 739912C91 CATERPILLAR: 3496536, 0R4259, 0R4272, 0R5211, 0R5213, 10R1852, 10R9815, 10R9816, 20R1312, 237-1962, 2371962, 272-7123, 2T0797, 338-3454, 349-6530, 352-9848, 3C8205, 3L8205, 3T2780, 3T2782, 3T2785, 3T2787, 3T2876, 3T3778, 3T3876, 3T8947, 3T8949, 3T8954, 3T8961, 3T8963, 3T8967, 4M4615, 4N0959, 4N1061, 4N3343, 4N3349, 5L3648, 5L4405, 5L5353, 5L5354, 5L648, 5L8205, 5LG48, 5N2685, 6N1886, 6N9667, 6N9677, 6T0640, 6T0643, 6T0647, 6T0650, 6V0511, 6V0513, 6V0590, 6V0885, 6V0890, 7T0806, 8L8204, 8L8205, 9L6464, 9L6474, 9L6484, OR4272, OR5213 CEVAM: 8837 CUMMINS: 173184, 30004699, 3000576, 3004699, 3004700, 300700, 3010125, 3010125RX, 3021038, 3063771, 3603868RX, 3603887RX, 3603888RX, 3632271, 3632272, 3632273, 3632274, 3632274RX, 3636820, 3636821, 3651892, 401237, 4081235, 4081236, 4081237, 4081238, 4081239, 4094949, 4094950, 4094951, 4094952, 4094953, 4095033 DAF: 1516993R DELCO: 10461057, 10461125, 10461381, 10461739, 10478863, 10478865, 10478866, 10478878, 10478879, 10478883, 10478887, 10478888, 10478907, 10478908, 10478909, 10478911, 10478912, 10479124, 10479125, 10479126, 10479339, 10479343, 1109222, 1109224, 1109275, 1109277, 1109278, 1109279, 1109285, 1109286, 1109287, 1109288, 1109289, 1109290, 1109291, 1109292, 1109293, 1109296, 1109298, 1109493, 1109494, 1109553, 1109630, 1109631, 1109636, 1109638, 1109642, 1109643, 1109646, 1109647, 1109649, 1109755, 1109759, 1109768, 1109771, 1109772, 1109774, 1109775, 1109776, 1109777, 1109778, 1109780, 1109782, 1109787, 1109791, 1109797, 1109798, 1109837, 1109838, 1109839, 1109840, 1109841, 1109842, 1109843, 1109844, 1109845, 1109846, 1109961, 1109963, 1109965, 1109968, 1109970, 1109971, 1109972, 1109973, 1109977, 1109978, 1109979, 1109980, 1109984, 1109985, 1109986, 1109987, 1990229, 1990231, 1990235, 1990237, 1990239, 1990244, 1990246, 1990248, 1990249, 1990250, 1990251, 1990253, 1990254, 1990255, 1990259, 1990260, 1990262, 1990263, 1990264, 1990267, 1990268, 1990269, 1990270, 1990271, 1990273, 1990274, 1990275, 1990276, 1990278, 1990284, 1993825, 1993840, 1993841, 1993852, 8200207, 8200208, 8200456, 8200592, 8201091, 8201153 ELECTROLOG: STR2611 FIAT: 4780974, 70620350, 70675685, 70675686, 70697811, 731130627, 73114229, 73130196, 73130197, 73130198, 73130627 FORD: D8HZ-11002-C, E2HT-11001-DA, E3HZ-11002-A, E3HZ-11002-B, E3HZ-11002-C HC PARTS: US827 HELLA: 8EA730307-001 JOHN DEERE: RE10464 KUHNER: 255353, 255353D, 255353M, 255353P, 60827, 60827D, 60827M, 60827P LOGISTIK: 338977 PRESTOLITE: M0017505ME, M125R3001SEP, M128R3601SE, M128R3837SE, M128R3838SE, M128R3839SE, MS1-401A, MS7-300A, MS7-301A, MS7-403, MS7-404, MS7-406, MS7-407, MS7-408, MS7-411 PSH: 641.004.113, 641.004.113.310, 641.004.113.460, S134.815, S144.308 RENAULT: 5000811448 SANDO: 6060605 SIOM: MAV626050 STARDAX: STX201301 WAI / TRANSPO: 4930N, 4930R WOODAUTO: STR20012 |
| Datablad | Ladda ner PDF med skiss och mått |
Specifikationer
| Spänning [ V ] | 24 |
| Effekt [ kW ] | 9.0 |
| Startmotors rotation | CW |
| A-storlek [ mm ] | 92.00 |
| B-storlek [ mm ] | 47.00 |
| Antal kuggar [ qty. ] | 11 |
| Antal kuggar (passar in) [ qty. ] | 11 |
| Antal hål i huvudet [ qty. ] | 3 |
| Antal gängade hål [ qty. ] | 0 |
| L.1 [ mm ] | 520.00 |
| O.1 [ mm ] | 127.00 |
| O.2 [ mm ] | 127.00 |
| O.3 [ mm ] | 127.00 |
| C.1 [ mm ] | 16.50 |
| C.2 [ mm ] | 16.50 |
| C.3 [ mm ] | 16.50 |
| Insulated return | Yes |
Passar i 57 fordon
| Märke | Modell | Typ | Motor | Hk | Bränsle | År |
|---|---|---|---|---|---|---|
| CATERPILLAR | Various Models | 0 | 1993– | |||
| FIAT | 5.9 Diesel | FD 20 | 8215.02.520 | 0 | 1984–1999 | |
| IVECO | 12.9 | 8262 | 8262.43.001 | 0 | 1990–2003 | |
| IVECO | 13.8 | 8215 | 8215.22.545 | 0 | 1987–1999 | |
| SCANIA | 113 H/310 | 3 - series | DS11.75 | 310 | 1988–1996 | |
| SCANIA | 113 H/310 | 3 - series | DS11.34 | 310 | 1988–1996 | |
| SCANIA | 113 H/310 | 3 - series | DSC11.08 | 310 | 1988–1996 | |
| SCANIA | 113 H/360 | 3 - series | DSC11.30 | 360-363 | 1990–1996 | |
| SCANIA | 113 H/360 | 3 - series | DSC11.30 | 360 | 1988–1996 | |
| SCANIA | 113 H/360 | 3 - series | DSC11.13 | 360-363 | 1990–1996 | |
| SCANIA | 113 H/360 | 3 - series | DSC11.23 | 360-363 | 1990–1996 | |
| SCANIA | 113 H/360 | 3 - series | DSC11.18 | 360-363 | 1990–1996 | |
| SCANIA | 113 M/310 | 3 - series | DS11.73 | 313 | 1988–1996 | |
| SCANIA | 113 M/310 | 3 - series | DS11.75 | 310 | 1988–1996 | |
| SCANIA | 113 M/310 | 3 - series | DS11.34 | 310 | 1988–1996 | |
| SCANIA | 113 M/310 | 3 - series | DSC11.08 | 310 | 1988–1996 | |
| SCANIA | 113 M/320 | 3 - series | DSC11.35 | 320 | 1988–1996 | |
| SCANIA | 113 M/320 | 3 - series | DSC11.17 | 320-325 | 1990–1996 | |
| SCANIA | 113 M/320 | 3 - series | DSC11.17 | 320 | 1988–1996 | |
| SCANIA | 113 M/320 | 3 - series | DSC11.21 | 320 | 1988–1996 | |
| SCANIA | 113 M/320 | 3 - series | DSC11.16 | 325 | 1988–1996 | |
| SCANIA | 113 M/320 | 3 - series | DSC11.16 | 320-325 | 1990–1996 | |
| SCANIA | 113 M/320 | 3 - series | DSC11.21 | 320-325 | 1990–1996 | |
| SCANIA | 113 M/340 | 3 - series | DSC11.12 | 345 | 1987–1996 | |
| SCANIA | 113 M/340 | 3 - series | DSC11.10 | 340 | 1988–1996 | |
| SCANIA | 113 M/360 | 3 - series | DSC11.23 | 362 | 1987–1996 | |
| SCANIA | 113 M/360 | 3 - series | DSC11.18 | 363 | 1987–1996 | |
| SCANIA | 113 M/360 | 3 - series | DSC11.30 | 360 | 1988–1996 | |
| SCANIA | 113 M/360 | 3 - series | DSC11.13 | 363 | 1987–1996 | |
| SCANIA | 113 M/360 | 3 - series | DSC11.36 | 363 | 1987–1996 | |
| SCANIA | 113 M/380 | 3 - series | DSC11.70 | 381 | 1988–1996 | |
| SCANIA | 113 M/380 | 3 - series | DSC11.70 | 381 | 1991–1996 | |
| SCANIA | 113 M/380 | 3 - series | DSC11.22 | 381 | 1988–1996 | |
| SCANIA | 113 M/380 | 3 - series | DSC11.22 | 381 | 1991–1996 | |
| SCANIA | 143 H/450 | 3 - series | DSC14.03 | 450 | 1988–1996 | |
| SCANIA | 143 H/450 | 3 - series | DSC14.10 | 453 | 1988–1996 | |
| SCANIA | 143 H/500 | 3 - series | DSC14.09 | 500 | 1988–1996 | |
| SCANIA | 143 H/500 | 3 - series | DSC14.16 | 500 | 1988–1996 | |
| SCANIA | 143 M/420 | 3 - series | DSC14.08 | 420 | 1988–1996 | |
| SCANIA | 143 M/420 | 3 - series | DSC14.08 | 420 | 1991–1996 | |
| SCANIA | 143 M/450 | 3 - series | DSC14.03 | 450 | 1988–1996 | |
| SCANIA | 143 M/450 | 3 - series | DSC14.03 | 450-453 | 1990–1996 | |
| SCANIA | 143 M/450 | 3 - series | DSC14.10 | 453 | 1988–1996 | |
| SCANIA | 143 M/450 | 3 - series | DSC14.10 | 450-453 | 1990–1996 | |
| SCANIA | 143 M/470 | 3 - series | DSC14.04 | 470 | 1988–1996 | |
| SCANIA | 143 M/500 | 3 - series | DSC14.09 | 500 | 1988–1996 | |
| SCANIA | 143 M/500 | 3 - series | DSC14.09 | 500 | 1991–1996 | |
| SCANIA | 143 M/500 | 3 - series | DSC14.16 | 500 | 1988–1996 | |
| SCANIA | 143 M/500 | 3 - series | DSC14.16 | 500 | 1991–1996 | |
| SCANIA | 93 H/280 | 3 - series | DSC9.08 | 283 | 1988–1996 | |
| SCANIA | 93 M/210 | 3 - series | DS9.05 | 211 | 1988–1996 | |
| SCANIA | 93 M/210 | 3 - series | DS9.08 | 211 | 1988–1996 | |
| SCANIA | 93 M/220 | 3 - series | DSC9.10 | 220 | 1991–1996 | |
| SCANIA | 93 M/250 | 3 - series | DS9.05 | 252 | 1988–1989 | |
| SCANIA | 93 M/280 | 3 - series | DSC9.08 | 282-283 | 1990–1996 | |
| SCANIA | 93 M/280 | 3 - series | DSC9.08 | 283 | 1988–1996 | |
| SCANIA | 93 M/280 | 3 - series | DSC9.02 | 282-283 | 1990–1996 |
