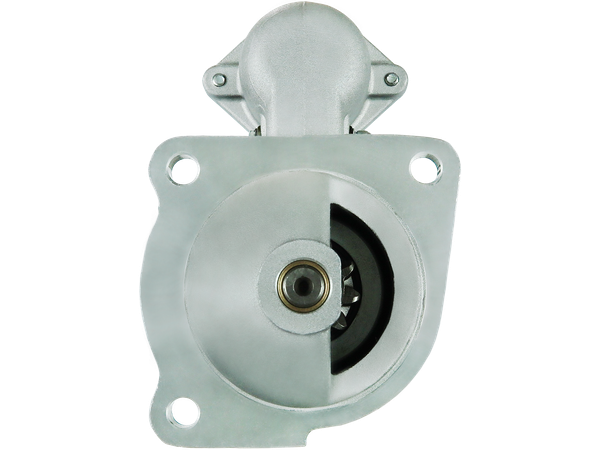

S1127
Startmotorer
STANDARD LINE
1235 kr
Köp nu
| EAN | 5902129037293 |
| Tillverkare | AS-PL |
| Ersätter | DELCO |
| OE-nummer |
3EFFE: STRF173 AS-PL: UD104850S, UD12393S BOSCH: 0001230004, 0001359095 CASCO: CST21244AS DELCO: 10465148, 10465239, 1113289 DIXIE: TS-1582 ELECTROLOG: STR2067 ERA: 220308 KUHNER: 10607, 10607D PRESTOLITE: 35259630 PSH: 570.018.103, S133.718 REAL: 20419442BN RENAULT: 5000559361, 5010306412 SANDO: 6021244.0 STARDAX: STX200791 WAI / TRANSPO: 50-8440, 6602N WILSON: 91-01-4378 |
| Datablad | Ladda ner PDF med skiss och mått |
Specifikationer
| Spänning [ V ] | 12 |
| Effekt [ kW ] | 3.00 |
| Startmotors rotation | CW |
| A-storlek [ mm ] | 89.00 |
| B-storlek [ mm ] | 20.50 |
| Antal kuggar [ qty. ] | 10 |
| Antal hål i huvudet [ qty. ] | 3 |
| Antal gängade hål [ qty. ] | 0 |
| L.1 [ mm ] | 338.00 |
| O.1 [ mm ] | 127.00 |
| O.2 [ mm ] | 90.00 |
| O.3 [ mm ] | 90.00 |
| C.1 [ mm ] | 11.00 |
| C.2 [ mm ] | 11.00 |
| C.3 [ mm ] | 11.00 |
Passar i 58 fordon
| Märke | Modell | Typ | Motor | Hk | Bränsle | År |
|---|---|---|---|---|---|---|
| MACK | 210 | Midlum | DCI6-AE | 213 | 2001–2003 | |
| MACK | 5.5 | Midliner CS | E3 | 0 | 1984–1999 | |
| MACK | 5.5 | MIDLineR MS | E3 | 0 | 1991–1999 | |
| MACK | 6.2 | Midliner CS | E3 | 0 | 1981–2003 | |
| MACK | 6.2 | MIDLineR MS | E3 | 0 | 1991–1999 | |
| MACK | 8.8 | Midliner CS | E5 | 0 | 1983–1998 | |
| MACK | 8.8 | MIDLineR MS | E5 | 0 | 1991–1996 | |
| MACK | 9.8 | Midliner CS | E5 | 0 | 1983–1998 | |
| MACK | 9.8 | MIDLineR MS | E5 | 0 | 1991–1996 | |
| RENAULT TRUCKS | 180.08/B | MIDLUM | MIDR06.02.26V/4 | 180 | 2000– | |
| RENAULT TRUCKS | 180.09/B | MIDLUM | MIDR06.02.26V/4 | 180 | 2000– | |
| RENAULT TRUCKS | 180.10/B | MIDLUM | MIDR06.02.26V/4 | 180 | 2000– | |
| RENAULT TRUCKS | 180.12/B | MIDLUM | MIDR06.02.26V/4 | 180 | 2000– | |
| RENAULT TRUCKS | G 170.11 | G | MIDR06.02.12D | 173-182 | 1983–1990 | |
| RENAULT TRUCKS | G 170.13 | G | MIDR06.02.12D | 173-182 | 1983–1990 | |
| RENAULT TRUCKS | G 170.15 | G | MIDR06.02.12D | 173-182 | 1983–1990 | |
| RENAULT TRUCKS | G 170.16 | G | MIDR06.02.12D | 173-182 | 1983–1990 | |
| RENAULT TRUCKS | G 170.17 | G | MIDR06.02.12D | 173-182 | 1983–1990 | |
| RENAULT TRUCKS | S 110.06/A | MIDLINER | 797-21 | 103 | 1985–1990 | |
| RENAULT TRUCKS | S 110.07/A | MIDLINER | 797-21 | 103 | 1985–1990 | |
| RENAULT TRUCKS | S 110.08/A | MIDLINER | 797-21 | 103 | 1985–1990 | |
| RENAULT TRUCKS | S 130.06 | MIDLINER | 797-20 | 130-132 | 1983–1990 | |
| RENAULT TRUCKS | S 130.06 | MIDLINER | 797.23 | 130-132 | 1983–1990 | |
| RENAULT TRUCKS | S 130.07 | MIDLINER | 797.23 | 130-132 | 1983–1990 | |
| RENAULT TRUCKS | S 130.07 | MIDLINER | 797-20 | 130-132 | 1983–1990 | |
| RENAULT TRUCKS | S 130.08/A | MIDLINER | 797.23 | 130-132 | 1983–1990 | |
| RENAULT TRUCKS | S 130.08/A | MIDLINER | 797-20 | 130-132 | 1983–1990 | |
| RENAULT TRUCKS | S 130.08/A,S 130.08/B | MIDLINER | 797.23 | 130-132 | 1983–1990 | |
| RENAULT TRUCKS | S 130.08/A,S 130.08/B | MIDLINER | 797-20 | 130-132 | 1983–1990 | |
| RENAULT TRUCKS | S 130.08/B | MIDLINER | 797.23 | 130-132 | 1983–1990 | |
| RENAULT TRUCKS | S 130.08/B | MIDLINER | 797-20 | 130-132 | 1983–1990 | |
| RENAULT TRUCKS | S 130.08/R | MIDLINER | 797-20 | 130-132 | 1983–1990 | |
| RENAULT TRUCKS | S 130.08/R | MIDLINER | 797.23 | 130-132 | 1983–1990 | |
| RENAULT TRUCKS | S 130.09/B | MIDLINER | 797.23 | 130-132 | 1983–1990 | |
| RENAULT TRUCKS | S 130.09/B | MIDLINER | 797-20 | 130-132 | 1983–1990 | |
| RENAULT TRUCKS | S 130.11 | MIDLINER | 797-20 | 130-132 | 1983–1990 | |
| RENAULT TRUCKS | S 130.11 | MIDLINER | 797.23 | 130-132 | 1983–1990 | |
| RENAULT TRUCKS | S 130.11/B | MIDLINER | 797-20 | 130-132 | 1983–1990 | |
| RENAULT TRUCKS | S 130.11/B | MIDLINER | 797.23 | 130-132 | 1983–1990 | |
| RENAULT TRUCKS | S 130.13/B | MIDLINER | 797.23 | 130-132 | 1983–1990 | |
| RENAULT TRUCKS | S 130.13/B | MIDLINER | 797-20 | 130-132 | 1983–1990 | |
| RENAULT TRUCKS | S 150.08TI | MIDLINER | 798-10 | 154 | 1983–1986 | |
| RENAULT TRUCKS | S 150.08TI | MIDLINER | MIDS06.02.12B | 154-159 | 1986–1990 | |
| RENAULT TRUCKS | S 150.08TI/R | MIDLINER | MIDS06.02.12B | 154-159 | 1986–1990 | |
| RENAULT TRUCKS | S 150.09TI | MIDLINER | MIDS06.02.12B | 154-159 | 1986–1990 | |
| RENAULT TRUCKS | S 150.09TI | MIDLINER | 798-10 | 154 | 1983–1986 | |
| RENAULT TRUCKS | S 150.11TI | MIDLINER | MIDS06.02.12B | 154-159 | 1986–1990 | |
| RENAULT TRUCKS | S 150.13TI | MIDLINER | MIDS06.02.12B | 154-159 | 1986–1990 | |
| RENAULT TRUCKS | S 150.14TI BOM | MIDLINER | MIDS06.02.12B | 154-159 | 1986–1990 | |
| RENAULT TRUCKS | S 170.11TI | MIDLINER | MIDR06.02.12D | 173-183 | 1987–1989 | |
| RENAULT TRUCKS | S 170.11TI/R | MIDLINER | MIDR06.02.12D | 173-183 | 1987–1989 | |
| RENAULT TRUCKS | S 170.13TI | MIDLINER | MIDR06.02.12D | 173-183 | 1983–1993 | |
| RENAULT TRUCKS | S 170.13TI,S 170 SP | MIDLINER | MIDR06.02.12D | 173-183 | 1983–1993 | |
| RENAULT TRUCKS | S 170.13TI,S 170.13TI/R | MIDLINER | MIDR06.02.12D | 173-183 | 1983–1989 | |
| RENAULT TRUCKS | S 170.13TI/T | MIDLINER | MIDR06.02.12D | 173-183 | 1984–1989 | |
| RENAULT TRUCKS | S 170.14TI | MIDLINER | MIDR06.02.12D | 173-183 | 1983–1989 | |
| RENAULT TRUCKS | S 170.14TI/R | MIDLINER | MIDR06.02.12D | 173-183 | 1987–1989 | |
| RENAULT TRUCKS | S 170.15TI | MIDLINER | MIDR06.02.12D | 173-183 | 1982–1993 |
