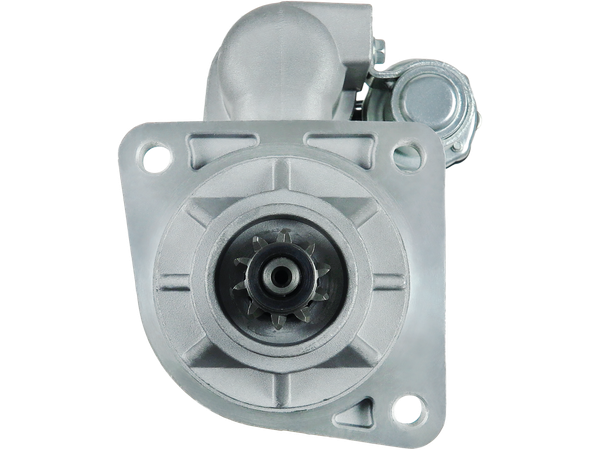

S1130
Startmotorer
STANDARD LINE
1925 kr
Köp nu
| EAN | 5902129038832 |
| Tillverkare | AS-PL |
| Ersätter | DELCO |
| OE-nummer |
3EFFE: STRJ388 AS-PL: UD12664S AUTO MAGNETO: AM-2275G CASCO: CST60600AS, CST60600GS CUMMINS: 3604677RX, 3675204RX, 3904057, 3909914, 3918377, 3918378, 3926932, 5565913 DELCO: 8200064 DIXIE: TS-1834 ELECTROLOG: STR2068 KUHNER: 60857, 60857D, 60857N PSH: 641.502.103, 641.528.103, 641.528.103.710, S143.845, S150.584 REAL: 20409006BN, 20409006OE ROBERT'S: 140-29119 SANDO: 6060600.0, 6060600.1 VOLVO: 707112, 9011707112 WOODAUTO: REM8200064 |
| Datablad | Ladda ner PDF med skiss och mått |
Specifikationer
| Spänning [ V ] | 24 |
| Effekt [ kW ] | 3.90 |
| Startmotors rotation | CW |
| A-storlek [ mm ] | 89.00 |
| B-storlek [ mm ] | 46.00 |
| Antal kuggar [ qty. ] | 10 |
| Antal hål i huvudet [ qty. ] | 3 |
| Antal gängade hål [ qty. ] | 0 |
| L.1 [ mm ] | 306.00 |
| O.1 [ mm ] | 90.00 |
| O.2 [ mm ] | 127.00 |
| O.3 [ mm ] | 90.00 |
| C.1 [ mm ] | 11.50 |
| C.2 [ mm ] | 11.50 |
| C.3 [ mm ] | 11.50 |
Passar i 3 fordon
| Märke | Modell | Typ | Motor | Hk | Bränsle | År |
|---|---|---|---|---|---|---|
| CUMMINS | Various Models | 0 | 1987– | |||
| HYSTER | Various Models | 0 | 1985– | |||
| MACK | Various Models | 0 | 1995–2003 |
