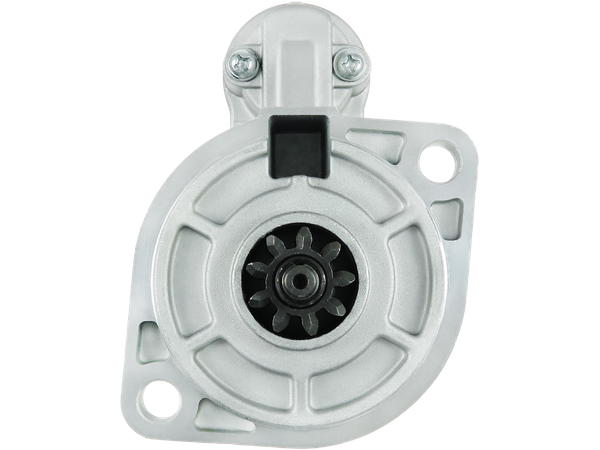

S1156S
Startmotorer
STANDARD LINE
1109 kr
Köp nu
| EAN | 5902129057871 |
| Tillverkare | AS-PL |
| Ersätter | DELCO |
| OE-nummer |
AS-PL: S1156S, UD12946S AUTO MAGNETO: AM-2222 CARGO: 111709, F032111709 CASCO: CST46110, CST46110AS, CST46110ES, CST46110GS, CST46110OS, CST46110RS CHEVROLET: 65262017039, 65262017059 DELCO: 110002, DRS0301N ELECTROLOG: STR6903 ERA: 220577 GHIBAUDI: SG0175 KRAUF: STH8552, STH9552, STN0552, STY6552 KUHNER: 254746D POWERMAX: 8213380 PSH: 130.502.092, 130.502.092.310, 130.502.092.460, S129.681, S143.954 SANDO: 6046110 SANTANA: 16501013000 STARDAX: STX200239 WAI / TRANSPO: 19829N WILSON: 91-27-3353 |
| Datablad | Ladda ner PDF med skiss och mått |
Specifikationer
| Spänning [ V ] | 12 |
| Effekt [ kW ] | 2.20 |
| Startmotors rotation | CW |
| A-storlek [ mm ] | 95.00 |
| B-storlek [ mm ] | 20.00 |
| Antal kuggar [ qty. ] | 9 |
| Antal hål i huvudet [ qty. ] | 2 |
| Antal gängade hål [ qty. ] | 0 |
| L.1 [ mm ] | 233.00 |
| O.1 [ mm ] | 120.00 |
| C.1 [ mm ] | 12.50 |
| C.2 [ mm ] | 12.50 |
Passar i 11 fordon
| Märke | Modell | Typ | Motor | Hk | Bränsle | År |
|---|---|---|---|---|---|---|
| DAEWOO | Various Models | 0 | – | |||
| ISUZU | 2.2 D (KBD27) | CAMPO (KB) | C223 | 53 | Diesel | 1986–1990 |
| ISUZU | 2.2 D (UBS52) | TROOPER I Open Off-Road Vehicle (UBS) | C223-T | 61 | Diesel | 1983–1983 |
| ISUZU | 2.2 D 4WD | TROOPER I (UBS) | C223 | 53 | Diesel | 1984–1989 |
| ISUZU | 2.2 D 4WD (KBD42, KBD47) | CAMPO (KB) | C223 | 53 | Diesel | 1983–1990 |
| ISUZU | 2.2 D 4x4 | TROOPER I Open Off-Road Vehicle (UBS) | C223 | 53 | Diesel | 1984–1989 |
| ISUZU | 2.2 TD (UBS52) | TROOPER I Open Off-Road Vehicle (UBS) | C223-T | 72 | Diesel | 1984–1991 |
| OPEL | 2.2 D | CAMPO (TF0, TF1) | 4FD1 | 61 | Diesel | 1990–1992 |
| OPEL | 2.2 D 4x4 | CAMPO (TF0, TF1) | 4FD1 | 61 | Diesel | 1990–1992 |
| SSANGYONG | 2.2 D | KORANDO (K5, K9) | DC23 | 68 | Diesel | 1988–1996 |
| TCM | FC 3024 | 0 | 1986– |
