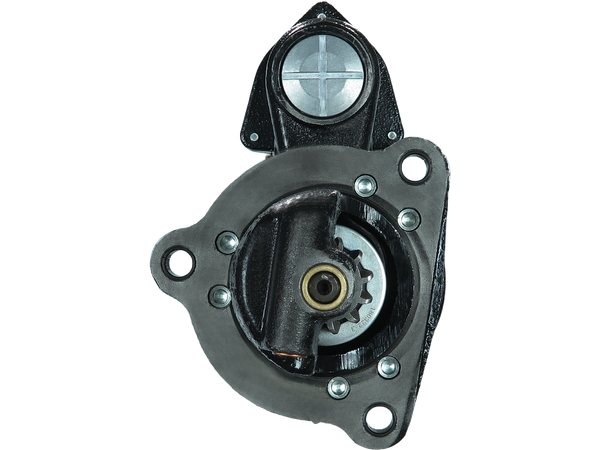

S1187S
Startmotorer
STANDARD LINE
2644 kr
Köp nu
| EAN | 5902129109693 |
| Tillverkare | AS-PL |
| Ersätter | DELCO |
| OE-nummer |
3EFFE: STRF759, STRL868, STRS816 AINDE: CGB-1568 AS-PL: UD16483S CARGO: 112255, F032112255 CASCO: CST60137AS CUMMINS: 3043007, 3043007RX, 3043008, 3604483RX, 3675121RX, 3910643 DELCO: 10461008, 10461089, 10461229, 10479034, 10479106, 1993794, 1993869, 1993871, 1993874, 1993931, 1993958 DIXIE: 201-37149, TS-1539 ELECTROLOG: STR2188 ELSTOCK: 25-3381 KRAUF: STD2255 KUHNER: 255206P LUCAS: LRS02210, LRS2210 PRESTOLITE: 35260870, M105602, M105R2002SE, M105R2022SE, M105R2502SE REAL: 20409731BN ROBERT'S: 140-37142, 140-37842 SANDO: 6060137.0 VOLVO: 3915544 WAI / TRANSPO: 23565A, 23587A, 6380N, 6380N-PT, 6380R, 6380R-PT WILSON: 91-01-4167, 91-01-4167N WOODAUTO: STR80160 |
| Datablad | Ladda ner PDF med skiss och mått |
Specifikationer
| Spänning [ V ] | 12 |
| Effekt [ kW ] | 5.00 |
| Startmotors rotation | CW |
| A-storlek [ mm ] | 92.00 |
| B-storlek [ mm ] | 48.00 |
| Antal kuggar [ qty. ] | 12 |
| Antal hål i huvudet [ qty. ] | 3 |
| Antal gängade hål [ qty. ] | 0 |
| L.1 [ mm ] | 403.00 |
| O.1 [ mm ] | 126.00 |
| O.2 [ mm ] | 126.00 |
| O.3 [ mm ] | 126.00 |
| C.1 [ mm ] | 13.00 |
| C.2 [ mm ] | 13.00 |
| C.3 [ mm ] | 13.00 |
Passar i 2 fordon
| Märke | Modell | Typ | Motor | Hk | Bränsle | År |
|---|---|---|---|---|---|---|
| CLARK | Various Models | 0 | 1968– | |||
| CUMMINS | 0.8 | Engine | 6C8.3 | 0 | 1998– |
