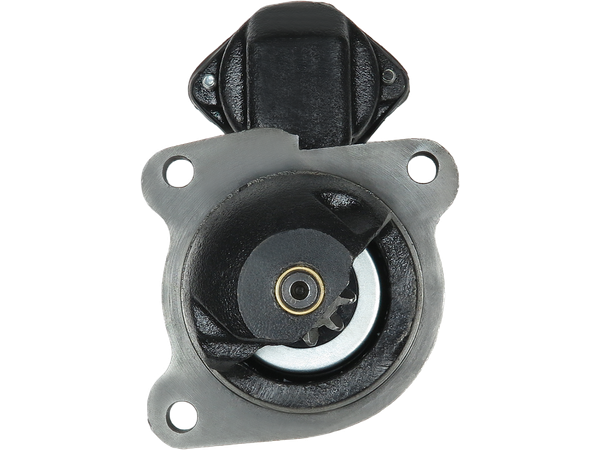

S1193S
Startmotorer
STANDARD LINE
1333 kr
Köp nu
| EAN | 5902129110576 |
| Tillverkare | AS-PL |
| Ersätter | DELCO |
| OE-nummer | 1998207 |
| Datablad | Ladda ner PDF med skiss och mått |
Specifikationer
| Spänning [ V ] | 12 |
| Effekt [ kW ] | 1.50 |
| Startmotors rotation | CW |
| A-storlek [ mm ] | 89.00 |
| B-storlek [ mm ] | 22.00 |
| Antal kuggar [ qty. ] | 10 |
| Antal hål i huvudet [ qty. ] | 3 |
| Antal gängade hål [ qty. ] | 0 |
| L.1 [ mm ] | 306.00 |
| O.1 [ mm ] | 127.00 |
| O.2 [ mm ] | 90.00 |
| O.3 [ mm ] | 90.00 |
| C.1 [ mm ] | 11.00 |
| C.2 [ mm ] | 11.00 |
| C.3 [ mm ] | 11.00 |
Passar i 55 fordon
| Märke | Modell | Typ | Motor | Hk | Bränsle | År |
|---|---|---|---|---|---|---|
| CATERPILLAR | T100C | 1404 | 0 | 1979–1984 | ||
| CATERPILLAR | T120C | 1404 | 0 | 1979–1984 | ||
| CATERPILLAR | T30B | 1404 | 0 | 1979–1984 | ||
| CATERPILLAR | T30C | 1404 | 0 | 1979–1984 | ||
| CATERPILLAR | T35B | 1404 | 0 | 1979–1984 | ||
| CATERPILLAR | T35C | 1404 | 0 | 1979–1984 | ||
| CATERPILLAR | T40B | 1404 | 0 | 1979–1984 | ||
| CATERPILLAR | T40C | 1404 | 0 | 1979–1984 | ||
| CATERPILLAR | T45B | 1404 | 0 | 1979–1984 | ||
| CATERPILLAR | T45C | 1404 | 0 | 1979–1984 | ||
| CATERPILLAR | T50B | 1404 | 0 | 1979–1984 | ||
| CATERPILLAR | T50C | 1404 | 0 | 1979–1984 | ||
| CATERPILLAR | T55B | 1404 | 0 | 1979–1984 | ||
| CATERPILLAR | T55C | 1404 | 0 | 1979–1984 | ||
| CATERPILLAR | T60B | 1404 | 0 | 1979–1984 | ||
| CATERPILLAR | T60C | 1404 | 0 | 1979–1984 | ||
| CATERPILLAR | T70C | 1404 | 0 | 1979–1984 | ||
| CATERPILLAR | T80C | 1404 | 0 | 1979–1984 | ||
| CATERPILLAR | T90C | 1404 | 0 | 1979–1984 | ||
| CATERPILLAR | TC60C | 1404 | 0 | 1979–1984 | ||
| CATERPILLAR | V30C | 1404 | 0 | 1979–1984 | ||
| CATERPILLAR | V35C | 1404 | 0 | 1979–1984 | ||
| CATERPILLAR | V40C | 1404 | 0 | 1979–1984 | ||
| CATERPILLAR | V41 | F-163 | 0 | 1979–1984 | ||
| CATERPILLAR | V45C | 1404 | 0 | 1979–1984 | ||
| CATERPILLAR | V50C | 1404 | 0 | 1979–1984 | ||
| CATERPILLAR | V51 | F-227 | 0 | 1979–1984 | ||
| CATERPILLAR | V55B | F-227 | 0 | 1979–1984 | ||
| CATERPILLAR | V55C | 1404 | 0 | 1979–1984 | ||
| CATERPILLAR | V60B | F-227 | 0 | 1979–1984 | ||
| CATERPILLAR | V60B | F-163 | 0 | 1979–1980 | ||
| TOWMOTOR | T30B | 1404 | 0 | 1979–1986 | ||
| TOWMOTOR | T30C | 1404 | 0 | 1979–1986 | ||
| TOWMOTOR | T35B | 1404 | 0 | 1979–1986 | ||
| TOWMOTOR | T35C | 1404 | 0 | 1979–1986 | ||
| TOWMOTOR | T40B | 1404 | 0 | 1979–1986 | ||
| TOWMOTOR | T40C | 1404 | 0 | 1979–1986 | ||
| TOWMOTOR | T45B | 1404 | 0 | 1979–1986 | ||
| TOWMOTOR | T45C | 1404 | 0 | 1979–1986 | ||
| TOWMOTOR | T50B | 1404 | 0 | 1979–1986 | ||
| TOWMOTOR | T50C | 1404 | 0 | 1979–1986 | ||
| TOWMOTOR | T55B | 1404 | 0 | 1979–1986 | ||
| TOWMOTOR | T55C | 1404 | 0 | 1979–1986 | ||
| TOWMOTOR | T60B | 1404 | 0 | 1979–1986 | ||
| TOWMOTOR | T60C | 1404 | 0 | 1981–1986 | ||
| TOWMOTOR | TC60C | 1404 | 0 | 1979–1980 | ||
| TOWMOTOR | V30C | 1404 | 0 | 1979–1986 | ||
| TOWMOTOR | V35C | 1404 | 0 | 1979–1986 | ||
| TOWMOTOR | V40C | 1404 | 0 | 1979–1986 | ||
| TOWMOTOR | V41 | F-227 | 0 | 1981–1981 | ||
| TOWMOTOR | V45C | 1404 | 0 | 1979–1981 | ||
| TOWMOTOR | V50C | 1404 | 0 | 1979–1986 | ||
| TOWMOTOR | V51 | F-227 | 0 | 1981–1986 | ||
| TOWMOTOR | V55B | F-227 | 0 | 1981–1986 | ||
| TOWMOTOR | V60B | F-227 | 0 | 1981–1986 |
