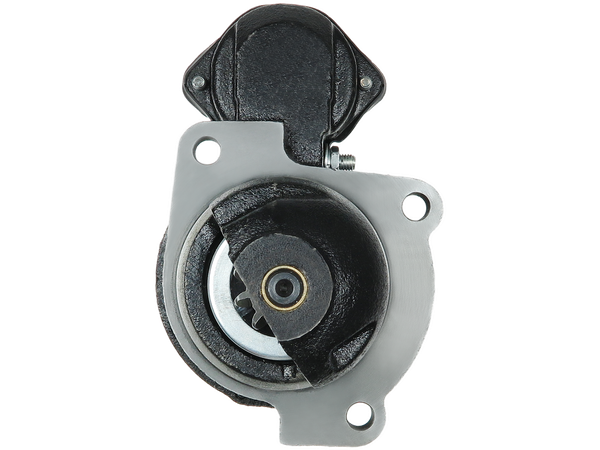

S1194S
Startmotorer
STANDARD LINE
1295 kr
Köp nu
| EAN | 5902129111153 |
| Tillverkare | AS-PL |
| Ersätter | DELCO |
| OE-nummer | 1108443 |
| Datablad | Ladda ner PDF med skiss och mått |
Specifikationer
| Spänning [ V ] | 12 |
| Effekt [ kW ] | 2.00 |
| Startmotors rotation | CW |
| A-storlek [ mm ] | 89.00 |
| B-storlek [ mm ] | 47.00 |
| Antal kuggar [ qty. ] | 10 |
| Antal hål i huvudet [ qty. ] | 3 |
| Antal gängade hål [ qty. ] | 0 |
| L.1 [ mm ] | 307.00 |
| O.1 [ mm ] | 90.00 |
| O.2 [ mm ] | 127.00 |
| O.3 [ mm ] | 90.00 |
| C.1 [ mm ] | 11.00 |
| C.2 [ mm ] | 11.00 |
| C.3 [ mm ] | 11.00 |
| Oil sealed | Yes |
Passar i 7 fordon
| Märke | Modell | Typ | Motor | Hk | Bränsle | År |
|---|---|---|---|---|---|---|
| CATERPILLAR | V60E | 4-236 | 0 | 1985– | ||
| CATERPILLAR | V80E | 4-236 | 0 | 1985– | ||
| HYSTER | H-100XL | GM4.3 | 0 | 1996– | ||
| HYSTER | H-110XL | GM4.3 | 0 | 1996– | ||
| HYSTER | H-130XL | GM4.3 | 0 | 1996– | ||
| HYSTER | H-80XL | GM4.3 | 0 | 1996– | ||
| YALE | 2.5 | Various Models | WG2503 | 59 | 1995–2005 |
