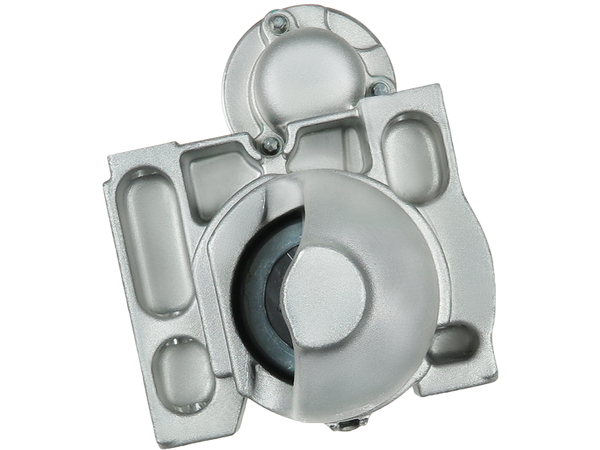

S1196S
Startmotorer
STANDARD LINE
715 kr
Köp nu
| EAN | 5902129111184 |
| Tillverkare | AS-PL |
| Ersätter | DELCO |
| OE-nummer |
AS-PL: UD16842S CASCO: CST60177AS DELCO: 12568051, 12578050, 12578051, 12588651, 12592294, 12604477, 12610300, 323-1644, 89017440, 89017631, 89018123 ELECTROLOG: STR2036 ISUZU: 8890174400, 8890176310 REAL: 20409771BN ROBERT'S: 140-10494 SANDO: 6060177.0 WAI / TRANSPO: 6494N, 6494R WILSON: 91-01-4571, 91-01-4571N |
| Datablad | Ladda ner PDF med skiss och mått |
Specifikationer
| Spänning [ V ] | 12 |
| Effekt [ kW ] | 1.10 |
| Startmotors rotation | CW |
| B-storlek [ mm ] | 27.00 |
| Antal kuggar [ qty. ] | 9 |
| Antal hål i huvudet [ qty. ] | 2 |
| Antal gängade hål [ qty. ] | 0 |
| L.1 [ mm ] | 215.00 |
| O.1 [ mm ] | 73.00 |
| C.1 [ mm ] | 10.00 |
| C.2 [ mm ] | 10.00 |
Passar i 18 fordon
| Märke | Modell | Typ | Motor | Hk | Bränsle | År |
|---|---|---|---|---|---|---|
| BUICK | 5.3 V8 | Rainier | 0 | 2004–2007 | ||
| CADILLAC | 5.3 V8 | Escalade | 0 | 2003–2005 | ||
| CHEVROLET | 4.8 V8 | Express | 0 | 2005–2007 | ||
| CHEVROLET | 4.8 V8 | Tahoe | 0 | 2004–2009 | ||
| CHEVROLET | 5.3 V8 | Avalanche | 0 | 2003–2013 | ||
| CHEVROLET | 5.3 V8 | Express | 0 | 2004–2007 | ||
| CHEVROLET | 5.3 V8 | SSR | 0 | 2003–2004 | ||
| CHEVROLET | 5.3 V8 | Suburban | 0 | 2003–2014 | ||
| CHEVROLET | 5.3 V8 | Tahoe | 0 | 2003–2014 | ||
| CHEVROLET | 5.3 V8 | Trail Blazer | 0 | 2003–2008 | ||
| GMC | 4.8 V8 | Savana | 0 | 2004–2007 | ||
| GMC | 4.8 V8 | Yukon | 0 | 2004–2009 | ||
| GMC | 5.3 V8 | Envoy | 0 | 2003–2009 | ||
| GMC | 5.3 V8 | Savana | 0 | 2004–2007 | ||
| GMC | 5.3 V8 | Yukon | 0 | 2003–2014 | ||
| GMC | 5.3 V8 | Yukon XL | 0 | 2003–2009 | ||
| ISUZU | 5.3 V8 | Ascender | 0 | 2004–2006 | ||
| SAAB | 5.3 AWD | 9-7X | LH6(325CUV8) | 299 | Petrol | 2004–2012 |
