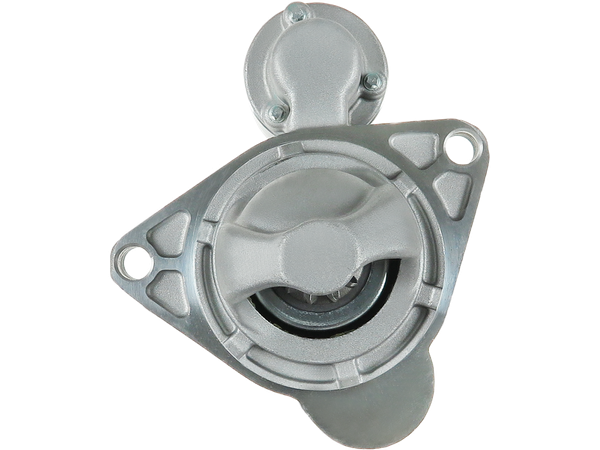

S1197S
Startmotorer
STANDARD LINE
709 kr
Köp nu
| EAN | 5902129111214 |
| Tillverkare | AS-PL |
| Ersätter | DELCO |
| OE-nummer |
AS-PL: UD16841S CASCO: CST60146AS DELCO: 12581305, 89017846 DIXIE: 201-97101, S-1506 ELECTROLOG: STR2128 GM: 89018846 ISUZU: 8890178460 KRAUF: STD0016 KUHNER: 256178 REAL: 20409641BN ROBERT'S: 6782 SANDO: 6060146.0 WAI / TRANSPO: 6782N WILSON: 91-01-4668, 91-01-4668N |
| Datablad | Ladda ner PDF med skiss och mått |
Specifikationer
| Spänning [ V ] | 12 |
| Effekt [ kW ] | 1.70 |
| Startmotors rotation | CW |
| A-storlek [ mm ] | 82.50 |
| B-storlek [ mm ] | 30.00 |
| Antal kuggar [ qty. ] | 11 |
| Antal hål i huvudet [ qty. ] | 2 |
| Antal gängade hål [ qty. ] | 0 |
| L.1 [ mm ] | 220.00 |
| O.1 [ mm ] | 116.00 |
| C.1 [ mm ] | 11.00 |
| C.2 [ mm ] | 11.00 |
Passar i 15 fordon
| Märke | Modell | Typ | Motor | Hk | Bränsle | År |
|---|---|---|---|---|---|---|
| BUICK | 4.2 | Rainier | 0 | 2004–2007 | ||
| CHEVROLET | 2.9 | Colorado | 0 | 2007–2012 | ||
| CHEVROLET | 3.7 | Colorado | 0 | 2007–2012 | ||
| CHEVROLET | 4.2 | Trail Blazer | 0 | 2002–2009 | ||
| CHEVROLET | 4.2 | Trailbrazer EXT | 0 | 2006–2006 | ||
| CHEVROLET | 4.2 EXT | Trailbrazer | 0 | 2006–2006 | ||
| GMC | 2.9 | Canyon | 0 | 2007–2012 | ||
| GMC | 3.7 | Canyon | 0 | 2007–2012 | ||
| GMC | 4.2 | Envoy | 0 | 2002–2009 | ||
| GMC | 4.2 | Envoy XL | 0 | 2002–2006 | ||
| HUMMER | 3.7 | H3 | 0 | 2007–2010 | ||
| ISUZU | 2.9 | i-290 | 0 | 2007–2008 | ||
| ISUZU | 3.7 | i-370 | 0 | 2007–2008 | ||
| ISUZU | 4.2 | Ascender | 0 | 2003–2008 | ||
| SAAB | 4.2 AWD | 9-7X | LL8(254CUL6) | 290 | Petrol | 2005–2012 |
