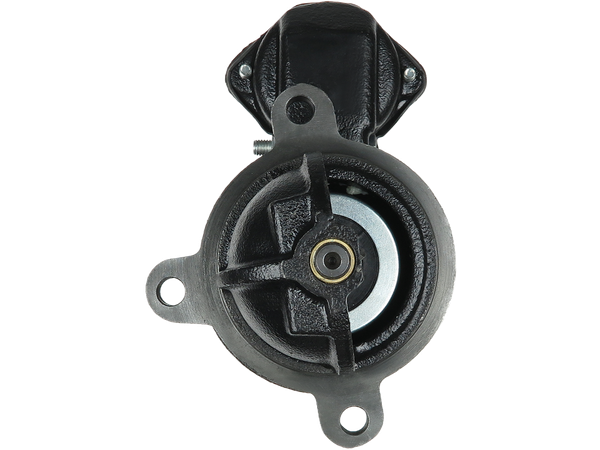

S1211S
Startmotorer
STANDARD LINE
1326 kr
Köp nu
| EAN | 5902129120018 |
| Tillverkare | AS-PL |
| Ersätter | DELCO |
| OE-nummer | 1107377 |
| Datablad | Ladda ner PDF med skiss och mått |
Specifikationer
| Spänning [ V ] | 12 |
| Effekt [ kW ] | 2.70 |
| Startmotors rotation | CW |
| A-storlek [ mm ] | 89.00 |
| B-storlek [ mm ] | 21.00 |
| Antal kuggar [ qty. ] | 9 |
| Antal hål i huvudet [ qty. ] | 3 |
| Antal gängade hål [ qty. ] | 0 |
| L.1 [ mm ] | 306.00 |
| O.1 [ mm ] | 127.00 |
| O.2 [ mm ] | 90.00 |
| O.3 [ mm ] | 90.00 |
| C.1 [ mm ] | 11.00 |
| C.2 [ mm ] | 11.00 |
| C.3 [ mm ] | 11.00 |
Passar i 152 fordon
| Märke | Modell | Typ | Motor | Hk | Bränsle | År |
|---|---|---|---|---|---|---|
| ALLIS CHALMERS | Engine | 9427 | 0 | 1974–1986 | ||
| BOBCAT | 970 | F-227 | 0 | 1970–1975 | ||
| CLARK | 35 | F-227 | 0 | 1967–1968 | ||
| CLARK | C 120 | F-245 | 0 | 1967–1971 | ||
| CLARK | C100 | F-245 | 0 | 1967–1971 | ||
| CLARK | C20 | Y-112 | 0 | 1967–1971 | ||
| CLARK | C20SU | Y-112 | 0 | 1967–1970 | ||
| CLARK | C300-30 | F-163 | 0 | 1977–1982 | ||
| CLARK | C300-40 | F-163 | 0 | 1975–1986 | ||
| CLARK | C300-50 | F-163 | 0 | 1975–1982 | ||
| CLARK | C300-Y40 | F-163 | 0 | 1977–1982 | ||
| CLARK | C300-Y50 | F-163 | 0 | 1977–1978 | ||
| CLARK | C30B | F-163 | 0 | 1967–1970 | ||
| CLARK | C30C | 155 | 0 | 1967–1968 | ||
| CLARK | C40B | F-163 | 0 | 1967–1970 | ||
| CLARK | C40C | 155 | 0 | 1967–1968 | ||
| CLARK | C500-100 | F-245 | 0 | 1972–1986 | ||
| CLARK | C500-120 | F-245 | 0 | 1979–1981 | ||
| CLARK | C500-20 | Y-112 | 0 | 1972–1986 | ||
| CLARK | C500-200 | F-245 | 0 | 1972–1978 | ||
| CLARK | C500-20P | Y-112 | 0 | 1972–1976 | ||
| CLARK | C500-25 | Y-112 | 0 | 1972–1982 | ||
| CLARK | C500-25P | Y-112 | 0 | 1972–1976 | ||
| CLARK | C500-30 | Y-112 | 0 | 1972–1982 | ||
| CLARK | C500-30 | 176 | 0 | 1975–1986 | ||
| CLARK | C500-30 | 155 | 0 | 1969–1986 | ||
| CLARK | C500-35 | 176 | 0 | 1975–1976 | ||
| CLARK | C500-35 | 155 | 0 | 1969–1982 | ||
| CLARK | C500-40 | 176 | 0 | 1975–1986 | ||
| CLARK | C500-40 | 155 | 0 | 1969–1982 | ||
| CLARK | C500-45 | 155 | 0 | 1969–1982 | ||
| CLARK | C500-45 | 176 | 0 | 1975–1976 | ||
| CLARK | C500-50 | 155 | 0 | 1969–1982 | ||
| CLARK | C500-50 | 176 | 0 | 1975–1976 | ||
| CLARK | C500-55 | 176 | 0 | 1975–1981 | ||
| CLARK | C500-55 | 155 | 0 | 1969–1976 | ||
| CLARK | C500-60 | F-245 | 0 | 1983–1986 | ||
| CLARK | C500-60 | F-227 | 0 | 1977–1982 | ||
| CLARK | C500-70 | F-227 | 0 | 1977–1982 | ||
| CLARK | C500-80 | F-227 | 0 | 1977–1982 | ||
| CLARK | C500-F20 | Y-112 | 0 | 1972–1976 | ||
| CLARK | C500-F25P | Y-112 | 0 | 1972–1976 | ||
| CLARK | C500-H40 | 155 | 0 | 1969–1976 | ||
| CLARK | C500-H40 | 176 | 0 | 1975–1976 | ||
| CLARK | C500-H45 | 176 | 0 | 1975–1976 | ||
| CLARK | C500-H45 | 155 | 0 | 1969–1976 | ||
| CLARK | C500-H50 | 176 | 0 | 1975–1976 | ||
| CLARK | C500-H50 | 155 | 0 | 1969–1976 | ||
| CLARK | C500-H55 | 155 | 0 | 1969–1976 | ||
| CLARK | C500-H55 | 176 | 0 | 1975–1976 | ||
| CLARK | C500-H60 | F-227 | 0 | 1972–1976 | ||
| CLARK | C500-H60 | F-245 | 0 | 1975–1976 | ||
| CLARK | C500-H70 | F-227 | 0 | 1972–1976 | ||
| CLARK | C500-H70 | F-245 | 0 | 1975–1976 | ||
| CLARK | C500-H80 | F-245 | 0 | 1975–1976 | ||
| CLARK | C500-H80 | F-227 | 0 | 1972–1976 | ||
| CLARK | C500-HY40 | 176 | 0 | 1975–1976 | ||
| CLARK | C500-HY40 | 155 | 0 | 1972–1976 | ||
| CLARK | C500-HY45 | 176 | 0 | 1975–1976 | ||
| CLARK | C500-HY45 | 155 | 0 | 1972–1976 | ||
| CLARK | C500-HY50 | 155 | 0 | 1972–1976 | ||
| CLARK | C500-HY50 | 176 | 0 | 1975–1976 | ||
| CLARK | C500-HY55 | 155 | 0 | 1972–1976 | ||
| CLARK | C500-HY55 | 176 | 0 | 1975–1976 | ||
| CLARK | C500-HY60 | F-245 | 0 | 1972–1974 | ||
| CLARK | C500-HY70 | F-245 | 0 | 1972–1974 | ||
| CLARK | C500-HY80 | F-245 | 0 | 1972–1974 | ||
| CLARK | C500-S60 | 176 | 0 | 1977–1981 | ||
| CLARK | C500-Y100 | F-245 | 0 | 1972–1982 | ||
| CLARK | C500-Y120 | F-245 | 0 | 1982–1982 | ||
| CLARK | C500-Y130 | F-245 | 0 | 1972–1981 | ||
| CLARK | C500-Y150 | F-245 | 0 | 1972–1981 | ||
| CLARK | C500-Y20 | F-163 | 0 | 1972–1986 | ||
| CLARK | C500-Y25 | F-163 | 0 | 1972–1982 | ||
| CLARK | C500-Y30 | F-163 | 0 | 1972–1982 | ||
| CLARK | C500-Y40 | 176 | 0 | 1977–1982 | ||
| CLARK | C500-Y45 | 176 | 0 | 1977–1982 | ||
| CLARK | C500-Y50 | 176 | 0 | 1977–1982 | ||
| CLARK | C500-Y55 | 176 | 0 | 1982–1982 | ||
| CLARK | C500-Y60 | F-245 | 0 | 1977–1986 | ||
| CLARK | C500-Y70 | F-245 | 0 | 1977–1982 | ||
| CLARK | C500-Y80 | F-245 | 0 | 1977–1982 | ||
| CLARK | C500-YF20 | F-163 | 0 | 1972–1976 | ||
| CLARK | C500-YF25 | F-163 | 0 | 1972–1976 | ||
| CLARK | C500-YF30 | F-163 | 0 | 1972–1976 | ||
| CLARK | C500-YS60 | 176 | 0 | 1977–1982 | ||
| CLARK | C50B | F-163 | 0 | 1967–1970 | ||
| CLARK | C50C | 155 | 0 | 1967–1968 | ||
| CLARK | C60 | F-227 | 0 | 1967–1970 | ||
| CLARK | C70 | F-227 | 0 | 1967–1970 | ||
| CLARK | C80 | F-227 | 0 | 1967–1970 | ||
| CLARK | CF20 | Y-112 | 0 | 1967–1971 | ||
| CLARK | CF30B | F-163 | 0 | 1967–1970 | ||
| CLARK | CF40B | F-163 | 0 | 1967–1970 | ||
| CLARK | CF50B | F-163 | 0 | 1967–1970 | ||
| CLARK | CF60 | F-227 | 0 | 1967–1970 | ||
| CLARK | CF70 | F-227 | 0 | 1967–1970 | ||
| CLARK | CF80 | F-227 | 0 | 1967–1970 | ||
| CLARK | CH30C | 155 | 0 | 1967–1968 | ||
| CLARK | CH40C | 155 | 0 | 1967–1968 | ||
| CLARK | CH60 | F-227 | 0 | 1967–1970 | ||
| CLARK | CH70 | F-227 | 0 | 1967–1970 | ||
| CLARK | CH80 | F-227 | 0 | 1967–1970 | ||
| CLARK | CK30 | Y-112 | 0 | 1982–1987 | ||
| CLARK | Clarkat | Y-112 | 0 | 1972–1981 | ||
| CLARK | Clarkette | Y-112 | 0 | 1967–1971 | ||
| CLARK | CY(F)20 | F-163 | 0 | 1971–1971 | ||
| CLARK | CY(F)25 | F-163 | 0 | 1971–1971 | ||
| CLARK | CY100 | F-245 | 0 | 1967–1971 | ||
| CLARK | CY120 | F-245 | 0 | 1967–1971 | ||
| CLARK | CY20 | F-162 | 0 | 1966–1966 | ||
| CLARK | CY20 | F-163 | 0 | 1967–1971 | ||
| CLARK | CY25 | F-163 | 0 | 1967–1971 | ||
| CLARK | CY30B | F-163 | 0 | 1969–1970 | ||
| CLARK | CY40B | F-163 | 0 | 1969–1970 | ||
| CLARK | CY50B | F-163 | 0 | 1969–1970 | ||
| CLARK | CY60 | F-245 | 0 | 1967–1970 | ||
| CLARK | CY70 | F-245 | 0 | 1967–1970 | ||
| CLARK | CY80 | F-245 | 0 | 1967–1970 | ||
| CLARK | IT30 | F-163 | 0 | 1967–1971 | ||
| CLARK | IT40 | F-163 | 0 | 1967–1971 | ||
| CLARK | IT40B | F-163 | 0 | 1972–1974 | ||
| CLARK | Y40 | 155 | 0 | 1969–1971 | ||
| CLARK | Y45 | 155 | 0 | 1969–1971 | ||
| CLARK | Y50 | 155 | 0 | 1969–1971 | ||
| CLARK | Y55 | 155 | 0 | 1969–1971 | ||
| CONTINENTAL | Engine | F4 | 0 | 1969–1980 | ||
| CONTINENTAL | Engine | TC56 | 0 | 1983–2001 | ||
| CONTINENTAL | Engine | F163 | 0 | 1981–1999 | ||
| CONTINENTAL | Engine | Y4 | 0 | 1969–1980 | ||
| CONTINENTAL | Engine | F245 | 0 | 1981–1999 | ||
| CONTINENTAL | Engine | F6 | 0 | 1969–1980 | ||
| CONTINENTAL | Engine | Y112 | 0 | 1981–1999 | ||
| CONTINENTAL | Engine | F227 | 0 | 1981–1999 | ||
| HYSTER | S40 | 3.152 | 0 | 1963–1964 | ||
| LISTER PETTER | Engine | HR2 | 0 | 1986–1988 | ||
| LISTER PETTER | Engine | HR3 | 0 | 1986–1988 | ||
| WHITE | MA-20 | Y-112 | 0 | 1981–1981 | ||
| WHITE | MA-25 | Y-112 | 0 | 1981–1981 | ||
| WHITE | MA-30 | Y-112 | 0 | 1981–1981 | ||
| WHITE | MA-30 | F-163 | 0 | 1969–1974 | ||
| WHITE | MA-30H | F-163 | 0 | 1975–1981 | ||
| WHITE | MA-35 | F-163 | 0 | 1975–1981 | ||
| WHITE | MA-40 | F-163 | 0 | 1969–1981 | ||
| WHITE | MA-45 | F-163 | 0 | 1975–1981 | ||
| WHITE | MA-50 | F-163 | 0 | 1969–1981 | ||
| WHITE | MA-55 | F-163 | 0 | 1975–1981 | ||
| WHITE | MA-60 | F-163 | 0 | 1969–1974 | ||
| WHITE | MA-60S | F-163 | 0 | 1975–1981 | ||
| WHITE | WC-30 | F-163 | 0 | 1969–1974 | ||
| WHITE | WC-40 | F-163 | 0 | 1969–1974 | ||
| WHITE | WC-50 | F-163 | 0 | 1969–1974 |
