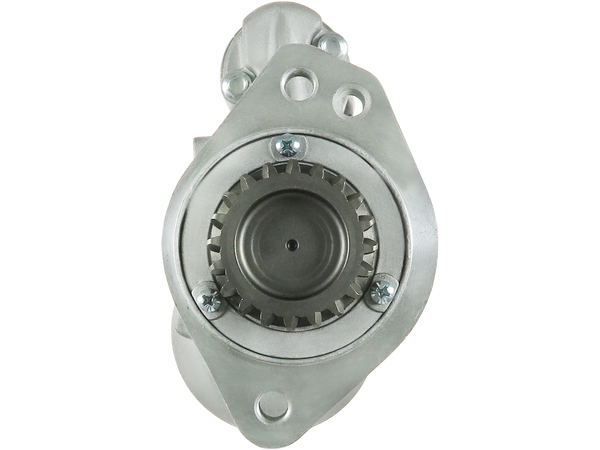

S2105S
Startmotorer
STANDARD LINE
1139 kr
Köp nu
| EAN | 5902129121282 |
| Tillverkare | AS-PL |
| Ersätter | HITACHI |
| OE-nummer | S114-438 |
| Datablad | Ladda ner PDF med skiss och mått |
Specifikationer
| Spänning [ V ] | 12 |
| Effekt [ kW ] | 1.20 |
| Startmotors rotation | CW |
| A-storlek [ mm ] | 80.00 |
| B-storlek [ mm ] | 19.00 |
| Antal kuggar [ qty. ] | 20 |
| Antal hål i huvudet [ qty. ] | 3 |
| Antal gängade hål [ qty. ] | 2 |
| L.1 [ mm ] | 217.00 |
| O.1 [ mm ] | 19.00 |
| O.2 [ mm ] | 106.00 |
| O.3 [ mm ] | 110.00 |
| C.1 [ mm ] | M12x1.75 |
| C.2 [ mm ] | 9.00 |
| C.3 [ mm ] | M12x1.75 |
Passar i 10 fordon
| Märke | Modell | Typ | Motor | Hk | Bränsle | År |
|---|---|---|---|---|---|---|
| TAKEUCHI | TB125 | 3TNE82A | 0 | 2009–2014 | ||
| TAKEUCHI | TB135 | 3TNE88-TB | 0 | 1999–2014 | ||
| TAKEUCHI | TB145 | 3TNE88-TB | 0 | 2009–2014 | ||
| TAKEUCHI | TB228 | 3TNV82-QTB1 | 0 | 2009–2014 | ||
| TAKEUCHI | TB230 | 3TNE88F | 0 | 2009–2014 | ||
| YANMAR | Engine | 4TNV88-QTB | 0 | – | ||
| YANMAR | Engine | 3TNV82-QTB1 | 0 | – | ||
| YANMAR | Engine | 3TNV88F | 0 | – | ||
| YANMAR | Engine | FN12 | 0 | – | ||
| YANMAR | Engine | 3TNV88-QTB | 0 | – |
