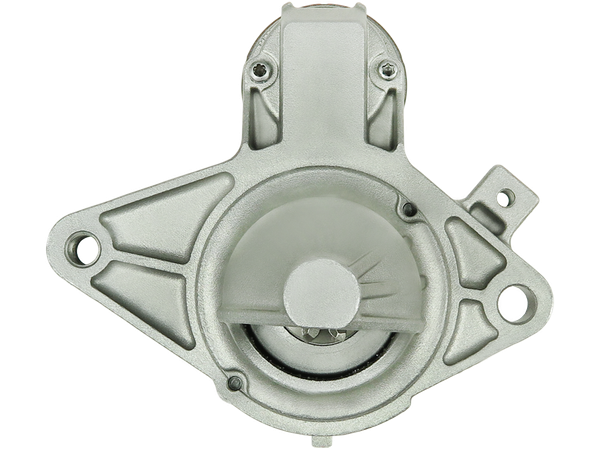

S3023PR
Startmotorer
PREMIUM LINE
522 kr
Köp nu
| EAN | 5902129088356 |
| Tillverkare | AS-PL |
| Ersätter | VALEO |
| OE-nummer |
3EFFE: PRSL130, PRSL130V, STRL130, STRL130NE, STRL130V AINDE: CGB-20006, CGB-53466 ANDEL: ANM12226, ANM12226X APEC: ASM1492 ASHIKA: 003-130043 AUTO MAGNETO: AM-2447 BOSCH: 0001107438, 0986021550, 1986S00672 CARGO: 113963, F032113963 CASCO: CST10176AS, CST10176GS, CST15198AS, CST15198GS CEVAM: 9731 EAI: 12000 ELECTROLOG: STR0078 ELSTOCK: 25-3466 ELTA AUTOMOTIVE: EZ0591 ERA: 220395, 220395A GHIBAUDI: SG0417 GPARTS: GS438192-A, GS438192V-R HC PARTS: CS1407 HELLA: 8EA012527-581 HERTH+BUSS: 42021550 JAPANPARTS: MT130043 JAPKO: 3130043 KRAUF: STB1407 KUHNER: 101407, 101407V LOGISTIK: 332090 LUCAS: LRS02295, LRS2295 MAGNETI MARELLI: 063721407010, 943214071010, 944280215500, MQS1407, MRS21550, MSRC1407 MEAT & DORIA: 5015032 NAPA: NPANSM1492 PEUGEOT: 1612092980, 1612350580, 5802AL, 5802AN, 5802EY, 5802EZ POWERMAX: 88213157 PSH: 220.527.082.000, 220.527.082.008, 220.527.082.500, 220.527.082.505, S131.951, S144.549, S149.111 REAL: 20401671BN, 20401671OE, 20479891BN, 20479891OE ROLLCO: STM956 SANDO: 6010176.0, 6010176.1, 6015198.0, 6015198.1 SIDAT: S12VA0011A2 STARDAX: STX200205, STX200205R TOYOTA: 28100-0Q012, 28100-0Q021, 28100-0Q100, 281000Q012D, 281000Q100 VALEO: 201085, 438192, 458248, TS10E1 WAI / TRANSPO: 33295N WOODAUTO: VAL438192 |
| Datablad | Ladda ner PDF med skiss och mått |
Specifikationer
| Spänning [ V ] | 12 |
| Effekt [ kW ] | 1.10 |
| Startmotors rotation | CW |
| A-storlek [ mm ] | 74.00 |
| B-storlek [ mm ] | 23.00 |
| Antal kuggar [ qty. ] | 8 |
| Antal hål i huvudet [ qty. ] | 2 |
| Antal gängade hål [ qty. ] | 1 |
| L.1 [ mm ] | 171.00 |
| O.1 [ mm ] | 130.00 |
| C.1 [ mm ] | 10.50 |
| C.2 [ mm ] | M10x1.25 |
Passar i 12 fordon
| Märke | Modell | Typ | Motor | Hk | Bränsle | År |
|---|---|---|---|---|---|---|
| CITROËN | 1.0 | C1 (PM_, PN_) | CFA(384F) | 68 | Petrol | 2005–2014 |
| CITROËN | 1.0 | C1 (PM_, PN_) | CFB(1KR) | 68 | Petrol | 2005–2014 |
| CITROËN | 1.0 VTi 68 | C1 II (PA_, PS_) | CFB(1KR) | 69 | Petrol | 2014–2018 |
| CITROËN | 1.0 VTi 72 | C1 II (PA_, PS_) | CFB(1KR) | 72 | Petrol | 2018–2021 |
| PEUGEOT | 1.0 | 107 (PM_, PN_) | CFA(384F) | 68 | Petrol | 2005–2014 |
| PEUGEOT | 1.0 | 107 (PM_, PN_) | CFB(1KR) | 68 | Petrol | 2005–2014 |
| PEUGEOT | 1.0 VTi | 108 | CFB(1KR) | 69 | Petrol | 2014– |
| PEUGEOT | 1.0 VTi 72 | 108 | CFB(1KR) | 72 | Petrol | 2018– |
| TOYOTA | 1.0 (KGB10_, KGB10R) | AYGO (_B1_) | 1KR-FE | 68 | Petrol | 2005–2014 |
| TOYOTA | 1.0 GPL (KGB10_) | AYGO (_B1_) | 1KR-FE | 68 | Petrol/Liquified Petroleum Gas (LPG) | 2005–2014 |
| TOYOTA | 1.0 VVTi (KGB10) | AYGO Hatchback Van (_B1_) | 1KR-FE | 68 | Petrol | 2005–2014 |
| TOYOTA | 1.0 VVTi (KGB40) | AYGO (_B4_) | 1KR-FE | 72 | Petrol | 2018– |
