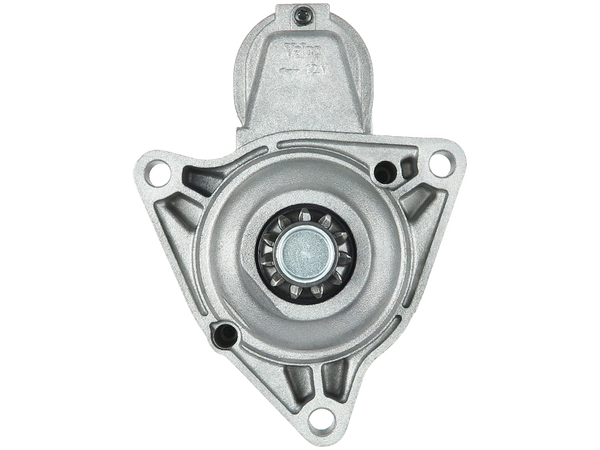

S3026PR
Startmotorer
PREMIUM LINE
837 kr
Köp nu
| EAN | 5902129132257 |
| Tillverkare | AS-PL |
| Ersätter | VALEO |
| OE-nummer |
3EFFE: PRSL118, PRSS720, STRL118, STRS720 AINDE: CGB-26990, CGB-52167 AUTOELECTRO: AES1233, NES1233 BOSCH: 0001110061, 0001124005, 0001124006, 0001125001, 0001125002, 0001125011, 0001125031, 0001125032, 0986016990 CARGO: 113387, F032113387 CASCO: CST10101AS, CST10101GS, CST15211AS, CST15211GS CEVAM: 3834 DAF: 1516812R DELCO: DRS6990, DRS6990N, DS8100 DIXIE: S-6199 EAI: 11805 ELECTROLOG: STR0085 ELSTOCK: 25-2167 ERA: 220054, 220085 GHIBAUDI: SG0019 HC PARTS: CS801 HELLA: 8EA011611-051, 8EA732656-001 HERTH+BUSS: 42016990 IKA: 6.0004.9 ISKRA / LETRIKA: 11.131.056, AZE2625, IS1042 KRAUF: STB0801, STV0801 KUHNER: 10598, 10801, 10801V LUCAS: LRT00133 MAGNETI MARELLI: 063720801010, 943251228010, 944280169900, MQS801, MRS16990, MSR766 MAGNETON: 443115141319 MAHLE: 72736012, MS384 POWERMAX: 88212186 PRESTOLITE: 20500964, 20510133, S1046B PSH: 300.522.103.000, 300.522.103.010, 300.522.103.210, 300.522.103.500, S132.191, S144.993 REAL: 20401101BN, 20401101OE, 20479112BN, 20479112OE RNL: RNL1699 ROLLCO: STM523 SANDO: 6010101.0, 6010101.1, 6015211.0, 6015211.1 SIDAT: S12BH0058, S12BH0058A2 SIOM: MAV123270, MAV172110, MAV3110, MAV3450 STARDAX: STX200001, STX200001R, STX200160, STX200160R, STX200412 VALEO: 191655, 438077, 458041, 726018, 726818, D7RS131, D7RS31 VW: 028911023M, 02A911303B, 02B911023B, 02B911023D, 02B911023DV, 02B911023DX, 02B911023FX, 02B911023J, 02B911023JX, 02B911023L, 02B911023LX, 02B911023N, 02B911023NX, 2B911023D, 2B911023DV, 2B911023DX, 2B911023J, 2B911023L, 2B911023LX, 2B911023N, 2B911023NX WAI / TRANSPO: 17750N WILSON: 91-15-7118 WOODAUTO: MAHMS384, STR50004, STR50619 |
| Datablad | Ladda ner PDF med skiss och mått |
Specifikationer
| Spänning [ V ] | 12 |
| Effekt [ kW ] | 1.80 |
| Startmotors rotation | ACW |
| A-storlek [ mm ] | 76.00 |
| B-storlek [ mm ] | 53.00 |
| Antal kuggar [ qty. ] | 11 |
| Antal kuggar (passar in) [ qty. ] | 10. 11 |
| Antal hål i huvudet [ qty. ] | 3 |
| Antal gängade hål [ qty. ] | 0 |
| L.1 [ mm ] | 235.00 |
| O.1 [ mm ] | 101.50 |
| O.2 [ mm ] | 101.50 |
| O.3 [ mm ] | 106.50 |
| C.1 [ mm ] | 9.00 |
| C.2 [ mm ] | 9.00 |
| C.3 [ mm ] | 9.00 |
Passar i 93 fordon
| Märke | Modell | Typ | Motor | Hk | Bränsle | År |
|---|---|---|---|---|---|---|
| SEAT | 1.9 D | IBIZA II (6K1) | 1Y | 64 | Diesel | 1993–1999 |
| SEAT | 1.9 TD | IBIZA II (6K1) | AAZ | 75 | Diesel | 1993–1996 |
| VW | 1.9 D | TRANSPORTER T4 Bus (70B, 70C, 7DB, 7DK, 70J, 70K, 7DC, 7DJ) | 1X | 60 | Diesel | 1990–1995 |
| VW | 1.9 D | TRANSPORTER T4 Platform/Chassis (70E, 70L, 70M, 7DE, 7DL, 7D | 1X | 60 | Diesel | 1990–1995 |
| VW | 1.9 D | TRANSPORTER T4 Platform/Chassis (70E, 70L, 70M, 7DE, 7DL, 7D | 1X | 61 | Diesel | 1990–1995 |
| VW | 1.9 D | TRANSPORTER T4 Van (70A, 70H, 7DA, 7DH) | 1X | 61 | Diesel | 1990–1995 |
| VW | 1.9 D | TRANSPORTER T4 Van (70A, 70H, 7DA, 7DH) | 1X | 60 | Diesel | 1990–1995 |
| VW | 1.9 TD | TRANSPORTER T4 Bus (70B, 70C, 7DB, 7DK, 70J, 70K, 7DC, 7DJ) | ABL | 68 | Diesel | 1992–2003 |
| VW | 1.9 TD | TRANSPORTER T4 Platform/Chassis (70E, 70L, 70M, 7DE, 7DL, 7D | ABL | 68 | Diesel | 1992–2003 |
| VW | 1.9 TD | TRANSPORTER T4 Van (70A, 70H, 7DA, 7DH) | ABL | 68 | Diesel | 1992–2003 |
| VW | 2.4 D | CALIFORNIA T4 Camper (7DJ, 7DK, 70J) | AJA | 75 | Diesel | 1998–2002 |
| VW | 2.4 D | TRANSPORTER T4 Bus (70B, 70C, 7DB, 7DK, 70J, 70K, 7DC, 7DJ) | AAB | 78 | Diesel | 1990–1998 |
| VW | 2.4 D | TRANSPORTER T4 Bus (70B, 70C, 7DB, 7DK, 70J, 70K, 7DC, 7DJ) | AJA | 75 | Diesel | 1997–2003 |
| VW | 2.4 D | TRANSPORTER T4 Platform/Chassis (70E, 70L, 70M, 7DE, 7DL, 7D | AJA | 75 | Diesel | 1997–2003 |
| VW | 2.4 D | TRANSPORTER T4 Platform/Chassis (70E, 70L, 70M, 7DE, 7DL, 7D | AAB | 78 | Diesel | 1990–1998 |
| VW | 2.4 D | TRANSPORTER T4 Van (70A, 70H, 7DA, 7DH) | AAB | 78 | Diesel | 1990–1998 |
| VW | 2.4 D | TRANSPORTER T4 Van (70A, 70H, 7DA, 7DH) | AJA | 75 | Diesel | 1997–2003 |
| VW | 2.4 D Syncro | TRANSPORTER T4 Bus (70B, 70C, 7DB, 7DK, 70J, 70K, 7DC, 7DJ) | AAB | 78 | Diesel | 1992–1998 |
| VW | 2.4 D Syncro | TRANSPORTER T4 Platform/Chassis (70E, 70L, 70M, 7DE, 7DL, 7D | AAB | 78 | Diesel | 1992–1998 |
| VW | 2.4 D Syncro | TRANSPORTER T4 Van (70A, 70H, 7DA, 7DH) | AAB | 78 | Diesel | 1992–1998 |
| VW | 2.5 | CALIFORNIA T4 Camper (7DJ, 7DK, 70J) | AEU | 110 | Petrol | 1998–2002 |
| VW | 2.5 | TRANSPORTER T4 Bus (70B, 70C, 7DB, 7DK, 70J, 70K, 7DC, 7DJ) | AET | 115 | Petrol | 1996–2003 |
| VW | 2.5 | TRANSPORTER T4 Bus (70B, 70C, 7DB, 7DK, 70J, 70K, 7DC, 7DJ) | AVT | 115 | Petrol | 1996–2003 |
| VW | 2.5 | TRANSPORTER T4 Bus (70B, 70C, 7DB, 7DK, 70J, 70K, 7DC, 7DJ) | ACU | 110 | Petrol | 1990–2003 |
| VW | 2.5 | TRANSPORTER T4 Bus (70B, 70C, 7DB, 7DK, 70J, 70K, 7DC, 7DJ) | AEU | 110 | Petrol | 1990–2003 |
| VW | 2.5 | TRANSPORTER T4 Bus (70B, 70C, 7DB, 7DK, 70J, 70K, 7DC, 7DJ) | APL | 115 | Petrol | 1996–2003 |
| VW | 2.5 | TRANSPORTER T4 Bus (70B, 70C, 7DB, 7DK, 70J, 70K, 7DC, 7DJ) | AAF | 110 | Petrol | 1990–2003 |
| VW | 2.5 | TRANSPORTER T4 Bus (70B, 70C, 7DB, 7DK, 70J, 70K, 7DC, 7DJ) | AEN | 110 | Petrol | 1990–2003 |
| VW | 2.5 | TRANSPORTER T4 Platform/Chassis (70E, 70L, 70M, 7DE, 7DL, 7D | AET | 115 | Petrol | 1996–2003 |
| VW | 2.5 | TRANSPORTER T4 Platform/Chassis (70E, 70L, 70M, 7DE, 7DL, 7D | AEN | 110 | Petrol | 1990–2003 |
| VW | 2.5 | TRANSPORTER T4 Platform/Chassis (70E, 70L, 70M, 7DE, 7DL, 7D | AVT | 115 | Petrol | 1996–2003 |
| VW | 2.5 | TRANSPORTER T4 Platform/Chassis (70E, 70L, 70M, 7DE, 7DL, 7D | ACU | 110 | Petrol | 1990–2003 |
| VW | 2.5 | TRANSPORTER T4 Platform/Chassis (70E, 70L, 70M, 7DE, 7DL, 7D | AEU | 110 | Petrol | 1990–2003 |
| VW | 2.5 | TRANSPORTER T4 Platform/Chassis (70E, 70L, 70M, 7DE, 7DL, 7D | APL | 115 | Petrol | 1996–2003 |
| VW | 2.5 | TRANSPORTER T4 Platform/Chassis (70E, 70L, 70M, 7DE, 7DL, 7D | AAF | 110 | Petrol | 1990–2003 |
| VW | 2.5 | TRANSPORTER T4 Van (70A, 70H, 7DA, 7DH) | AEN | 110 | Petrol | 1990–2003 |
| VW | 2.5 | TRANSPORTER T4 Van (70A, 70H, 7DA, 7DH) | APL | 115 | Petrol | 1996–2003 |
| VW | 2.5 | TRANSPORTER T4 Van (70A, 70H, 7DA, 7DH) | ACU | 110 | Petrol | 1990–2003 |
| VW | 2.5 | TRANSPORTER T4 Van (70A, 70H, 7DA, 7DH) | AEU | 110 | Petrol | 1990–2003 |
| VW | 2.5 | TRANSPORTER T4 Van (70A, 70H, 7DA, 7DH) | AET | 115 | Petrol | 1996–2003 |
| VW | 2.5 | TRANSPORTER T4 Van (70A, 70H, 7DA, 7DH) | AAF | 110 | Petrol | 1990–2003 |
| VW | 2.5 | TRANSPORTER T4 Van (70A, 70H, 7DA, 7DH) | AVT | 115 | Petrol | 1996–2003 |
| VW | 2.5 Syncro | TRANSPORTER T4 Bus (70B, 70C, 7DB, 7DK, 70J, 70K, 7DC, 7DJ) | AEU | 110 | Petrol | 1992–2003 |
| VW | 2.5 Syncro | TRANSPORTER T4 Bus (70B, 70C, 7DB, 7DK, 70J, 70K, 7DC, 7DJ) | AET | 115 | Petrol | 1996–2003 |
| VW | 2.5 Syncro | TRANSPORTER T4 Bus (70B, 70C, 7DB, 7DK, 70J, 70K, 7DC, 7DJ) | AVT | 115 | Petrol | 1996–2003 |
| VW | 2.5 Syncro | TRANSPORTER T4 Bus (70B, 70C, 7DB, 7DK, 70J, 70K, 7DC, 7DJ) | ACU | 110 | Petrol | 1992–2003 |
| VW | 2.5 Syncro | TRANSPORTER T4 Bus (70B, 70C, 7DB, 7DK, 70J, 70K, 7DC, 7DJ) | APL | 115 | Petrol | 1996–2003 |
| VW | 2.5 Syncro | TRANSPORTER T4 Bus (70B, 70C, 7DB, 7DK, 70J, 70K, 7DC, 7DJ) | AAF | 110 | Petrol | 1992–2003 |
| VW | 2.5 Syncro | TRANSPORTER T4 Platform/Chassis (70E, 70L, 70M, 7DE, 7DL, 7D | AET | 115 | Petrol | 1996–2003 |
| VW | 2.5 Syncro | TRANSPORTER T4 Platform/Chassis (70E, 70L, 70M, 7DE, 7DL, 7D | AVT | 115 | Petrol | 1996–2003 |
| VW | 2.5 Syncro | TRANSPORTER T4 Platform/Chassis (70E, 70L, 70M, 7DE, 7DL, 7D | AAF | 110 | Petrol | 1992–2001 |
| VW | 2.5 Syncro | TRANSPORTER T4 Platform/Chassis (70E, 70L, 70M, 7DE, 7DL, 7D | AEU | 110 | Petrol | 1992–2001 |
| VW | 2.5 Syncro | TRANSPORTER T4 Platform/Chassis (70E, 70L, 70M, 7DE, 7DL, 7D | APL | 115 | Petrol | 1996–2003 |
| VW | 2.5 Syncro | TRANSPORTER T4 Platform/Chassis (70E, 70L, 70M, 7DE, 7DL, 7D | ACU | 110 | Petrol | 1992–2001 |
| VW | 2.5 Syncro | TRANSPORTER T4 Van (70A, 70H, 7DA, 7DH) | APL | 115 | Petrol | 1996–2003 |
| VW | 2.5 Syncro | TRANSPORTER T4 Van (70A, 70H, 7DA, 7DH) | AAF | 110 | Petrol | 1992–2001 |
| VW | 2.5 Syncro | TRANSPORTER T4 Van (70A, 70H, 7DA, 7DH) | AEU | 110 | Petrol | 1992–2001 |
| VW | 2.5 Syncro | TRANSPORTER T4 Van (70A, 70H, 7DA, 7DH) | AET | 115 | Petrol | 1996–2003 |
| VW | 2.5 Syncro | TRANSPORTER T4 Van (70A, 70H, 7DA, 7DH) | AVT | 115 | Petrol | 1996–2003 |
| VW | 2.5 Syncro | TRANSPORTER T4 Van (70A, 70H, 7DA, 7DH) | ACU | 110 | Petrol | 1992–2001 |
| VW | 2.5 TDI | TRANSPORTER T4 Bus (70B, 70C, 7DB, 7DK, 70J, 70K, 7DC, 7DJ) | AYC | 102 | Diesel | 1995–2003 |
| VW | 2.5 TDI | TRANSPORTER T4 Bus (70B, 70C, 7DB, 7DK, 70J, 70K, 7DC, 7DJ) | AXG | 151 | Diesel | 1998–2003 |
| VW | 2.5 TDI | TRANSPORTER T4 Bus (70B, 70C, 7DB, 7DK, 70J, 70K, 7DC, 7DJ) | AJT | 88 | Diesel | 1998–2003 |
| VW | 2.5 TDI | TRANSPORTER T4 Bus (70B, 70C, 7DB, 7DK, 70J, 70K, 7DC, 7DJ) | AHY | 151 | Diesel | 1998–2003 |
| VW | 2.5 TDI | TRANSPORTER T4 Bus (70B, 70C, 7DB, 7DK, 70J, 70K, 7DC, 7DJ) | AUF | 102 | Diesel | 1995–2003 |
| VW | 2.5 TDI | TRANSPORTER T4 Bus (70B, 70C, 7DB, 7DK, 70J, 70K, 7DC, 7DJ) | AYY | 88 | Diesel | 1998–2003 |
| VW | 2.5 TDI | TRANSPORTER T4 Bus (70B, 70C, 7DB, 7DK, 70J, 70K, 7DC, 7DJ) | ACV | 102 | Diesel | 1995–2003 |
| VW | 2.5 TDI | TRANSPORTER T4 Platform/Chassis (70E, 70L, 70M, 7DE, 7DL, 7D | ACV | 102 | Diesel | 1995–2003 |
| VW | 2.5 TDI | TRANSPORTER T4 Platform/Chassis (70E, 70L, 70M, 7DE, 7DL, 7D | AYY | 88 | Diesel | 1998–2003 |
| VW | 2.5 TDI | TRANSPORTER T4 Platform/Chassis (70E, 70L, 70M, 7DE, 7DL, 7D | AYC | 102 | Diesel | 1995–2003 |
| VW | 2.5 TDI | TRANSPORTER T4 Platform/Chassis (70E, 70L, 70M, 7DE, 7DL, 7D | AJT | 88 | Diesel | 1998–2003 |
| VW | 2.5 TDI | TRANSPORTER T4 Platform/Chassis (70E, 70L, 70M, 7DE, 7DL, 7D | AUF | 102 | Diesel | 1995–2003 |
| VW | 2.5 TDI | TRANSPORTER T4 Van (70A, 70H, 7DA, 7DH) | AUF | 102 | Diesel | 1995–2003 |
| VW | 2.5 TDI | TRANSPORTER T4 Van (70A, 70H, 7DA, 7DH) | AHY | 151 | Diesel | 2000–2003 |
| VW | 2.5 TDI | TRANSPORTER T4 Van (70A, 70H, 7DA, 7DH) | AYY | 88 | Diesel | 1998–2003 |
| VW | 2.5 TDI | TRANSPORTER T4 Van (70A, 70H, 7DA, 7DH) | ACV | 102 | Diesel | 1995–2003 |
| VW | 2.5 TDI | TRANSPORTER T4 Van (70A, 70H, 7DA, 7DH) | AJT | 88 | Diesel | 1998–2003 |
| VW | 2.5 TDI | TRANSPORTER T4 Van (70A, 70H, 7DA, 7DH) | AYC | 102 | Diesel | 1995–2003 |
| VW | 2.5 TDI | TRANSPORTER T4 Van (70A, 70H, 7DA, 7DH) | AXG | 151 | Diesel | 2000–2003 |
| VW | 2.5 TDI Syncro | TRANSPORTER T4 Bus (70B, 70C, 7DB, 7DK, 70J, 70K, 7DC, 7DJ) | AXL | 102 | Diesel | 1996–2003 |
| VW | 2.5 TDI Syncro | TRANSPORTER T4 Bus (70B, 70C, 7DB, 7DK, 70J, 70K, 7DC, 7DJ) | ACV | 102 | Diesel | 1996–2003 |
| VW | 2.5 TDI Syncro | TRANSPORTER T4 Platform/Chassis (70E, 70L, 70M, 7DE, 7DL, 7D | ACV | 102 | Diesel | 1998–2003 |
| VW | 2.5 TDI Syncro | TRANSPORTER T4 Platform/Chassis (70E, 70L, 70M, 7DE, 7DL, 7D | AXL | 102 | Diesel | 1998–2003 |
| VW | 2.5 TDI Syncro | TRANSPORTER T4 Van (70A, 70H, 7DA, 7DH) | AXL | 102 | Diesel | 1995–2003 |
| VW | 2.5 TDI Syncro | TRANSPORTER T4 Van (70A, 70H, 7DA, 7DH) | ACV | 102 | Diesel | 1995–2003 |
| VW | 2.8 | TRANSPORTER T4 Platform/Chassis (70E, 70L, 70M, 7DE, 7DL, 7D | AES | 140 | Petrol | 1996–2000 |
| VW | 2.8 VR 6 | TRANSPORTER T4 Bus (70B, 70C, 7DB, 7DK, 70J, 70K, 7DC, 7DJ) | AES | 140 | Petrol | 1995–2000 |
| VW | 2.8 VR6 | TRANSPORTER T4 Bus (70B, 70C, 7DB, 7DK, 70J, 70K, 7DC, 7DJ) | AMV | 204 | Petrol | 2000–2003 |
| VW | 2.8 VR6 | TRANSPORTER T4 Bus (70B, 70C, 7DB, 7DK, 70J, 70K, 7DC, 7DJ) | AXK | 204 | Petrol | 2000–2003 |
| VW | 2.8 VR6 | TRANSPORTER T4 Platform/Chassis (70E, 70L, 70M, 7DE, 7DL, 7D | AMV | 204 | Petrol | 2000–2003 |
| VW | 2.8 VR6 | TRANSPORTER T4 Van (70A, 70H, 7DA, 7DH) | AMV | 204 | Petrol | 2000–2003 |
| VW | 2.8 VR6 | TRANSPORTER T4 Van (70A, 70H, 7DA, 7DH) | AES | 140 | Petrol | 1996–2000 |
| VW | 2.8 VR6 | TRANSPORTER T4 Van (70A, 70H, 7DA, 7DH) | AXK | 204 | Petrol | 2000–2003 |
