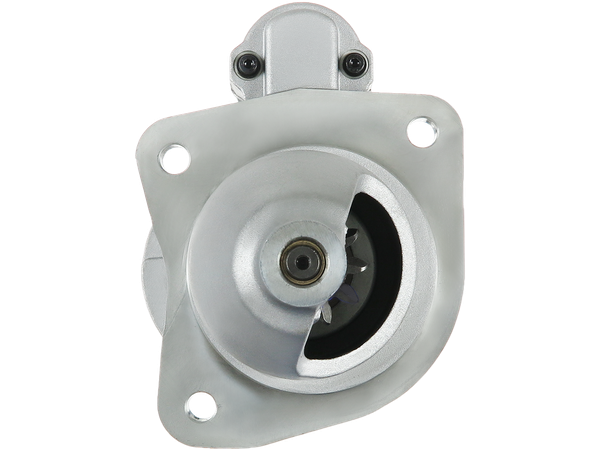

S3042
Startmotorer
STANDARD LINE
1563 kr
Köp nu
| EAN | 5901259422078 |
| Tillverkare | AS-PL |
| Ersätter | VALEO |
| OE-nummer | D9R116 |
| Datablad | Ladda ner PDF med skiss och mått |
Specifikationer
| Spänning [ V ] | 12 |
| Effekt [ kW ] | 3.10 |
| Startmotors rotation | CW |
| A-storlek [ mm ] | 89.00 |
| B-storlek [ mm ] | 48.00 |
| Antal kuggar [ qty. ] | 11 |
| Antal kuggar (passar in) [ qty. ] | 11 |
| Antal hål i huvudet [ qty. ] | 3 |
| Antal gängade hål [ qty. ] | 0 |
| L.1 [ mm ] | 305.00 |
| O.1 [ mm ] | 127.00 |
| O.2 [ mm ] | 90.00 |
| O.3 [ mm ] | 90.00 |
| C.1 [ mm ] | 10.50 |
| C.2 [ mm ] | 10.50 |
| C.3 [ mm ] | 10.50 |
| Insulated return | Yes |
Passar i 17 fordon
| Märke | Modell | Typ | Motor | Hk | Bränsle | År |
|---|---|---|---|---|---|---|
| RENAULT | 2.2 D (B56F/2) | LAGUNA I (B56_, 556_) | G8T794 | 83 | Diesel | 1993–2001 |
| RENAULT | 2.2 D (B56F/2) | LAGUNA I (B56_, 556_) | G8T706 | 83 | Diesel | 1993–2001 |
| RENAULT | 2.2 D (B56F/2) | LAGUNA I (B56_, 556_) | G8T790 | 83 | Diesel | 1993–2001 |
| RENAULT | 2.2 D (B56F/2) | LAGUNA I (B56_, 556_) | G8T752 | 83 | Diesel | 1993–2001 |
| VOLVO | F 408 | F4 | TD40A | 109-110 | 1978–1986 | |
| VOLVO PENTA | Engine | TAMD41 | 0 | 1986– | ||
| VOLVO PENTA | Engine | KAD32P | 0 | 1997– | ||
| VOLVO PENTA | Engine | TMD30 | 0 | 1983–1986 | ||
| VOLVO PENTA | Engine | MD30 | 0 | 1983–1986 | ||
| VOLVO PENTA | Engine | AQD41 | 0 | – | ||
| VOLVO PENTA | Engine | TAMD31 | 0 | 1983– | ||
| VOLVO PENTA | Engine | D40 | 0 | – | ||
| VOLVO PENTA | Engine | TD40 | 0 | 1978–1983 | ||
| VOLVO PENTA | Engine | KAD44PEDC | 0 | 1997– | ||
| VOLVO PENTA | Engine | TAMD30 | 0 | 1983–1986 | ||
| VOLVO PENTA | Engine | AQDA41 | 0 | 1990– | ||
| VOLVO PENTA | 2.0 | Engine | MD22L | 0 | – |
