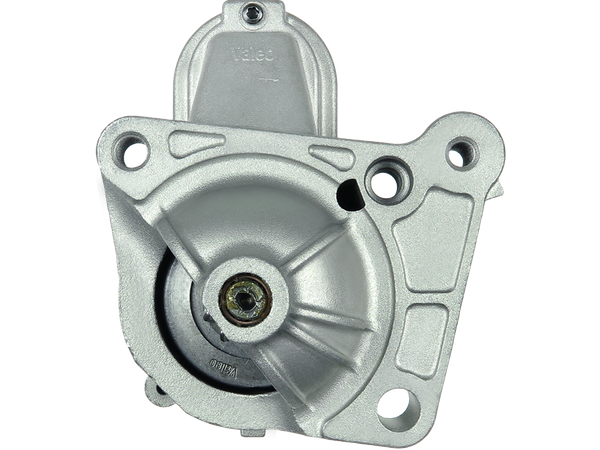

S3059PR
Startmotorer
PREMIUM LINE
787 kr
Köp nu
| EAN | 5902129093398 |
| Tillverkare | AS-PL |
| Ersätter | VALEO |
| OE-nummer |
3EFFE: STRS726 AUTOELECTRO: AEU1281 BOSCH: 0986024350 CARGO: 112474, F032112474 CASCO: CST15177, CST15177AS, CST15177ES, CST15177GS, CST15177OS, CST15177RS CEVAM: 3007 DELCO: DRS3908, DS5018 ELECTROLOG: STR00019 ELSTOCK: 25-3252 ELTA AUTOMOTIVE: EZ0427 ERA: 220478 HC PARTS: CS1193, CS1281 HELLA: 8EA012528-261, 8EA738107-001 HERTH+BUSS: 42438096 KRAUF: STV1281 KUHNER: 101281, 101281V LUCAS: LRS01702, LRS1702 MAGNETI MARELLI: 944280801840, MRS80184 MITSUBISHI: 1810A048, M001T85681, M001T85682, M001T85981, M1T85681, M1T85682, M1T85981, MW30620657, S618190 NISSAN: 23300-00Q0E, 23300-00QAC, 23300-AW300, 23300-AW302 OPEL: 4411195, 4414332, 4414402, 91167270, 91167474, 93160655, 93174002, 93858918, 9512644, R1040042 POWERMAX: 88212436 PSH: 810.517.113, S135.334, S148.925 REAL: 20479771 RENAULT: 7700113622, 7700115479, 7700116260, 7700116260D, 7711134792, 7711134793, 7711134802, 7711134934, 8200040415, 8200054336, 8200064465, 8200064465B, 820006446B, 8200075362, 8200096510, 8200331251, 8200583014, 8200628419, 8200628426 SANDO: 6015177 SIOM: MAV171770 STARDAX: STX200018, STX200018R, STX200019, STX200019R, STX201025 SUZUKI: 31100-67J00, 31100-67J00-000 VALEO: 438096, 455972, D7R48 VOLVO: 3061819, 3062065, 30620657, 8251643, 8253786, 8602244, 8602274 WAI / TRANSPO: 32703N WOODAUTO: STR54098 |
| Datablad | Ladda ner PDF med skiss och mått |
Specifikationer
| Spänning [ V ] | 12 |
| Effekt [ kW ] | 2.10 |
| Startmotors rotation | CW |
| B-storlek [ mm ] | -1.00 |
| Antal kuggar [ qty. ] | 11 |
| Antal hål i huvudet [ qty. ] | 4 |
| Antal gängade hål [ qty. ] | 3 |
| L.1 [ mm ] | 238.00 |
| O.1 [ mm ] | 74.00 |
| O.2 [ mm ] | 104.00 |
| O.3 [ mm ] | 74.00 |
| O.4 [ mm ] | 20.00 |
| C.1 [ mm ] | M8x1.25 |
| C.2 [ mm ] | 12.00 |
| C.3 [ mm ] | M10x1.5 |
| C.4 [ mm ] | M10x1.5 |
Passar i 125 fordon
| Märke | Modell | Typ | Motor | Hk | Bränsle | År |
|---|---|---|---|---|---|---|
| MITSUBISHI | 1.9 DI-D (DA5A) | CARISMA (DA_) | F9Q2 | 115 | Diesel | 2000–2006 |
| MITSUBISHI | 1.9 DI-D (DA5A) | CARISMA (DA_) | F9Q1 | 102 | Diesel | 2000–2006 |
| MITSUBISHI | 1.9 DI-D (DA5A) | CARISMA Saloon (DA_) | F9Q1 | 102 | Diesel | 2000–2006 |
| MITSUBISHI | 1.9 DI-D (DA5A) | CARISMA Saloon (DA_) | F9Q2 | 115 | Diesel | 2000–2006 |
| MITSUBISHI | 1.9 DI-D (DG4A) | SPACE STAR MPV (DG_A) | F9Q1 | 102 | Diesel | 2001–2004 |
| MITSUBISHI | 1.9 DI-D (DG4A) | SPACE STAR MPV (DG_A) | F9Q2 | 115 | Diesel | 2002–2004 |
| NISSAN | 1.9 dCi 100 | PRIMASTAR Van (X83) | F9Q760 | 100 | Diesel | 2002– |
| NISSAN | 1.9 dCi 80 | PRIMASTAR Platform/Chassis (X83) | F9Q762 | 82 | Diesel | 2002–2006 |
| NISSAN | 1.9 dCi 80 | PRIMASTAR Van (X83) | F9Q762 | 82 | Diesel | 2002– |
| NISSAN | dCi 100 | PRIMASTAR Bus (X83) | F9Q760 | 101 | Diesel | 2001– |
| NISSAN | dCi 80 | INTERSTAR Bus (X70) | F9Q772 | 82 | Diesel | 2002–2006 |
| NISSAN | dCi 80 | INTERSTAR Bus (X70) | F9Q774 | 82 | Diesel | 2002–2006 |
| NISSAN | dCi 80 | INTERSTAR Van (X70) | F9Q774 | 82 | Diesel | 2002–2006 |
| NISSAN | dCi 80 | INTERSTAR Van (X70) | F9Q772 | 82 | Diesel | 2002–2006 |
| NISSAN | dCi 80 | PRIMASTAR Bus (X83) | F9Q762 | 80 | Diesel | 2001– |
| OPEL | 1.9 DI (F7) | VIVARO A Van (X83) | F9Q762 | 80 | Diesel | 2001–2006 |
| OPEL | 1.9 DI (F7, J7, A07) | VIVARO A Bus (X83) | F9Q762 | 80 | Diesel | 2001–2006 |
| OPEL | 1.9 DTI (F7) | VIVARO A Van (X83) | F9Q760 | 101 | Diesel | 2001–2014 |
| OPEL | 1.9 DTI (F7, J7, A07) | VIVARO A Bus (X83) | F9Q760 | 101 | Diesel | 2001–2014 |
| OPEL | 1.9 DTI (FD) | MOVANO A Van (X70) | F9Q774 | 82 | Diesel | 2001– |
| OPEL | 1.9 DTI (FD) | MOVANO A Van (X70) | F9Q772 | 82 | Diesel | 2001– |
| OPEL | 1.9 DTI (JD) | MOVANO A Bus (X70) | F9Q774 | 82 | Diesel | 2001– |
| OPEL | 1.9 DTI (JD) | MOVANO A Bus (X70) | F9Q772 | 82 | Diesel | 2001– |
| RENAULT | 1.9 D | SCÉNIC II (JM0/1_) | F9Q816 | 116 | Diesel | 2006–2008 |
| RENAULT | 1.9 D | SCÉNIC II (JM0/1_) | F9Q803 | 116 | Diesel | 2006–2008 |
| RENAULT | 1.9 D | SCÉNIC II (JM0/1_) | F9Q812 | 116 | Diesel | 2006–2008 |
| RENAULT | 1.9 D | SCÉNIC II (JM0/1_) | F9Q818 | 116 | Diesel | 2006–2008 |
| RENAULT | 1.9 D | SCÉNIC II (JM0/1_) | F9Q804 | 116 | Diesel | 2006–2008 |
| RENAULT | 1.9 dCI (BG0E) | LAGUNA II (BG0/1_) | F9Q752 | 105 | Diesel | 2001–2005 |
| RENAULT | 1.9 dCI 100 (JL0C, JL0K) | TRAFIC II Bus (JL) | F9Q760 | 101 | Diesel | 2001–2006 |
| RENAULT | 1.9 dCI 80 (JL0B) | TRAFIC II Bus (JL) | F9Q762 | 82 | Diesel | 2001–2006 |
| RENAULT | 1.9 dCi | GRAND SCÉNIC II (JM0/1_) | F9Q816 | 116 | Diesel | 2005–2009 |
| RENAULT | 1.9 dCi | GRAND SCÉNIC II (JM0/1_) | F9Q803 | 116 | Diesel | 2005–2009 |
| RENAULT | 1.9 dCi | GRAND SCÉNIC II (JM0/1_) | F9Q812 | 116 | Diesel | 2005–2009 |
| RENAULT | 1.9 dCi | GRAND SCÉNIC II (JM0/1_) | F9Q818 | 116 | Diesel | 2005–2009 |
| RENAULT | 1.9 dCi | GRAND SCÉNIC II (JM0/1_) | F9Q804 | 116 | Diesel | 2005–2009 |
| RENAULT | 1.9 dCi | LAGUNA II Grandtour (KG0/1_) | F9Q664 | 90 | Diesel | 2003–2007 |
| RENAULT | 1.9 dCi | MEGANE II (BM0/1_, CM0/1_) | F9Q808 | 92 | Diesel | 2004–2006 |
| RENAULT | 1.9 dCi | MEGANE II (BM0/1_, CM0/1_) | F9Q816 | 131 | Diesel | 2005–2009 |
| RENAULT | 1.9 dCi | MEGANE II (BM0/1_, CM0/1_) | F9Q804 | 110 | Diesel | 2005–2008 |
| RENAULT | 1.9 dCi | MEGANE II (BM0/1_, CM0/1_) | F9Q804 | 131 | Diesel | 2005–2009 |
| RENAULT | 1.9 dCi | MEGANE II (BM0/1_, CM0/1_) | F9Q818 | 131 | Diesel | 2005–2009 |
| RENAULT | 1.9 dCi | MEGANE II (BM0/1_, CM0/1_) | F9Q818 | 110 | Diesel | 2005–2008 |
| RENAULT | 1.9 dCi | MEGANE II (BM0/1_, CM0/1_) | F9Q803 | 131 | Diesel | 2005–2009 |
| RENAULT | 1.9 dCi | MEGANE II Coupé-Cabriolet (EM0/1_) | F9Q804 | 131 | Diesel | 2005–2007 |
| RENAULT | 1.9 dCi | MEGANE II Coupé-Cabriolet (EM0/1_) | F9Q800 | 115 | Diesel | 2003–2009 |
| RENAULT | 1.9 dCi | MEGANE II Coupé-Cabriolet (EM0/1_) | F9Q804 | 110 | Diesel | 2005–2009 |
| RENAULT | 1.9 dCi | MEGANE II Coupé-Cabriolet (EM0/1_) | F9Q804 | 115 | Diesel | 2003–2009 |
| RENAULT | 1.9 dCi | MEGANE II Coupé-Cabriolet (EM0/1_) | F9Q803 | 131 | Diesel | 2005–2007 |
| RENAULT | 1.9 dCi | MEGANE II Coupé-Cabriolet (EM0/1_) | F9Q818 | 110 | Diesel | 2005–2009 |
| RENAULT | 1.9 dCi | MEGANE II Coupé-Cabriolet (EM0/1_) | F9Q800 | 120 | Diesel | 2003–2009 |
| RENAULT | 1.9 dCi | MEGANE II Coupé-Cabriolet (EM0/1_) | F9Q818 | 115 | Diesel | 2003–2009 |
| RENAULT | 1.9 dCi | MEGANE II Coupé-Cabriolet (EM0/1_) | F9Q803 | 115 | Diesel | 2003–2009 |
| RENAULT | 1.9 dCi | MEGANE II Coupé-Cabriolet (EM0/1_) | F9Q816 | 110 | Diesel | 2005–2009 |
| RENAULT | 1.9 dCi | MEGANE II Coupé-Cabriolet (EM0/1_) | F9Q816 | 115 | Diesel | 2003–2009 |
| RENAULT | 1.9 dCi | MEGANE II Estate (KM0/1_) | F9Q804 | 110 | Diesel | 2005–2009 |
| RENAULT | 1.9 dCi | MEGANE II Estate (KM0/1_) | F9Q808 | 92 | Diesel | 2004–2007 |
| RENAULT | 1.9 dCi | MEGANE II Estate (KM0/1_) | F9Q818 | 115 | Diesel | 2005–2009 |
| RENAULT | 1.9 dCi | MEGANE II Estate (KM0/1_) | F9Q804 | 131 | Diesel | 2005–2009 |
| RENAULT | 1.9 dCi | MEGANE II Estate (KM0/1_) | F9Q818 | 110 | Diesel | 2005–2009 |
| RENAULT | 1.9 dCi | MEGANE II Estate (KM0/1_) | F9Q803 | 131 | Diesel | 2005–2009 |
| RENAULT | 1.9 dCi | MEGANE II Saloon (LM0/1_) | F9Q804 | 131 | Diesel | 2005– |
| RENAULT | 1.9 dCi | MEGANE II Saloon (LM0/1_) | F9Q803 | 131 | Diesel | 2005– |
| RENAULT | 1.9 dCi | MEGANE II Saloon (LM0/1_) | F9Q808 | 92 | Diesel | 2004– |
| RENAULT | 1.9 dCi (B56W) | LAGUNA I (B56_, 556_) | F9Q718 | 107 | Diesel | 1999–2001 |
| RENAULT | 1.9 dCi (BG05) | LAGUNA II (BG0/1_) | F9Q664 | 92 | Diesel | 2004–2005 |
| RENAULT | 1.9 dCi (BG08, BG0G) | LAGUNA II (BG0/1_) | F9Q650 | 120 | Diesel | 2001–2007 |
| RENAULT | 1.9 dCi (BG08, BG0G) | LAGUNA II (BG0/1_) | F9Q674 | 120 | Diesel | 2001–2007 |
| RENAULT | 1.9 dCi (BG08, BG0G) | LAGUNA II (BG0/1_) | F9Q670 | 120 | Diesel | 2001–2007 |
| RENAULT | 1.9 dCi (BG08, BG0G) | LAGUNA II (BG0/1_) | F9Q750 | 120 | Diesel | 2001–2007 |
| RENAULT | 1.9 dCi (BG0R, BG0E) | LAGUNA II (BG0/1_) | F9Q754 | 100 | Diesel | 2001–2005 |
| RENAULT | 1.9 dCi (BG1A, BG1W, BG0G) | LAGUNA II (BG0/1_) | F9Q758 | 110 | Diesel | 2005–2007 |
| RENAULT | 1.9 dCi (BG1A, BG1W, BG0G) | LAGUNA II (BG0/1_) | F9Q674 | 110 | Diesel | 2005–2007 |
| RENAULT | 1.9 dCi (BG1A, BG1W, BG0G) | LAGUNA II (BG0/1_) | F9Q670 | 110 | Diesel | 2005–2007 |
| RENAULT | 1.9 dCi (BM0G, CM0G) | MEGANE II (BM0/1_, CM0/1_) | F9Q800 | 120 | Diesel | 2002–2008 |
| RENAULT | 1.9 dCi (JK0U, JK0G) | ESPACE IV (JK0/1_) | F9Q680 | 120 | Diesel | 2002– |
| RENAULT | 1.9 dCi (JK0U, JK0G) | ESPACE IV (JK0/1_) | F9Q826 | 120 | Diesel | 2002– |
| RENAULT | 1.9 dCi (JK0U, JK0G) | ESPACE IV (JK0/1_) | F9Q820 | 120 | Diesel | 2002– |
| RENAULT | 1.9 dCi (JM0G, JM12, JM1G, JM2C) | GRAND SCÉNIC II (JM0/1_) | F9Q812 | 120 | Diesel | 2004–2006 |
| RENAULT | 1.9 dCi (JM0G, JM12, JM1G, JM2C) | SCÉNIC II (JM0/1_) | F9Q812 | 120 | Diesel | 2003–2006 |
| RENAULT | 1.9 dCi (JM14) | GRAND SCÉNIC II (JM0/1_) | F9Q816 | 131 | Diesel | 2004–2008 |
| RENAULT | 1.9 dCi (JM14) | GRAND SCÉNIC II (JM0/1_) | F9Q804 | 131 | Diesel | 2004–2008 |
| RENAULT | 1.9 dCi (JM14) | GRAND SCÉNIC II (JM0/1_) | F9Q818 | 131 | Diesel | 2004–2008 |
| RENAULT | 1.9 dCi (JM14) | GRAND SCÉNIC II (JM0/1_) | F9Q803 | 131 | Diesel | 2004–2008 |
| RENAULT | 1.9 dCi (JM14) | SCÉNIC II (JM0/1_) | F9Q816 | 131 | Diesel | 2005–2008 |
| RENAULT | 1.9 dCi (JM14) | SCÉNIC II (JM0/1_) | F9Q804 | 131 | Diesel | 2005–2008 |
| RENAULT | 1.9 dCi (JM14) | SCÉNIC II (JM0/1_) | F9Q818 | 131 | Diesel | 2005–2008 |
| RENAULT | 1.9 dCi (JM14) | SCÉNIC II (JM0/1_) | F9Q803 | 131 | Diesel | 2005–2008 |
| RENAULT | 1.9 dCi (JM15) | GRAND SCÉNIC II (JM0/1_) | F9QE804 | 110 | Diesel | 2005–2008 |
| RENAULT | 1.9 dCi (K56W) | LAGUNA I Grandtour (K56_) | F9Q718 | 107 | Diesel | 1999–2001 |
| RENAULT | 1.9 dCi (KG05) | LAGUNA II Grandtour (KG0/1_) | F9Q664 | 92 | Diesel | 2004–2005 |
| RENAULT | 1.9 dCi (KG0E, KG0R) | LAGUNA II Grandtour (KG0/1_) | F9Q752 | 100 | Diesel | 2001–2005 |
| RENAULT | 1.9 dCi (KG0G) | LAGUNA II Grandtour (KG0/1_) | F9Q674 | 120 | Diesel | 2001–2007 |
| RENAULT | 1.9 dCi (KG0G) | LAGUNA II Grandtour (KG0/1_) | F9Q670 | 120 | Diesel | 2001–2007 |
| RENAULT | 1.9 dCi (KG0G) | LAGUNA II Grandtour (KG0/1_) | F9Q750 | 120 | Diesel | 2001–2007 |
| RENAULT | 1.9 dCi (KG12) | LAGUNA II Grandtour (KG0/1_) | F9Q758 | 116 | Diesel | 2005–2007 |
| RENAULT | 1.9 dCi (KG12) | LAGUNA II Grandtour (KG0/1_) | F9Q759 | 116 | Diesel | 2005–2007 |
| RENAULT | 1.9 dCi (KG1A, KG1W, KG0G) | LAGUNA II Grandtour (KG0/1_) | F9Q758 | 110 | Diesel | 2005–2007 |
| RENAULT | 1.9 dCi (KG1A, KG1W, KG0G) | LAGUNA II Grandtour (KG0/1_) | F9Q674 | 110 | Diesel | 2005–2007 |
| RENAULT | 1.9 dCi (KM14) | MEGANE II Estate Van (KM_) | F9QE804 | 131 | Diesel | 2006–2006 |
| RENAULT | 1.9 dCi (KMRG, KM1G, KM0G, KM2C) | MEGANE II Estate (KM0/1_) | F9Q800 | 120 | Diesel | 2003–2009 |
| RENAULT | 1.9 dCi (LM0G, LM1G, LM2C) | MEGANE II Saloon (LM0/1_) | F9Q800 | 120 | Diesel | 2003– |
| RENAULT | 1.9 dCi (LM14, LM1D) | MEGANE II Saloon (LM0/1_) | F9Q804 | 110 | Diesel | 2005– |
| RENAULT | 1.9 dCi (LM14, LM1D) | MEGANE II Saloon (LM0/1_) | F9Q818 | 110 | Diesel | 2005– |
| RENAULT | 1.9 dCi (LM14, LM1D) | MEGANE II Saloon (LM0/1_) | F9Q803 | 110 | Diesel | 2005– |
| RENAULT | 1.9 dCi (LM14, LM1D) | MEGANE II Saloon (LM0/1_) | F9Q816 | 110 | Diesel | 2005– |
| RENAULT | 1.9 dCi 100 (EL0C) | TRAFIC II Platform/Chassis (EL) | F9Q760 | 101 | Diesel | 2001–2006 |
| RENAULT | 1.9 dCi 100 (FL0C, FL0K, FL0B) | TRAFIC II Van (FL) | F9Q760 | 101 | Diesel | 2001–2006 |
| RENAULT | 1.9 dCi 80 (EL0B) | TRAFIC II Platform/Chassis (EL) | F9Q762 | 82 | Diesel | 2001–2006 |
| RENAULT | 1.9 dCi 80 (FD0P) | MASTER II Van (FD) | F9Q772 | 82 | Diesel | 2001–2006 |
| RENAULT | 1.9 dCi 80 (FD0P) | MASTER II Van (FD) | F9Q774 | 82 | Diesel | 2001–2006 |
| RENAULT | 1.9 dCi 80 (FL0B) | TRAFIC II Van (FL) | F9Q762 | 82 | Diesel | 2001–2006 |
| RENAULT | 1.9 dCi 80 (FL0B) | TRAFIC II Van (FL) | F9Q760 | 82 | Diesel | 2001–2006 |
| RENAULT | 1.9 dCi 80 (JD0P, JD1P) | MASTER II Bus (JD) | F9Q774 | 82 | Diesel | 2001–2006 |
| RENAULT | 1.9 dCi 80 (JD0P, JD1P) | MASTER II Bus (JD) | F9Q772 | 82 | Diesel | 2001–2006 |
| SUZUKI | 1.9 DDiS (JB419WD, JB419XD) | GRAND VITARA II (JT, TE, TD) | F9QB | 129 | Diesel | 2006–2008 |
| SUZUKI | 1.9 DDiS All-wheel Drive (JT419, TD44, JB419WD, JB419XD,... | GRAND VITARA II (JT, TE, TD) | F9QB | 129 | Diesel | 2005–2015 |
| SUZUKI | 1.9 DDiS All-wheel Drive (JT419, TD44, JB419WD, JB419XD,... | GRAND VITARA II (JT, TE, TD) | F9QC | 129 | Diesel | 2005–2015 |
| VOLVO | 1.9 DI | S40 I (644) | D4192T4 | 102 | Diesel | 2000–2003 |
| VOLVO | 1.9 DI | S40 I (644) | D4192T3 | 115 | Diesel | 2000–2003 |
| VOLVO | 1.9 DI | S40 I (644) | D4192T2 | 95 | Diesel | 1999–2000 |
| VOLVO | 1.9 DI | V40 Estate (645) | D4192T4 | 102 | Diesel | 2000–2004 |
| VOLVO | 1.9 DI | V40 Estate (645) | D4192T2 | 95 | Diesel | 1999–2000 |
| VOLVO | 1.9 DI | V40 Estate (645) | D4192T3 | 115 | Diesel | 2000–2004 |
| VOLVO | 1.9 TD | S40 I (644) | D4192T | 90 | Diesel | 1995–1999 |
