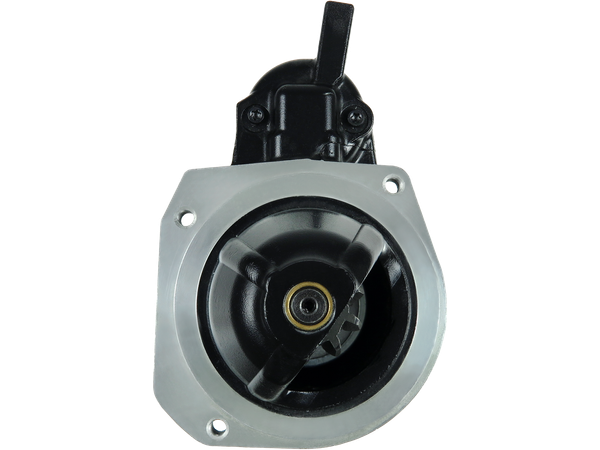

S3161S
Startmotorer
STANDARD LINE
788 kr
Köp nu
| EAN | 5902129067887 |
| Tillverkare | AS-PL |
| Ersätter | VALEO |
| OE-nummer |
AS-PL: S3161S CASCO: CST15259AS ELECTROLOG: STR0058 PEUGEOT: 5402233, 5455469, 5455471, 5802P2, 6201, 6201A, 6215, 6215A, 6215B, 6215C, 6215D, 6215F, 95493002, 95591700, 95591700R, 95653969, 96036658 REAL: 20479952OE SANDO: 6015259.0 VALEO: D9E104A |
| Datablad | Ladda ner PDF med skiss och mått |
Specifikationer
| Spänning [ V ] | 12 |
| Effekt [ kW ] | 1.00 |
| Startmotors rotation | ACW |
| A-storlek [ mm ] | 99.00 |
| B-storlek [ mm ] | 44.00 |
| Antal kuggar [ qty. ] | 10 |
| Antal kuggar (passar in) [ qty. ] | 10 |
| Antal hål i huvudet [ qty. ] | 3 |
| Antal gängade hål [ qty. ] | 3 |
| L.1 [ mm ] | 234.00 |
| O.1 [ mm ] | 114.00 |
| O.2 [ mm ] | 80.00 |
| O.3 [ mm ] | 80.00 |
| C.1 [ mm ] | M7x1.0 |
| C.2 [ mm ] | M7x1.0 |
| C.3 [ mm ] | M7x1.0 |
Passar i 3 fordon
| Märke | Modell | Typ | Motor | Hk | Bränsle | År |
|---|---|---|---|---|---|---|
| CITROËN | 20 | ID | B20704 | 90 | Petrol | 1969–1975 |
| HONDA | 1.2 (VF) | CITY I Van (VF) | ER4 | 76 | Petrol | 1984–1986 |
| HONDA | 55 1.2 | JAZZ I (AA) | ER4 | 54 | Petrol | 1984–1986 |
