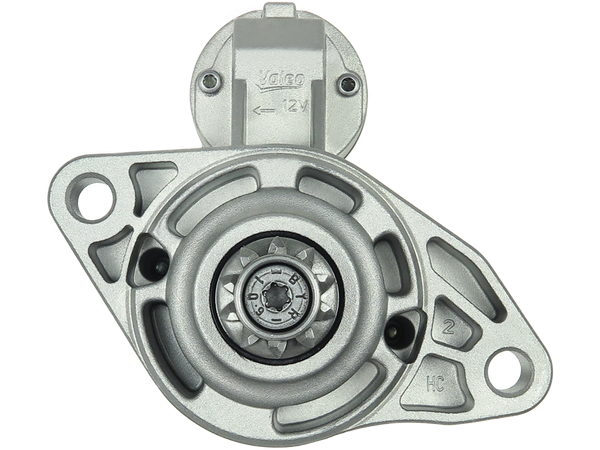

S3171PR
Startmotorer
PREMIUM LINE
640 kr
Köp nu
| EAN | 5902129088042 |
| Tillverkare | AS-PL |
| Ersätter | VALEO |
| OE-nummer |
3EFFE: STRS544 CASCO: CST15302GS DELCO: DRS1159, DS2269 DIXIE: S-6571 ELECTROLOG: STR00143 ELSTOCK: 25-5145 ERA: 220585 KUHNER: 254547V LUCAS: LRS03983, LRS3983 POWERMAX: 88214468 PSH: 300.592.102, 300.592.102.008, 300.592.102.608, S132.209, S145.027, S148.834 REAL: 20479203OE SANDO: 6015302.1 SIOM: MAV173020 VALEO: 438238, 458404, TS12ER25 VW: 02E911023K, 02E911023KX, 2E911023K, 2E911023KX WAI / TRANSPO: UNIT BOM 108-531 WILSON: 91-20-3573 WOODAUTO: VAL438238 |
| Datablad | Ladda ner PDF med skiss och mått |
Specifikationer
| Spänning [ V ] | 12 |
| Effekt [ kW ] | 1.10 |
| Startmotors rotation | ACW |
| A-storlek [ mm ] | 76.00 |
| B-storlek [ mm ] | 43.00 |
| Antal kuggar [ qty. ] | 10 |
| Antal hål i huvudet [ qty. ] | 2 |
| Antal gängade hål [ qty. ] | 0 |
| L.1 [ mm ] | 211.00 |
| O.1 [ mm ] | 119.00 |
| C.1 [ mm ] | 10.50 |
| C.2 [ mm ] | 10.50 |
Passar i 38 fordon
| Märke | Modell | Typ | Motor | Hk | Bränsle | År |
|---|---|---|---|---|---|---|
| AUDI | 2.0 TFSI | A3 Convertible (8P7) | CCZA | 200 | Petrol | 2008–2013 |
| AUDI | 2.0 TFSI | A3 Convertible (8P7) | CAWB | 200 | Petrol | 2008–2013 |
| AUDI | S3 quattro | A3 (8P1) | BHZ | 265 | Petrol | 2006–2012 |
| AUDI | S3 quattro | A3 (8P1) | CDLC | 256 | Petrol | 2007–2012 |
| AUDI | S3 quattro | A3 (8P1) | BZC | 256 | Petrol | 2007–2012 |
| AUDI | S3 quattro | A3 (8P1) | CDLA | 265 | Petrol | 2006–2012 |
| AUDI | S3 quattro | A3 Sportback (8PA) | CDLC | 256 | Petrol | 2008–2013 |
| AUDI | S3 quattro | A3 Sportback (8PA) | CDLA | 265 | Petrol | 2008–2013 |
| AUDI | S3 quattro | A3 Sportback (8PA) | BHZ | 265 | Petrol | 2008–2013 |
| VW | 2.0 GTi | GOLF VI (5K1) | CCZB | 210 | Petrol | 2009–2012 |
| VW | 2.0 GTi | GOLF VI (5K1) | CBFA | 200 | Petrol | 2009–2013 |
| VW | 2.0 GTi | GOLF VI (5K1) | CCTA | 200 | Petrol | 2009–2013 |
| VW | 2.0 TDI | PASSAT CC B6 (357) | CBBA | 163 | Diesel | 2008–2009 |
| VW | 2.0 TFSI | EOS (1F7, 1F8) | CCTA | 200 | Petrol | 2006–2015 |
| VW | 2.0 TFSI | EOS (1F7, 1F8) | BWA | 200 | Petrol | 2006–2015 |
| VW | 2.0 TFSI | EOS (1F7, 1F8) | CBFA | 200 | Petrol | 2006–2015 |
| VW | 2.0 TFSI | EOS (1F7, 1F8) | CCZA | 200 | Petrol | 2006–2015 |
| VW | 2.0 TFSI | EOS (1F7, 1F8) | BPY | 200 | Petrol | 2006–2015 |
| VW | 2.0 TFSI | EOS (1F7, 1F8) | CAWB | 200 | Petrol | 2006–2015 |
| VW | 2.0 TFSI | PASSAT B6 (3C2) | CAWB | 200 | Petrol | 2005–2010 |
| VW | 2.0 TFSI | PASSAT B6 (3C2) | CCTA | 200 | Petrol | 2005–2010 |
| VW | 2.0 TFSI | PASSAT B6 (3C2) | AXX | 200 | Petrol | 2005–2010 |
| VW | 2.0 TFSI | PASSAT B6 (3C2) | BWA | 200 | Petrol | 2005–2010 |
| VW | 2.0 TFSI | PASSAT B6 (3C2) | CBFA | 200 | Petrol | 2005–2010 |
| VW | 2.0 TFSI | PASSAT B6 (3C2) | CCZA | 200 | Petrol | 2005–2010 |
| VW | 2.0 TFSI | PASSAT B6 (3C2) | BPY | 200 | Petrol | 2005–2010 |
| VW | 2.0 TFSI | PASSAT B6 Variant (3C5) | BPY | 200 | Petrol | 2005–2010 |
| VW | 2.0 TFSI | PASSAT B6 Variant (3C5) | CCZA | 200 | Petrol | 2005–2010 |
| VW | 2.0 TFSI | PASSAT B6 Variant (3C5) | CAWB | 200 | Petrol | 2005–2010 |
| VW | 2.0 TFSI | PASSAT B6 Variant (3C5) | AXX | 200 | Petrol | 2005–2010 |
| VW | 2.0 TFSI | PASSAT B6 Variant (3C5) | CCTA | 200 | Petrol | 2005–2010 |
| VW | 2.0 TFSI | PASSAT B6 Variant (3C5) | BWA | 200 | Petrol | 2005–2010 |
| VW | 2.0 TFSI | PASSAT B6 Variant (3C5) | CBFA | 200 | Petrol | 2005–2010 |
| VW | 2.0 TFSI | PASSAT CC B6 (357) | CBFA | 200 | Petrol | 2008–2012 |
| VW | 2.0 TFSI | PASSAT CC B6 (357) | CCZA | 200 | Petrol | 2008–2012 |
| VW | 2.0 TFSI | PASSAT CC B6 (357) | CAWB | 200 | Petrol | 2008–2012 |
| VW | 2.0 TFSI | PASSAT CC B6 (357) | CCTA | 200 | Petrol | 2008–2012 |
| VW | 2.0 TSI | PASSAT CC B6 (357) | CCZB | 211 | Petrol | 2010–2012 |
