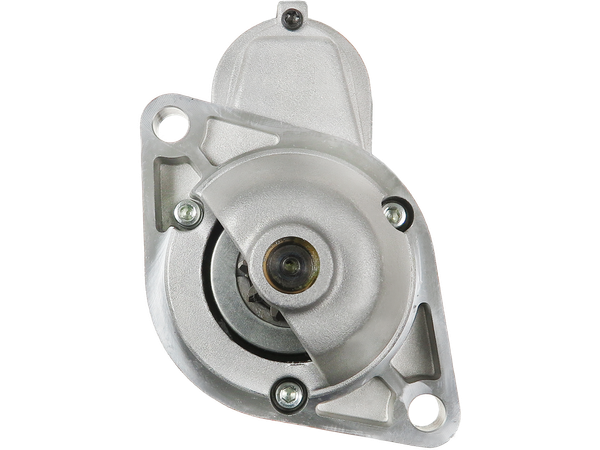

S3234S
Startmotorer
STANDARD LINE
489 kr
Köp nu
| EAN | 5902129154266 |
| Tillverkare | AS-PL |
| Ersätter | VALEO |
| OE-nummer |
3EFFE: PRSW440 AS-PL: UD19358S BOSCH: 0986012251 CARGO: 110152, F032110152 CASCO: CST40106AS DAF: 1516952R DAIHATSU: 2810036040000, 2810036060000, 2810036070000 ELECTROLOG: STR00193 ELSTOCK: 26-0238 KUHNER: 20335 LUCAS: LRS00226, LRS226 PRESTOLITE: EL25195 PSH: 190.001.092.050, 190.001.092.415, S130.645, S148.620 REAL: 20432601BN SANDO: 6040106.0 STARDAX: STX201325 TOYOTA: 28100-20540, 28100-33010, 28100-33011, 28100-33020, 28100-34010, 28100-34020, 28100-34070, 28100-34090, 28100-36020, 28100-36030, 28100-36040, 28100-36050, 28100-36051, 28100-36060, 28100-36070, 28100-36090, 28100-37010, 28100-37011, 28100-37011-71, 28100-40040, 28100-40041, 28100-40050, 28100-40060, 28100-40061, 2810014014, 2810033010, 2810033011, 2810033020, 2810034010, 2810034020, 2810034070, 2810037011, 2810040041, 2810040060 VALEO: 455922 |
| Datablad | Ladda ner PDF med skiss och mått |
Specifikationer
| Spänning [ V ] | 12 |
| Effekt [ kW ] | 1.10 |
| Startmotors rotation | CW |
| A-storlek [ mm ] | 74.00 |
| B-storlek [ mm ] | 18.50 |
| Antal kuggar [ qty. ] | 9 |
| Antal hål i huvudet [ qty. ] | 2 |
| Antal gängade hål [ qty. ] | 0 |
| L.1 [ mm ] | 214.00 |
| O.1 [ mm ] | 115.00 |
| C.1 [ mm ] | 10.50 |
| C.2 [ mm ] | 10.50 |
Passar i 16 fordon
| Märke | Modell | Typ | Motor | Hk | Bränsle | År |
|---|---|---|---|---|---|---|
| TOYOTA | 1.6 (RH20, RH30) | HIACE II Bus (_H11, _H2_, _H3_, _H4_) | 12R | 67 | Petrol | 1977–1982 |
| TOYOTA | 1.6 (RH30) | HIACE II Van (_H11, _H2_, _H3_, _H4_) | 12R | 67 | Petrol | 1977–1983 |
| TOYOTA | 2.0 (RA23_, RA28_, RA23R, RA28R) | CELICA Coupe (_A2_) | 18R | 86 | Petrol | 1975–1977 |
| TOYOTA | 2.0 (RH32) | HIACE II Van (_H11, _H2_, _H3_, _H4_) | 18R | 88 | Petrol | 1977–1983 |
| TOYOTA | 2.0 (RT104) | CORONA (RT1_) | 18R | 88 | Petrol | 1976–1979 |
| TOYOTA | 2.0 (RT118) | CORONA Estate (RT118) | 18R | 88 | Petrol | 1975–1979 |
| TOYOTA | 2.0 (RX30) | CRESSIDA Saloon (_X3_) | 18R | 90 | Petrol | 1977–1981 |
| TOYOTA | 2.0 (RX35) | CRESSIDA Station Wagon (_X3_) | 18R | 90 | Petrol | 1977–1981 |
| TOYOTA | 2.0 (RX60) | CRESSIDA Saloon (_X6_) | 21R-C | 105 | Petrol | 1980–1985 |
| TOYOTA | 2.0 (RX60) | CRESSIDA Saloon (_X6_) | 21R | 105 | Petrol | 1980–1985 |
| TOYOTA | 2.0 (RX60_, RX60) | CRESSIDA Station Wagon (_X6_) | 21R | 105 | Petrol | 1981–1985 |
| TOYOTA | 2.0 (YN57, YN60) | HILUX IV Pickup (_N5_, _N6_) | 3Y | 88 | Petrol | 1983–1988 |
| TOYOTA | 2.0 GT (RA40_, RA40) | CELICA (_A4_) | 18R-G | 122 | Petrol | 1977–1981 |
| TOYOTA | 2.0 XT (RA40) | CELICA (_A4_) | 18R | 88 | Petrol | 1980–1981 |
| TOYOTA | 2.0 XT (RA40) | CELICA (_A4_) | 18R | 90 | Petrol | 1977–1981 |
| TOYOTA | 2.4 D 4WD (LH108, LH118) | HIACE IV Van (_H1_) | 2L | 75 | Diesel | 1989–1999 |
