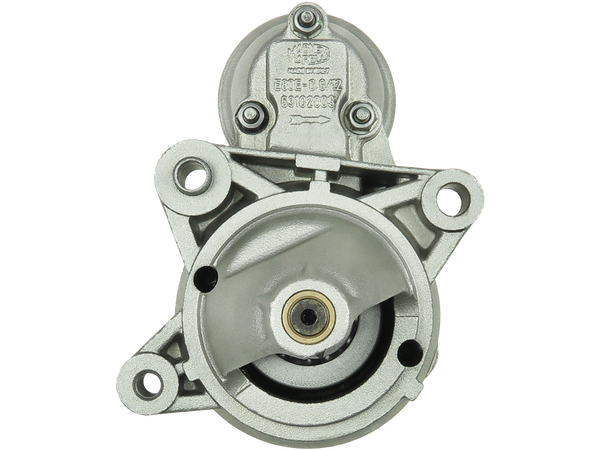

S4015PR
Startmotorer
PREMIUM LINE
591 kr
Köp nu
| EAN | 5902129089957 |
| Tillverkare | AS-PL |
| Ersätter | MAGNETI MARELLI |
| OE-nummer |
3EFFE: STRS022 AUTOELECTRO: AES1246 BOSCH: 0986017781 CARGO: 111420, F032111420 CASCO: CST30108, CST30108AS, CST30108ES, CST30108GS, CST30108OS, CST30108RS CEVAM: 3825 DELCO: DRS3308, DS4418 EAI: 11810 ELECTROLOG: STR90007 ELSTOCK: 25-2081 ERA: 220179 FIAT: 46231541, 46419332, 46419392, 71721250 GHIBAUDI: SG0130 HC PARTS: CS981 HELLA: 8EA012528-331, 8EA737151-001 HERTH+BUSS: 42017781 KRAUF: STE0981 KUHNER: 10981, 10981M LUCAS: LRT00146 MAGNETI MARELLI: 063102003010, 63102003, 943102003010, 944280177810, MRS17781, MSN603, MSR603 POWERMAX: 88212708 PRESTOLITE: 20510146 PSH: 500.518.093, 500.518.093.460, S132.654 SANDO: 6030108 SIOM: MAV2000 STARDAX: STX200216, STX200216R VALEO: 458230 WAI / TRANSPO: 31160N, 31160R WOODAUTO: STR52005 |
| Datablad | Ladda ner PDF med skiss och mått |
Specifikationer
| Spänning [ V ] | 12 |
| Effekt [ kW ] | 0.90 |
| Startmotors rotation | CW |
| A-storlek [ mm ] | 64.00 |
| B-storlek [ mm ] | 10.50 |
| Antal kuggar [ qty. ] | 9 |
| Antal hål i huvudet [ qty. ] | 3 |
| Antal gängade hål [ qty. ] | 1 |
| L.1 [ mm ] | 207.00 |
| O.1 [ mm ] | 105.00 |
| O.2 [ mm ] | 62.00 |
| O.3 [ mm ] | 76.00 |
| C.1 [ mm ] | 8.50 |
| C.2 [ mm ] | M8x1.25 |
| C.3 [ mm ] | 8.50 |
Passar i 6 fordon
| Märke | Modell | Typ | Motor | Hk | Bränsle | År |
|---|---|---|---|---|---|---|
| FIAT | 1.4 (182.AA) | BRAVO I (182_) | 182A3.000 | 80 | Petrol | 1995–2001 |
| FIAT | 1.4 (182.AG) | BRAVO I (182_) | 182A5.000 | 75 | Petrol | 1995–2001 |
| FIAT | 1.4 (182.BG) | BRAVA (182_) | 182A5.000 | 75 | Petrol | 1995–2001 |
| FIAT | 1.4 12 V (182.BA) | BRAVA (182_) | 182A3.000 | 80 | Petrol | 1995–1998 |
| FIAT | 1.4 80 12V | MAREA (185_) | 182A3.000 | 80 | Petrol | 1996–2002 |
| FIAT | 1.4 80 12V | MAREA Weekend (185_) | 182A3.000 | 80 | Petrol | 1996–2002 |
