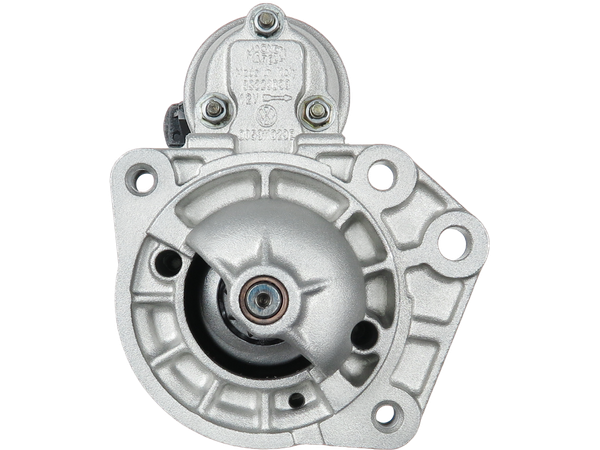

S4016PR
Startmotorer
PREMIUM LINE
591 kr
Köp nu
| EAN | 5902129097181 |
| Tillverkare | AS-PL |
| Ersätter | MAGNETI MARELLI |
| OE-nummer |
AS-PL: S4016PR AUTOELECTRO: AEY2116 BOSCH: 0001114025, 0986019311 CARGO: 114758, F032114758 CASCO: CST30188, CST30188AS, CST30188ES, CST30188GS, CST30188OS, CST30188RS CEVAM: 3030 EAI: 11777 ELECTROLOG: STR10044, STR90022 ELSTOCK: 25-3303 ERA: 220161 GHIBAUDI: SG0129 HC PARTS: CS1548 HERTH+BUSS: 42019311 KRAUF: STE0788 KUHNER: 10788 LUCAS: LRS02116, LRS2116 MAGNETI MARELLI: 63223039, 63293039, 944280800490, MRS80049 REAL: 20404881 ROLLCO: STM524 SANDO: 6030188 SIDAT: S12BH0784A2 SIOM: MAV6680 STARDAX: STX200982, STX200982R VW: 085911023E WAI / TRANSPO: 30889R WOODAUTO: STR52066 |
| Datablad | Ladda ner PDF med skiss och mått |
Specifikationer
| Spänning [ V ] | 12 |
| Effekt [ kW ] | 0.90 |
| Startmotors rotation | CW |
| A-storlek [ mm ] | 82.50 |
| B-storlek [ mm ] | 2.50 |
| Antal kuggar [ qty. ] | 9 |
| Antal hål i huvudet [ qty. ] | 4 |
| Antal gängade hål [ qty. ] | 2 |
| L.1 [ mm ] | 200.00 |
| O.1 [ mm ] | 31.00 |
| O.2 [ mm ] | 58.00 |
| O.3 [ mm ] | 105.00 |
| O.4 [ mm ] | 75.00 |
| C.1 [ mm ] | 8.50 |
| C.2 [ mm ] | 10.50 |
| C.3 [ mm ] | M8x1.25 |
| C.4 [ mm ] | M8x1.25 |
Passar i 135 fordon
| Märke | Modell | Typ | Motor | Hk | Bränsle | År |
|---|---|---|---|---|---|---|
| SEAT | 1.0 | AROSA (6H1) | ALL | 50 | Petrol | 1997–2004 |
| SEAT | 1.0 | AROSA (6H1) | AHT | 50 | Petrol | 1998–2001 |
| SEAT | 1.0 | AROSA (6H1) | AUC | 50 | Petrol | 1997–2004 |
| SEAT | 1.0 | AROSA (6H1) | ALD | 50 | Petrol | 1997–2004 |
| SEAT | 1.0 | AROSA (6H1) | ANV | 50 | Petrol | 1997–2004 |
| SEAT | 1.0 | AROSA (6H1) | AER | 50 | Petrol | 1997–2004 |
| SEAT | 1.0 | CORDOBA (6K1, 6K2) | AVZ | 69 | Petrol | 2001–2002 |
| SEAT | 1.0 | CORDOBA (6K1, 6K2) | AST | 69 | Petrol | 2001–2002 |
| SEAT | 1.0 16V | IBIZA II (6K1) | AVZ | 69 | Petrol | 1999–2002 |
| SEAT | 1.0 16V | IBIZA II (6K1) | AST | 69 | Petrol | 1999–2002 |
| SEAT | 1.0 i | CORDOBA (6K1, 6K2) | ANV | 50 | Petrol | 1996–2002 |
| SEAT | 1.0 i | CORDOBA (6K1, 6K2) | ALD | 50 | Petrol | 1996–2002 |
| SEAT | 1.0 i | CORDOBA (6K1, 6K2) | AUC | 50 | Petrol | 1996–2002 |
| SEAT | 1.0 i | CORDOBA (6K1, 6K2) | AER | 50 | Petrol | 1996–2002 |
| SEAT | 1.0 i | IBIZA II (6K1) | ALD | 50 | Petrol | 1996–2002 |
| SEAT | 1.0 i | IBIZA II (6K1) | AUC | 50 | Petrol | 1996–2002 |
| SEAT | 1.0 i | IBIZA II (6K1) | AER | 50 | Petrol | 1996–2002 |
| SEAT | 1.0 i | IBIZA II (6K1) | ANV | 50 | Petrol | 1996–2002 |
| SEAT | 1.4 | AROSA (6H1) | AKV | 60 | Petrol | 1997–2004 |
| SEAT | 1.4 | AROSA (6H1) | APQ | 60 | Petrol | 1997–2004 |
| SEAT | 1.4 | AROSA (6H1) | AKK | 60 | Petrol | 1997–2004 |
| SEAT | 1.4 | AROSA (6H1) | ANW | 60 | Petrol | 1997–2004 |
| SEAT | 1.4 | AROSA (6H1) | AUD | 60 | Petrol | 1997–2004 |
| SEAT | 1.4 | AROSA (6H1) | AEX | 60 | Petrol | 1997–2004 |
| SEAT | 1.4 | CORDOBA (6K1, 6K2) | ANX | 54 | Petrol | 1997–1999 |
| SEAT | 1.4 | CORDOBA Vario (6K5) | AQQ | 101 | Petrol | 2000–2000 |
| SEAT | 1.4 | IBIZA II (6K1) | ANX | 54 | Petrol | 1997–1999 |
| SEAT | 1.4 16V | CORDOBA (6K1, 6K2) | AUA | 75 | Petrol | 2000–2002 |
| SEAT | 1.4 16V | CORDOBA (6K1, 6K2) | APE | 75 | Petrol | 2000–2002 |
| SEAT | 1.4 16V | CORDOBA Vario (6K5) | AUA | 75 | Petrol | 1999–2002 |
| SEAT | 1.4 16V | CORDOBA Vario (6K5) | APE | 75 | Petrol | 1999–2002 |
| SEAT | 1.4 16V | IBIZA II (6K1) | APE | 75 | Petrol | 2000–2002 |
| SEAT | 1.4 16V | IBIZA II (6K1) | AUA | 75 | Petrol | 2000–2002 |
| SEAT | 1.4 i | CORDOBA (6K1, 6K2) | AKV | 60 | Petrol | 1994–2002 |
| SEAT | 1.4 i | CORDOBA (6K1, 6K2) | APQ | 60 | Petrol | 1994–2002 |
| SEAT | 1.4 i | CORDOBA (6K1, 6K2) | ABD | 60 | Petrol | 1994–2002 |
| SEAT | 1.4 i | CORDOBA (6K1, 6K2) | AKK | 60 | Petrol | 1994–2002 |
| SEAT | 1.4 i | CORDOBA (6K1, 6K2) | ANW | 60 | Petrol | 1994–2002 |
| SEAT | 1.4 i | CORDOBA (6K1, 6K2) | AUD | 60 | Petrol | 1994–2002 |
| SEAT | 1.4 i | CORDOBA (6K1, 6K2) | AEX | 60 | Petrol | 1994–2002 |
| SEAT | 1.4 i | CORDOBA Vario (6K5) | AUD | 60 | Petrol | 1996–2002 |
| SEAT | 1.4 i | CORDOBA Vario (6K5) | AKV | 60 | Petrol | 1996–2002 |
| SEAT | 1.4 i | CORDOBA Vario (6K5) | APQ | 60 | Petrol | 1996–2002 |
| SEAT | 1.4 i | CORDOBA Vario (6K5) | AKK | 60 | Petrol | 1996–2002 |
| SEAT | 1.4 i | CORDOBA Vario (6K5) | ANW | 60 | Petrol | 1996–2002 |
| SEAT | 1.4 i | CORDOBA Vario (6K5) | AEX | 60 | Petrol | 1996–2002 |
| SEAT | 1.4 i | IBIZA II (6K1) | APQ | 60 | Petrol | 1993–2002 |
| SEAT | 1.4 i | IBIZA II (6K1) | ABD | 60 | Petrol | 1993–2002 |
| SEAT | 1.4 i | IBIZA II (6K1) | AKK | 60 | Petrol | 1993–2002 |
| SEAT | 1.4 i | IBIZA II (6K1) | ANW | 60 | Petrol | 1993–2002 |
| SEAT | 1.4 i | IBIZA II (6K1) | AUD | 60 | Petrol | 1993–2002 |
| SEAT | 1.4 i | IBIZA II (6K1) | AEX | 60 | Petrol | 1993–2002 |
| SEAT | 1.4 i | IBIZA II (6K1) | AKV | 60 | Petrol | 1993–2002 |
| SEAT | 1.4 i | INCA (6K9) | AUD | 60 | Petrol | 1995–2003 |
| SEAT | 1.4 i | INCA (6K9) | AEX | 60 | Petrol | 1995–2003 |
| SEAT | 1.4 i | INCA (6K9) | APQ | 60 | Petrol | 1995–2003 |
| SEAT | 1.4 i | INCA (6K9) | AKV | 60 | Petrol | 1995–2003 |
| SEAT | 1.4 i 16V | CORDOBA (6K1, 6K2) | AFH | 101 | Petrol | 1996–2002 |
| SEAT | 1.4 i 16V | CORDOBA (6K1, 6K2) | AUB | 101 | Petrol | 1996–2002 |
| SEAT | 1.4 i 16V | CORDOBA (6K1, 6K2) | AQQ | 101 | Petrol | 1996–2002 |
| SEAT | 1.4 i 16V | IBIZA II (6K1) | AQQ | 101 | Petrol | 1997–2002 |
| SEAT | 1.4 i 16V | IBIZA II (6K1) | AFH | 101 | Petrol | 1997–2002 |
| SEAT | 1.4 i 16V | IBIZA II (6K1) | AUB | 101 | Petrol | 1997–2002 |
| SEAT | 1.6 i | CORDOBA (6K1, 6K2) | 1F | 75 | Petrol | 1994–1999 |
| SEAT | 1.6 i | CORDOBA (6K1, 6K2) | ABU | 75 | Petrol | 1993–2002 |
| SEAT | 1.6 i | CORDOBA (6K1, 6K2) | ALM | 75 | Petrol | 1993–2002 |
| SEAT | 1.6 i | CORDOBA (6K1, 6K2) | AEE | 75 | Petrol | 1993–2002 |
| SEAT | 1.6 i | CORDOBA Vario (6K5) | AEE | 75 | Petrol | 1996–2002 |
| SEAT | 1.6 i | CORDOBA Vario (6K5) | ABU | 75 | Petrol | 1996–2002 |
| SEAT | 1.6 i | CORDOBA Vario (6K5) | ALM | 75 | Petrol | 1996–2002 |
| SEAT | 1.6 i | IBIZA II (6K1) | AEE | 75 | Petrol | 1993–2002 |
| SEAT | 1.6 i | IBIZA II (6K1) | ABU | 75 | Petrol | 1993–2002 |
| SEAT | 1.6 i | IBIZA II (6K1) | ALM | 75 | Petrol | 1993–2002 |
| SEAT | 1.6 i | INCA (6K9) | ALM | 75 | Petrol | 1997–2000 |
| SEAT | 1.6 i | INCA (6K9) | AEE | 75 | Petrol | 1997–2000 |
| VW | 1.0 | LUPO I (6X1, 6E1) | ALD | 50 | Petrol | 1998–2005 |
| VW | 1.0 | LUPO I (6X1, 6E1) | ANV | 50 | Petrol | 1998–2005 |
| VW | 1.0 | LUPO I (6X1, 6E1) | AER | 50 | Petrol | 1998–2005 |
| VW | 1.0 | LUPO I (6X1, 6E1) | ALL | 50 | Petrol | 1998–2005 |
| VW | 1.0 | LUPO I (6X1, 6E1) | AUC | 50 | Petrol | 1998–2005 |
| VW | 1.0 | POLO (6N2) | AUC | 50 | Petrol | 1999–2001 |
| VW | 1.0 | POLO (6N2) | ALD | 50 | Petrol | 1999–2001 |
| VW | 1.0 | POLO Van Hatchback Van (6N1) | AEV | 45 | Petrol | 1994–1999 |
| VW | 1.4 | CADDY II MPV (9K9B) | APQ | 60 | Petrol | 1995–2003 |
| VW | 1.4 | CADDY II MPV (9K9B) | AKV | 60 | Petrol | 1995–2003 |
| VW | 1.4 | CADDY II MPV (9K9B) | AUD | 60 | Petrol | 1995–2003 |
| VW | 1.4 | CADDY II MPV (9K9B) | AEX | 60 | Petrol | 1995–2003 |
| VW | 1.4 | LUPO I (6X1, 6E1) | AUD | 60 | Petrol | 2000–2005 |
| VW | 1.4 | POLO (6N2) | ANX | 54 | Petrol | 1999–2001 |
| VW | 1.4 | POLO (6N2) | AKK | 60 | Petrol | 1999–2001 |
| VW | 1.4 | POLO (6N2) | AKP | 54 | Petrol | 1999–2001 |
| VW | 1.4 | POLO (6N2) | AUD | 60 | Petrol | 1999–2001 |
| VW | 1.4 | POLO Van Estate Van (6V5) | AEX | 60 | Petrol | 1997–1999 |
| VW | 1.4 | POLO Van Estate Van (6V5) | AUA | 75 | Petrol | 2000–2001 |
| VW | 1.4 | POLO Variant (6V5) | AKK | 60 | Petrol | 1997–2001 |
| VW | 1.4 | POLO Variant (6V5) | ANW | 60 | Petrol | 1997–2001 |
| VW | 1.4 | POLO Variant (6V5) | AUD | 60 | Petrol | 1997–2001 |
| VW | 1.4 | POLO Variant (6V5) | AEX | 60 | Petrol | 1997–2001 |
| VW | 1.4 | POLO Variant (6V5) | AKV | 60 | Petrol | 1997–2001 |
| VW | 1.4 | POLO Variant (6V5) | ANX | 54 | Petrol | 1998–1999 |
| VW | 1.4 | POLO Variant (6V5) | APQ | 60 | Petrol | 1997–2001 |
| VW | 1.4 16V | CADDY II MPV (9K9B) | AUA | 75 | Petrol | 2000–2004 |
| VW | 1.4 16V | POLO (6N2) | APE | 75 | Petrol | 1999–2001 |
| VW | 1.4 16V | POLO (6N2) | AHW | 75 | Petrol | 1999–2001 |
| VW | 1.4 16V | POLO (6N2) | AUA | 75 | Petrol | 1999–2001 |
| VW | 1.4 16V | POLO Variant (6V5) | AUA | 75 | Petrol | 1999–2001 |
| VW | 1.4 16V | POLO Variant (6V5) | APE | 75 | Petrol | 1999–2001 |
| VW | 1.6 | CADDY II MPV (9K9B) | AEE | 75 | Petrol | 1997–2000 |
| VW | 1.6 | POLO Van Estate Van (6V5) | AEE | 75 | Petrol | 1997–1998 |
| VW | 1.6 | POLO Variant (6V5) | AEE | 75 | Petrol | 1997–2001 |
| VW | 1.6 | POLO Variant (6V5) | ALM | 75 | Petrol | 1997–2001 |
| VW | 45 1.0 | POLO III (6N1) | AEV | 45 | Petrol | 1994–1996 |
| VW | 50 1.0 | POLO III (6N1) | AER | 50 | Petrol | 1996–1999 |
| VW | 50 1.0 | POLO III (6N1) | ALL | 50 | Petrol | 1996–1999 |
| VW | 54 1.4 | POLO III CLASSIC (6V2) | ANX | 54 | Petrol | 1998–1999 |
| VW | 55 1.3 | POLO III (6N1) | ADX | 55 | Petrol | 1994–1997 |
| VW | 55 1.4 | POLO III (6N1) | AEX | 55 | Petrol | 1995–1999 |
| VW | 55 1.4 | POLO III (6N1) | ANX | 55 | Petrol | 1995–1999 |
| VW | 60 1.4 | CADDY II Box Body/MPV (9K9A) | APQ | 60 | Petrol | 1995–2004 |
| VW | 60 1.4 | CADDY II Box Body/MPV (9K9A) | AEX | 60 | Petrol | 1995–2004 |
| VW | 60 1.4 | CADDY II Box Body/MPV (9K9A) | AUD | 60 | Petrol | 1995–2004 |
| VW | 60 1.4 | POLO III (6N1) | AEX | 60 | Petrol | 1995–1999 |
| VW | 60 1.4 | POLO III (6N1) | APQ | 60 | Petrol | 1995–1999 |
| VW | 60 1.4 | POLO III (6N1) | AKV | 60 | Petrol | 1995–1999 |
| VW | 60 1.4 | POLO III CLASSIC (6V2) | AUD | 60 | Petrol | 1995–2001 |
| VW | 60 1.4 | POLO III CLASSIC (6V2) | AEX | 60 | Petrol | 1995–2001 |
| VW | 60 1.4 | POLO III CLASSIC (6V2) | AKV | 60 | Petrol | 1995–2001 |
| VW | 60 1.4 | POLO III CLASSIC (6V2) | APQ | 60 | Petrol | 1995–2001 |
| VW | 60 1.4 | POLO III CLASSIC (6V2) | AKK | 60 | Petrol | 1995–2001 |
| VW | 60 1.4 | POLO III CLASSIC (6V2) | ANW | 60 | Petrol | 1995–2001 |
| VW | 75 1.4 16V | POLO III CLASSIC (6V2) | AUA | 75 | Petrol | 1999–2001 |
| VW | 75 1.4 16V | POLO III CLASSIC (6V2) | APE | 75 | Petrol | 1999–2001 |
| VW | 75 1.6 | CADDY II Box Body/MPV (9K9A) | AEE | 75 | Petrol | 1995–2000 |
| VW | 75 1.6 | POLO III CLASSIC (6V2) | ALM | 75 | Petrol | 1995–2001 |
| VW | 75 1.6 | POLO III CLASSIC (6V2) | AEE | 75 | Petrol | 1995–2001 |
