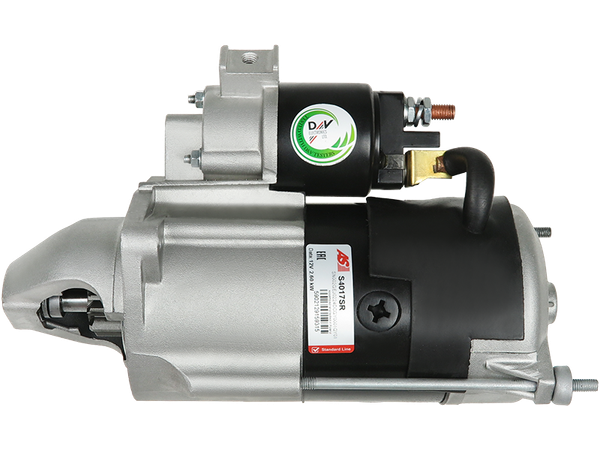

S4017SR
Startmotorer
STANDARD LINE
1083 kr
Köp nu
| EAN | 5902129159315 |
| Tillverkare | AS-PL |
| Ersätter | MAGNETI MARELLI |
| OE-nummer |
3EFFE: PRSL128, STRL128 AUTOELECTRO: AES1288 BOSCH: 0986018960, 0986021041 CARGO: 112026, F032112026 CASCO: CST10162AS, CST10162GS, CST30109AS, CST30109GS, CST30109IS CEVAM: 3326, 3671 DELCO: DRS3557, DS4667, RAS34668 DENSO: DSN502, DSN582 EAI: 11854 ELECTROLOG: STR90010 ELSTOCK: 25-2232 ERA: 220158, 220165 FIAT: 131955508, 1329201080, 1349920080, 46231646, 46758240, 71723353, 71786770, 71786771, 80296470, K1319555080, K1329201080, K1331329080 FRIESEN: 8080022 GPARTS: GS114014-A HC PARTS: CS1109 HELLA: 8EA011610-931, 8EA737526-001 HERTH+BUSS: 42018960 IVECO: 8029647 KRAUF: STE1109 KUHNER: 101109, 101109B, 101109D, 10973 LAUBER: 22.1109, 22.1109M LUCAS: LRT00188, LRT188 MAGNETI MARELLI: 063114014010, 63114014, 943114014010, 943221281010, 944280800220, MRS80022, MSN801 PEUGEOT: 1319555080, 1331329080, 1608944780, 46208436, 5802EC, 5802EE, 5802Y9, 5802Z0, 5802Z1, 5802Z3, 580SZ1, 71721242, 71721243, 71782324, 71782325, 9625382480 POWERMAX: 88212136 PRESTOLITE: 20510188 PSH: 500.524.093.050, 500.524.093.311, S132.758, S144.118 REAL: 20401261BN, 20401261OE, 20404901BN, 20404901IT, 20404901OE RNL: RNL63114014 SANDO: 6010162.0, 6010162.1, 6030109.0, 6030109.1, 6030109.5 SIDAT: S12MA0146A2 SIOM: MAV2030, MAV2030A, MAV6730 STARDAX: STX200042, STX200042R, STX200067, STX200091, STX200091R WAI / TRANSPO: 33224N WOODAUTO: STR52002 |
| Datablad | Ladda ner PDF med skiss och mått |
Specifikationer
| Spänning [ V ] | 12 |
| Effekt [ kW ] | 2.60 |
| Startmotors rotation | CW |
| A-storlek [ mm ] | 81.50 |
| B-storlek [ mm ] | 24.00 |
| Antal kuggar [ qty. ] | 9 |
| Antal hål i huvudet [ qty. ] | 3 |
| Antal gängade hål [ qty. ] | 3 |
| L.1 [ mm ] | 272.00 |
| O.1 [ mm ] | 116.00 |
| O.2 [ mm ] | 82.00 |
| O.3 [ mm ] | 82.00 |
| C.1 [ mm ] | M8x1.25 |
| C.2 [ mm ] | M8x1.25 |
| C.3 [ mm ] | M8x1.25 |
Passar i 97 fordon
| Märke | Modell | Typ | Motor | Hk | Bränsle | År |
|---|---|---|---|---|---|---|
| CITROËN | 2.8 D | JUMPER I Platform/Chassis (230) | 8140.63(F28D) | 87 | Diesel | 1999–2002 |
| CITROËN | 2.8 D | JUMPER I Van (230L) | 8140.63(F28D) | 87 | Diesel | 1999–2002 |
| CITROËN | 2.8 HDi | JUMPER I Bus (230P) | 8140.43S | 128 | Diesel | 2000–2002 |
| CITROËN | 2.8 HDi | JUMPER I Bus (244, Z_) | 8140.43S | 128 | Diesel | 2002–2006 |
| CITROËN | 2.8 HDi | JUMPER I Platform/Chassis (230) | 8140.43S | 128 | Diesel | 2000–2002 |
| CITROËN | 2.8 HDi | JUMPER I Platform/Chassis (244) | 8140.43N | 146 | Diesel | 2004–2006 |
| CITROËN | 2.8 HDi | JUMPER I Platform/Chassis (244) | 8140.43S | 128 | Diesel | 2002–2006 |
| CITROËN | 2.8 HDi | JUMPER I Van (230L) | 8140.43S | 128 | Diesel | 2000–2002 |
| CITROËN | 2.8 HDi | JUMPER I Van (244) | 8140.43S | 128 | Diesel | 2002–2006 |
| CITROËN | 2.8 HDi | JUMPER I Van (244) | 8140.43N | 146 | Diesel | 2004–2006 |
| CITROËN | 2.8 HDi 4x4 | JUMPER I Bus (230P) | 8140.43S | 128 | Diesel | 2000–2002 |
| CITROËN | 2.8 HDi 4x4 | JUMPER I Platform/Chassis (244) | 8140.43S | 128 | Diesel | 2002–2006 |
| CITROËN | 2.8 HDi 4x4 | JUMPER I Van (230L) | 8140.43S | 128 | Diesel | 2000–2002 |
| CITROËN | 2.8 HDi 4x4 | JUMPER I Van (244) | 8140.43S | 128 | Diesel | 2002–2006 |
| CITROËN | 2.8 HDi All-wheel Drive | JUMPER I Bus (244, Z_) | 8140.43S | 128 | Diesel | 2002–2006 |
| FIAT | 2.3 JTD | DUCATO Bus (244_) | F1AE0481C | 110 | Diesel | 2001–2006 |
| FIAT | 2.3 JTD | DUCATO Platform/Chassis (244_) | F1AE0481C | 110 | Diesel | 2001–2006 |
| FIAT | 2.3 JTD | DUCATO Van (244_) | F1AE0481C | 110 | Diesel | 2001–2006 |
| FIAT | 2.5 D | DUCATO Platform/Chassis (230_) | 8140.67 | 84 | Diesel | 1994–2002 |
| FIAT | 2.5 D | DUCATO Van (230_) | 8140.67 | 84 | Diesel | 1994–2002 |
| FIAT | 2.5 D 4x4 | DUCATO Platform/Chassis (230_) | 8140.67 | 84 | Diesel | 1994–2002 |
| FIAT | 2.5 D 4x4 | DUCATO Van (230_) | 8140.67 | 84 | Diesel | 1994–2002 |
| FIAT | 2.5 D Combinato | DUCATO Bus (230_) | 8140.67 | 84 | Diesel | 1994–2002 |
| FIAT | 2.5 TD | DUCATO Platform/Chassis (230_) | 8140.47 | 109 | Diesel | 1994–1998 |
| FIAT | 2.5 TD | DUCATO Platform/Chassis (230_) | 8140.47 | 116 | Diesel | 1994–1998 |
| FIAT | 2.5 TD | DUCATO Van (230_) | 8140.47 | 109 | Diesel | 1994–1998 |
| FIAT | 2.5 TD 4x4 | DUCATO Bus (230_) | 8140.47 | 116 | Diesel | 1994–2001 |
| FIAT | 2.5 TD 4x4 | DUCATO Bus (230_) | 8140.47 | 109 | Diesel | 1994–1998 |
| FIAT | 2.5 TD 4x4 | DUCATO Platform/Chassis (230_) | 8140.47 | 116 | Diesel | 1994–1998 |
| FIAT | 2.5 TD 4x4 | DUCATO Platform/Chassis (230_) | 8140.47 | 109 | Diesel | 1994–1998 |
| FIAT | 2.5 TD 4x4 | DUCATO Van (230_) | 8140.47 | 109 | Diesel | 1994–1998 |
| FIAT | 2.5 TD 4x4 | DUCATO Van (230_) | 8140.47 | 116 | Diesel | 1994–1998 |
| FIAT | 2.5 TDI | DUCATO Platform/Chassis (230_) | 8140.47R | 109 | Diesel | 1994–2002 |
| FIAT | 2.5 TDI | DUCATO Van (230_) | 8140.47R | 109 | Diesel | 1994–2002 |
| FIAT | 2.5 TDI | DUCATO Van (230_) | 8140.47 | 116 | Diesel | 1994–2002 |
| FIAT | 2.5 TDI 4x4 | DUCATO Bus (230_) | 8140.47 | 116 | Diesel | 1997–2002 |
| FIAT | 2.5 TDI 4x4 | DUCATO Platform/Chassis (230_) | 8140.47 | 116 | Diesel | 1998–2002 |
| FIAT | 2.5 TDI 4x4 | DUCATO Van (230_) | 8140.47 | 116 | Diesel | 1998–2002 |
| FIAT | 2.5 TDI Panorama/Combinato | DUCATO Bus (230_) | 8140.47R | 109 | Diesel | 1994–2002 |
| FIAT | 2.5 TDI Panorama/Combinato | DUCATO Bus (230_) | 8140.47 | 116 | Diesel | 1994–2002 |
| FIAT | 2.8 D | DUCATO Bus (230_) | 8140.63 | 87 | Diesel | 1998–2002 |
| FIAT | 2.8 D | DUCATO Platform/Chassis (230_) | 8140.63 | 87 | Diesel | 1998–2002 |
| FIAT | 2.8 D | DUCATO Van (230_) | 8140.63 | 87 | Diesel | 1998–2002 |
| FIAT | 2.8 D 4x4 | DUCATO Van (230_) | 8140.63 | 87 | Diesel | 1998–2002 |
| FIAT | 2.8 JTD | DUCATO Bus (230_) | 8140.43S | 128 | Diesel | 2000–2002 |
| FIAT | 2.8 JTD | DUCATO Bus (244_) | 8140.43S | 128 | Diesel | 2001– |
| FIAT | 2.8 JTD | DUCATO Bus (244_) | 8140.43N | 145 | Diesel | 2004–2006 |
| FIAT | 2.8 JTD | DUCATO Platform/Chassis (230_) | 8140.43S | 128 | Diesel | 2000–2002 |
| FIAT | 2.8 JTD | DUCATO Platform/Chassis (244_) | 8140.43S | 128 | Diesel | 2001–2006 |
| FIAT | 2.8 JTD | DUCATO Platform/Chassis (244_) | 8140.43 | 122 | Diesel | 2003–2006 |
| FIAT | 2.8 JTD | DUCATO Van (230_) | 8140.43S | 128 | Diesel | 2000–2002 |
| FIAT | 2.8 JTD | DUCATO Van (244_) | 8140.43S | 128 | Diesel | 2001–2011 |
| FIAT | 2.8 JTD 4x4 | DUCATO Bus (230_) | 8140.43S | 128 | Diesel | 2000–2002 |
| FIAT | 2.8 JTD 4x4 | DUCATO Bus (244_) | 8140.43S | 128 | Diesel | 2001–2006 |
| FIAT | 2.8 JTD 4x4 | DUCATO Platform/Chassis (230_) | 8140.43S | 128 | Diesel | 2001–2002 |
| FIAT | 2.8 JTD 4x4 | DUCATO Platform/Chassis (244_) | 8140.43S | 128 | Diesel | 2001–2006 |
| FIAT | 2.8 JTD 4x4 | DUCATO Van (230_) | 8140.43S | 128 | Diesel | 2000–2002 |
| FIAT | 2.8 JTD 4x4 | DUCATO Van (244_) | 8140.43S | 128 | Diesel | 2001–2006 |
| FIAT | 2.8 JTD Power | DUCATO Platform/Chassis (244_) | 8140.43N | 146 | Diesel | 2004–2006 |
| FIAT | 2.8 JTD Power | DUCATO Van (244_) | 8140.43N | 146 | Diesel | 2004–2006 |
| FIAT | 2.8 TD | DUCATO Bus (244_) | 8140.43 | 122 | Diesel | 2003–2006 |
| FIAT | 2.8 TD | DUCATO Van (244_) | 8140.43 | 122 | Diesel | 2001–2006 |
| FIAT | 2.8 TD 4x4 | DUCATO Bus (244_) | 8140.43 | 122 | Diesel | 2003–2006 |
| FIAT | 2.8 TD 4x4 | DUCATO Van (230_) | 8140.43 | 122 | Diesel | 1998–2001 |
| FIAT | 2.8 TDI | DUCATO Bus (230_) | 8140.43 | 122 | Diesel | 1997–2002 |
| FIAT | 2.8 TDI | DUCATO Platform/Chassis (230_) | 8140.43 | 122 | Diesel | 1998–2002 |
| FIAT | 2.8 TDI | DUCATO Van (230_) | 8140.43 | 122 | Diesel | 1997–2002 |
| FIAT | 2.8 TDI 4x4 | DUCATO Bus (230_) | 8140.43 | 122 | Diesel | 1999–2002 |
| FIAT | 2.8 TDI 4x4 | DUCATO Van (230_) | 8140.43 | 122 | Diesel | 1999–2002 |
| FIAT | 2.8 iDTD 4x4 | DUCATO Platform/Chassis (230_) | 8140.43 | 122 | Diesel | 1998–2001 |
| PEUGEOT | 1.9 TD 4x4 | BOXER Bus (230P) | D8C(XUD9UTF) | 92 | Diesel | 1996–2002 |
| PEUGEOT | 2.5 DT | BOXER Bus (230P) | 8140.67 | 84 | Diesel | 1997–2001 |
| PEUGEOT | 2.5 DT | BOXER Van (230L) | 8140.67 | 84 | Diesel | 1997–2001 |
| PEUGEOT | 2.8 D | BOXER Bus (230P) | 8140.63(F28D) | 87 | Diesel | 1999–2002 |
| PEUGEOT | 2.8 D | BOXER Platform/Chassis (ZCT_) | 8140.63(F28D) | 87 | Diesel | 1999–2002 |
| PEUGEOT | 2.8 D | BOXER Van (230L) | 8140.63(F28D) | 87 | Diesel | 1999–2002 |
| PEUGEOT | 2.8 HDI | BOXER Bus (230P) | 8140.43S(F28DTCR) | 128 | Diesel | 2000–2002 |
| PEUGEOT | 2.8 HDI | BOXER Platform/Chassis (ZCT_) | 8140.43S(F28DTCR) | 128 | Diesel | 2000–2002 |
| PEUGEOT | 2.8 HDI | BOXER Van (230L) | 8140.43S(F28DTCR) | 128 | Diesel | 2000–2002 |
| PEUGEOT | 2.8 HDi | BOXER Bus (230P) | 8140.43S(F28DTCR) | 126 | Diesel | 2000–2001 |
| PEUGEOT | 2.8 HDi | BOXER Bus (244, Z_) | 8140.43N | 145 | Diesel | 2004–2006 |
| PEUGEOT | 2.8 HDi | BOXER Bus (244, Z_) | 8140.43S(F28DTCR) | 128 | Diesel | 2001–2006 |
| PEUGEOT | 2.8 HDi | BOXER Platform/Chassis (244) | 8140.43N | 146 | Diesel | 2004–2006 |
| PEUGEOT | 2.8 HDi | BOXER Platform/Chassis (244) | 8140.43S(F28DTCR) | 128 | Diesel | 2001–2006 |
| PEUGEOT | 2.8 HDi | BOXER Platform/Chassis (ZCT_) | 8140.43S(F28DTCR) | 126 | Diesel | 2000–2001 |
| PEUGEOT | 2.8 HDi | BOXER Van (230L) | 8140.43S(F28DTCR) | 126 | Diesel | 2000–2001 |
| PEUGEOT | 2.8 HDi | BOXER Van (244) | 8140.43S(F28DTCR) | 128 | Diesel | 2001–2006 |
| PEUGEOT | 2.8 HDi | BOXER Van (244) | 8140.43N | 146 | Diesel | 2004–2006 |
| PEUGEOT | 2.8 HDi 4x4 | BOXER Bus (230P) | 8140.43S(F28DTCR) | 128 | Diesel | 2000–2002 |
| PEUGEOT | 2.8 HDi 4x4 | BOXER Bus (244, Z_) | 8140.43S(F28DTCR) | 128 | Diesel | 2001–2006 |
| PEUGEOT | 2.8 HDi 4x4 | BOXER Platform/Chassis (244) | 8140.43S(F28DTCR) | 128 | Diesel | 2001–2006 |
| PEUGEOT | 2.8 HDi 4x4 | BOXER Van (230L) | 8140.43S(F28DTCR) | 128 | Diesel | 2000–2002 |
| PEUGEOT | 2.8 HDi 4x4 | BOXER Van (230L) | 8140.43S(F28DTCR) | 126 | Diesel | 2000–2001 |
| PEUGEOT | 2.8 HDi 4x4 | BOXER Van (244) | 8140.43S(F28DTCR) | 128 | Diesel | 2001–2006 |
| SANTANA | 2.8 D 4x4 | PS10/ANIBAL | 8140.43P | 125 | Diesel | 2003– |
| SANTANA | 2.8 TD | PS10/ANIBAL | 8140.43P | 125 | Diesel | 2002– |
| SANTANA | 2.8 TD All-wheel Drive | PS10/ANIBAL Open Off-Road Vehicle | 8140.43P | 125 | Diesel | 2004–2008 |
