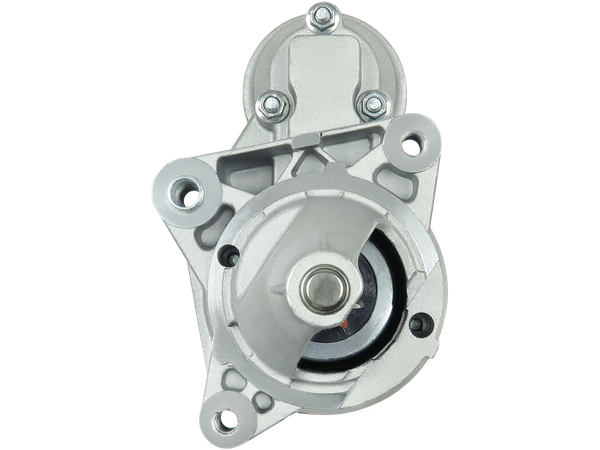

S4020

S4020

Startmotorer

STANDARD LINE
718 kr Köp nu
EAN5901259422535
TillverkareAS-PL
ErsätterMAGNETI MARELLI
OE-nummer 63103002
DatabladLadda ner PDF med skiss och mått

Specifikationer

Spänning [ V ]12
Effekt [ kW ]0.90
Startmotors rotationCW
A-storlek [ mm ]64.00
B-storlek [ mm ]11.00
Antal kuggar [ qty. ]9
Antal kuggar (passar in) [ qty. ]8. 9
Antal hål i huvudet [ qty. ]3
Antal gängade hål [ qty. ]3
L.1 [ mm ]208.00
O.1 [ mm ]105.00
O.2 [ mm ]72.00
O.3 [ mm ]72.00
C.1 [ mm ]M8x1.25
C.2 [ mm ]M8x1.25
C.3 [ mm ]M8x1.25

Passar i 170 fordon

Märke Modell Typ Motor Hk Bränsle År
CITROËN 1.6 JUMPY I (U6U_) 220A2.000 79 Petrol 1995–2000
CITROËN 1.6 JUMPY I (U6U_) 1580SPI 79 Petrol 1995–2000
CITROËN 1.6 i JUMPY I Van (BS_, BT_, BY_, BZ_) 1580SPI 79 Petrol 1995–2000
CITROËN 1.6 i JUMPY I Van (BS_, BT_, BY_, BZ_) 220A2.000 79 Petrol 1995–2000
FIAT 1.1 UNO (146_, 158_) 146A4.048 58 Petrol 1988–2006
FIAT 1.1 UNO (146_, 158_) 160A3.000 58 Petrol 1988–2006
FIAT 1.3 Turbo i.e. UNO (146_, 158_) 146A2.146 99 Petrol 1987–1987
FIAT 1.3 Turbo i.e. UNO (146_, 158_) 146A2.246 101 Petrol 1989–1991
FIAT 1.3 Turbo i.e. UNO (146_, 158_) 146A2.000 105 Petrol 1985–1989
FIAT 1.4 FIORINO Box Body/MPV (146_) 146C5.000 71 Petrol 1992–1996
FIAT 1.4 FIORINO Pick up (146_) 146D5.000 67 Petrol 1994–2001
FIAT 1.4 PALIO (178_, 171_, 371_) 178B2.000 69 Petrol 1996–2002
FIAT 1.4 PALIO Weekend (178_, 173_, 373_, 374_, 171_) 178B2.000 69 Petrol 1997–2001
FIAT 1.4 SIENA (178_, 172_, 372_) 178B2.000 69 Petrol 1996–2009
FIAT 1.4 (146RE) FIORINO MPV (146_) 146D5.000 67 Petrol 1996–2000
FIAT 1.4 (159AA) TEMPRA S.W. (159_) 159A2.000 73 Petrol 1991–1993
FIAT 1.4 (160.AC) TIPO (160_) 160A1.000 71 Petrol 1987–1989
FIAT 1.4 (160.AC) TIPO (160_) 160A1.048 71 Petrol 1987–1989
FIAT 1.4 Cat PALIO (178_, 171_, 371_) 178B2.016 69 Petrol 1996–2001
FIAT 1.4 Cat SIENA (178_, 172_, 372_) 178B2.016 69 Petrol 1996–2009
FIAT 1.4 GT Turbo (176AD_) PUNTO (176_) 176A4.000 133 Petrol 1993–1997
FIAT 1.4 GT Turbo (176AS_) PUNTO (176_) 176B6.000 131 Petrol 1996–1999
FIAT 1.4 Turbo i.e. UNO (146_, 158_) 146A8.000 118 Petrol 1989–1996
FIAT 1.4 Turbo i.e. UNO (146_, 158_) 146A8.046 112 Petrol 1989–1993
FIAT 1.4 i.e. TIPO (160_) 159A2.000 78 Petrol 1989–1995
FIAT 1.4 i.e. (159.AA) TEMPRA (159_) 159A2.000 78 Petrol 1991–1996
FIAT 1.4 i.e. (159.AC) TEMPRA S.W. (159_) 159A2.000 78 Petrol 1991–1996
FIAT 1.4 i.e. (159.AC, 159.AX) TEMPRA (159_) 160A1.046 69 Petrol 1990–1996
FIAT 1.4 i.e. (159.AC, 159.AX) TEMPRA (159_) 159A2.000 69 Petrol 1990–1996
FIAT 1.4 i.e. (159.AC, 159.AX) TEMPRA (159_) 836A4.000 69 Petrol 1990–1996
FIAT 1.4 i.e. (159.AC, 159.AX) TEMPRA S.W. (159_) 836A4.000 69 Petrol 1992–1996
FIAT 1.4 i.e. (159.AC, 159.AX) TEMPRA S.W. (159_) 160A1.046 69 Petrol 1992–1996
FIAT 1.4 i.e. (159.AC, 159.AX) TEMPRA S.W. (159_) 159A2.000 69 Petrol 1992–1996
FIAT 1.4 i.e. (160.AP, 160.AD, 160.EA) TIPO (160_) 836A4.000 70 Petrol 1989–1995
FIAT 1.4 i.e. (160.AP, 160.AD, 160.EA) TIPO (160_) 160A1.048 70 Petrol 1989–1995
FIAT 1.4 i.e. (160.AP, 160.AD, 160.EA) TIPO (160_) 160A1.046 70 Petrol 1989–1995
FIAT 1.4 iE (146RB) FIORINO MPV (146_) 146C5.000 71 Petrol 1993–1996
FIAT 1.5 RITMO (138_) 138A2.000 75 Petrol 1978–1988
FIAT 1.5 RITMO (138_) 138C3.048 75 Petrol 1978–1988
FIAT 1.5 RITMO (138_) 149A5.000 79 Petrol 1985–1987
FIAT 1.5 RITMO (138_) 138A4.000 85 Petrol 1981–1987
FIAT 1.5 RITMO (138_) 138C2.048 75 Petrol 1978–1988
FIAT 1.5 RITMO (138_) 138B3.000 82 Petrol 1983–1987
FIAT 1.5 RITMO (138_) 149C1.000 75 Petrol 1978–1988
FIAT 1.5 (149A9) FIORINO MPV (146_) 149C1.000 75 Petrol 1988–1992
FIAT 1.6 FIORINO Pick up (146_) 146C6.000 75 Petrol 1994–2001
FIAT 1.6 FIORINO Pick up (146_) 146D6.000 75 Petrol 1994–2001
FIAT 1.6 MAREA (185_) 185A3.000 92 Petrol 1999–2000
FIAT 1.6 MAREA (185_) 182B6.000 103 Petrol 2000–2002
FIAT 1.6 MAREA Weekend (185_) 182B6.000 103 Petrol 2000–2002
FIAT 1.6 RITMO (138_) 149A4.000 100 Petrol 1983–1987
FIAT 1.6 RITMO (138_) 138AR.000 90 Petrol 1985–1987
FIAT 1.6 SCUDO Bus (220_) 220A2.000 79 Petrol 1996–2006
FIAT 1.6 SCUDO Platform/Chassis (220_) 220A2.000 79 Petrol 1996–2006
FIAT 1.6 SCUDO Van (220_) 220A2.000 79 Petrol 1996–2006
FIAT 1.6 TEMPRA S.W. (159_) 159A3.048 69 Petrol 1993–1996
FIAT 1.6 TEMPRA S.W. (159_) 159A3.000 86 Petrol 1990–1993
FIAT 1.6 TIPO (160_) 160A2.000 79 Petrol 1988–1992
FIAT 1.6 (159.AD) TEMPRA (159_) 159B9.000 86 Petrol 1990–1994
FIAT 1.6 (159.AD) TEMPRA (159_) 159A3.000 86 Petrol 1990–1994
FIAT 1.6 (159AE) TEMPRA S.W. (159_) 159A3.046 77 Petrol 1991–1993
FIAT 1.6 (159AS, 159AT) TEMPRA (159_) 159A3.048 69 Petrol 1990–1996
FIAT 1.6 (160.AE) TIPO (160_) 160A2.000 83 Petrol 1988–1991
FIAT 1.6 100 16V MAREA (185_) 182A4.000 103 Petrol 1996–2002
FIAT 1.6 100 16V MAREA Weekend (185_) 182A4.000 103 Petrol 1996–2002
FIAT 1.6 100 16V Bipower MAREA (185_) 186A4.000 103 Petrol/Compressed Natural Gas (CNG) 1999–2002
FIAT 1.6 100 16V Bipower MAREA (185_) 185A3.000 103 Petrol/Compressed Natural Gas (CNG) 1999–2002
FIAT 1.6 16V MAREA (185_) 185A3.000 102 Petrol 1997–1999
FIAT 1.6 16V PALIO (178_, 171_, 371_) 178B3.000 100 Petrol 1996–2002
FIAT 1.6 16V SIENA (178_, 172_, 372_) 178B3.000 101 Petrol 1998–2009
FIAT 1.6 16V (178DXD1A) PALIO Weekend (178_, 173_, 373_, 374_, 171_) 178B3.000 100 Petrol 1996–2001
FIAT 1.6 16V (182.AB) BRAVO I (182_) 182A4.000 103 Petrol 1996–2001
FIAT 1.6 16V (182.AH) BRAVO I (182_) 182A6.000 90 Petrol 1995–2001
FIAT 1.6 16V (182.BB) BRAVA (182_) 182A4.000 103 Petrol 1996–2001
FIAT 1.6 16V (182.BH) BRAVA (182_) 182A6.000 90 Petrol 1995–2001
FIAT 1.6 i.e. TIPO (160_) 149C2.046 90 Petrol 1988–1991
FIAT 1.6 i.e. (159.AE) TEMPRA (159_) 159A3.046 78 Petrol 1990–1992
FIAT 1.6 i.e. (159.AE) TEMPRA S.W. (159_) 835C1.000 78 Petrol 1990–1996
FIAT 1.6 i.e. (159.AE) TEMPRA S.W. (159_) 159A3.046 78 Petrol 1990–1996
FIAT 1.6 i.e. (159.AJ) TEMPRA (159_) 159B9.000 90 Petrol 1994–1996
FIAT 1.6 i.e. (159.AJ) TEMPRA (159_) 159B9.000 87 Petrol 1994–1996
FIAT 1.6 i.e. (159.AJ) TEMPRA S.W. (159_) 159B9.000 90 Petrol 1994–1996
FIAT 1.6 i.e. (159.AS, 159.AT) TEMPRA (159_) 159A3.048 75 Petrol 1992–1996
FIAT 1.6 i.e. (159.AS, 159.AT) TEMPRA (159_) 835C1.000 75 Petrol 1992–1996
FIAT 1.6 i.e. (159.AS, 159.AT) TEMPRA S.W. (159_) 835C1.000 75 Petrol 1992–1996
FIAT 1.6 i.e. (159.AS, 159.AT) TEMPRA S.W. (159_) 159A3.048 75 Petrol 1992–1996
FIAT 1.6 i.e. (160.A1, 160.EC, 160.EB) TIPO (160_) 835C1.000 75 Petrol 1992–1995
FIAT 1.6 i.e. (160.A1, 160.EC, 160.EB) TIPO (160_) 159A3.048 75 Petrol 1992–1995
FIAT 1.6 i.e. (160.AF) TIPO (160_) 159A3.046 78 Petrol 1990–1993
FIAT 1.6 iE (146RC, 146RF) FIORINO MPV (146_) 146C6.000 75 Petrol 1993–2000
FIAT 1.6 iE (146RC, 146RF) FIORINO MPV (146_) 146D6.000 75 Petrol 1993–2000
FIAT 1.8 GT (182.AC) BRAVO I (182_) 182A2.000 113 Petrol 1995–2001
FIAT 1.8 GT 16V (182.BC) BRAVA (182_) 182A2.000 113 Petrol 1995–2001
FIAT 1.9 TD (160.EL, 160.GL, 160.AQ, 160.EI, 160.AR) TIPO (160_) 160A6.000 90 Diesel 1990–1995
FIAT 1.9 TD (160.EL, 160.GL, 160.AQ, 160.EI, 160.AR) TIPO (160_) 160D1.000 90 Diesel 1990–1995
FIAT 1.9 TD (160.EL, 160.GL, 160.AQ, 160.EI, 160.AR) TIPO (160_) 160A6.046 90 Diesel 1990–1995
FIAT 100 1.6 REGATA (138_) 138AR.000 105 Petrol 1983–1986
FIAT 100 1.6 RITMO Convertible (138_) 138AR.000 105 Petrol 1985–1987
FIAT 100 1.6 RITMO Convertible (138_) 138AR.048 100 Petrol 1985–1987
FIAT 100 1.6 (RF) REGATA Weekend (138_) 149C3.000 101 Petrol 1984–1990
FIAT 100 1.6 (RF) REGATA Weekend (138_) 149A4.000 101 Petrol 1984–1990
FIAT 100 Super 1.6 REGATA (138_) 149A2.000 101 Petrol 1983–1990
FIAT 100 Super 1.6 REGATA (138_) 149A4.000 101 Petrol 1983–1990
FIAT 55 1.1 PUNTO (176_) 176B2.000 54 Petrol 1993–1999
FIAT 55 1.1 PUNTO (176_) 176A6.000 54 Petrol 1993–1999
FIAT 60 1.1 (146A.EG) UNO (146_, 158_) 146A4.048 58 Petrol 1985–1989
FIAT 70 1.3 UNO (146_, 158_) 138B2.000 68 Petrol 1983–1985
FIAT 70 S 1.4 UNO (146_, 158_) 160A1.048 71 Petrol 1988–2006
FIAT 70 S 1.4 UNO (146_, 158_) 160A1.046 71 Petrol 1988–2006
FIAT 70 i.e. 1.4 FIORINO Box Body/MPV (146_) 146D5.000 67 Petrol 1994–2001
FIAT 70 i.e. 1.4 FIORINO Box Body/MPV (146_) 146C5.000 67 Petrol 1994–2001
FIAT 70 i.e. 1.4 UNO (146_, 158_) 160A1.046 70 Petrol 1989–1996
FIAT 70 i.e. 1.4 UNO (146_, 158_) 146C1.000 72 Petrol 1989–1993
FIAT 75 1.5 REGATA (138_) 138B3.048 75 Petrol 1983–1989
FIAT 75 1.5 REGATA (138_) 138C3.048 75 Petrol 1983–1989
FIAT 75 1.5 REGATA (138_) 138C2.048 75 Petrol 1983–1989
FIAT 75 1.5 REGATA (138_) 149C1.000 75 Petrol 1983–1989
FIAT 75 1.5 REGATA Weekend (138_) 138C2.048 75 Petrol 1984–1989
FIAT 75 1.5 REGATA Weekend (138_) 149C1.000 75 Petrol 1984–1989
FIAT 75 1.5 REGATA Weekend (138_) 138B3.048 75 Petrol 1984–1989
FIAT 75 1.5 REGATA Weekend (138_) 138C3.048 75 Petrol 1984–1989
FIAT 75 i.e. 1.5 FIORINO Box Body/MPV (146_) 149C1.000 75 Petrol 1988–1993
FIAT 75 i.e. 1.5 UNO (146_, 158_) 138C2.048 75 Petrol 1985–1993
FIAT 75 i.e. 1.5 UNO (146_, 158_) 149C1.000 75 Petrol 1985–1993
FIAT 75 i.e. 1.6 FIORINO Box Body/MPV (146_) 146C6.000 75 Petrol 1993–2001
FIAT 75 i.e. 1.6 FIORINO Box Body/MPV (146_) 146D6.000 75 Petrol 1993–2001
FIAT 85 1.5 REGATA (138_) 138B3.000 86 Petrol 1984–1986
FIAT 85 1.5 REGATA (138_) 149A5.000 79 Petrol 1985–1987
FIAT 85 1.5 REGATA Weekend (138_) 138B3.000 82 Petrol 1984–1989
FIAT 85 1.5 RITMO Convertible (138_) 138B3.000 82 Petrol 1983–1986
FIAT 85 1.5 RITMO Convertible (138_) 138A4.000 86 Petrol 1980–1989
FIAT 85 1.6 REGATA (138_) 149A.000 82 Petrol 1983–1990
FIAT 85 Super 1.5 REGATA (138_) 138B3.000 82 Petrol 1983–1985
INNOCENTI 1.4 i.e. (146EN, 146EQ) ELBA 146D5.000 67 Petrol 1994–1996
INNOCENTI 1.4 i.e. (146EN, 146EQ) ELBA 146C5.000 67 Petrol 1994–1996
INNOCENTI 1.5 i.e. (146C9) ELBA 149C1.000 75 Petrol 1992–1994
INNOCENTI 1.6 i.e. (146EO, 146ER) ELBA 146D6.000 75 Petrol 1994–1996
INNOCENTI 1.6 i.e. (146EO, 146ER) ELBA 146C6.000 75 Petrol 1994–1996
LANCIA 1.0 Turbo (156D) Y10 (156_) 156A1.000 84 Petrol 1985–1989
LANCIA 1.1 (831AB.015) DELTA I (831_) 831B8.000 64 Petrol 1986–1990
LANCIA 1.3 (831.AB) DELTA I (831_) 831A2.000 79 Petrol 1983–1992
LANCIA 1.4 i.e. (836AF, 836AH) DELTA II (836_) 160A1.046 69 Petrol 1994–1999
LANCIA 1.4 i.e. (836AF, 836AH) DELTA II (836_) 836A4.000 69 Petrol 1994–1999
LANCIA 1.5 (831AB) PRISMA (831_) 831B1.048 75 Petrol 1985–1992
LANCIA 1.5 (831AB) PRISMA (831_) 138C2.048 75 Petrol 1985–1992
LANCIA 1.5 (831AB) PRISMA (831_) 831B1.000 80 Petrol 1986–1989
LANCIA 1.5 (831AB) PRISMA (831_) 831A1.000 86 Petrol 1983–1986
LANCIA 1.5 (831AB.025) DELTA I (831_) 831B1.000 86 Petrol 1979–1992
LANCIA 1.5 (831AB.025) DELTA I (831_) 831A1.000 86 Petrol 1979–1992
LANCIA 1.6 (835EB) DEDRA SW (835_) 159B9.000 90 Petrol 1994–1999
LANCIA 1.6 16V (835EI) DEDRA (835_) 182A4.000 103 Petrol 1996–1999
LANCIA 1.6 16V (835EI) DEDRA SW (835_) 182A4.000 103 Petrol 1996–1999
LANCIA 1.6 LE Cat (835EB) DEDRA (835_) 159B9.000 90 Petrol 1994–1999
LANCIA 1.6 i.e. (835AA) DEDRA (835_) 835A1.000 90 Petrol 1989–1994
LANCIA 1.6 i.e. (835AB) DEDRA (835_) 835A1.046 78 Petrol 1989–1993
LANCIA 1.6 i.e. (835AN) DEDRA (835_) 835C1.000 75 Petrol 1993–1999
LANCIA 1.6 i.e. (836AD) DELTA II (836_) 835C1.000 75 Petrol 1993–1999
LANCIA 1.6 i.e. (836AP) DELTA II (836_) 182A6.000 90 Petrol 1996–1999
LANCIA 1.6 i.e. 16V (836AO) DELTA II (836_) 182A4.000 103 Petrol 1996–1999
LANCIA 1.8 16V LE (835FG) DEDRA (835_) 182A2.000 113 Petrol 1996–1999
LANCIA 1.8 16V LE (835FG) DEDRA SW (835_) 182A2.000 113 Petrol 1996–1999
LANCIA 1.9 TDS (835EE, 835EF) DEDRA (835_) 835A4.000 90 Diesel 1989–1999
LANCIA 1.9 TDS (835EE, 835EF) DEDRA (835_) 160D1.000 90 Diesel 1989–1999
LANCIA 1.9 TDS (835EE, 835EF) DEDRA (835_) 835A4.046 90 Diesel 1989–1999
PEUGEOT 1.6 EXPERT (224_) 222A2(1580SPI) 79 Petrol 1996–2000
PEUGEOT 1.6 EXPERT Platform/Chassis (223) 222A2(1580SPI) 79 Petrol 1996–2000
PEUGEOT 1.6 EXPERT Van (222) 222A2(1580SPI) 79 Petrol 1996–2000
YUGO 1.4 FLORIDA (VX65) 160A1.000 69 Petrol 1991–1995
YUGO 1.4 Cat FLORIDA (VX65) 160A1.000 71 Petrol 1988–2008
YUGO 1.6 FLORIDA (VX65) 149A.000 84 Petrol 1989–1995

Relaterade produkter

S0263

S0263

Startmotorer — Art.nr: S0263
718 kr Visa
S1221S

S1221S

Startmotorer — Art.nr: S1221S
718 kr Visa
S2017

S2017

Startmotorer — Art.nr: S2017
718 kr Visa
S5274S

S5274S

Startmotorer — Art.nr: S5274S
718 kr Visa
S5303S

S5303S

Startmotorer — Art.nr: S5303S
718 kr Visa
S5335S

S5335S

Startmotorer — Art.nr: S5335S
718 kr Visa
S5340S

S5340S

Startmotorer — Art.nr: S5340S
718 kr Visa
S5338S

S5338S

Startmotorer — Art.nr: S5338S
718 kr Visa
