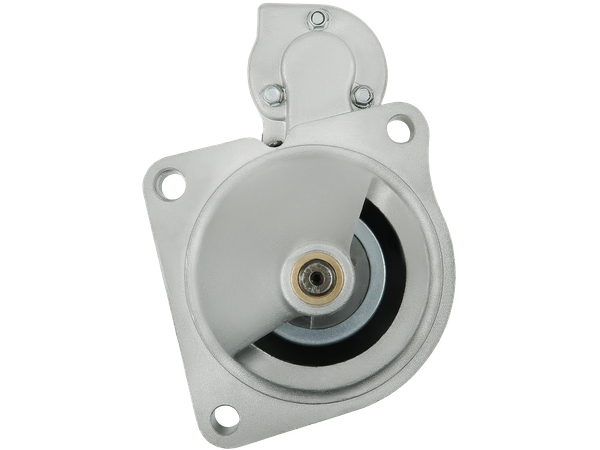

S4021SR

S4021SR

Startmotorer

STANDARD LINE
1378 kr Köp nu
EAN5902129161318
TillverkareAS-PL
ErsätterMAGNETI MARELLI
OE-nummer 3EFFE: PRSL022, STRL022M
ACAUTO: AC-CBS0231
ALANKO: 10440166
ANDEL: ANM13380
ATL AUTOTECHNIK: A11160
BOSCH: 0001363101, 0001363111, 0986011160, 0986011161
BTS TURBO: S100815
CARGO: 110517, F032110517
CASCO: CST10736AS, CST30600AS, CST30600GS, CST30600OS
CEVAM: 8651
DAF: 1516715R
DELCO: 19024242, DRS1160
EAI: 33345
EFEL: 12080
ELECTROLOG: STR90015
ELSTOCK: 45-0345
ERA: 220262
FARCOM: 103429
FIAT: 42498142, 42498230, 4706931, 4752403, 6706931, 77050561, 77080560, 77080561, 929162
FRIESEN: 8811160
GHIBAUDI: SG0059, SG0059RB
HC PARTS: CS231
HELLA: 8EA012586-061
HENKEL PARTS: 3118886, 3118888, 3118890
HOFFER: H5110001
ISKRA / LETRIKA: 11.130.146, 11.130.216, AZJ3520, AZJ3542, IS0216
ITAB AUTOMOTIVE: 10010736AV, 10030600AV, 10030600OV
IVECO: 2997051, 4744811, 4807377, 504038038
KUHNER: 10231, 10231M, 10231MH
LUCAS: LRS00839, LRS839
MAGNETI MARELLI: 063217226010, 63217201, 63217225, 63217226, 943202311010, MSN237, MSRC231, MT72AB
MAHLE: 72736017, MS389
MEAT & DORIA: 5110001
MEC DIESEL: 430090, 430090M
POWER TRUCK: PTC-4194
POWERMAX: 88212843
PRESTOLITE: 20500839
PROTECH: IR8224
PSH: 501.001.093.010, 501.001.093.016, 501.001.093.215, 501.001.093.311, S132.655, S143.946, S163.567
REAL: 20401637BN, 20404006BN, 20404006OE, 20404006RE
REMANTE: 011-001-000582R
ROBERT'S: 182-30301
SANDO: 6010736.0, 6030600.0, 6030600.1, 6030600.4
SIDAT: S24BH0157A2
SNRA: PL9012
STARDAX: STX200311
STARTCAR: 345ST33
TMI: ST02470
UNIC-SIMCA: 004691200X
VALEO: 455520
WAI / TRANSPO: 18031N
WILMINK GROUP: WG2174921
WOODAUTO: STR22005
DatabladLadda ner PDF med skiss och mått

Specifikationer

Spänning [ V ]24
Effekt [ kW ]3.20
Startmotors rotationCW
A-storlek [ mm ]110.00
B-storlek [ mm ]27.50
Antal kuggar [ qty. ]9
Antal hål i huvudet [ qty. ]3
Antal gängade hål [ qty. ]0
L.1 [ mm ]297.00q
O.1 [ mm ]147.00
O.2 [ mm ]104.00
O.3 [ mm ]104.00
C.1 [ mm ]12.50
C.2 [ mm ]12.50
C.3 [ mm ]12.50

Passar i 122 fordon

Märke Modell Typ Motor Hk Bränsle År
FIAT 50N, 50NC Series 50 8040.02 82 1972–1976
FIAT 55N Series 55 8040.02 82 1972–1976
FIAT 65P Series 65 8040.02 82 1975–1977
FIAT 65P Series 65 8040.02 82 1977–1979
FIAT 65P Series 65 8040.02 82 1975–1979
IVECO 50-8 ZETA 8040.04.200 86 1983–1986
IVECO 50-8 H ZETA 8040.04.200 86 1983–1986
IVECO 50-8 V ZETA 8040.04.200 86 1983–1986
IVECO 50-9 ZETA 8040.05.230 88 1987–1991
IVECO 50-9 H ZETA 8040.05.230 88 1987–1991
IVECO 50-9 V ZETA 8040.05.230 88 1987–1991
IVECO 60 E 10 EUROCARGO I-III 8040.25B.4200 102 1991–2015
IVECO 60 E 12 EUROCARGO I-III 8040.25X.4000 116 1991–2015
IVECO 60 E 14 K EUROCARGO I-III 8040.45.4000 136 1991–2015
IVECO 60 E 14, 60 E 14 P EUROCARGO I-III 8040.45.4000 136 1991–2015
IVECO 60-11 ZETA 8040.25.230R 101 1987–1991
IVECO 60-11 V ZETA 8040.25.230R 101 1987–1991
IVECO 60-8 ZETA 8040.04.200 86 1979–1982
IVECO 60-8 ZETA 8040.04.200 86 1979–1983
IVECO 60-8 ZETA 8040.04.200 86 1979–1981
IVECO 65 E 10 EUROCARGO I-III 8040.25B.4200 102 1991–2015
IVECO 65 E 10 K EUROCARGO I-III 8040.25B.4200 102 1991–2015
IVECO 65 E 12 K EUROCARGO I-III 8040.25X.4000 116 1991–2015
IVECO 65 E 12, 65 E 12 P EUROCARGO I-III 8040.25X.4000 116 1991–2015
IVECO 65 E 14 K EUROCARGO I-III 8040.45.4000 136 1991–2015
IVECO 65 E 14, 65 E 14 P EUROCARGO I-III 8040.45.4000 136 1991–2015
IVECO 65-12 ZETA 8040.25.200 116 1987–1991
IVECO 65-12 H ZETA 8040.25.200 116 1987–1991
IVECO 65-12 V ZETA 8040.25.200 116 1987–1991
IVECO 65-9 ZETA 8040.05.230 88 1987–1991
IVECO 75 E 12 K EUROCARGO I-III 8040.25X.4000 116 1991–2015
IVECO 75 E 12, 75 E 12 P EUROCARGO I-III 8040.25X.4000 116 1991–2015
IVECO 75 E 14 EUROFIRE I 8040.45 136 1991–2000
IVECO 75 E 14 K EUROCARGO I-III 8040.45.4180 136 1991–2015
IVECO 75 E 14 K EUROCARGO I-III 8040.45.4000 136 1991–2015
IVECO 75 E 14, 75 E 14 P EUROCARGO I-III 8040.45.4000 136 1991–2015
IVECO 75 E 14, 75 E 14 P EUROCARGO I-III 8040.45.4180 136 1991–2015
IVECO 79-12 ZETA 8040.25.200 116 1987–1991
IVECO 79-12 ZETA 8040.25.220 116 1987–1991
IVECO 79-12 H ZETA 8040.25.220 116 1987–1991
IVECO 79-12 H ZETA 8040.25.200 116 1987–1991
IVECO 79-12 V ZETA 8040.25.220 116 1987–1991
IVECO 79-12 V ZETA 8040.25.200 116 1987–1991
IVECO AD 180T27 W, AT 180T27 W TRAKKER I F2BE0681F 272 2005–2007
IVECO AD 190S27, AT 190S27 STRALIS I F2BE0681C 272 2003–
IVECO AD 190S27, AT 190S27 STRALIS I F2BE0681F 272 2004–
IVECO AD 190S27, AT 190S27 STRALIS I F2BE0681F 272 2003–
IVECO AD 190S31, AT 190S31 STRALIS I F2BE3681C 310 2004–
IVECO AD 190S33, AT 190S33 STRALIS I F2BE3681B 330 2007–
IVECO AD 190S35 STRALIS I F2BE0681A 352 2004–
IVECO AD 190S36, AT 190S36 STRALIS I F2BE3681A 360 2007–
IVECO AD 190T27, AT 190T27 TRAKKER I F2BE0681F 272 2005–2007
IVECO AD 190T31 W, AT 190T31 W TRAKKER I F2BE3681C 310 2005–2007
IVECO AD 190T31 W, AT 190T31 W TRAKKER I F2BE0681B 310 2004–2012
IVECO AD 190T31 W, AT 190T31 W TRAKKER I F2BE0681B 310 2005–2007
IVECO AD 190T31, AT 190T31 TRAKKER I F2BE0681B 310 2004–2007
IVECO AD 190T33 W, AT 190T33 W TRAKKER I F2BE3681B 330 2006–2012
IVECO AD 190T33, AT 190T33 TRAKKER I F2BE3681B 330 2006–2012
IVECO AD 190T35 W, AD 190T36 W, AT 190T35 W, AT 190T36 W TRAKKER I F2BE3681A 352-360 2004–2007
IVECO AD 190T35 W, AD 190T36 W, AT 190T35 W, AT 190T36 W TRAKKER I F2BE0681A 352-360 2004–2007
IVECO AD 190T35 W, AT 190T35 W, AD 190T36 W, AT 190T36 W TRAKKER I F2BE3681A 352-360 2005–2007
IVECO AD 190T35 W, AT 190T35 W, AD 190T36 W, AT 190T36 W TRAKKER I F2BE0681A 352-360 2005–2007
IVECO AD 190T35, AD 190T36, AT 190T35, AT 190T36 TRAKKER I F2BE3681A 352-360 2004–2012
IVECO AD 190T35, AD 190T36, AT 190T35, AT 190T36 TRAKKER I F2BE0681A 352-360 2004–2012
IVECO AD 190T35, AT 190T35, AD 190T36, AT 190T36 TRAKKER I F2BE0681A 352 2005–2007
IVECO AD 260S27 CNG, AT 260S27 CNG STRALIS I F2BE0641 272 2008–
IVECO AD 260S27, AT 260S27 STRALIS I F2BE0681F 272 2004–
IVECO AD 260S30 CNG STRALIS I F2BE0641 299-301 2013–
IVECO AD 260S30, AT 260S30 STRALIS I F2BE0681E 296 2005–
IVECO AD 260S31, AT 260S31 STRALIS I F2BE3681C 310 2004–
IVECO AD 260S31, AT 260S31 STRALIS I F2BE3681C 310 2003–
IVECO AD 260S31, AT 260S31 STRALIS I F2BE0681B 310 2003–
IVECO AD 260S33, AT 260S33 STRALIS I F2BE3681B 330 2006–
IVECO AD 260S33, AT 260S33 STRALIS I F2BE3681B 330 2007–
IVECO AD 260S35, AT 260S35, AD 260S36, AT 260S36 STRALIS I F2BE0681A 352-360 2003–
IVECO AD 260S35, AT 260S35, AD 260S36, AT 260S36 STRALIS I F2BE3681A 352-360 2003–
IVECO AD 260S36, AT 260S36 STRALIS I F2BE3681A 360 2007–
IVECO AD 260T31 B TRAKKER I F2BE0681B 310 2005–2007
IVECO AD 260T31, AT 260T31 TRAKKER I F2BE0681B 310 2004–
IVECO AD 260T31, AT 260T31 TRAKKER I F2BE0681B 310 2004–2007
IVECO AD 260T33 B TRAKKER I F2BE3681B 330 2004–2012
IVECO AD 260T33, AD 380T33, AT 260T33, AT 380T33 TRAKKER I F2BE3681B 330 2006–2012
IVECO AD 260T35 B TRAKKER I F2BE0681A 352 2005–2007
IVECO AD 260T35 W, AT 260T35 W TRAKKER I F2BE0681A 352 2005–2007
IVECO AD 260T35, 260T36, 380T36, AT 260T35, 260T36, 380T36 TRAKKER I F2BE3681A 352-360 2004–2012
IVECO AD 260T35, 260T36, 380T36, AT 260T35, 260T36, 380T36 TRAKKER I F2BE0681A 352-360 2004–2012
IVECO AD 260T35, AT 260T35 TRAKKER I F2BE0681A 352-360 2004–2007
IVECO AD 260T36 B TRAKKER I F2BE3681A 360 2007–2012
IVECO AD 260T36 W, AD 380T36 W, AT 260T36 W, AT 380T36 W TRAKKER I F2BE3681A 360 2004–2012
IVECO AD 260T36, AT 260T36 TRAKKER I F2BE3681A 360 2006–2007
IVECO AD 340T35 B, AT 340T35 B TRAKKER I F2BE0681A 352 2005–2007
IVECO AD 340T35, AT 340T35 TRAKKER I F2BE0681A 352 2005–2007
IVECO AD 340T36 B TRAKKER I F2BE3681A 360 2006–2012
IVECO AD 340T36, AT 340T36 TRAKKER I F2BE3681A 360 2007–2012
IVECO AD 340T36, AT 340T36 TRAKKER I F2BE3681A 360 2006–2012
IVECO AD 380T35 TRAKKER I F2BE0681A 352 2005–2007
IVECO AD 380T36 W, AT 380T36 W TRAKKER I F2BE3681A 360 2006–2007
IVECO AD 400T35 T, AT 400T35 T TRAKKER I F2BE0681A 352 2005–2007
IVECO AD 400T36 T, AT 400T36 T TRAKKER I F2BE3681A 360 2004–2012
IVECO AD 410T35 TRAKKER I F2BE0681A 352 2005–2007
IVECO AD 410T36, AT 410T36 TRAKKER I F2BE3681A 360 2006–
IVECO AD 440S31, AT 440S31 STRALIS I F2BE0681B 310 2003–
IVECO AD 440S33, AT 440S33 STRALIS I F2BE3681B 330 2006–
IVECO AD 440S35, AT 440S35, AD 440S36, AT 440S36 STRALIS I F2BE3681A 352-360 2003–
IVECO AD 440S35, AT 440S35, AD 440S36, AT 440S36 STRALIS I F2BE0681A 352-360 2003–
IVECO AT 440S33 CNG STRALIS I F2BE0641 330 2013–
IVECO MP 180 E 24 W Cursor EUROTRAKKER F2BE0681D 245 1999–2004
IVECO MP 190 E 24 H Cursor EUROTRAKKER F2BE0681D 245 1999–2004
IVECO MP 190 E 31 H Cursor EUROTRAKKER F2BE0681B 310 1999–2004
IVECO MP 190 E 31 W Cursor EUROTRAKKER F2BE0681B 310 1999–2004
IVECO MP 190 E 35 H Cursor EUROTRAKKER F2BE0681A 352 1999–2004
IVECO MP 190 E 35 W Cursor EUROTRAKKER F2BE0681A 352 1999–2004
IVECO MP 260 E 31 H Cursor EUROTRAKKER F2BE0681B 310 1999–2004
IVECO MP 260 E 31 HB Cursor EUROTRAKKER F2BE0681B 310 1999–2004
IVECO MP 260 E 35 H Cursor EUROTRAKKER F2BE0681A 352 2000–2004
IVECO MP 260 E 35 W Cursor EUROTRAKKER F2BE0681A 352 1999–2004
IVECO MP 340 E 35 H Cursor EUROTRAKKER F2BE0681A 352 1999–2004
IVECO MP 340 E 35 HB Cursor EUROTRAKKER F2BE0681A 352 2001–2004
IVECO MP 380 E 35 H Cursor EUROTRAKKER F2BE0681A 352 2000–2004
IVECO MP 380 E 35 W Cursor EUROTRAKKER F2BE0681A 352 2000–2004
IVECO MP 400 E 35 HT Cursor EUROTRAKKER F2BE0681A 352 2000–2004
IVECO MP 410 E 35 H Cursor EUROTRAKKER F2BE0681A 352 2000–2004
