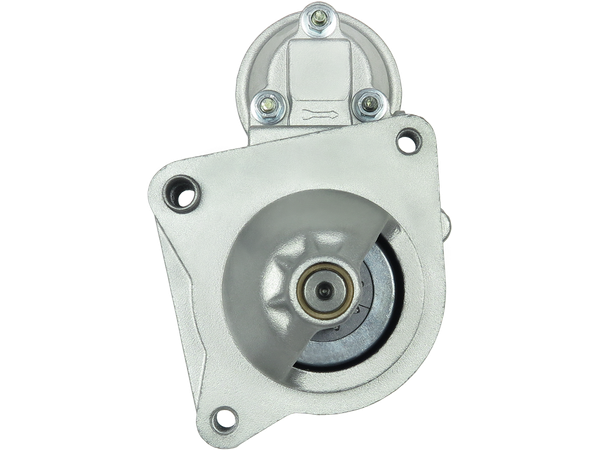

S4027SR
Startmotorer
STANDARD LINE
738 kr
Köp nu
| EAN | 5902129088394 |
| Tillverkare | AS-PL |
| Ersätter | MAGNETI MARELLI |
| OE-nummer |
3EFFE: STRL067 AS-PL: S4027 AUTOELECTRO: AEU1191 BOSCH: 0986022111 CASCO: CST30123, CST30123AS, CST30123ES, CST30123GS, CST30123OS, CST30123RS CEVAM: 3004 DELCO: DRS3583, DS4693, DS4697 EAI: 11947 ELECTROLOG: STR9015 ELSTOCK: 25-2337 ERA: 220693 FIAT: 46231536, 46451529, 46524472, 46531437, 46748349, 46748355, 46748356, 46821681, 51776205, 51832956, 51868757, 55193407, 70789523, 71721236, 71721266, 71721272, 71782308, 71782309, 71782310, 71789523, 71794531 GHIBAUDI: SG0779 HC PARTS: CS1191 HELLA: 8EA012527-391, 8EA737820-001 HERTH+BUSS: 42022111 KRAUF: STE1191 KUHNER: 101191 LUCAS: LRS01431, LRS1431 MAGNETI MARELLI: 63111008, 63111010, 63111016, 63111018, 63111019, 63111033, 63111036, 63111037, 63223536 POWERMAX: 88212300 PSH: 500.538.113, S132.945 REAL: 20404321 SANDO: 6030123 SIDAT: S12MA0821A2 SIOM: MAV2380, MAV6360 STARDAX: STX200212, STX200212R, STX200338 WAI / TRANSPO: 32579R |
| Datablad | Ladda ner PDF med skiss och mått |
Specifikationer
| Spänning [ V ] | 12 |
| Effekt [ kW ] | 1.40 |
| Startmotors rotation | CW |
| A-storlek [ mm ] | 63.50 |
| B-storlek [ mm ] | 14.00 |
| Antal kuggar [ qty. ] | 9 |
| Antal kuggar (passar in) [ qty. ] | 9, 11 |
| Antal hål i huvudet [ qty. ] | 3 |
| Antal gängade hål [ qty. ] | 3 |
| L.1 [ mm ] | 212.00 |
| O.1 [ mm ] | 105.00 |
| O.2 [ mm ] | 72.00 |
| O.3 [ mm ] | 72.00 |
| C.1 [ mm ] | M8x1.25 |
| C.2 [ mm ] | M8x1.25 |
| C.3 [ mm ] | M8x1.25 |
Passar i 26 fordon
| Märke | Modell | Typ | Motor | Hk | Bränsle | År |
|---|---|---|---|---|---|---|
| FIAT | 1.6 | MAREA (185_) | 185A3.000 | 92 | Petrol | 1999–2000 |
| FIAT | 1.6 | MAREA Weekend (185_) | 182B6.000 | 103 | Petrol | 2000–2002 |
| FIAT | 1.6 (186AXC1A, 186BMC1A, 186BXC1A) | MULTIPLA (186_) | 182B6.000 | 103 | Petrol | 2000–2010 |
| FIAT | 1.6 (186AXC1A, 186BMC1A, 186BXC1A) | MULTIPLA VAN (186_) | 182B6.000 | 103 | Petrol | 2000–2010 |
| FIAT | 1.6 100 16V | MAREA (185_) | 182A4.000 | 103 | Petrol | 1996–2002 |
| FIAT | 1.6 100 16V | MAREA Weekend (185_) | 182A4.000 | 103 | Petrol | 1996–2002 |
| FIAT | 1.6 100 16V (186AXA1A) | MULTIPLA (186_) | 182A4.000 | 103 | Petrol | 1999–2010 |
| FIAT | 1.6 100 16V Bipower | MAREA (185_) | 186A4.000 | 103 | Petrol/Compressed Natural Gas (CNG) | 1999–2002 |
| FIAT | 1.6 100 16V Bipower | MAREA (185_) | 185A3.000 | 103 | Petrol/Compressed Natural Gas (CNG) | 1999–2002 |
| FIAT | 1.6 16V | MAREA (185_) | 185A3.000 | 102 | Petrol | 1997–1999 |
| FIAT | 1.6 16V | PALIO Weekend (178_, 173_, 373_, 374_, 171_) | 182B6.000 | 103 | Petrol | 2001–2012 |
| FIAT | 1.6 16V | SIENA (178_, 172_, 372_) | 178B3.000 | 101 | Petrol | 1998–2009 |
| FIAT | 1.6 16V (178DXD1A) | PALIO Weekend (178_, 173_, 373_, 374_, 171_) | 178B3.000 | 100 | Petrol | 1996–2001 |
| FIAT | 1.6 16V (182.AB) | BRAVO I (182_) | 182A4.000 | 103 | Petrol | 1996–2001 |
| FIAT | 1.6 16V (182.AH) | BRAVO I (182_) | 182A6.000 | 90 | Petrol | 1995–2001 |
| FIAT | 1.6 16V (182.BB) | BRAVA (182_) | 182A4.000 | 103 | Petrol | 1996–2001 |
| FIAT | 1.6 16V (182.BH) | BRAVA (182_) | 182A6.000 | 90 | Petrol | 1995–2001 |
| FIAT | 1.6 16V (182.BU) | BRAVA (182_) | 182B6.000 | 103 | Petrol | 1999–2002 |
| FIAT | 1.6 16V Bipower (186AMB1A) | MULTIPLA (186_) | 186A4.000 | 103 | Petrol/Compressed Natural Gas (CNG) | 1999–2010 |
| FIAT | 1.6 16V Bipower (186AXC1A) | MULTIPLA (186_) | 182B6.000 | 103 | Petrol/Compressed Natural Gas (CNG) | 2001–2010 |
| FIAT | 1.6 16V Blupower (186AMA1A) | MULTIPLA (186_) | 186A3.000 | 95 | Petrol/Compressed Natural Gas (CNG) | 1999–2010 |
| LANCIA | 1.6 16V (835EI) | DEDRA (835_) | 182A4.000 | 103 | Petrol | 1996–1999 |
| LANCIA | 1.6 16V (835EI) | DEDRA SW (835_) | 182A4.000 | 103 | Petrol | 1996–1999 |
| LANCIA | 1.6 16V (839AXA1A) | LYBRA (839_) | 182A4.000 | 103 | Petrol | 1999–2005 |
| LANCIA | 1.6 16V (839BXA1A) | LYBRA SW (839_) | 182A4.000 | 103 | Petrol | 1999–2005 |
| LANCIA | 1.6 i.e. 16V (836AO) | DELTA II (836_) | 182A4.000 | 103 | Petrol | 1996–1999 |
