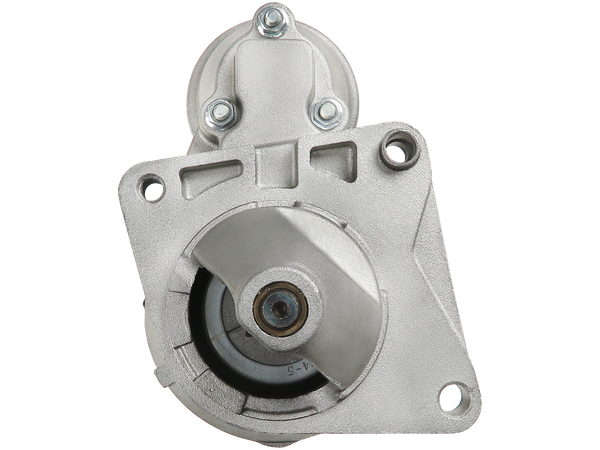

S4028SR
Startmotorer
STANDARD LINE
655 kr
Köp nu
| EAN | 5902129154327 |
| Tillverkare | AS-PL |
| Ersätter | MAGNETI MARELLI |
| OE-nummer |
3EFFE: PRSL126, PRSS693, PRSS700, STRL126, STRS693, STRS700 AINDE: CGB-53096 APEC: ASM1228 AUTO MAGNETO: AM-2723 AUTOELECTRO: AEU1192, NEU1192 BOSCH: 0986024210 CARGO: 112382, F032112382 CASCO: CST20150GS, CST30107AS, CST30107GS, CST30107OS DELCO: DRS3816X, DS4926N, RAS34927 DENSO: DSN961 ELECTROLOG: STR3217, STR9072 ELSTOCK: 25-3096 FIAT: 46429594, 46473785, 46518059, 46548653, 46548654, 46737560, 46763529, 51890633, 55196400, 55201304, 55201305, 71721222, 71782288, 71782351, 71782353, 71794607, 7622952, 7772859, 7796598 HC PARTS: CS1192 HELLA: 8EA012526-741, 8EA737823-001 HERTH+BUSS: 42024210 HITACHI: 136910, 2506910, S114-901B, S114-903, S114-903A, S114-949, S114-949A, S114949, S114949A KRAUF: STE1192 LUCAS: LRS01586, LRS1586 MAGNETI MARELLI: 063101018010, 63101015, 63101018, 63102018, 63102020, 944280800120, MSN400 MEAT & DORIA: 5020675, 5030043 NAPA: NPANSM1228 PEUGEOT: 46740242, 51833880, 55195030, 71793780 PRESTOLITE: 20513002 PSH: 500.544.083.000, 500.544.083.058, 500.544.083.265, 500.582.103.050, 500.582.103.080, 500.582.103.270, 500.582.103.275, S132.816, S144.456, S149.117 REAL: 20404701BN, 20404701OE, 20404701RE, 20445051OE ROLLCO: STM2016 SANDO: 6020150.1, 6030107.0, 6030107.1, 6030107.4 SIDAT: S12HT0009, S12HT0009A2, S12MA0009A2, S12MA0820A2 STARDAX: STX200032, STX200032R, STX200053, STX200053R, STX200057, STX200057R, STX200361, STX200361R WAI / TRANSPO: 31397N, 31397R WOODAUTO: DENDSN961, STR52025 |
| Datablad | Ladda ner PDF med skiss och mått |
Specifikationer
| Spänning [ V ] | 12 |
| Effekt [ kW ] | 0.80 |
| Startmotors rotation | CW |
| A-storlek [ mm ] | 64.00 |
| B-storlek [ mm ] | 12.00 |
| Antal kuggar [ qty. ] | 8 |
| Antal kuggar (passar in) [ qty. ] | 8. 10 |
| Antal hål i huvudet [ qty. ] | 3 |
| Antal gängade hål [ qty. ] | 1 |
| L.1 [ mm ] | 190.00 |
| O.1 [ mm ] | 74.00 |
| O.2 [ mm ] | 108.00 |
| O.3 [ mm ] | 74.00 |
| C.1 [ mm ] | 6.50 |
| C.2 [ mm ] | 8.50 |
| C.3 [ mm ] | M8x1.25 |
Passar i 58 fordon
| Märke | Modell | Typ | Motor | Hk | Bränsle | År |
|---|---|---|---|---|---|---|
| FIAT | 1.1 | PUNTO Van (176_) | 176B2.000 | 54 | Petrol | 1996–2000 |
| FIAT | 1.1 | UNO (146_, 158_) | 160A3.000 | 56 | Petrol | 1986–2006 |
| FIAT | 1.1 (187AXB, 187AXB1A, 187AXC1A02) | SEICENTO / 600 (187_) | 187A1.000 | 54 | Petrol | 1998–2010 |
| FIAT | 1.1 (187AXB, 187AXB1A, 187AXC1A02) | SEICENTO / 600 (187_) | 176B2.000 | 54 | Petrol | 1998–2010 |
| FIAT | 1.1 (187CXB/C) | SEICENTO / 600 Hatchback Van (287_) | 176B2.000 | 54 | Petrol | 1998–2010 |
| FIAT | 1.1 Sporting (170AH) | CINQUECENTO (170_) | 176B2.000 | 54 | Petrol | 1994–1998 |
| FIAT | 1.1 iE (170AH) | CINQUECENTO VAN (170_) | 176B2.000 | 54 | Petrol | 1994–1998 |
| FIAT | 1.2 | PALIO (178_, 171_, 371_) | 178B7.045 | 60 | Petrol | 1997–2002 |
| FIAT | 1.2 | PALIO (178_, 171_, 371_) | 176A8.000 | 73 | Petrol | 1998– |
| FIAT | 1.2 | PALIO (178_, 171_, 371_) | 188A4.000 | 60 | Petrol | 1997–2002 |
| FIAT | 1.2 | PALIO (178_, 171_, 371_) | 178E2.000 | 73 | Petrol | 1998– |
| FIAT | 1.2 | PALIO (178_, 171_, 371_) | 178C4.066 | 60 | Petrol | 1997–2002 |
| FIAT | 1.2 | PALIO (178_, 171_, 371_) | 178B5.000 | 73 | Petrol | 1998– |
| FIAT | 1.2 | PALIO Weekend (178_, 173_, 373_, 374_, 171_) | 178B5.000 | 73 | Petrol | 1996–2004 |
| FIAT | 1.2 (178DYA1A, 178DXS1A) | PALIO Weekend (178_, 173_, 373_, 374_, 171_) | 188A4.000 | 60 | Petrol | 1997–2004 |
| FIAT | 1.2 (178DYA1A, 178DXS1A) | PALIO Weekend (178_, 173_, 373_, 374_, 171_) | 178C4.066 | 60 | Petrol | 1997–2004 |
| FIAT | 1.2 16V | MAREA (185_) | 182B2.000 | 82 | Petrol | 1998–2002 |
| FIAT | 1.2 16V | MAREA Weekend (185_) | 182B2.000 | 82 | Petrol | 1998–2002 |
| FIAT | 1.2 16V | PUNTO (176_) | 176B9.000 | 86 | Petrol | 1997–1999 |
| FIAT | 1.2 16V 80 | BRAVA (182_) | 182B2.000 | 82 | Petrol | 1998–2002 |
| FIAT | 1.2 16V 80 | BRAVA (182_) | 188A5.000 | 80 | Petrol | 2000–2001 |
| FIAT | 1.2 16V 80 | BRAVO I (182_) | 182B2.000 | 82 | Petrol | 1998–2000 |
| FIAT | 1.2 16V 80 | BRAVO I (182_) | 188A5.000 | 80 | Petrol | 2000–2001 |
| FIAT | 1.2 16V 80 (188.233, .235, .253, .255, .333, .353, .639,... | PUNTO (188_) | 188A5.000 | 80 | Petrol | 1999–2006 |
| FIAT | 1.2 60 | PUNTO Hatchback Van (188_) | 188A4.000 | 60 | Petrol | 2000–2009 |
| FIAT | 1.2 60 (188.030, .050, .130, .150, .230, .250) | PUNTO (188_) | 188A4.000 | 60 | Petrol | 1999–2010 |
| FIAT | 1.2 Bifuel | PUNTO (188_) | 188A4.000 | 60 | Petrol/Liquified Petroleum Gas (LPG) | 2007–2012 |
| FIAT | 1.2 Bipower (188BXA1A) | PUNTO (188_) | 188A4.000 | 60 | Petrol/Ethanol | 2001–2003 |
| FIAT | 1.2 Natural Power | PUNTO (188_) | 188A4.000 | 60 | Petrol/Compressed Natural Gas (CNG) | 2003–2012 |
| FIAT | 1.2 Natural Power (188BXA1A) | PUNTO (188_) | 188A4.000 | 52 | Petrol/Compressed Natural Gas (CNG) | 2004–2006 |
| FIAT | 1.2 Natural Power (188CXA1A) | PUNTO Hatchback Van (188_) | 188A4.000 | 60 | Petrol/Compressed Natural Gas (CNG) | 2003–2010 |
| FIAT | 1.3 | SIENA (178_, 172_, 372_) | 188A5.000 | 80 | Petrol | 2001–2009 |
| FIAT | 1.3 (178CXG1AAM, 178CXG1AAP, 178CXG1AAT) | SIENA (178_, 172_, 372_) | 178B5.000 | 73 | Petrol | 1998–2002 |
| FIAT | 1.3 (178CXS1AAI, 178BYA1AAT, 178CYA1AAT) | SIENA (178_, 172_, 372_) | 178C4.066 | 60 | Petrol | 2001–2012 |
| FIAT | 1.3 (178CXS1AAI, 178BYA1AAT, 178CYA1AAT) | SIENA (178_, 172_, 372_) | 188A4.000 | 60 | Petrol | 2001–2012 |
| FIAT | 1.3 (178DYE1A, 178DYE1AAP, 178DYE1AAT) | PALIO Weekend (178_, 173_, 373_, 374_, 171_) | 188A5.000 | 80 | Petrol | 2001–2004 |
| FIAT | 1.3 (178DYE1A, 178DYE1AAP, 178DYE1AAT) | PALIO Weekend (178_, 173_, 373_, 374_, 171_) | 178D6.011 | 80 | Petrol | 2001–2004 |
| FIAT | 55 1.1 | PUNTO (176_) | 176A6.000 | 54 | Petrol | 1993–1999 |
| FIAT | 55 1.1 | PUNTO (176_) | 176B2.000 | 54 | Petrol | 1993–1999 |
| FIAT | 60 1.2 | PUNTO (176_) | 176A7.000 | 58 | Petrol | 1994–1999 |
| FIAT | 60 1.2 | PUNTO Convertible (176_) | 176A7.000 | 58 | Petrol | 1994–2000 |
| FIAT | 60 1.2 (176AP, 176AR, 176AQ, 176BB) | PUNTO (176_) | 176B4.000 | 60 | Petrol | 1993–1999 |
| FIAT | 60 1.2 (176AP, 176AR, 176AQ, 176BB) | PUNTO (176_) | 176B1.000 | 60 | Petrol | 1993–1999 |
| FIAT | 60 1.2 (176AR_, 176BR_) | PUNTO Convertible (176_) | 176B1.000 | 60 | Petrol | 1995–2000 |
| FIAT | 60 1.2 (176AR_, 176BR_) | PUNTO Convertible (176_) | 176B4.000 | 60 | Petrol | 1995–2000 |
| FIAT | 75 1.2 | PUNTO (176_) | 176A8.000 | 73 | Petrol | 1993–1999 |
| FIAT | 85 16V 1.2 | PUNTO Convertible (176_) | 176B9.000 | 86 | Petrol | 1997–2000 |
| LANCIA | 1.1 (840AE) | Y (840_) | 176B2.000 | 54 | Petrol | 1995–2003 |
| LANCIA | 1.1 Fire (156AG) | Y10 (156_) | 176B2.000 | 54 | Petrol | 1995–1995 |
| LANCIA | 1.1 Fire All-wheel Drive (156AG) | Y10 (156_) | 176B2.000 | 54 | Petrol | 1995–1995 |
| LANCIA | 1.1 i.e. Fire (156AG) | Y10 (156_) | 156C.046 | 50 | Petrol | 1989–1995 |
| LANCIA | 1.1 i.e. Fire All-wheel Drive (156AG) | Y10 (156_) | 156C.046 | 50 | Petrol | 1992–1995 |
| LANCIA | 1.2 (840AA, 840AF1A) | Y (840_) | 840A3.000 | 60 | Petrol | 1996–2003 |
| LANCIA | 1.2 (840AA, 840AF1A) | Y (840_) | 188A4.000 | 60 | Petrol | 1996–2003 |
| LANCIA | 1.2 16V (840AD) | Y (840_) | 176B9.000 | 86 | Petrol | 1997–2003 |
| LANCIA | 1.2 16V (840AG1A) | Y (840_) | 188A5.000 | 80 | Petrol | 2000–2003 |
| LANCIA | 1.3 i.e. (156AF) | Y10 (156_) | 146A5.046 | 72 | Petrol | 1989–1995 |
| LANCIA | 1.3 i.e. (156AF) | Y10 (156_) | 156B.000 | 72 | Petrol | 1989–1995 |
