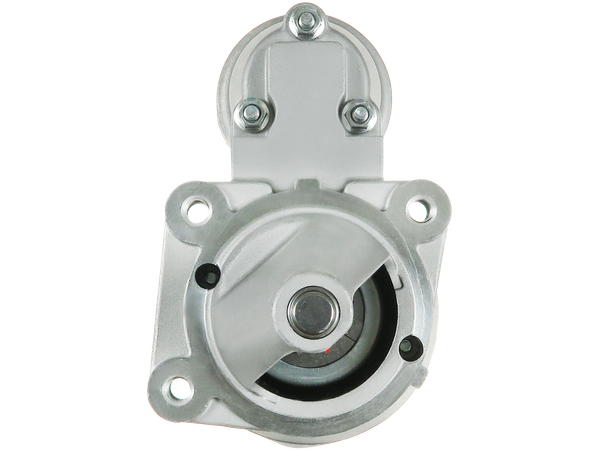

S4033
Startmotorer
STANDARD LINE
713 kr
Köp nu
| EAN | 5901259422719 |
| Tillverkare | AS-PL |
| Ersätter | MAGNETI MARELLI |
| OE-nummer | 63222908 |
| Datablad | Ladda ner PDF med skiss och mått |
Specifikationer
| Spänning [ V ] | 12 |
| Effekt [ kW ] | 0.80 |
| Startmotors rotation | CW |
| A-storlek [ mm ] | 62.00 |
| B-storlek [ mm ] | 13.00 |
| Antal kuggar [ qty. ] | 9 |
| Antal kuggar (passar in) [ qty. ] | 9 |
| Antal hål i huvudet [ qty. ] | 3 |
| Antal gängade hål [ qty. ] | 3 |
| L.1 [ mm ] | 207.00 |
| O.1 [ mm ] | 90.00 |
| O.2 [ mm ] | 53.00 |
| O.3 [ mm ] | 67.00 |
| C.1 [ mm ] | M8x1.25 |
| C.2 [ mm ] | M8x1.25 |
| C.3 [ mm ] | M8x1.25 |
Passar i 72 fordon
| Märke | Modell | Typ | Motor | Hk | Bränsle | År |
|---|---|---|---|---|---|---|
| AUTOBIANCHI | 0.9 | A 112 | A112A5.000 | 45 | Petrol | 1976–1978 |
| AUTOBIANCHI | 0.9 E | A 112 | A112A5.000 | 47 | Petrol | 1973–1977 |
| AUTOBIANCHI | 0.9 Junior | A 112 | A112A5.000 | 42 | Petrol | 1975–1985 |
| AUTOBIANCHI | 0.9 Junior | A 112 | A112B2.000 | 42 | Petrol | 1975–1985 |
| AUTOBIANCHI | 1.0 Abarth | A 112 | A112A1.000 | 58 | Petrol | 1971–1975 |
| AUTOBIANCHI | 1.0 Abarth | A 112 | A112A2.000 | 70 | Petrol | 1974–1984 |
| AUTOBIANCHI | 1.0 E,Elite,LX | A 112 | A112B1.000 | 48 | Petrol | 1977–1985 |
| FIAT | 0.9 | 127 (127_) | 100GL.048 | 40 | Petrol | 1971–1983 |
| FIAT | 0.9 (127A) | 127 (127_) | 100GL.000 | 45 | Petrol | 1971–1984 |
| FIAT | 0.9 (170AB) | CINQUECENTO (170_) | 170A1.000 | 41 | Petrol | 1991–1993 |
| FIAT | 0.9 (187AXA) | SEICENTO / 600 Hatchback Van (287_) | 1170A1.046 | 39 | Petrol | 1998–2010 |
| FIAT | 0.9 (187AXA, 187AXA1A) | SEICENTO / 600 (187_) | 1170A1.046 | 39 | Petrol | 1997–2008 |
| FIAT | 0.9 Fire S All-wheel Drive | PANDA (141_) | 146A.048 | 45 | Petrol | 1980–1986 |
| FIAT | 0.9 i.e. (170AC) | CINQUECENTO (170_) | 170A1.046 | 41 | Petrol | 1991–1994 |
| FIAT | 0.9 i.e. S (170AF, 170CF) | CINQUECENTO (170_) | 1170A1.000 | 40 | Petrol | 1991–1999 |
| FIAT | 0.9 i.e. S (170AF, 170CF) | CINQUECENTO (170_) | 1170A1.046 | 40 | Petrol | 1991–1999 |
| FIAT | 0.9 iE (170CF) | CINQUECENTO VAN (170_) | 1170A1.046 | 39 | Petrol | 1991–1998 |
| FIAT | 45 0.9 | UNO (146_, 158_) | 146A.000 | 45 | Petrol | 1983–1992 |
| FIAT | 45 0.9 | UNO (146_, 158_) | 146A1.000 | 45 | Petrol | 1983–1992 |
| FIAT | 45 0.9 | UNO Van (146_) | 146A1.000 | 45 | Petrol | 1988–1996 |
| FIAT | 45 0.9 | UNO Van (146_) | 146A.000 | 45 | Petrol | 1988–1996 |
| FIAT | 750 | PANDA Hatchback Van (141_) | 141B.000 | 34 | Petrol | 1986–1992 |
| FIAT | 800 | PANDA (141_) | 100GL6.000 | 34 | Petrol | 1981–1985 |
| FIAT | 900 | FIORINO (127_) | 100GL.000 | 45 | Petrol | 1977–1986 |
| FIAT | 900 | PANDA (141_) | 100GL3.000 | 45 | Petrol | 1980–1994 |
| FIAT | 900 | PANDA (141_) | 146A.000 | 45 | Petrol | 1980–1994 |
| FIAT | 900 | PANDA (141_) | 1170A1.046 | 40 | Petrol | 1992–1996 |
| FIAT | 950 | PANDA (141_) | A112B1.054 | 48 | Petrol | 1982–1983 |
| FIAT | 950 4x4 | PANDA (141_) | A112B1.054 | 48 | Petrol | 1983–1986 |
| INNOCENTI | Koral 45 | 100GL.064 | 0 | 1990–1992 | ||
| LANCIA | 0.9 Junior (A112B/2) | A 112 | A112A.000 | 40 | Petrol | 1981–1986 |
| LANCIA | 0.9 Junior (A112B/2) | A 112 | A112B2.000 | 40 | Petrol | 1981–1986 |
| LANCIA | 0.9 Junior (A112B/2) | A 112 | A112A5.000 | 40 | Petrol | 1981–1986 |
| LANCIA | 1.0 Abarth (A112B2/5) | A 112 | A112A2.000 | 69 | Petrol | 1978–1984 |
| LANCIA | 1.0 LX (A112) | A 112 | A112B1.000 | 48 | Petrol | 1984–1986 |
| SEAT | 0.8 | MARBELLA (28A) | 08NCA | 34 | Petrol | 1986–1993 |
| SEAT | 0.8 | MARBELLA Hatchback Van (028A) | 08NCA | 34 | Petrol | 1987–1993 |
| SEAT | 0.9 | FURA (25A) | 100GL7000 | 40 | Petrol | 1984–1986 |
| SEAT | 0.9 | FURA (25A) | HB90 | 43 | Petrol | 1982–1986 |
| SEAT | 0.9 | FURA (25A) | 09NCA | 40 | Petrol | 1984–1986 |
| SEAT | 0.9 | IBIZA I (21A) | 146A000 | 40 | Petrol | 1990–1993 |
| SEAT | 0.9 | IBIZA I (21A) | 146A000 | 44 | Petrol | 1986–1993 |
| SEAT | 0.9 | IBIZA I (21A) | 09NCA | 40 | Petrol | 1990–1993 |
| SEAT | 0.9 | MARBELLA (28A) | 09NCA | 40 | Petrol | 1987–1993 |
| SEAT | 0.9 | MARBELLA (28A) | 100GL7000 | 40 | Petrol | 1987–1993 |
| SEAT | 0.9 | MARBELLA Hatchback Van (028A) | 09NCA | 40 | Petrol | 1987–1993 |
| SEAT | 0.9 | PANDA (141A) | 100GL3000 | 42 | Petrol | 1980–1986 |
| SEAT | 0.9 | TERRA (24) | 09NCA | 40 | Petrol | 1987–1996 |
| SEAT | 0.9 | TERRA Estate Van (024A) | 09NCA | 40 | Petrol | 1987–1995 |
| SEAT | 0.9 Cat | MARBELLA (28A) | 100GL7000 | 40 | Petrol | 1990–1996 |
| SEAT | 0.9 Cat | MARBELLA (28A) | 08NCB | 41 | Petrol | 1996–1998 |
| SEAT | 0.9 Cat | MARBELLA (28A) | 09NCB | 40 | Petrol | 1990–1996 |
| SEAT | 0.9 Cat | MARBELLA Hatchback Van (028A) | 09NCB | 40 | Petrol | 1987–1993 |
| SEAT | 0.9 Cat | TERRA (24) | 09NCB | 40 | Petrol | 1992–1994 |
| SEAT | 0.9 Cat | TERRA Estate Van (024A) | 09NCB | 40 | Petrol | 1990–1995 |
| SEAT | 1.2 | IBIZA I (21A) | 021A1000 | 63 | Petrol | 1984–1993 |
| SEAT | 1.2 | IBIZA I (21A) | 021A1000 | 60 | Petrol | 1984–1993 |
| SEAT | 1.2 | MALAGA (23A) | 021A1000 | 60 | Petrol | 1985–1993 |
| SEAT | 1.2 | MALAGA (23A) | 021A1000 | 64 | Petrol | 1984–1993 |
| SEAT | 1.2 | RONDA (22A) | 021A1000 | 60 | Petrol | 1984–1986 |
| SEAT | 1.2 i | IBIZA I (21A) | 021C.1000 | 71 | Petrol | 1989–1993 |
| SEAT | 1.2 i | MALAGA (23A) | 021C.1000 | 71 | Petrol | 1989–1993 |
| SEAT | 1.5 | IBIZA I (21A) | 021A2000 | 85 | Petrol | 1984–1993 |
| SEAT | 1.5 | IBIZA I (21A) | 1500A | 87 | Petrol | 1986–1993 |
| SEAT | 1.5 | MALAGA (23A) | 021A2000 | 85 | Petrol | 1985–1993 |
| SEAT | 1.5 | RONDA (22A) | 021A2000 | 85 | Petrol | 1984–1986 |
| SEAT | 1.5 i | IBIZA I (21A) | 021B.2000 | 100 | Petrol | 1986–1993 |
| SEAT | 1.5 i | MALAGA (23A) | 021B.2000 | 100 | Petrol | 1987–1993 |
| SEAT | 1.5 i Cat | IBIZA I (21A) | 021C.2000 | 90 | Petrol | 1986–1993 |
| SEAT | 1.5 i Cat | MALAGA (23A) | 021C.2000 | 90 | Petrol | 1986–1993 |
| SEAT | 1.5 i Cat | MALAGA (23A) | 021A2000 | 90 | Petrol | 1986–1993 |
| SEAT | 1.5 i Cat | MALAGA (23A) | 021D.2000 | 90 | Petrol | 1986–1993 |
